AOpen I945GTm-VHL Manuel utilisateur

Chapter 1 Table of Contents

Chapter 1 Table of Contents..................................................................... 1

1.1 Disposal Instruction.....................................................................................4

1.2 A Thank-you Note Before You Get Start..........................................................6

1.3 Features of This Manual ...............................................................................7

1.4 Safety Information ......................................................................................7

Chapter 2 Introduction to This Motherboard ............................................... 8

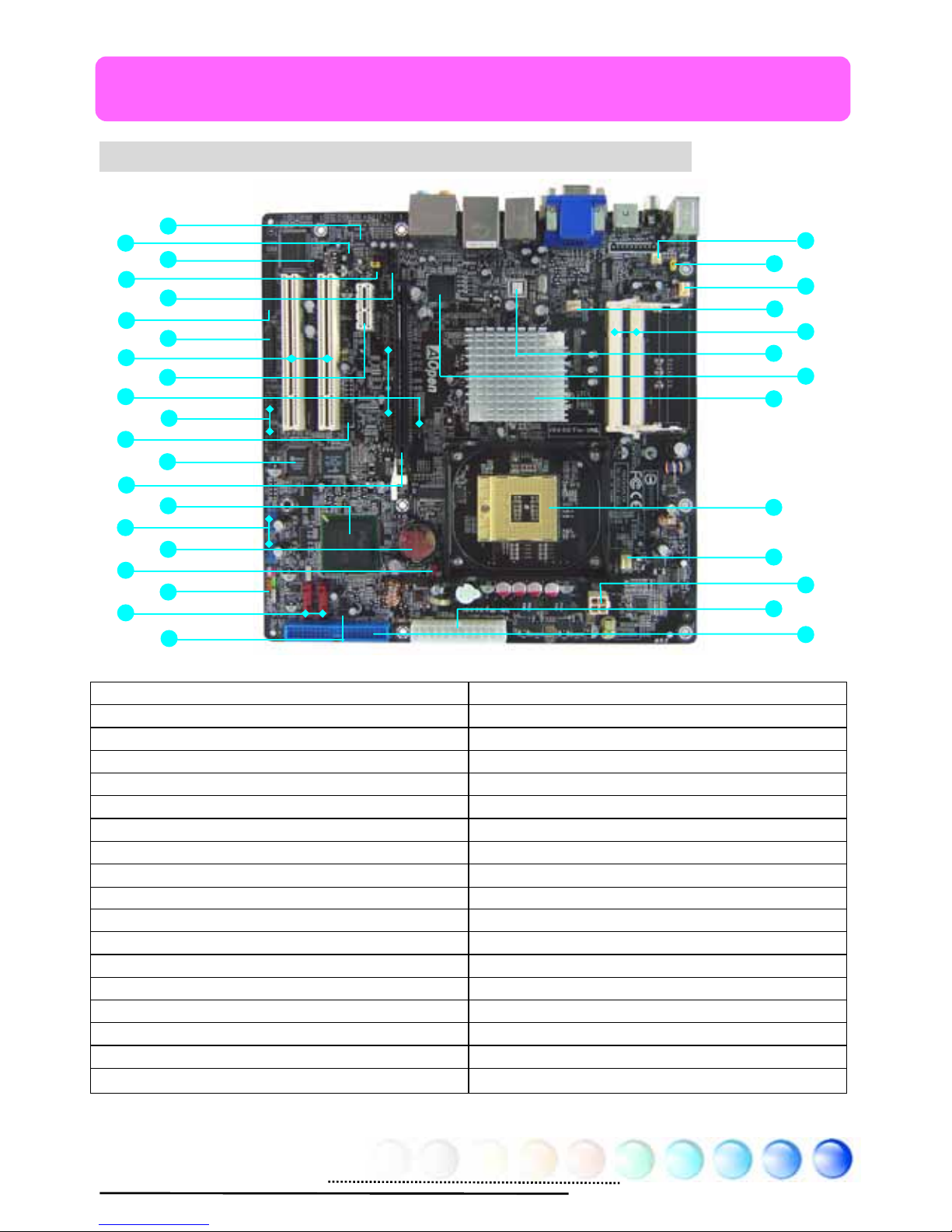

2.1 How does your motherboard look like?...........................................................8

2.2 Specification ...............................................................................................9

2.3 Block Diagram .......................................................................................... 10

Chapter 3 Hardware Installation ............................................................. 11

3.1 Quick Installation Procedure ....................................................................... 11

3.2 Installation You Have to Know..................................................................... 12

Installing CPU...........................................................................................12

Installing CPU Cooler .................................................................................13

Installing CPU and System Fans..................................................................16

Installing Memory Modules .........................................................................17

Maximum The Performance of the Dual Channel............................................18

Connecting IDE and Floppy Cables ..............................................................19

Connecting Front Panel Cable .....................................................................20

Connecting ATX Power Cables.....................................................................21

3.3 Other Installation for Your Reference ........................................................... 22

Setting CPU Frequency...............................................................................22

Connecting Serial ATA................................................................................23

Adjusting your Hard Disk Setting.................................................................24

Connecting PCI express x16 Graphics Slot....................................................25

Connecting PCI Express x 1 Slot..................................................................27

Connecting IrDA........................................................................................28

Tab

10/100/1000Mbps LAN Supported...............................................................29

Connecting USB2.0....................................................................................30

Connecting 1394.......................................................................................31

Super 7.1 Channel Audio Effect...................................................................32

Connecting Front Audio..............................................................................33

Connecting CD_IN.....................................................................................34

Connecting COM1/COM2 ............................................................................35

Connecting Case Open...............................................................................36

Connecting S/PDIF (Sony/Philips Digital Interface) ........................................37

3.4 Jumper Settings ........................................................................................ 38

Chapter 4 Special Features and Utilities................................................... 39

4.1 RAID (Redundant Array of Independent Disks).............................................. 39

Installation Raid driver under window installation..........................................39

4.2 Other Useful Features ................................................................................ 42

Chapter 5 Setting BIOS......................................................................... 43

5.1 Introduction ............................................................................................. 43

5.2 How To Use Phoenix-Award™ BIOS Setup Program ........................................ 44

5.3 How To Enter BIOS Setup........................................................................... 44

Standard CMOS Features ...........................................................................45

Advanced BIOS Features............................................................................47

Advanced Chipset Features.........................................................................48

Integrated Peripherals ...............................................................................49

Power Management Setup..........................................................................53

PC Health Status.......................................................................................55

Frequency/Voltage Control .........................................................................56

Load Optimized Defaults ............................................................................57

Set Supervisor Password............................................................................57

Set User Password.....................................................................................58

Save & Exit Setup .....................................................................................58

Exit without Saving ...................................................................................58

5.4 BIOS Upgrade under Windows environment.................................................. 59

Chapter 6 Installing Drivers ................................................................... 61

6.1 Installing Drivers....................................................................................... 62

6.2 Installing Utilities ...................................................................................... 64

6.3 Display output behavior ............................................................................. 65

Display output behavior .............................................................................66

Chapter 7 Troubleshooting..................................................................... 67

Chapter 8 Technical Support .................................................................. 68

Model Name and BIOS Version....................................................................69

Technical Support......................................................................................70

1.1 Disposal Instruction

Disposal Instruction (US)

For better protection of our earth, please don't throw this

electronic device into municipal trash bin when discarding. To

minimize pollution and ensure utmost protection of the global

environment, please recycle the product.

For more information about the collection and recycling of Waste

Electrical and Electronic Equipment (WEEE) , you are invited to

visit our homepage at www.aopen.com under “Green Products”.

Instruktion til bortskaffelse (Danish)

Af hensyn til vores miljø bedes De ikke bortskaffe denne elektroniske enhed i en

almindelig affaldsspand. For at mindske forurening og sikre beskyttelse af miljøet

bedes De genbruge produktet.

For yderligere information vedrørende indsamling og genbrug af elektronik-affald

(Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at

besøge vores website www.aopen.com og læse nærmere under "Green

Products".

Verwijderingsinstructie (Dutch)

Om mogelijke schade aan het milieu of de menselijke gezondheid door

ongecontroleerde afvalverwijdering te voorkomen, moet u dit elektronisch

product scheiden van andere soorten afval en op een verantwoorde manier

recyclen. Verwijder dit product dan ook alstublieft niet samen met ander

huishoudelijk afval.

Voor meer informatie over de verzameling en recycling van elektrisch afval en

elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te

bezoeken www.aopen.com onder "Green Products".

Instruction de Disposition (French)

Pour une meilleure protection de la terre, ne jetez pas ce dispositif électronique

dans la poubelle municipale lors de la disposition. Pour éliminer la pollution et

assurer la plus grande protection de l'environnement global, réutilisez s’il vous

plaît le produit.

Pour plus d'informations sur la gestion des déchets d’Equipements Electriques et

Electroniques (DEEE ou WEEE), vous êtes invité à visiter notre site à

www.aopen.com sous " Green Products".

Entsorgungsanleitung (German)

Zum besseren Schutze unseres Planeten, schmeissen Sie elektrische Geräte bitte

nicht in öffentliche Mülleimer. Zur Verringerung der Verschmutzung und zur

Sicherstellung grösstmöglichen Schutzes der Umwelt recyceln Sie bitte das

Produkt.

Für mehr Informationen zum Sammeln und Recyceln von elektrischen und

elektronischen Müll (WEEE) besuchen Sie bitte unsere Homepage unter

www.aopen.com unter dem Punkt "Green Products".

Istruzioni per lo smaltimento (Italian)

Per una migliore salvaguardia del nostro pianeta, si prega di non gettare questo

dispositivo elettronico nei normali rifiuti al momento dell'eliminazione. Per ridurre

al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si

prega di riciclare il prodotto.

Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle

apparecchiature elettriche ed elettroniche residue (WEEE), siete invitati a visitare

la nostra homepage www.aopen.com alla voce "Green Products".

Instruksjoner for Resirkulering og Oppsamling (Norweigian)

For ĺbeskytte vĺr planet, kast ikke dette elektroniske utstyret sammen med vanlig

avfall. For ĺbeskytte vĺr natur og miljř, vennligst resirkuler dette produktet.

For mer informasjon om oppsamling og resirkulering i henhold til Waste Electrical

and Electronic Equipment (WEEE), se vĺr hjemmeside pĺwww.aopen.com under

"Green Products".

REEE - Programa de Tratamento de Resíduos de Equipamentos Eléctricos

e Electrónicos (Portugese)

Para melhor protecção ambiental do nosso planeta terra, não coloque o

dispositivo electrónico no receptáculo de lixo municipal. Para minimizar a poluição

e garantir protecção máxima do ambiente global, recicle o produto.

Para mais informações sobre acerca da recolha e reciclagem de Equipamento

Eléctrico e Electrónico (WEEE), convidamos-lhe a visitar nossa página na Internet

em www.aopen.com sobre "Green Products".

Instrucciones para depositar los productos electrónicos (Spanish)

Para proteger mejor el medio ambiente, por favor, no deposite los productos

electrónicos en los contenedores de basura tradicionales. Para reducir la

contaminación y proteger el medio ambiente se recomienda que los recicle.

Para más información acerca de dónde depositar y cómo reciclar Equipos

Electrónicos y Desperdicios Electrónicos (WEEE), por favor, visite la página web

www.aopen.com y entre en la sección Productos Ecológicos (“Green Products”).

Kassering (Swedish)

För att bättre värna om vår jord bör denna elektroniska utrustning ej kasseras

tillsammans med vanligt avfall. För att minimera mängden föroreningar och så

långt som möjligt skydda den globala miljön bör produkten återvinnas.

För vidare information om insamling och återvinning av uttjänta elektriska och

elektroniska produkter (Waste Electrical and Electronic Equipment, WEEE), besök

avsnittet "Green Products" på vår hemsida, www.aopen.com.

1.2 A Thank-you Note Before You Get Start

First of all, we would like to express our gratitude for purchasing AOpen products.

Once again, this motherboard is designed uniquely to meet all your personal

needs with our great industry-designing ability and our everlasting perseverance

to the quality of all our products.

This manual will introduce you how this motherboard is installed. Please keep it

well for your future reference. If you lost your printed manual, you may also go to

our website at http://www.aopen.com to download the updated file.

Now, we would like to invite you to personally experience this user-friendly

manual and all of the powerful functions this AOpen product offers.

The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems

Incorporated.

The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro

Devices, Inc.

The logos of Intel, Intel Celeron, Pentium II, III, Pentium 4 and Pentium Mare the registered

trademarks of Intel Corporation.

The logos of nVidia are the registered trademarks of nVidia Corporation.

The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in

America and other countries.

All the titles of the products and the trademarks mentioned in this manual are for the

purpose of illustrative conveniences and are possessed by their respective firms.

We regret not informing about any changes in usage standards and other related

information. AOpen reserves the right of altering or modifying the content of this manual. In

case of any mistakes or incorrect descriptions, which include those on the products, AOpen

makes no guarantee or commitments.

This document is based on the copyright laws in order to protect our company and reserve

all rights.

Under no circumstances are any types of duplicating and loading this brochure in any

databases and media permitted except the permission signed on formal document by

AOpen Company.

1.3 Features of This Manual

To help you grab the useful information of this motherboard and aware of certain

conditions that you might need to know, you will see the icons below frequently:

1.4 Safety Information

This contains knowledge you should know in process

of assembling, or some helpful tips.

This tip tells you some useful information that will

make your installation smoothly.

Please be careful when you see this mark. It

highlights mistakes that occur often during

assembling, or something you need to pay attention

to.

Please wear a wrist strap and attach it to a metal part of the system unit

before handling a component. Alternatively, you can also touch an object

that is of ground connection or with metal surface.

Always unplug the power before you make any jumper setting.

Before you install or remove any components on the motherboard, please

make sure to disconnect the power first in case of damaging motherboard

or other components.

Note

Warning

Warning / Caution

Warning

Tip

Chapter 2 Introduction to This Motherboard

2.1 How does your motherboard look like?

L1. Onboard HD audio codec R1. Power Temperature Connector

L2. S/PDIF Connector R2. JP28 PS2 KB/Mouse Wakeup Jumper

L3. IRDA Connector R3. Power FAN1 power connector

L4. Front Audio Connector R4. System FAN1 power connector

5. CD-IN Connecto

R5. 200 Pins SODIMM x 2

L6. FDD Connector R6. Marvell PCIe gigabit Lan Chip(i945GMm-HL)

L7. Printer Connector R7. intel PCIe gigabit Lan(i945GTm-VHL)

L8. 32-bit PCI Expansion slot x 2 R8. intel 945GT/945GM north bridge

L9. PCI Express x1 Slot R9. Socket 479 for Yonah Core Duo/Solo CPU

L10. PCI Express VGA card enable jumper R10. CPU FAN power connector

L11. COM1+COM2 Connectors R11. 4 pins CPU power connector

L12. IEEE 1394 Connector R12. ATX power connector

L13. BIOS R13. IDE connector

L14. PCI Express x 16 Graphic expansion slot

L15. ICH7M/ICH7MRDH Southbridge

L16. USB 2.0 connectors L19. Front Panel connectors

L17. Battery L20. Serial ATA Port x 2

L18. JP14 CMOS clear Jumper L21. Case open connector

Chapter 2 Introduction to This Motherboard

i945GTm-VHL Picture

R10

R11

R12

R13

L11

L13

L15

L17

L19

L21

L10

L12

L14

L16

L18

L20

2.2 Specification

Here is the main function of your motherboard.

Models i945GTm-VHL I945GMm-HL

CPU

intel Yonah Core Duo/Core Solo CPU

Socket 479

533/667MHz

Chipset intel 945GT/ICH7MDH intel 945GM/ICH7M

Main

Memory

Dual Channel DDRII SODIMM x 2, DDRII400/533

DIMM Type : 256/512MB & 1GB SODIMM

Max Memory : 4GB

Graphics Integrated VGA Engine in Chipset

PCI Express x 16 Graphic Slot

IDE Integrated ATA100 and Serial ATA Controller

Max Disk: 144,000,000GB [by 48 bits LBA Spec.]

LAN intel Gigabit PCI Express LAN chip Marvell Gigabit PCI Express LAN Chip

Sound intel High Definition Audio on Board

Support 7.1 Channel and above

USB Integrated in chipset, USB 2.0 x 8

IEEE 1394 Agere 1394 Control Chip

Slots

PCI Express x16 Graphics Slot x 1

PCI Express x1 Slot x 1

PCI Slots x 3

Back Panel

I/O

USB Ports x 4, LAN Port x 1

VGA Port x 1, DVI Port x 1

Standard Video Port x 1

PS/2 Connector x 2

Analog S/PDIF audio connector x 1

Line_In x 1, Speaker_Out x 1, MIC_In x 1

Rear SUR x 1, Center/Subwoofer x 1, Side SUR x 1

On Board

Connector

Floppy Drive Connector x 1

IDE Channel: ATA100 x 1

Serial ATA Channel x 2

Front Panel x 1

Front Audio x 1

USB2.0 Connector x 4

CPU FAN x 1

System FAN x 1

Power FAN x 1

Power Temperature Connector x 1

Case Open Connector x 1

S/PDIF Connector x 1

CD_IN x 1

IrDA x 1

Printer Connector x 1

COM1 Connector x 1

COM2 Connector x 1

IEEE 1394 x 1

BIOS Award PnP 4Mb Flash ROM BIOS

Board Size 244 mm x 244 mm

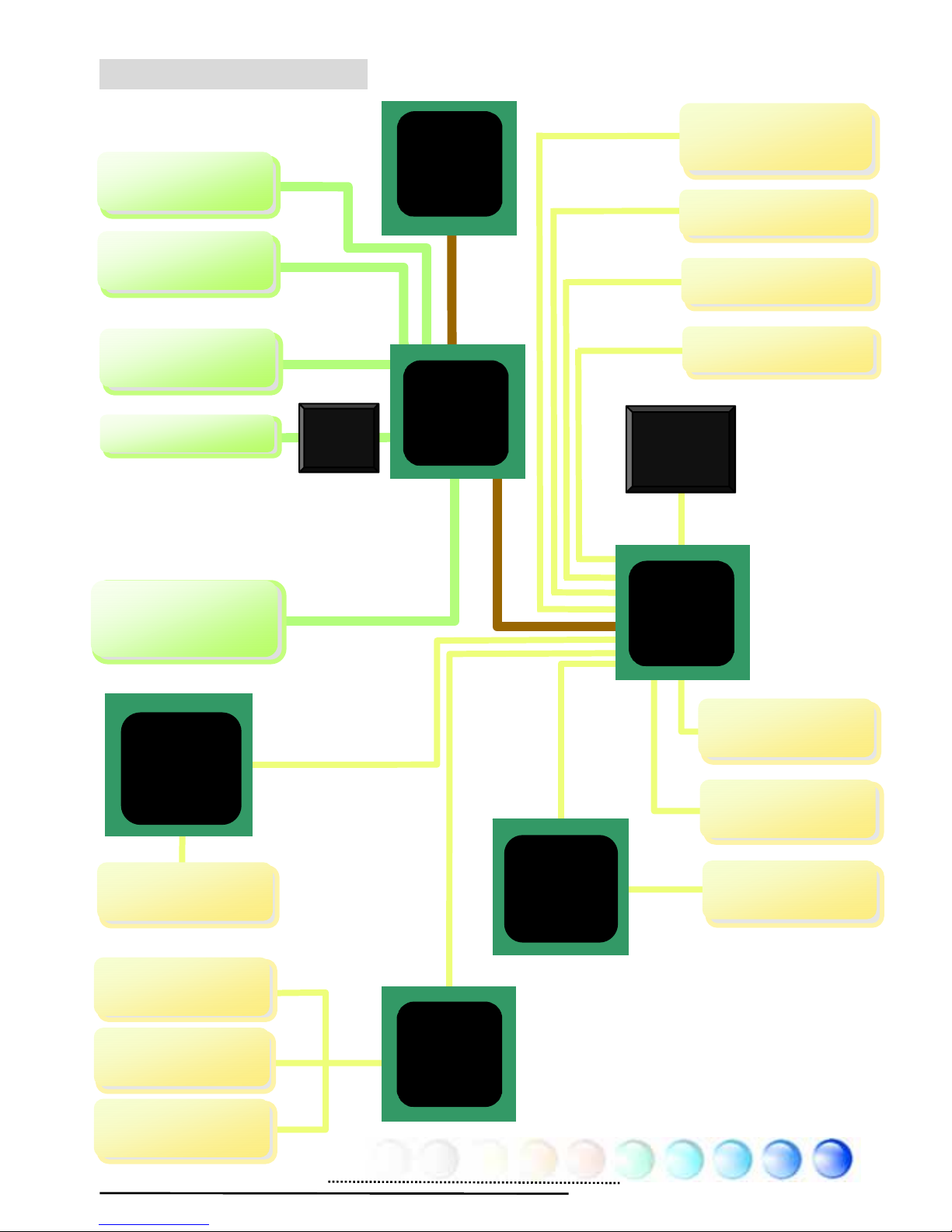

2.3 Block Diagram

Intel

945GT/945GM

Chipset

DDRII

SODIMM x 2 DDRII 400/533/667

RAM Up to 2GB

Socket 479

intel Yonah

Core

Duo/Solo

CPU

533/667MHz

System

Bus

VGA Onboard PCI Bus

RealTek

Azalia

CODEC

ATA

33/66/100

4Mbits Flash

EEPROM

USB Port x 8

PCI Express x 16

Gra

hics Slot

Marvell/intel

PCI Express

Gigabit LAN

Chip

LAN connect

Com

onent IEEE 1394 x 2

Agere

IEEE

1394

Controlle

Winbond

Super I/O

Parallel Port

Floppy Disk

Drive

Serial Port x2

ICH7M/

ICH7MDH

Serial ATA Port x 2

IDE Drives x 2

32-bit PCI Slot x 2

PCI Express x 1

Slot x 1

150MB/s

Standard Video

DVI Connector Chrontel

7307

500MB/s
