AOpen DXPS Fiche technique

EPS 12V 24-

in Power Connector

Intel®82551 10/100Mbps

Ethernet Controller

604-pin CPU Socket x2

FSB400/533MHz Intel®XeonTM CPU

Supported (FSB533 for DXPS-U /

DXPS Plus -U)

CPU Fan Connector with H/W

Monitoring x2

Server Works GC-SL Chipsets

North Bridge:Server Works GC-SL

184-pin DIMMx4 supports ECC DDR200

/ 266 maximum up to 4GB

Front Panel Connector

32bit/33MHz PCI Slot x2

Flash ROM BIOS

FDD Connector

in SCSI connector A

(

DXPS Plus/-U

)

CPU 2

stem Fan Connector

(

ins

)

RJ45 LAN

Jack

IDE Connector (IDE1)

stem Fan Connector

IPMI Board Connector

(Optional)

Adaptec AIC-7902W Ultra 320

SCSI Controller (DXPS Plus

/ DXPS Plus-U

)

TI Ra

eXL Controller

64bit/100MHz PCI Slot x3

IDE Connector (IDE2)

in SCSI connector B

(

DXPS Plus/-U

)

IPMB connector

Slim CD-ROM Connector (IDE2)

Slim FDD Connector

64bit/100MHz PCI Slot x1 with

ZCR Function Support

( DXPS Plus/DXPS Plus-U)

Intel®82545 GbE

Ethernet Controller

COM2 Connector

stem Fan Connector

USB Connector

stem Fan Connector

South Bridge: Server Works CSB5

CPU2 CPU1

SPP/EPP/ECP Parallel Port

COM 1 Port VGA Port

PS/2 Keyboard

Connector

EPS 12V 8-pin Power Connector

PS/2 Mouse

Connecto

USB1.1

Port

RJ45

100/10M

Port

1 GbE

Ethernet

Port

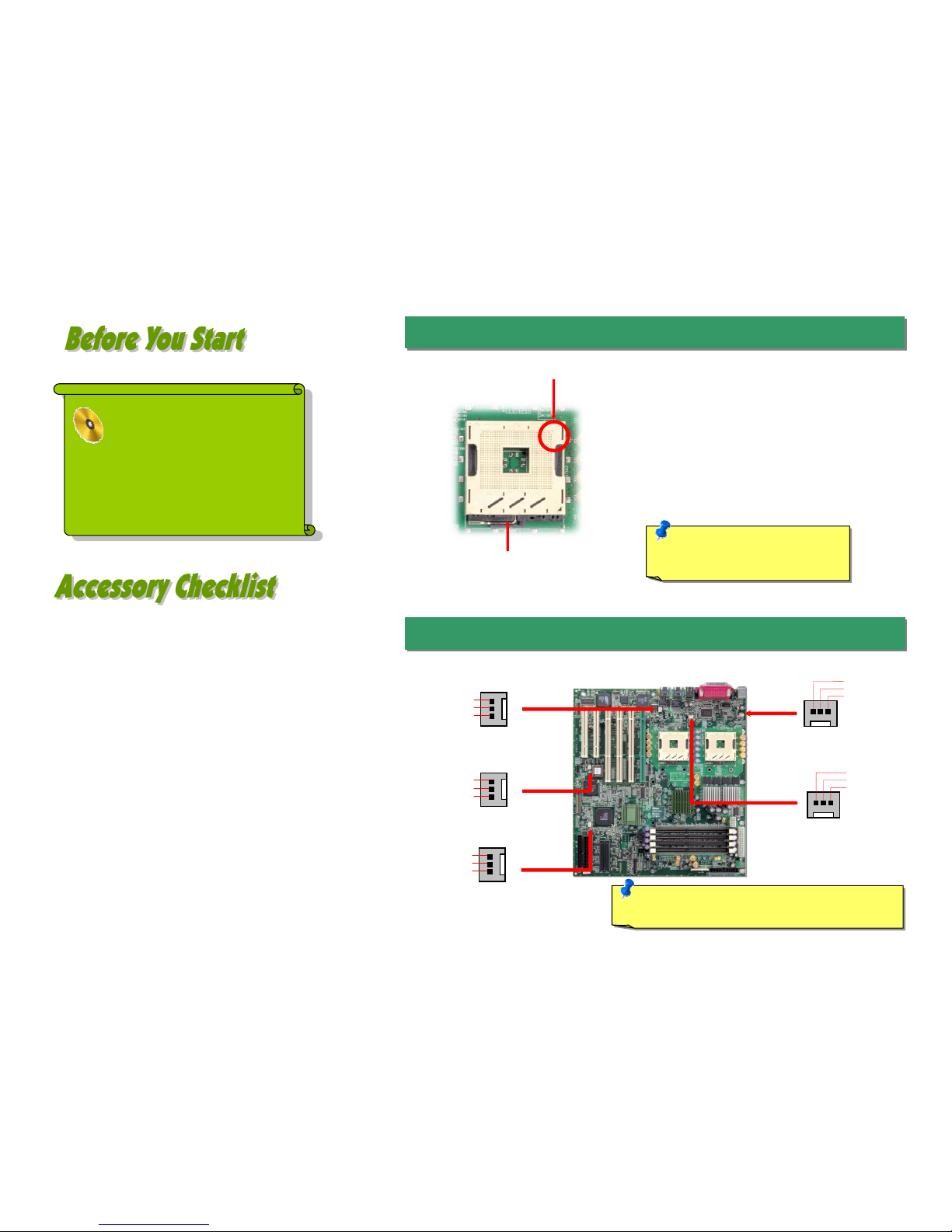

1. Installing CPU

2. Installing CPU & Housing Fan

Everything you need to boot

this motherboard is included in

this Easy Installation Guide.

For more information, a

complete Online User's Manual

can be found in the Bonus

Pack CD. Thanks for the help

of saving our earth.

PART NO: 90.51N30.002 DOC. NO: DXPSP-EG-E0209A

¾Screw Pack for I/O Port

¾Easy Installation Guide x 1

¾MB Layout and jumper setting sticker label x1

¾COM2 Cable x 1

¾Ultra320 SCSI Cable x 1 (DXPS Plus only)

¾Bonus Pack CD x 1

¾Norton Anti-Virus CD x 1

¾I/O Port Bracket x 1

¾Floppy/IDE Cable Package

¾Plate plastic for retention module assembly x2

¾User Manual x1

Plug in the CPU fan cable to the 3-pin CPU FAN connector and housing fan cable to the HFan

connectors.

1. Pull up the CPU socket lever and up to

90-degree angle.

2. Locate Pin 1 in the socket and look for a

(golden) cut edge on the CPU upper interface.

Match Pin 1 and cut edge. Then insert the

CPU into the socket.

3. Press down the CPU socket lever and finish

CPU installation.

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge

well, it may damage the CPU.

CPU Pin 1 and cut edge

CPU socket lever

Note: Some CPU fans do not have sensor pin, so that

cannot support fan monitoring.

GND

+12V

SENSOR

CPU Fan 1

HFan 2

SENSOR

+12V

GND

HFan 1

SENSOR

+12V

GND

HFan 3

SENSOR

+12V

GND

+12V

SENSOR

CPU Fan 2

2 1

This motherboard has four 184-pin DIMM sockets that allow you to install PC200/266

Registered memory up to 4.0GB.

5. Connecting 68pin Ultra320 SCSI Cable (DXPS Plus/-U)

3. Install DIMM Modules

DIMM 1

DIMM 2

DIMM 3

DIMM 4

4. Connecting ATX Power Connector

This motherboard comes with a 24-pin and 8-pin ATX power connector. Make sure you

plug in the right direction. We strongly recommend you to connect the 8-pin 12V ATX

connector before connecting the 24-pin ATX power connector

6. Connecting IDE and Floppy Cables

The DXPS Plus provides two 68-pin Ultra320 SCSI connectors for 16-bit or 16-bit differential SCSI

devices. The Adaptec AIC-7902W controller provides 320MB/sec maximum data throughput per

channel available.

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE

connector. Pin1 of cable is normally marked with red color. Addition to normal connectors,

we provide you a slim type IDE2 connector and a slim type FDD connector. Please be

informed that DO NOT connect Secondary IDE Slim connector and Secondary IDE

Connector at the same time. As well as DO NOT connect FDD connector and slim FDD

connector at the same time.

FDD

Connector

Primary IDE Channel

Secondary IDE Channel

Secondary IDE Slim

Connector Slim FDD

Connector

+3.3V

-12V

Ground

PS_ON

Ground

+5V

Ground

+3.3V

Ground

+5V

Ground

+5V

Ground

PWR_OK

+5Vsb

+12V

+3.3V

Ground

+12V

2 1

DCD#

SOUT

GND

RI#

RTS#

8. Connecting COM2 Connector

9. Connecting Front Panel Connector

Attaching such as power switch, reset switch, HDD LED connector, etc.… to

corresponding pins.

10. Connecting IPMB Connector

IPMB offers good support for communication with on-board devices that are accessed

on an occasional basis. IPMB's competitive advantage over other low-speed

short-distance communication schemes is that its cost and complexity don't scale up

with the number of devices on the bus. The IPMB connector comes with foolproof

design, please connect it with correct orientation.

This motherboard comes with a COM1 connector on the back panel. However, we

provide an extra COM2 connector for your convenience. Once you need to connect a

device via COM2, just connect a suitable cable on it.

7. ZCR (Zero Channel RAID) Function (DXPS Plus/-U)

A ZCR card is a PCI card that allows a RAID card to use the onboard SCSI chip, thus

lowering cost of RAID solution. A "Zero-channel" RAID adapter is a PCI RAID

controller that doesn't have any SCSI channels on board. Instead, it is designed to

use the on-board SCSI channels of the motherboard to implement a cost-effective

Hardware RAID solution. Please be informed that only the first PCI slot supports

ZCR function. (DXPS Plus/DXPS Plus-U)

IPMB Connector

ATX

Power Switch

Power

LED

Chassis

Intrusion Senso

Reset Switch

HDD

LED

21 22

COM2

Connector

SIN

DTR#

DSR#

CTS#

1 2

13. Support 10/100 Mbps and 1Gbps LAN onboard

14. Connecting IPMI connector (Optional)

11. PC99 Color Coded Back Panel

12. JP1 Check Password Jumper

This motherboard provides check password function. You can use JP1 to enable or

disable this function, which could prevent your system from unauthorized invasion. The

factory default setting is set to “Disable”(2-3), and you may enable this function by setting

the jumper to 1-2.

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, COM1, VGA, Printer and

USB1.1. The view angle of drawing shown here is from the back panel of the housing.

The Intel 82545EM integrates Intel’s fourth-generation Gigabit MAC design with fully

integrated, physical-layer circuitry to provide a standard IEEE 802.3 Ethernet interface for

1000BASE-T and 100BASE-TX applications. The left green LED indicates the link mode,

it lights when linking to network and blinking when transferring data. The right green LED

indicates the transfer mode, and it lights when data is transferring in 1Gbps/100Mbps

mode.

Green/ACT

Green/Speed

Green/ACT

Green/Speed

100/10Mb Ethernet Port

1Gb Ethernet Port

Intelligent Platform Management Interface (IPMI) is a hardware level interface

specification, defines a message-based interface to platform monitoring and control

function. IPMI’s monitoring abilities enable user to monitor server physical health

characteristics such as temperature, voltage, fans, power supplies and chassis.

(Optional)

JP1 Check Password Jumper

PS/2 Keyboard: For standard keyboard, which is using a PS/2 plug.

PS/2 Mouse: For PC-Mouse, which is using a PS/2 plug.

USB Port: Available for connecting USB devices.

Parallel Port: To connect with SPP/ECP/EPP printer.

COM1: To connect with pointing devices, modem or others serial devices.

VGA Connector: To connect with PC monitor.

1GbE Ethernet Port: To connect RJ-45 Ethernet Cable.

RJ45 10/100 Port: To connect RJ-45 Ethernet Cable.

SPP/EPP/ECP Parallel Port

COM 1 Port VGA Port

PS/2 Keyboard

Connector

PS/2 Mouse

Connecto

USB1.1

Port

RJ45

100/10M

Port

1 GbE

Ethernet

Port

Pin1

17. Comparison Table

After you finish the setting of jumpers and connect correct cables. Power on and

enter the BIOS Setup, press <Del> during POST (Power On Self Test). Choose

"Load Default Settin

" for recommended o

timal

erformance.

Del

16. Power-On and Load BIOS Setup 18.Model name and BIOS version

DXPS R1.00 Sep. 10. 2002 AOpen Inc.

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

DXPS is the model name of the motherboard; R1.00 is BIOS version

15. Support the 2nd USB1.1 Channel

This motherboard provides two USB channels to link USB devices, such as mouse,

keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You

can use proper cable to connect other USB connectors to the back panel or front panel of

chassis.

USBPWR0

USB_FP_P0-

USB_FP_P0+

GND

KEY

USBPWR0

USB_FP_P1-

USB_FP_P1+

GND

1 2

Compare/Model Key Chip (North Bridge) CPU Support (Dual CPU)

DXPS Server Works

GC-SL(FSB:400MHz)

Support Intel Xeon 1.8 GHz

above (FSB:400MHz)

DXPS Plus

(With SCSI)

Server Works

GC-SL(FSB:400MHz)

Support Intel Xeon 1.8 GHz

above (FSB:400MHz)

DXPS-U Server Works

GC-SL(FSB:533MHz)

Support Intel Xeon 1.8 GHz

above (FSB:400/533MHz)

DXPS Plus-U

(

With SCSI

)

Server Works

GC-SL(FSB:533MHz)

Support Intel Xeon 1.8 GHz

above (FSB:400/533MHz)

The comparison table below will show the differences between DXPS series

motherboards.

If you encounter any trouble to boot you system, follow the

procedures accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on PCI slot or on component side of PCB. For

example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Part No. Serial No.

Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your monitor is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 2000.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com/tech/download/manual/default.htm

Test Report: We recommend choosing board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com/tech/download/default.htm

News Group: Our support engineer or professional users on the news

group probably had answered your problem.

http://www.aopen.com/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem efficiently and provide important

reference for you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

phone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

AOpen Technical Supporting Team

Web Site: english.aopen.com.tw

E-mail: Send us email by going through the contact form below.

English http://english.aopen.com.tw/tech/default.htm

Japanese http://www.aopen.co.jp/tech/default.htm

Chinese http://www.aopen.com.tw/tech/default.htm

German http://www.aopencom.de/tech/default.htm

Simplified Chinese http://www.aopen.com.cn/tech/default.htm

Pacific Rim

AOpen Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5899

Europe

AOpen Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

AOpen Computer GmbH.

Tel: 49-1805-559191

Fax: 49-2102-157799

China

艾爾鵬國際貿易(上海)有限公司

Tel: 86-21-6225-8622

Fax: 86-21-6225-7926

Japan

AOpen Japan Inc.

Tel: 81-048-290-1800

Fax: 81-048-290-1820

America

AOpen America Inc.

Tel: 1-510-489-8928

Fax: 1-510-489-1998

Autres manuels pour DXPS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AOpen Carte mère

AOpen

AOpen MX36 Guide de configuration

AOpen

AOpen AX45S-533 Guide de configuration

AOpen

AOpen i945GTm-VHL Fiche technique

AOpen

AOpen AX45-533 PLUS Guide de configuration

AOpen

AOpen AX5T Manuel utilisateur

AOpen

AOpen MX4SGI-4DL Fiche technique

AOpen

AOpen AX4B-533 Plus Fiche technique

AOpen

AOpen MX46-800N Guide de configuration

AOpen

AOpen X59PRO Manuel utilisateur

AOpen

AOpen i915Ga-E Manuel utilisateur

AOpen

AOpen AX6BC Pro Gold Guide de configuration

AOpen

AOpen MX4SGI-L Fiche technique

AOpen

AOpen AX45-8X Max Guide de configuration

AOpen

AOpen AK77-8X Guide de configuration

AOpen

AOpen 1AK79G-V Guide de configuration

AOpen

AOpen vK8T800a-LF Manuel utilisateur

AOpen

AOpen AX4R Plus Guide de configuration

AOpen

AOpen MX4SG-N Fiche technique

AOpen

AOpen AX4SG-GN Fiche technique

AOpen

AOpen AX64 PRO Guide de configuration

AOpen

AOpen XC CUBE UX915G Manuel utilisateur

AOpen

AOpen MK7A Fiche technique

AOpen

AOpen AX4GE Max Guide de configuration

AOpen

AOpen MK77M-8XN Fiche technique

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
