MB-1 MOBILE FOG MACHINE

User Manual

- ENGLISH

- ENGLISH-

Safety Information

Please read the following safety information carefully before operating the

machine. This information includes important safeguards about installation,

usage, and maintenance. Pay attention to all warning labels and instructions in

this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local

Antari dealer for help.

․ Keep this device dry.

․ Always connect to a grounded circuit to avoid risk of electrocution.

․ Do not operate if power cord is damaged. If power cord is damaged, replace it

immediately with a new one of same power rating.

․ Remove the machine from battery or power adaptor before servicing and when not in

use.

․ This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,

remove machine from battery or power adaptor and clean with a damp cloth. If fluid is

spilled onto electronic parts, immediately unplug the machine and contact your local

Antari dealer for advice.

․ No user serviceable and modifiable parts inside. Never try to repair this product, an

unauthorized technician may cause damage or malfunction to the machine.

․ For adult use only. Never leave the machine running unattended.

․ For persons with reduced physical, sensory or mental capabilities or lack of experience

and knowledge, supervision or instruction must be given concerning use of appliance

in a safe way and understand the hazards involved.

․ Install the machine in a well-ventilated area. Provide at least 50 cm space around the

machine.

․ Never add flammable liquid of any kind to the machine.

․ Make sure there are no flammable materials close to the machine while operating.

․ Only use Antari fluid. Other fluid may lead to heater clog and malfunction.

․ If the machine fails to work, unplug the machine and stop operation immediately.

Contact your local Antari dealer for advise.

․ Before transporting the machine, make sure the fluid tank is completely drained.

․ Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely.

In case of eye contact or if fluid is swallowed, immediately look for medical advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to

ensure that all parts are present and have been received in good condition. If any parts

appear damaged or mishandled from shipping, notify the shipper immediately and retain the

packing material for inspection.

What is included: 1 x MB-1 Fog Machine

1 x Battery

1 x Battery charger

1 x FLM-05S water-based liquid

1 x User Manual

1 x Flightcase

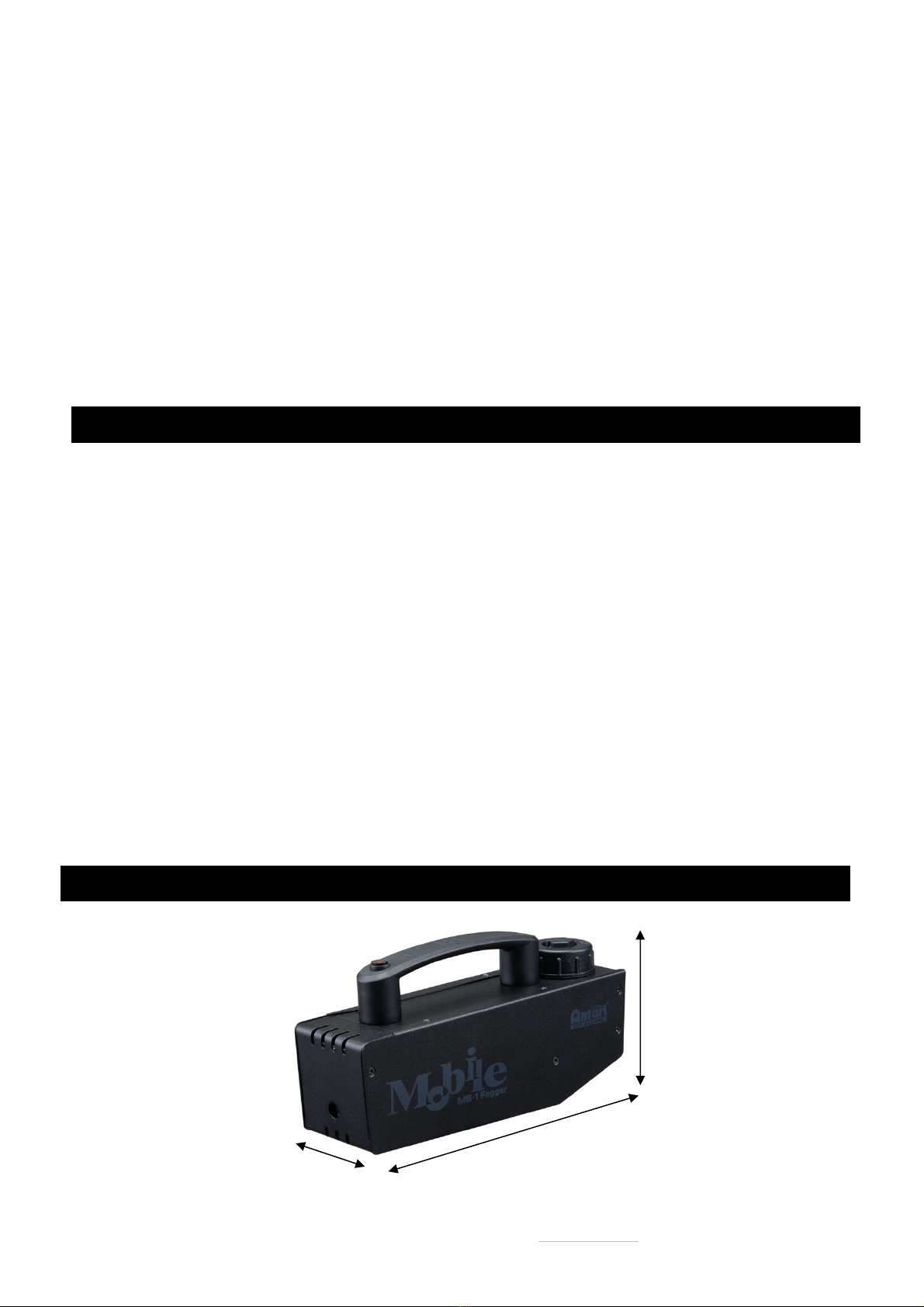

Product Dimensions

228 mm

112 mm

66 mm

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm

of open space around the machine.

Step 2: Fill the fluid tank with Antari FLM-05S fluid.

Step 3: Charge the battery by plugging the charger adaptor into a grounded electrical

outlet. Yellow light on the adaptor indicates charging, when it turns green then the charge

complete. Please note the battery requires 3 hours charge time.

Mode Switch

ON / OFF Switch Control

Fog Output Nozzle

S-Terminal Connector

Volume Switch

Plug in the charger

Yellow indicates charging

Green indicates charging

complete

Always connect the machine to a protected circuit and ensure it is properly

grounded to avoid risk of electrocution.

Step 4: Slide in the battery into bottom of MB-1 with label face up. Turn on the machine to

start operation.

Pull to release locking lever

Step 5: To start making fog, press the button to start making fog, release to stop.

Step 6: To turn off the machine, remove battery from machine.

Operation

Control Panel Operation

The machine can be operated with the On/Off button and output level can be adjusted from

the switch located on the side. When using MOMENTARY Mode press and hold the button

to make fog, release to stop. In LATCHING Mode, press button once to produce fog, press

again to stop.

MCT-2 Cable Timer Remote Operation (Optional)

To operate the machine by remote control, connect the remote to the S-terminal connector

located on the side of machine. Use the switch to turn fog on/off, and use the rotary knob to

adjust the interval and duration time.

MCR-1F Wireless Operation (Optional)

W-1 Wireless Transmitter

Wireless remote control system MCR-1F consists of a transmitter equipped with two buttons to

activate and deactivate fog output with an external receiver connect to the side of MB-20 fog

machine.

Press [A] button to emit fog.

Press [B] button to stop.

In a an unobstructed open space the effective distance is 50 meters, usage depending on

obstacle level has an effective distance is 10-25 meters.

Registering a transmitter

Transmitters can be paired from the receiver. Each receiver can pair up to 5 transmitters.

Follow the steps below to pair or delete a transmitter from a receiver.

To Pair

Step 1: Connect receiver to S-terminal connector located on the side of machine

Step 2: Press and hold [A] to pair

Transmitter battery replacement

If the effective distance seems to decrease, it is possible the battery level is low and

requires replacement. In order to replace the battery, undo the three screws on the back of

transmitter to release the cover. Replace with the same type and specification of battery

which is 27A 12V

DCP-12 Power Adaptor and Dummy Battery (Optional)

Use dummy battery for continuous operation. Slide in dummy battery into bottom of MB-1

machine. Connect the battery with power adaptor. Follow operation instruction above to

operate.

Fluid

Only use Antari FLM-5S water-based liquid for the MB-1 Fog Machine.

The machine is tested and calibrated with this liquid to get the best output

performance. Warranty will be voided if any other type of liquid is used.

Improper use of liquid may lead to machine failure or malfunction.

Service and Maintenance

․ Do not allow the machine to become contaminated.

․ Remove dust from air vents with air compressor, vacuum or a soft brush.

․ Only use a damp cloth to clean the casing.

․ Before storing run distilled water through the system to help avoid condensing the

pump or heater.

․ It is recommended to run the machine on a monthly basis in order to achieve best

performance and output condition.

․ Excessive dust, liquid and dirt built up will degrade performance and cause

overheating.

․

Maintenance of Rechargeable lead-acid Battery

․

To give the rechargeable battery long lifespan and best performance, please follow below

instructions:

! Please fully charge the battery upon receipt of the machine.

! Every 2-4 weeks, check and ensure the battery has sufficient power to work. At least

charge the battery to full every 4-6 months.

! Before storage, please have the battery fully charged.

! Please store the fully charged battery and the machine in cool and dry area, avoid

directly sunlight.

! Please charge the battery within 24 hours if the battery is going to run out of power.

! If you have any question on maintenance and usage, please contact your local dealer

for advice.

Technical Specifications

- Input voltage

- Rated power

- Warm-up time

- Fluid consumption

- Fluid tank capacity

- Compatible fluid

- Ambient temp. range

- Control

- Optional accessories

- Dimension

- Weight

DC 12V (Battery)

AC 100-240V, 50-60Hz (Battery charger)

75W

1 second (approx.)

1.1 ml/min

110 ml (0.03 gal)

Antari FLM-5S Fog Fluid

0 °C - 40 °C (32 °F-104 °F)

Manual

Wireless (Optional)

Timer (Optional)

MCR-1F Wireless Remote

MCT-2 Cable Timer Remote

DCP-12 Power Adaptor and Dummy Battery

L 228 W 66 H 112 mm

(L8.98 W2.60 H4.41 inch)

1.8 kg (3.97 lbs)

1 kg (2.2 lbs) without battery
