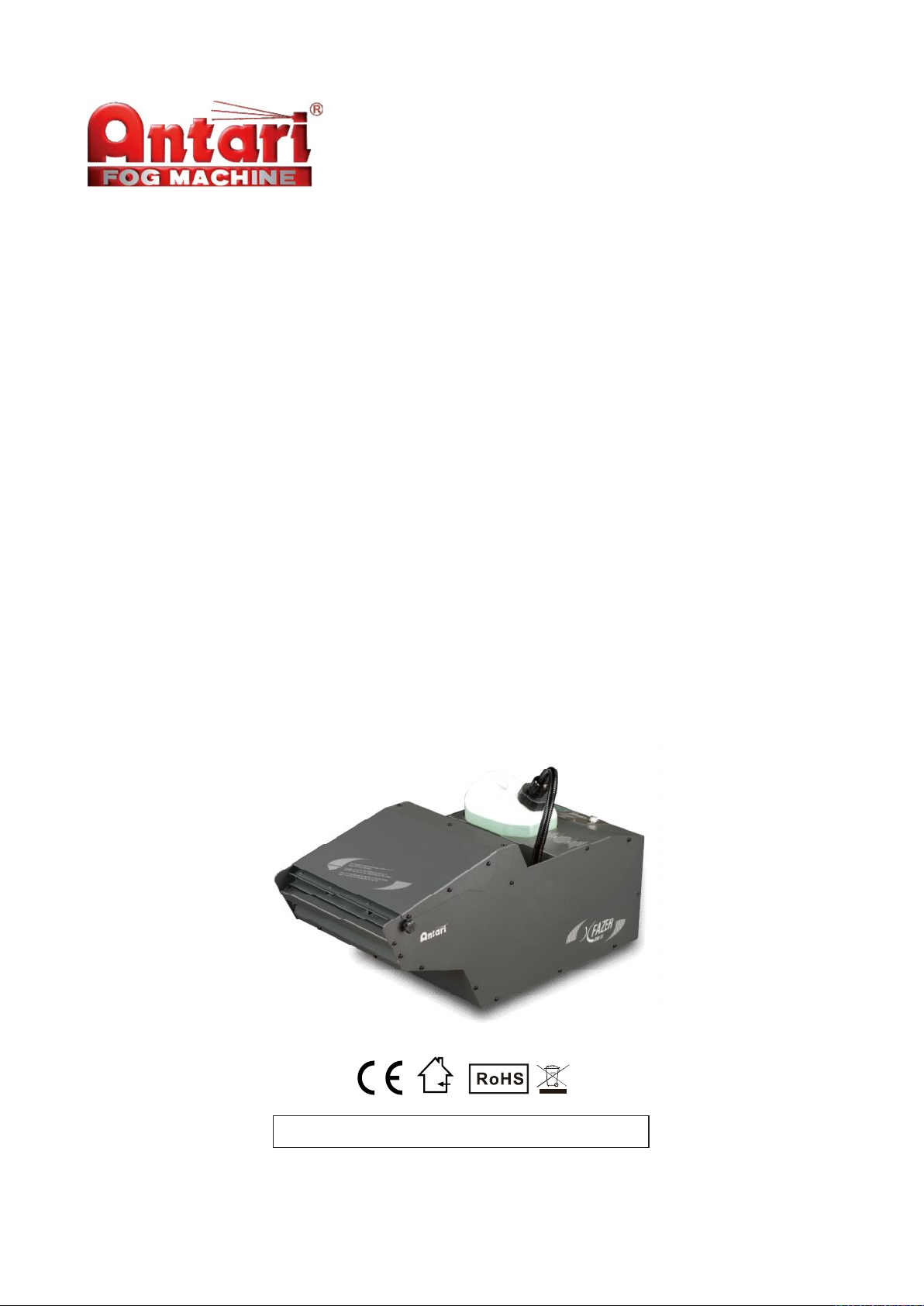

Antari Fazer X-310 PRO Manuel utilisateur

X-310 PRO

Faze Machine User Manual

EnglishFrançaisDeutsch•••中文

Congratulations on the purchase of your new

ANTARI X-310PRO Fazer

-Introduction

Thank you for choosing an ANTARI X-310PRO Fazer. You now own a rugged and powerful

state-of-the-art machine. Besides its ability to operate silently, this new model is user-friendly in

terms of controlling and operating. In addition, for Antari X-310PRO it is W-DMX compatible. Prior

to use, we suggest that you carefully read all of the instructions. By following the suggestions

found in this user manual, you can look forward to the reliable and satisfactory performance of

your ANTARI Fazer Machine for years to come.

Cautions

Risk of electric shock. Disconnect the unit from the electric supply before removing the cover.

Note: there are no user serviceable parts inside. Contact authorized Antari dealers or qualified

technicians for assistance.

Please follow these operation, safety and maintenance instructions to ensure a long and safe life

for your fog machine.

-Important Safeguards

-Danger of Electric Shock

Keep this device dry.

For inside use only. Not designed for outside use.

For all models, machıne must be earthed. Prior to use take care to determine that the unit is

installed at the rated voltage.

Always unplug your ANTARI Fog Machine before filling its tank.

Keep fog machine upright.

Unplug the machine when not in use.

This machine is not water- or splash-proof. If moisture, water, or fog liquid gets inside the

housing, immediately unplug the unit and wipe off the moisture and keep it dry.

-Danger of Burns

Structural modification inside the machine is not allowed at anytime. Please do not attempt

to modify the machine by removing the cover, otherwise burns may result.

For adult use only. Never leave the unit running unattended.

Never aim the output nozzle directly at people.

Machine will warm up when operating, locate the fog machine in a well-ventilated area.

Never cover the unit's vents. In order to guarantee adequate ventilation, allow a free air space

of at least 30 cm around the sides and top of the unit.

Never aim the output nozzle at open flames.

Always allow your ANTARI X-310PRO Fazer to cool down before attempting to clean or service

it.

-Danger of Explosion

Never add flammable liquids of any kind (oil, gas, perfume) to the fog liquid.

Use only the high-quality, water-based ANTARI recommended FLG fog liquid. Other fog liquids

may cause clogging or damage the internal parts.

Always make sure there is sufficient liquid in the fog liquid tank. Operating this unit without

liquid will cause overheating.

If your ANTARI Fog Machine fails to work properly, discontinue use immediately.Drain all fog

liquid from the tank, pack the unit securely (preferably in the original packing material), and

return it to your ANTARI dealer for service.

Always drain tank before mailing or transporting this unit.

Never drink fog liquid.If it is ingested, call a doctor immediately.If fog liquid comes in contact

with skin or eyes, rinse thoroughly with water.

Important:

Pay attention to all warning labels and instructions printed on the exterior of your ANTARI

X-310PRO Fazer.

-Unpacking & Inspection

Open the shipping carton and verify that all equipment necessary to operate the system has

arrived intact.

Before beginning initial setup of your ANTARI Fazer Machine, make sure that there is no evident

damage caused by transportation. In the event that the unit's housing or cable is damaged, do not

plug it in and do not attempt to use it until after contacting your ANTARI dealer for assistance.

-Packaging

The shipping carton should include the following items:

1. X-310PRO Fazer machine with power cable

2. X-10PRO Control module

3. Fluid tank

4. User manual

Optional Accessories:

1. X-30PRO Wireless Control Module

2. FX-310 X-310PRO Flightcase

-Setup

1. Remove all packing materials from shipping box. Check that all foam and plastic padding is

removed, especially in the nozzle area.

2. Place fog machine on a flat surface and remove fog liquid tank cap.

3. Fill with only Antari Fog Fluid. Antari X-310PRO Fazer only works with uncontaminated Antari

FLG Fog Fluid. Other fluids may cause spitting and serious clogging problem and could result

in the production of an unhealthful fog. The use of other fluids will void the warranty of the

Antari X-310PRO Fazer. When filled, place cap back on liquid tank.

-Operation

1. The plug is at a position that is accessible when the machine is in use.

2. Plug power cord into a grounded electrical outlet. Turn power switch on rear of unit to "

ON" position. Warm-up is complete after approx. 8 minutes when the display on the control

module indicates "Ready to Fazer”.

3. To emit fog, please set the desired settings on your X-10PRO Control Module for interval,

duration, and press the appropriate button on the control module for the desired

length of time.

4. The control unit's display will cycle "Warming up" and "Ready to Fazer" while the machine

re-heats to the proper operating temperature.

5. When the fluid is running low, the LED inside the tank chamber starts blinking for two minutes

and then stops the operation to protect the pump from running dry.

6. The “Fanleaf” design can be adjusted by the pump-type screws on both sides to position the

faze output angle. In general, the haze produced from the X-310PRO Fazer is

semi-transparent due to fan spread. Thus, it is best to position it on the low ground and let it

produce haze upwardly to have ideal coverage.

7. For further information on operating your ANTARI X-310PRO Fazer, see the section titled,

"Control Module Operation" on page 4.

Caution: "Visibility during operation is reduced"

Important:

Always monitor tank fluid level as you are fogging. Running a fog machine with no fluid can

permanently damage the pump.

If you experience low output, pump noise or no output at all, unplug immediately. Check fluid level,

the external fuse, control module connection, and power from the wall. If all of the above appears

to be O.K., plug the unit in again. If fog does not come out after holding the button down for

MANUAL

30 seconds, check the hose attached to the tank to make sure there is fluid going through the hose.

If you are unable to determine the cause of the problem, do not simply continue pushing the

control module button, as this may damage the unit. Return the machine to your ANTARI dealer

immediately.

-Antari X-10PRO Control Module Operation

X-10PRO: The X-PRO is a 2-meter wired multifunction remotecontrol module with 5-pin XLR

connector for ANTARI X-PRO series model X-310PRO. Its LCD panel displays all

operation statuses of the fog machine. The interface allows the operator to customize

fog machine functions by adjusting the fogging duration, interval, volume, fan and

heater as well as the DMX address . There are six buttons on the control board. All

current operating parameters are automatically stored in non-volatile memory,

allowing the machine to be powered down without losing function settings.

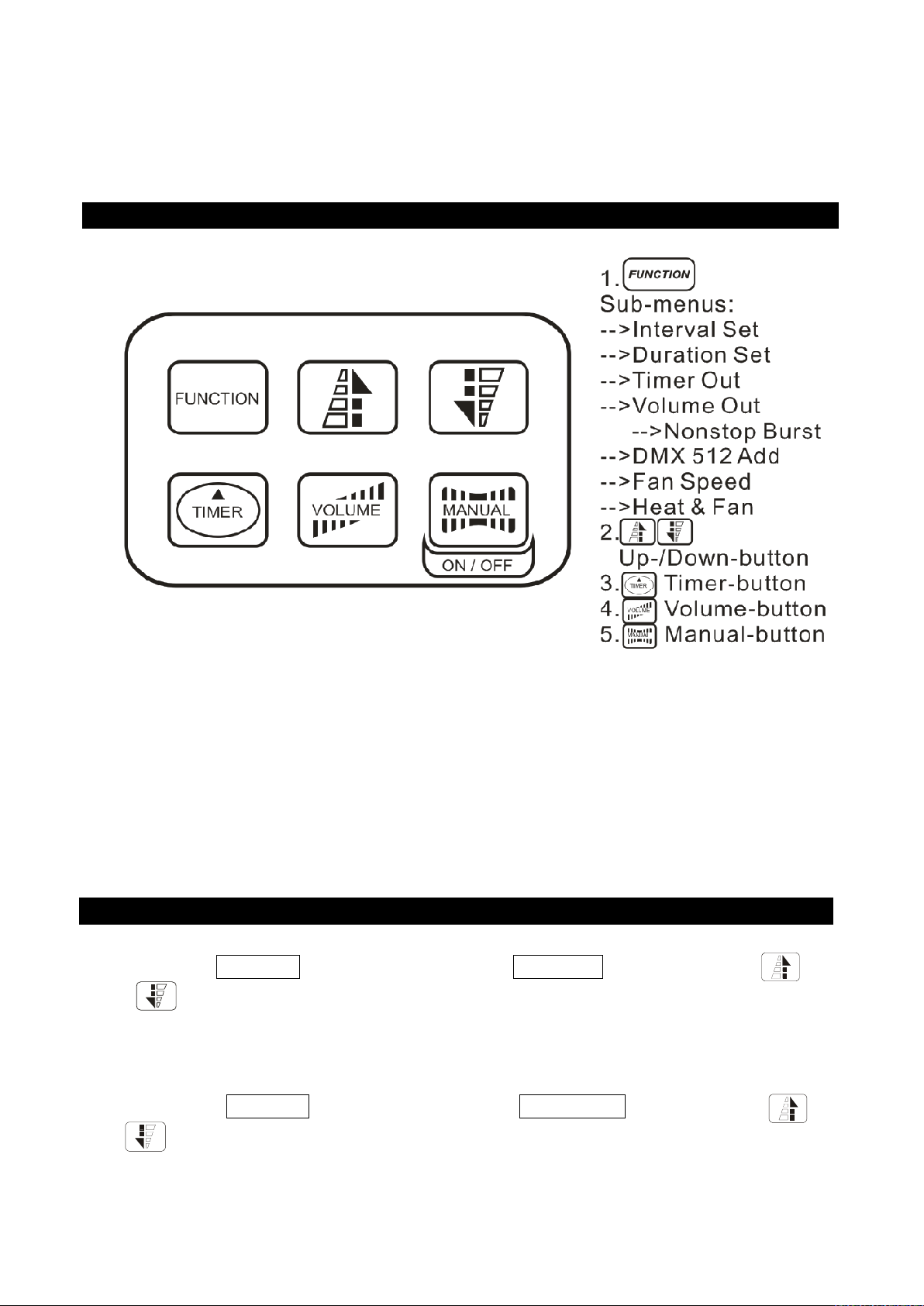

-Menu Settings With The Button FUNCTION

Setting time intervals for timer operation

Press the button FUNCTION until the display indicates » Interval Set « . Use the buttons UP

and DOWN to adjust the intervals between the individual fog outputs in timer mode

within the range of 1 and 200 seconds.

Setting the output duration for timer operation

- Press the button FUNCTION until the display indicates » Duration Set «. Use the buttons UP

and DOWN to adjust the duration of the fog outputs in timer mode within the range of 1

and 200 seconds.

Setting the fog output volume for timer operation

- Press the button FUNCTION until the display indicates » Timer Out «. Use the buttons UP

and DOWN to adjust the fog output volume in timer mode within the range of 1 % and 100

Setting the fog output volume for continuous operation

- Press the button FUNCTION until the display indicates » Volume Out«. Use the buttons UP

and DOWN to adjust the fog output volume in continuous mode within the range of 1 %

and 100 %.

- To set the unit to continuous fog output, select » NON STOP BURST « below a value of 1 % or

above a value of 100 %.

Setting the DMX512 address

- Press the FUNCTION until the display indicates » DMX 512 Add «. Use the buttons UP and

DOWN, to set the machine to the same address as on your DMX controller. Please refer to

the chapter DMX512 settings for more information on DMX operation.

Setting the fan speed

- Press the FUNCTION until the display indicates » LOW>HI «. Use the buttons UP and

DOWN, to adjust the fan speed.

Turning the fan and heater on or off

- Press the FUNCTION until the display indicates » Heater & Fan Open «. Use the button

MANUAL, to switch the fan and the heater on or off.

Continuous operation

- Press the button VOLUME , to activate continuos fog output. The display indicates » Volume «

followed by the value that was set in menu item » Volume Out « or » NON STOP BURST « when

maximum fog volume was selected. To stop the fog output, press the button VOLUME once again.

Manual operation

- For immediate fog output at the maximum volume of fog, keep the button MANUAL

pressed. The display indicates » Manual 100 % «. As soon as you release the button, the fog

output will stop. The manual operation will take priority over the continuous operation and the

timer operation. Even if one of these operating modes is activated, the fog machine will always

emit the maximum volume of fog when the button MANUAL is pressed.

Timer operation

- In the time mode, the fog machine will automatically emit fog. The time intervals, duration and

MANUAL

fog volume depend on the corresponding menu settings. Press the button TIMER , to activate

the timer mode. The display indicates the set time interval. The unit counts down to 0 seconds and

emits fog. To deactivate the timer mode, press the button TIMER again.

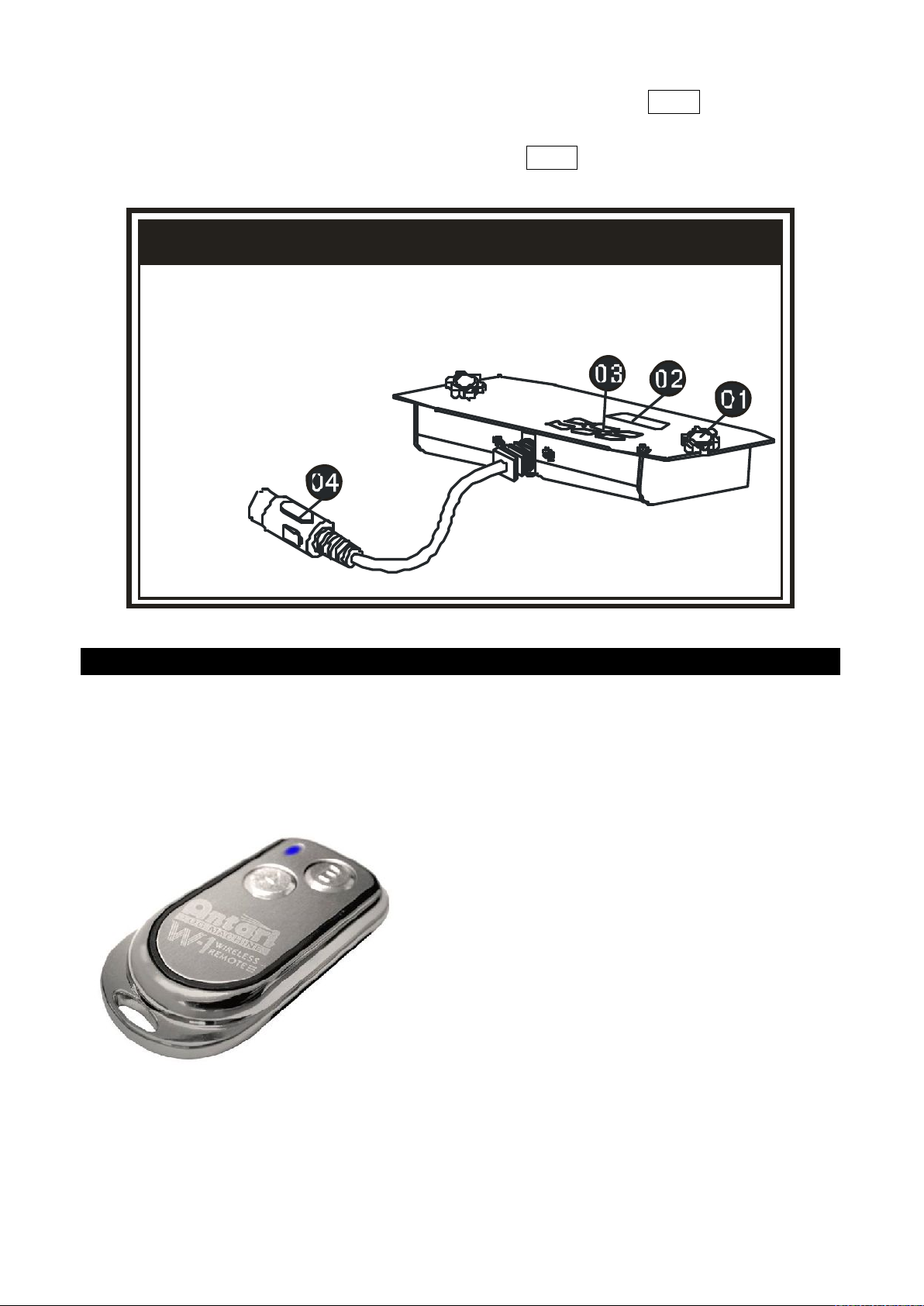

X-10PRO REMOTE CONTROL EXTERNAL VIEW

01 Thumb Screws.

02 L.C.DScreen.

03 Function Keypad.

04 Cable For Remote

Control (2m/5-pin)

-Antari X-30PRO Control Module Operation

X-30PRO Wireless Control Module Operation

All the X-10PRO features plus wireless capability.

The wireless control module X-30PRO consists of a transmitter equipped with two buttons for fog

on and off, and a receiver pre-attached to the panel of each X-30PRO.

* Transmitter:

With the transmitter it is possible to emit fog via radio over a distance of up to 50 meters. The

transmitter is compatible to any receiver of the X-30PRO and can control an unlimited number of

machines in parallel.

Press the button “A”, to emit fog. The button “A” has the same function as the button VOLUME on

the control panel, i.e. the fog output depends on the setting of menu item »Volume Out«. The

display indicates »Volume« followed by the defined value or »NON STOP BURST« when continuous

fog output was selected. To stop the fog output, press the button “B”.

* Receiver:

The receiver is tested and pre-attached to the panel of each Z-30PRO. Please do not try to remove

it. The receiver responds to up to 5 different transmitters that are registered with the machine. The

included transmitter has been registered to the machine before shipment. It can be directly

operated without any start-up setting.

-Registering transmitters

To operate the machine with a different transmitter than the included one, or to operate it with up

to 5 different transmitters, each transmitter must be registered first. For this purpose, turn on the

machine. When the display indicates »Wireless Setup«, press the button “A” 1 second on each

transmitter. Thus the previous transmitters are cleared from the memory of the receiver. The

setting must be completed within 15 seconds after switching on the machine. Then the machine

will automatically exit the transmitter setting mode. The display shows »Wireless Setup OK«. At

this point, no further transmitter can be added.

If no transmitter is registered when the machine is switched on, the memory of the receiver will

keep the record of the previous operation.

Setting Example 1:

In order to register several transmitters with a machine, turn on the machine. When the display

indicates »Wireless Setup«, press the button “A” 1 second on each transmitter within 15 seconds

to establish the signal transmission.

Setting Example 2:

In order to use 1 transmitter to control 2 or more machines, turn on the machines respectively.

When the displays indicate »Wireless Setup«, press the button “A” 1 second on the transmitter

within 15 seconds to establish the signal transmission.

-Battery change on the transmitter

If the range of the transmitter decreases, the battery is probably exhausted and must be replaced.

For this purpose, take off the housing cover and remove the used battery. Insert a fresh DC 12V

battery as indicated in the battery compartment and refit the housing cover.

Switching the wireless function on and off

Press the button FUNCTION until the display indicates »Wireless On«. Use the buttons UP and

DOWN to deactivate the wireless function (indication »Wireless Off«) and to reactivate it

(indication »Wireless On«).

Note: When warming-up process is completed and wireless function is activated the

LCD screen indicates “Ready To Faze W”. (“W” means Wireless) On the contrary, when

the wireless function is deactivated the LCD screen shows “Ready To Faze” (Without

“W”).

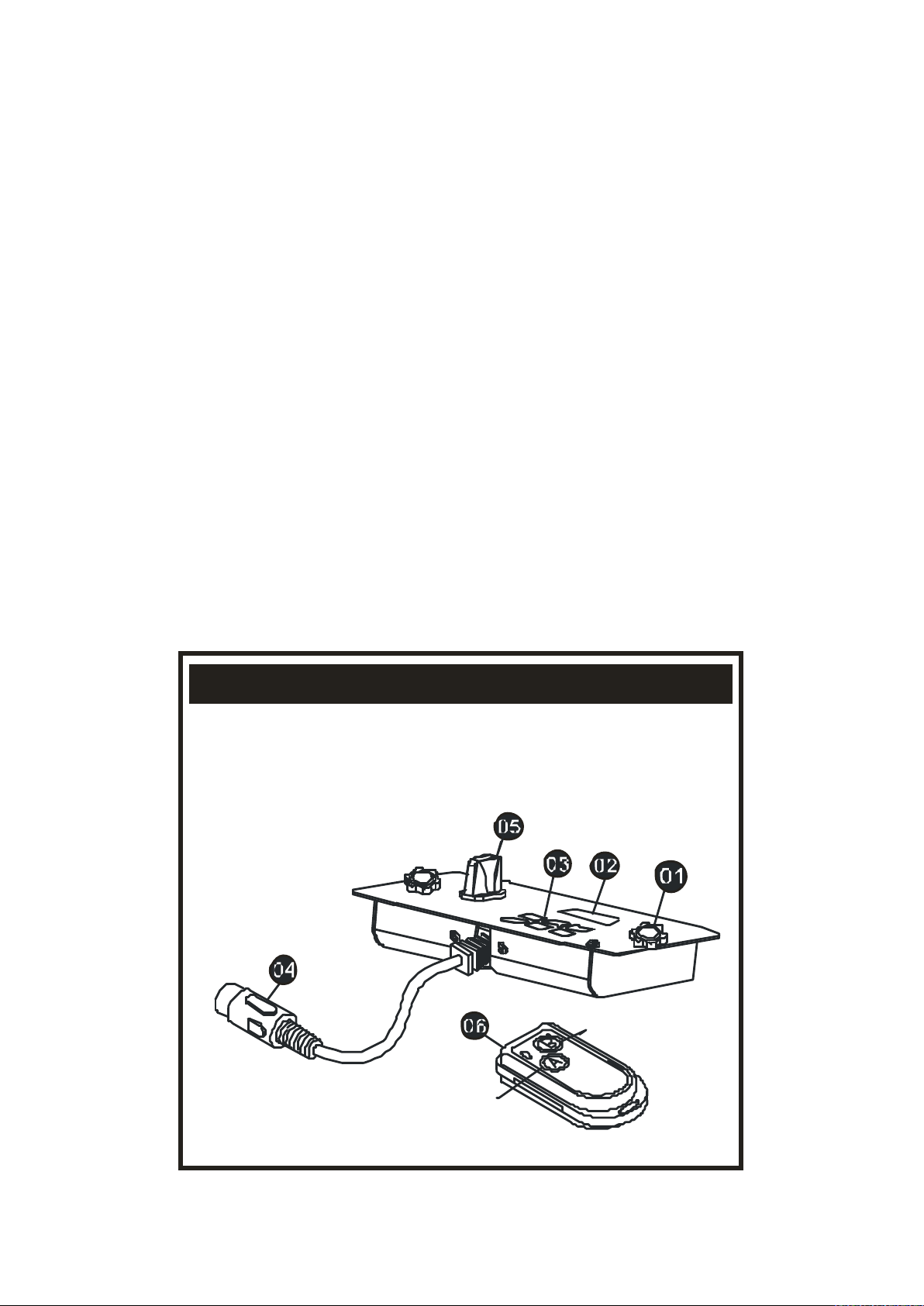

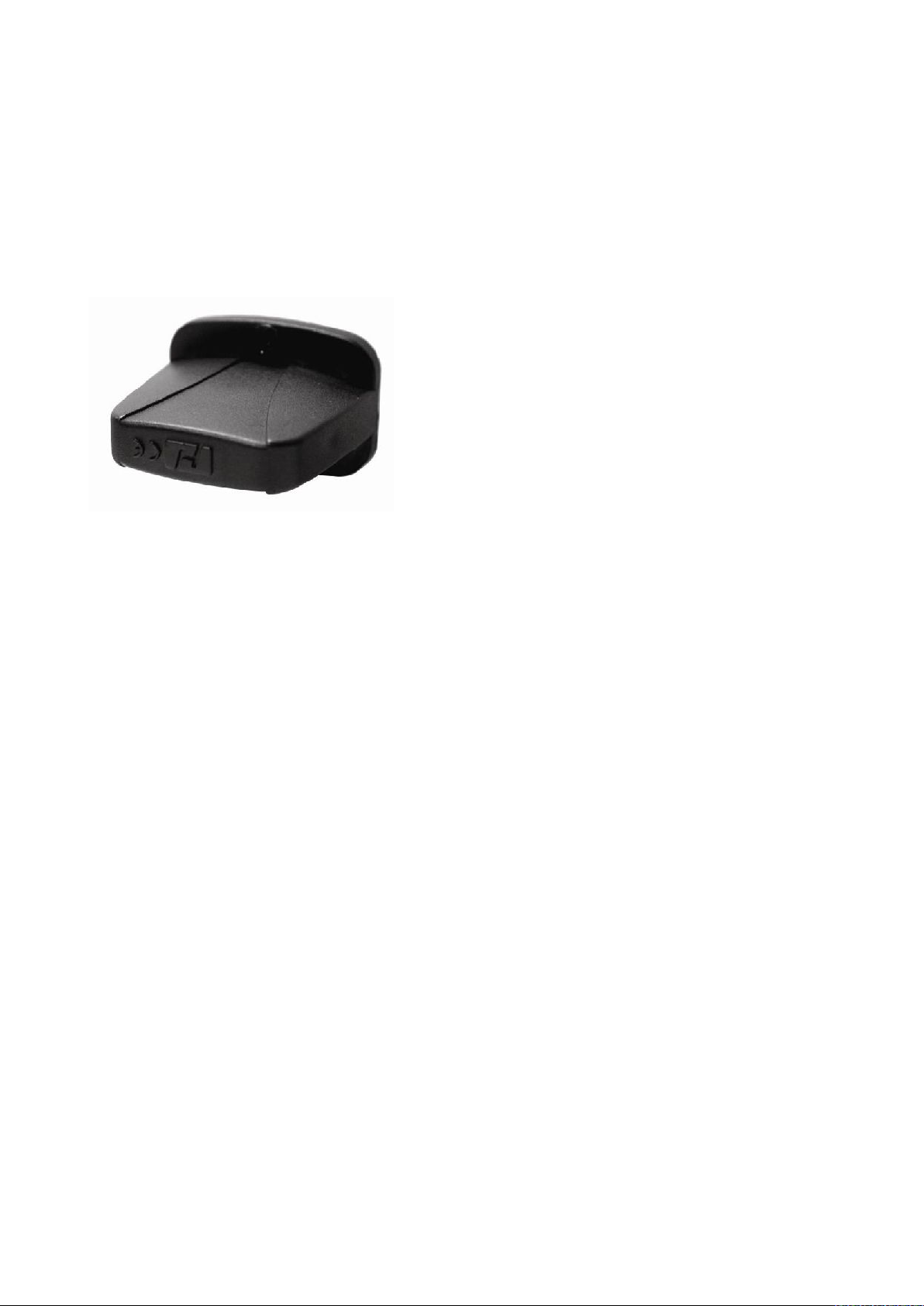

X-30PRO REMOTE CONTROL EXTERNAL VIEW

02 L.C.DScreen.

03 Function Keypad.

04 Cable For Remote Control

(2m/5-pin)

05 Receiver.

06 Transmitter.

01 Thumb Screws.

OFF

Autres manuels Antari Machine à brouillard

Antari

Antari II Series Manuel utilisateur

Antari

Antari X FAZER Manuel utilisateur

Antari

Antari Z-80 Manuel utilisateur

Antari

Antari Z-1000II Manuel utilisateur

Antari

Antari LCU-1 Manuel utilisateur

Antari

Antari M-1 Manuel utilisateur

Antari

Antari Ip-1000 Manuel utilisateur

Antari

Antari M-1 Manuel utilisateur

Antari

Antari W-515 Manuel utilisateur

Antari

Antari Z-800 III Manuel utilisateur

Antari

Antari DNG-250 Manuel utilisateur

Antari

Antari S-500 Manuel utilisateur

Antari

Antari M-1 Manuel utilisateur

Antari

Antari Z-350 FAZER Manuel utilisateur

Antari

Antari W-715 Fog Jet Manuel utilisateur

Antari

Antari HZ-300 Manuel utilisateur

Antari

Antari HZ-350 Manuel utilisateur

Antari

Antari Z-1520 RGB Manuel utilisateur

Antari

Antari F-80Z Manuel utilisateur

Antari

Antari F-450 Manuel utilisateur

Antari

Antari M-7 RGBA Manuel utilisateur

Antari

Antari FT-100 Fire Training Manuel utilisateur

Antari

Antari FT-100 Fire Training Manuel utilisateur

Antari

Antari Z II Series Manuel utilisateur

Manuels Machine à brouillard populaires d'autres marques

Boost

Boost BOOST-FOG400LED-BK Manuel utilisateur

Home Accents Holiday

Home Accents Holiday FM1000-ASH Manuel utilisateur

EuroLite

EuroLite ZEITGEIST FOG-1200 Manuel utilisateur

Dyna-Fog

Dyna-Fog CYCLONE ULTRA 2734 Manuel utilisateur

PROEL

PROEL DRAGO HEAVY PLFD150HY Manuel utilisateur

Sparklyn

Sparklyn Y846 Manuel utilisateur

Magicfx

Magicfx CO2 Gun Manuel utilisateur

Ibiza

Ibiza LSM500LAS Manuel utilisateur

Venue Lighting Effects

Venue Lighting Effects ULTRA MINI-FOGGER Manuel utilisateur

High End

High End F-100 Manuel utilisateur

Chauvet

Chauvet ARENA 2100 FLEX Manuel utilisateur

Beamz

Beamz F1600 Manuel utilisateur

Sagitter

Sagitter SG ARS900C Manuel utilisateur

KISANKRAFT

KISANKRAFT KK-STF-480 Manuel utilisateur

Orion

Orion OT-U250PP Mode d’emploi

Beamz

Beamz S2500 Manuel utilisateur

American DJ

American DJ Dyno-Fog II Manuel utilisateur

JB Systems

JB Systems FX 1700 Manuel utilisateur
