W-508 & W-510 Fog Machine

User Manual

Antari Lighting and Effects Ltd.

Please read and save these instructions.

User Manual

W-508 & W-510 Fog Machine

Congratulations on the purchase of your new

ANTARI W-Series FOG MACHINE.

Introduction

DangerofElectricShock

Thank you for choosing an ANTARI W-Series Fog Machine. You now own a

rugged and powerful state-of-the-art machine. Prior to use, we suggest that

you carefully read all of the instructions. By following the suggestions found in

this user manual, you can look forward to the reliable and satisfactory

performance of your ANTARI Fog Machine for years to come.

Please follow these operation, safety and maintenance instructions to ensure a

longandsafelifeforyourfogmachine.

Risk of electric shock. Disconnect the appliance from the electric

supply before refilling liquid, cleaning or performing maintenance on

the machine.

Keep this device dry.

For inside use only. Not designed for outside use.

For all models, use 3-prong grounded electrical outlet only. Prior to use take

care to determine that the unit is installed at the rated voltage.

Always unplug your ANTARI W-Series Fog Machine before filling its tank.

Always keep fog machine in upright position.

Turnofforunplugthemachinewhennotinuse.

This machine is not water-proof. If moisture, water, or fog fluid gets inside

the housing, immediately unplug the unit and contact a service technician or

your ANTARI dealer before using it again.

Nouserserviceablepartsinside.RefertoyourANTARIdealerorother

qualified service personnel.

Danger of Burns

This device is for adult use only and must be installed out of the reach of

CAUTION:

-01-

children. Never leave the unit running unattended.

Never aim the output nozzle directly at people.

Fogmachineoutputisveryhot.Avoidcomingwithin50cmoftheoutput

nozzle during operation.

Locatethefogmachineinawell-ventilatedarea.Nevercovertheunit's

vents.Inordertoguaranteeadequateventilation,allowafreeairspaceofat

least20cmaroundthesidesandtopoftheunit.

Never aim the output nozzle at open flames.

If the supply cord is damaged, it must be replaced by manufacturer or its

serviceagentorsimilarlyqualifiedpersonnelinordertoavoidahazard.

The output nozzle becomes very hot during operation (200°C). Keep

flammable materials at least 50 cm away from the nozzle.

Always allow your ANTARI Fog Machine to cool down before attempting to

clean or service it.

Danger of Explosion

Use only high-quality, water-based fog liquid that your dealer recommends.

Other fog liquids may cause clogging or “spitting”.

Alwaysmakesurethereissufficientliquidinthetank.Operatingthisunit

without liquid will cause damage to the pump as well as over-heating of the

heater.

If your ANTARI W-508 or W-510 Fog Machine fails to work properly,

discontinue use immediately. Drain all fog liquid from the tank, pack the unit

securely (preferably in the original packing material), and return it to your

ANTARI dealer for service.

Always drain tank before mailing or transporting this unit.

Never drink fog liquid. If it is ingested, call a doctor immediately. If fog liquid

comesincontactwithskinoreyes,rinsethoroughlywithwater.

Payattentiontoallwarninglabelsandinstructionsprintedonthe

exterior of your ANTARI Fog Machine.

Never add flammable liquids of any kind (such as oil, gas, perfume) to the fog

liquid.

Note:

Unpacking & Inspection

Open the shipping carton and verify that all equipment necessary to

operate the system has arrived intact.

The shipping carton should contain the following items:

1. One unit of W-508 or W-510 Fog Machine

2. Power cord

3. One Set of W-1 transmitter

4. User Manual

5. Mounting hanging brackets with washers/screws (for W-510)

-02-

If any equipment is missing contact your ANTARI dealer immediately.

Before beginning your initial setup on ANTARI W-508 & W-510 Fog

Machine, make sure that there is no evident damage caused by

transportation. In the event that the unit's housing or cable is damaged,

donotplugitinanddonotattempttouseituntilaftercontactingyour

ANTARI dealer for assistance.

ote for W-508

& W-510” for setting for the remote controller command.

Setup

Operation

Remove all packing materials from shipping box. Check that all foam and

plastic padding is removed, especially in the nozzle area.

Placefogmachineonaflatsurfaceandremovefogliquidtankcap.

Place the liquid tube into a properly filled liquid tank.

Fill with high-quality, water-based fog liquid recommended by ANTARI dealer.

TheW-508&W-510onlyworkswithuncontaminatedAntariFLRorFLGFog

Liquid. Any other types of liquid can damage the unit resulting in spitting and

serious clogging problem. When filled, place cap back on liquid tank. Be

careful not to exceed the maximum fluid level. DO NOT OVERFILL.

Add fluid carefully to the liquid tank. Do not overfill the tank.

Plug power cord into a grounded electrical outlet. Turn the power switch to

“ON”onthebackofthemachine. Theunitwillstarttowarm-upthemachine.

During this time the machine cannot generate any fog. The green light will

flash and stay ON when the warm-up process is complete.

Please now refer below of “Instructions of Antari Wireless Rem

Always monitor tank fluid level as you are fogging.

Never drink Fog liquid. If it is ingested, call a doctor immediately. If fog

liquidcomesincontactwithskinoreyes,rinsethoroughlywithwater.

Always replace the caps on the fog liquid container immediately after filling

to avoid contamination.

Your model includes a mounting bracket designed for overhead

installation; it may be installed at floor level or suspended

overhead. If the unit is to be mounted using the bracket, it is

important that the fog does not shoot directly at any one's face.

Whatever installation method you choose, do not allow the unit to

havemorethana25degreeangleofinclination.

Important:

W-510:

-03-

W-508 External View

W-510 External View

01-Nozzle

02-Body

03-Handle

04-Handle push button

05-Tank cap & tank

06-Rocker switch / Power

07-Fuse holder

08-Power cord

09-Wireless receiver

10-Foot

11-W-1 wireless controller

01-Nozzle

02-Body

03-Handle

04-Tank & tank’s cap

05-PUtube&filter

06-Tube adaptor

07-Control outlet socket

(3 Pin XLR for DMX)

08-Control inlet socket

(3 Pin XLR for DMX)

09-Rocker switch / Power

10-Power inlet socker &

fuseholder

(120VAC 250V/T10A)

(230VAC 250V/T5A)

11-Power lamp

12-DIP switch

13-Wireless receiver

14-Safety ring

15-Power cord

16-Foot

17-Tightening screw

18-Hanging bracket

19-W-1Wireless controller

-04-

12 08 09 10

DMX-512

DIP SWITCH

WIRELESS

RECEIVER

POWERINPUT

FUSE

DMXIN

POWERSWITCH

WARNING!

ATTENTION!

ACHTUNG!

• DISCONNECT POWER BEFORE CHANGING FUSE.

USE ONLYWITH ADULT SUPERVISION.

DO NOT OPERATEWITHOUT LIQUID.

FOR INSIDE USE ONLY.KEEP DRY.

NO USER SERVICEABLE PARTS INSIDE.

•

•AVANTLEREMPLACEMENTDUFUSIBLE DÉBRANCHER L'APPAREIL.

• N'UTILISEZ JAMAIS L'APPAREILSANS SURVEILLANCE DES ADULTES.

•NEJAMAIS UTILISER L'APPAREIL SANS LIQUIDE.

• L'APPAREILAÉTÉ CONÇU POUR UNEMPLOI DANS DES LOCAUX CLOS.

PROTÉGER DEL'HUMIDITÉ.

• L'INTÉRIEUR DEL'APPAREILNECONTIENT PAS DEPARTIES NÉCESSITANT

UN ENTRETIEN.

•VORDEMSICHERUNGSWECHSEL ALLPOLIG VOM NETZ TRENNEN.

• DIE BEDIENUNG IST NUR UNTER DER AUFSICHT VON ERWACHSENEN

GESTATTET.

• NIEMALS OHNE FLUID BETREIBEN.

•NURININNENRÄUMENVERWENDEN. VOR NÄSSE SCHÜTZEN.

•KEINEZUWARTENDENTEILE IMGERÄTEINNEREN.

ON OFF

WIRELESS /DMX

SIGNAL LIGHT

WARNING

HOT NOZZLE!

KEEP ATLEAST 50CM DISTANCE

BEC BRULANT!

NE PAS APPROCHER À MOINS DE 50CM

VERBRENNUNGSGEFAHR!

MINDESTENS50CMABSTAND

VONDERDÜEHALTEN.

FUSE ON /OFF

Note:

Instruction of Antari Wireless Remote for W-508 & W-510

* Transmitter:

* If you experience low output, pump noise or no output at all, unplug

immediately. Check fluid level, the external fuse, and power from the wall.

If all of the above appears to be O.K., plug the unit again. If fog does not

come out after holding the remote button down for 30 seconds, check the

hose attached to the tank to make sure there is fluid going through the

hose. If you are unable to determine the cause of the problem, do not

simply continue pushing the remote button, as this may damage the unit.

Return the machine to your ANTARI dealer.

-Transmitter:UseDC12Vbattery

- Working Distance: 50 meters in open area (wireless distance may vary

depending on the interference)

- All transmitters are compatible to any receiver

An optoelectronic (OPTO) liquid sensor is installed to both W-508 &

W-510. The pump will automatically stop working and the LED light

indicator on the rear of the machine will start to flash when there’s

insufficientliquid. Pleaserefilltheliquidtotheemptytankand

restart (turn off then turn on) to dis-alarm the LED indicator.

Thenthemachineisreadytooperateagain.

Technical Specifications

Model

Power Supply

Power Consumption

Output Volume

Tank Capacity

Fluid Consumption

Weight

Dimensions (LxWxH)

Remote Included

Warm-up Time

W-508

100~240V AC 50/60 Hz

800 W

3,000 cu.ft/min (85 m³/min)

0.8 liters

60 min /0.8 liter

3.8 kg

315 x 128 x 166 (mm)

W-1

100 seconds

W-510

100~240V AC 50/60 Hz

1,000 W

10,000cu.ft/min (284 m³/min)

2.8 liters

13 min / liter

11.4 kg

468 x 250 x 148 (mm)

W-1

12min

-05-

* Receiver:

* Functions and Setting:

Setting Example 1:

-Thereceiverispre-equippedfirmlyandtestedtoeachoftheW-508&W-

510(rearpanel),pleasedonottrytoremoveit.

1. All receivers can receive signals from any registered transmitter.

2. Each receiver is able to record at most 5 signals from the transmitter.

3. The included transmitter has been registered before shipment. User can

operate it directly without any start-up setting. The initial setting is

pressing button “A” which triggers the machine and pressing button “B”

can stop the fogging.

4. Ifuserdesirestouseothertransmitters(excepttheincludedoneinthe

shipment) to control machine, the setting must be completed within 15

seconds after switching on the machine otherwise it will leave

“transmitter setting mode” automatically.

ThereisaLEDlightontherearcontrolpanelofthemachine. Whenthe

machine is turned on, the LED green light will flash for 15 seconds. During

the 15 seconds interval, users can register signals for the transmitters. If

the registering signal of transmitter is well-received by the receiver, the

LED light will stop flashing and fixed green light will appear. If user desires

touse1transmittertocontrol2ormoremachinesatthesametime,user

has to turn on 2 (or more) machines altogether, and press the button “A”

of the transmitter within 15 seconds to set the signals.

5. Ifnoanyothernewtransmitterisregisteredwhenmachineisswitched

on, the memory of the receiver will remain the same record of the last

operation.

6. Please note if a new transmitter is registered when machine is switched

on, no matter how many new transmitters is registered (at most 5), all

previous transmitters registered record will be cleared (overridden)

-06-

Performance Note

Cleaning and Storage

All fog machines develop condensation around the output nozzle. Because

this may result in some moisture accumulation on the surface below the

output nozzle, consider this condensation when installing your unit.

All fog machines may sputter small amounts of fog occasionally during

operationandforaminuteorsoafterbeingturnedoff.

Allfogmachineshavearecyclingperiodafterlongburstswhenthemachine

wil shutitselfdownforashortperiodinordertoheatupagain.Duringthis

time no fog can be produced.

Do not allow the fog liquid to become contaminated. Always replace the caps on

the fog liquid container and the fog machine liquid tank immediately after

filling. Cleaning your fog machine regularly can help you to reduce the

frequency of parts replacement and the cost of maintenance. After every 40

hours of continuous operation, it is recommended to use distilled water to clean

the heater as per following steps:

1. Fill proper distilled water into a clean tank and connect the fluid tube of the

fog machine to the tank.

2.Runtheunitinawell-ventilatedareauntilthetankisalmostempty.

All fog machines are prone to clogging due to the thick consistency

offogliquidandthehightemperatureatwhichitvaporizes.

However,aproperlymaintainedfogmachineshouldprovideyears

of reliable use.

If the fog machine is not in use, please clean it before storage.

Storethefogmachineinadryandcoolplace. Atleastoperatethe

fog machine once a month. A test-run consisits of warming-up the

machine followed by a few minutes of fog emission.

Please read and save these instructions.

The recommended cleaning regimen is as follows:

Note:

Clean with a dry cloth only. Store dry.

3. Use dry cloth to wipe the fog machine. Cleaning is now complete. Refill

with fog liquid. Run the machine briefly to clear any remaining liquid from

the pump and heater.

-07-

Antari W-510 DMX Fog Machine Settings

Channel A

0-128=OFF

129 - 255 = Maximum Volume Output (100%)

If Channel A has a value from 0 to 128, the unit is OFF.

Betweenthevalues129to255thevolumeoffogoutputisisat

maximum (100% output).

Note:

The W-510 Fog Machine has on-board DMX control (by DIP-Switch) except on

W-508.W-510uses1channeltocontrolon/offoperation.Eachchannelhasa

value range of 0 to 255. On/Off function can be programmed using the DMX

controller or the DMX control software being used by lighting and effects

operator.

In the example above, if the machine were assigned the DMX address of

130, Channel A would correspond to DMX address 130.

-08-

Addressing

Each device occupies 1 channel. To ensure that the control signals are

properly directed to each device, they require adressing. This is to be

adjusted for every single device by changing the DIP-switches as set out in

the table below.

The starting address is defined as the first channel from which the device will

respond to the controller.

Please make sure that you do not have any overlapping channels in order to

control each device correctly and independently from any other fixture on the

DMX data link. If two, three or more devices are addressed similarly, they will

work similarly.

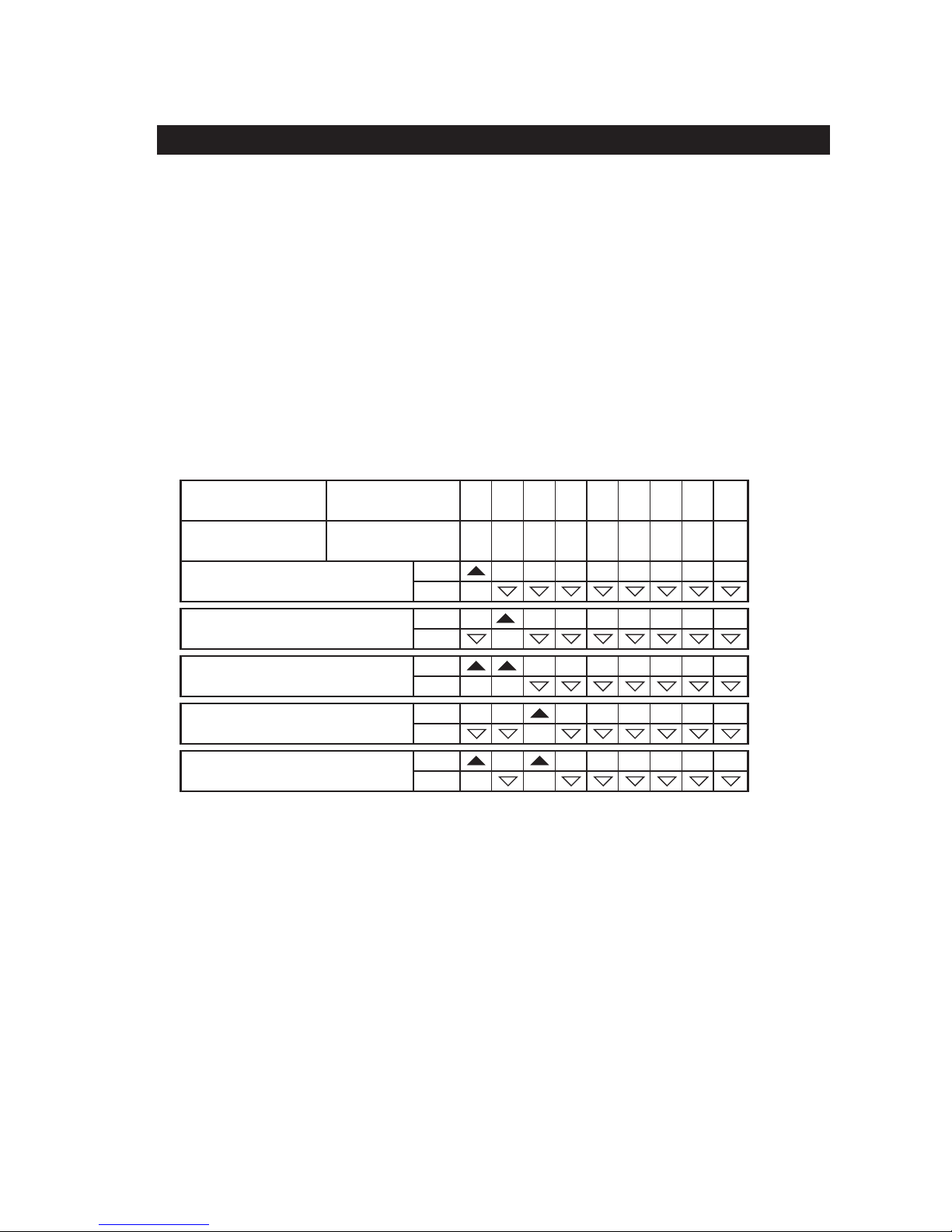

Occupation of the DIP-switches:

Setting the DMX-

starting address: DIP-switch no.

Device number

& channels Starting address

Device 1 - Channel 1 ON

OFF

128

256

Device 2 - Channel 2 ON

OFF

Device 3 - Channel 3 ON

OFF

Device 4 - Channel 4 ON

OFF

Device 5 - Channel 5 ON

OFF

-09-

Autres manuels pour W-508

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Antari Machine à brouillard

Antari

Antari B-200 Manuel utilisateur

Antari

Antari HZ-100 Manuel utilisateur

Antari

Antari M-11 Manuel utilisateur

Antari

Antari Z-350 FAZER Manuel utilisateur

Antari

Antari DNG-250 Manuel utilisateur

Antari

Antari FT-100 Fire Training Manuel utilisateur

Antari

Antari F-5 Fazer Manuel utilisateur

Antari

Antari FT-20X Manuel utilisateur

Antari

Antari X FAZER Manuel utilisateur

Antari

Antari Mobile MB-20 Manuel utilisateur

Antari

Antari Ip-1000 Manuel utilisateur

Antari

Antari LCU-1 Manuel utilisateur

Antari

Antari W-515 Manuel utilisateur

Antari

Antari MOBILE MB-1 Manuel utilisateur

Antari

Antari II Series Manuel utilisateur

Antari

Antari Z-1500 III Manuel utilisateur

Antari

Antari Z-3000II Manuel utilisateur

Antari

Antari HZ-350 Manuel utilisateur

Antari

Antari IP-1600 Manuel utilisateur

Antari

Antari FT-55 Manuel utilisateur

Antari

Antari HZ-500 Manuel utilisateur

Antari

Antari SFX-1000 Manuel utilisateur

Antari

Antari Z-80 Manuel utilisateur

Antari

Antari X-310PRO Manuel utilisateur

Manuels Machine à brouillard populaires d'autres marques

Boost

Boost BOOST-FOG400LED-BK Manuel utilisateur

Home Accents Holiday

Home Accents Holiday FM1000-ASH Manuel utilisateur

EuroLite

EuroLite ZEITGEIST FOG-1200 Manuel utilisateur

Dyna-Fog

Dyna-Fog CYCLONE ULTRA 2734 Manuel utilisateur

PROEL

PROEL DRAGO HEAVY PLFD150HY Manuel utilisateur

Sparklyn

Sparklyn Y846 Manuel utilisateur

Magicfx

Magicfx CO2 Gun Manuel utilisateur

Ibiza

Ibiza LSM500LAS Manuel utilisateur

Venue Lighting Effects

Venue Lighting Effects ULTRA MINI-FOGGER Manuel utilisateur

High End

High End F-100 Manuel utilisateur

Chauvet

Chauvet ARENA 2100 FLEX Manuel utilisateur

Beamz

Beamz F1600 Manuel utilisateur

Sagitter

Sagitter SG ARS900C Manuel utilisateur

KISANKRAFT

KISANKRAFT KK-STF-480 Manuel utilisateur

Orion

Orion OT-U250PP Mode d’emploi

Beamz

Beamz S2500 Manuel utilisateur

American DJ

American DJ Dyno-Fog II Manuel utilisateur

JB Systems

JB Systems FX 1700 Manuel utilisateur
