Antari DNG-250 Manuel utilisateur

DNG-250 Low Fog Generator

-User Manual

中文說明書

English - 中文

Thank you for choosing Antari’s DNG-250 Low Fog Generator. The machine has some

terrific new features on top of the ones of its previous version DNG-200. With the 3.5

TFT color touch panel, users can operate more easily. The dimension is exactly the same

as DNG-200, but the output volume and continuity are comprehensively increased,

hence a total up-grate in performance. No CO2is needed for DNG-250 Low Fog

Generator; therefore, there’s no risk to human body nor environment. DNG-250 is a real

green effect machine.

Please follow these operation, safety and maintenance instructions to ensure a longer

and safe life of your DNG-250 Low Fog Generator.

Pay attention to all warning labels and instructions printed on the exterior of the machine.

Safety Instructions

Keep this device dry.

For indoor use only. Not designed for outdoor use.

The ideal operating temperature is between 5° and 40° Celsius.

Two sets of professional power cords are used by this machine. It is important to

confirm the electrical voltage before plugging the power cord into the power outlet.

Use a three plug grounded power outlet.

If the machine is moved or transported, it shall be stationed for one hour to allow the

coolant in the cooler to stabilize before using it again.

If the machine is moved horizontally, please station it for 5 minutes before starting

the operation again.

Please unplug the power cord or turn off the machine when it is not in use.

This machine is not water-proof. If moisture, water, or fog fluid gets inside the

housing, immediately unplug the unit and clean it. If the machine cannot be cleaned,

please contact a service technician or your Antari dealer before using it again.

No user serviceable parts inside. Refer to your Antari dealer or other qualified service

personnel. For adult use only. The fog machine must be installed out of the reach of

children. Never leave the unit running unattended.

Operate the machine in a well-ventilated area. Never cover the unit's vents. The fog

machine is best installed 1 meter away from all objects.

It is important to place the machine on a flat surface instead of a surface with slope

to prevent any moving of the machine.

Do not add any inflammable liquid in the machine.

Make sure there is no any inflammable materials around the machine while operating.

If your Antari DNG-250 Low Fog Generator fails to work properly, please turn off the

power for five minutes and turn it on again. If the problem still exists, contact your

Antari dealer for service.

Always allow the machine to cool down before attempting to clean or service it.

Please use Antari FLL Low Fog Effects Fluid only. Please do not fill in any other fluid

into the tank to ensure the quality of the fog and the life of the machine.

If any malfunction happens, please unplug the machine and stop the operation.

Contact your Antari dealer for service.

Please make sure the tank if emptied before transportation.

Fog fluid is not edible, and ingestion by mistake might jeopardize your health. Please

do keep the fog fluids in safe place indoors. Seek for doctor’s help if ingest accidently.

Unpacking and Inspection

Open the shipping carton and verify that all equipment necessary to operate the system

has arrived intact. If any shortage or damage due to transportation, please contact your

Antari dealer and send back with original packaging for inspection. The shipping carton

should contain the following items:

-DNG-250 Low Fog Generator

-Two power cords for connecting to Neutrik PowerCon connectors.

-3M fog conducting hose

-User's manual (item 2-4 placed in the compartment on the top of the machine)

-Water collection tray (preinstalled in the machine)

-3M PU tube, 6mmØ

Setup

The wheels at the bottom of the DNG-250 help to move the machine; wheel fixing

mechanisms are located at the diagonal line. Position the machine at a spot, press

down the fixing mechanism to prevent it from moving. To move the machine, press

the opposite side of the fixing mechanism to release it. Please note that the machine

is not allowed to place on a slope due to its big size. (refer to figure 1)

Please aim the key on the PowerCon terminal of the power cord to the slot of the

connector on the machine, plug it in and turn it about 10° clockwise until the power

cord is completely fixed. The upper power cord is for the fog generator and the bottom

one is for the compressor. (refer to figure 2 and 3)



Before connecting the machine to power supply, make sure to check the needed

voltage and watt indicated on the metal plate of the machine.

Connect the machine with the black fog conducting hose; it is a three-meter pipe. The

length of the pipe can be adjusted to fit the actual need. (refer to figure 4)

Fill Antari FLL Low Fog Effects Fluid to the tank, tighten the tank cap. (refer to figure

Figure 1

Figure 2

igure 3

Figure4 Figure5

Operation

1. After confirming the voltage, connect the power cord to a grounded outlet then turn

on the lower power switch and then the higher one. The warmup starts now, and the

TFT touch panel will show the percentage of the whole warmup process until 100%

that the warmup is completed.

2. TFT touch panel introduction：

2-1 Main Menu：

Manual mode

Heater status

DMX

Enforceable fluid drawing Main menu

Heater on/off

Timer mode

Preset 1 Preset 2

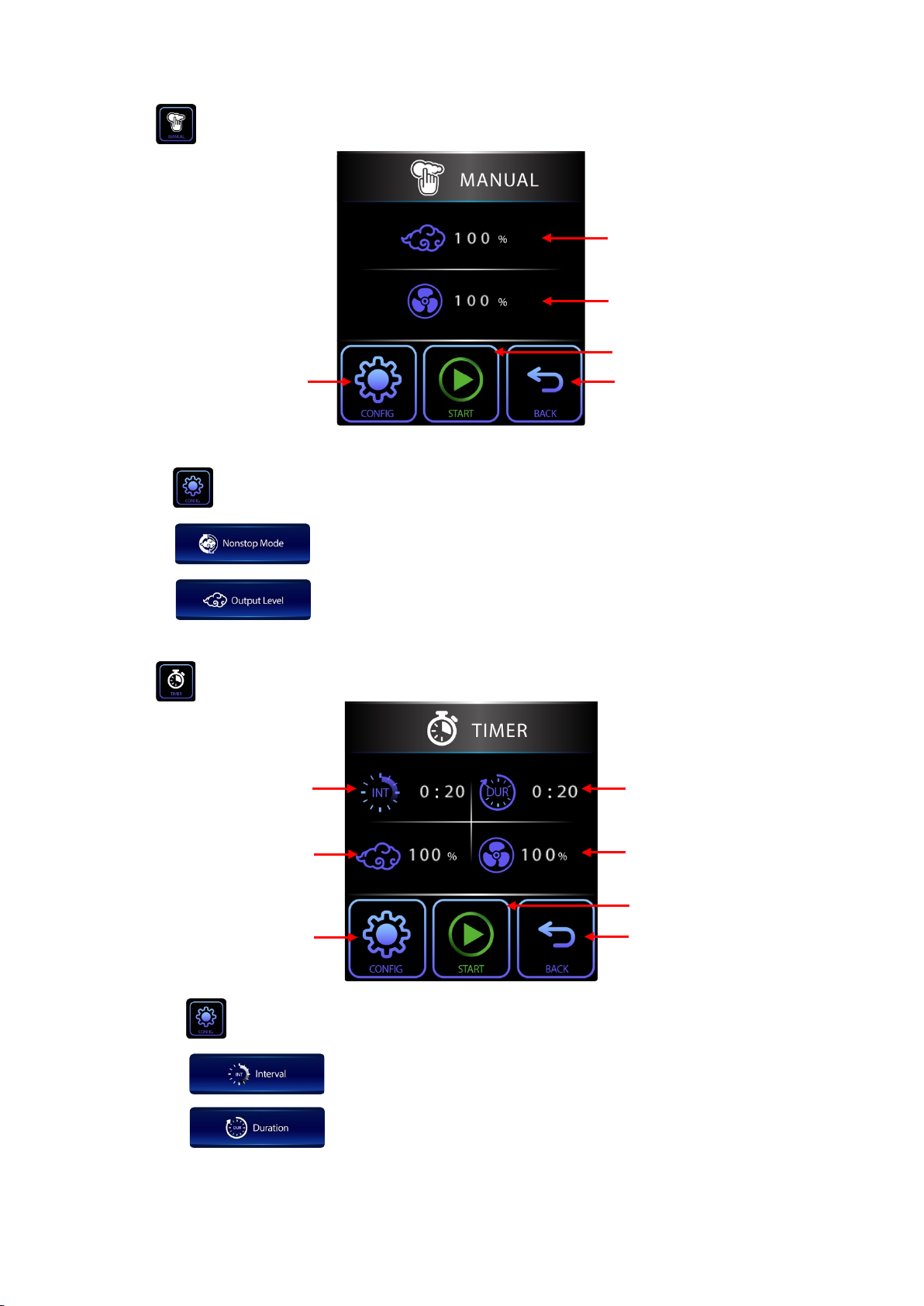

2-2 Manual mode：

2-2-1 Manual mode setting：

Continuous mode ON / OFF

Output volume 20% - 100%

2-3 Timer mode：

2-3-1 Timer mode setting:

Interval 5 secs – 200 secs

Duration 5 secs – 200 secs

Current setting of output volume

Current setting of fan speed

Manual mode setting

Start / Stop

Return

Start / Stop

Current setting of

fan speed

Current setting of output

volume

Current setting of

interval time

Current setting of duration time

Timer mode setting

Return

Current setting of fan speed

Continuous mode ON / OFF

Output volume 20% - 100%

2-4 DMX：

2-4-1 DMX setting：

DMX address setting

Return

DMX address:

DMX status

DMX setting

Heater temperature status

ConfirmCancel

Current address

2-5 Enforceable fluid drawing:

When the tank is refilled with fog fluid, use this to draw the fluid. Press

“Pause” once the output is back to avoid damp in fog. Default duration of the

fluid drawing is 1 min.

2-6 Heater：Heater can be activated or deactivated manually. Default setting is

activated.

Countdown

Pause

Start Return

Activate

Return

Deactivate

Heater activated Heater deactivated

Return

2-7 Main menu：

2-7-1 DMX setting

DMX address setting. Please refer to page 8 for detail.

2-7-2 Basic information

Software version

Current working voltage (settable)

Usage time (from power on)

2-7-3 Setting

LCD brightness (Low/Medium/High/Auto)

*LCD light will shut down in 1 min when “Auto” is selected.

Action before shut down will be automatically proceeded after

warming up is finished.

Restore default setting.

Chinese/English

Software update (for Antari’s distributors’ use only)
