LNP-0501-24 Series User Manual V1.0

LNP-0501-24 Series

5-Port Industrial PoE+ Unmanaged Ethernet Switches with

4*10/100Tx (30W/Port) + 1*10/100Tx,

12~36VDC Input (Voltage Booster)

User Manual

Version 2.0

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V2.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC may make improvements and/or changes to the product and/or specifications of the product described in this

manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V2.0

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Unmanaged Ethernet Switches

User Manual

Version 2.0 (July 2015)

This manual supports the following models:

LNP-0501-M-24

LNP-0501-M-24-T

LNP-0501-ST-M-24

LNP-0501-ST-M-24-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).

LNP-0501-S3-24

LNP-0501-S3-24-T

LNP-0501-ST-S3-24

LNP-0501-ST-S3-24-T

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V2.0

Table of Contents

1.Overview....................................................................... 1

1.1 Key Features...................................................... 1

1.2Package Contents.............................................. 2

1.3 Safety Precaution............................................. 2

2.Hardware Description.................................................. 3

2.1Physical Dimensions .......................................... 3

2.2 Front Panel ........................................................ 4

2.3 Top View............................................................ 4

2.4LED Indicators.................................................... 5

2.5Ethernet Ports..................................................... 5

2.6 Cabling............................................................... 7

2.7 Wiring the Power Inputs..................................... 8

2.8Wiring the Fault Alarm Contact .......................... 9

3. Mounting Installation................................................ 10

3.1DIN-Rail Mounting............................................ 10

3.2Wall Mounting................................................... 12

4.Hardware Installation................................................ 13

4.1Installation Steps.............................................. 13

5. Network Application ................................................. 14

6.Trouble Shooting....................................................... 15

7. Technical Specifications.......................................... 16

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V1.0

1. Overview

Antaira Technologies’ LNP-0501-24 series is an industrial PoE+ unmanaged Ethernet switch

featuring 4*10/100Tx Fast Ethernet RJ45 ports and 1*100Fx fiber port with SC or ST type

connectors and an option for multi-mode (2Km) or single-mode (30Km). Each Ethernet port

supports an IEEE 802.3at high power PoE+ output up to 30W per port, making it ideal for

applications that demand a PoE power source and a long distance data communication within any

harsh or outdoor environment. This product series provides a low voltage input range of

12~36VDC with an internal voltage booster to support a 48VDC PoE power output. It also

provides high EFT and ESD protection to prevent any unregulated voltage.

The LNP-0501-24 series is IP30 rated and DIN-rail mountable. There are two wide operating

temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended

temperature range (EOT: -40°C to 75°C).

It also provides Ethernet connectivity with PoE functions and a fiber connection for mobile

surveillance applications utilizing a low voltage power source as a battery, and for any other

industrial automation field sites needing a 24VDC power source, such as, security surveillance,

traffic monitoring systems, oil/gas and mining, facility management for power/utility, water

wastewater treatment plants, and lastly, automated production lines in factory automation.

1.1 Key Features

System Interface/Performance

All RJ-45 ports support the auto MDI/MDI-X function

Embedded 4*10/100Tx (PSE 30W/Port), 1*100Fx SC/ST type connector (Multi-mode

2Km, or Single-mode 30Km)

Store-and-forward switching architecture

2K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

Power Input

DC 12~36V (voltage booster) redundant power, with a 6-pin removal terminal block

Operating Temperature

Standard operating temperature model: -10°C ~ 70°C

Extended operating temperature model (–T): -40°C ~ 75°C

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V2.0

Case/Installation

IP-30 protection

DIN-Rail and wall mount design

1.2 Package Contents

1 - LNP-0501-24 (T): 5-port industrial PoE+ unmanaged Ethernet switch with

4*10/100Tx (30W/port), 1*100Fx Fiber SC/ST type connector (Multi-mode 2Km, or

Single-mode 30Km); 12~36VDC (voltage booster)

1 - User manual

1 - Product CD

2 - Wall mounting brackets and screws

1 - DC cable –18 AWG & DC jack 5.5x2.1mm

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s hardware

specs, ports, cabling information, and wiring installation will be described

within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V2.0

2. Hardware Description

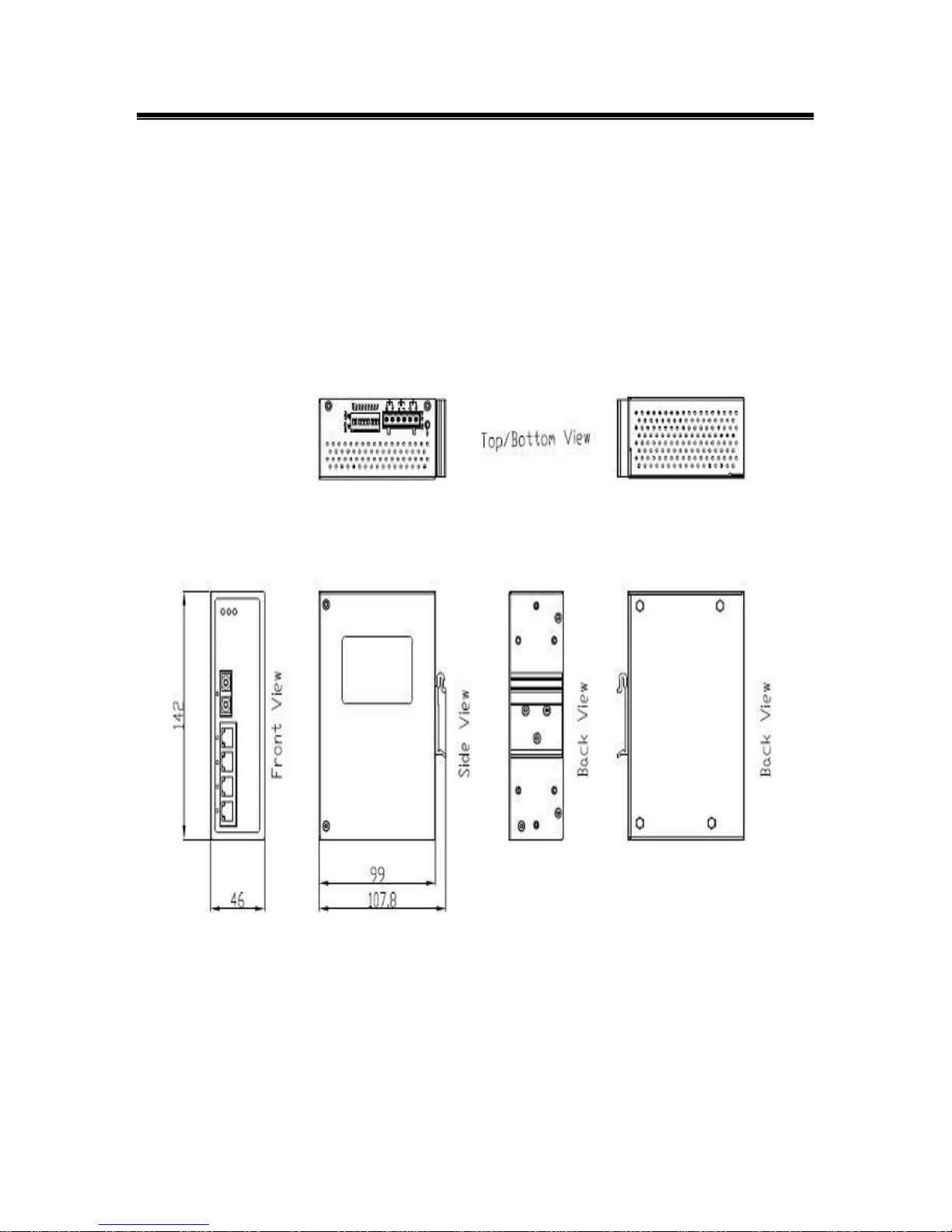

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0501-24 series: 5-

port industrial PoE+ unmanaged Ethernet switch with 4*10/100Tx (30W/port), 1*100Fx fiber SC/ST

type connector (Multi-mode 2Km, or Single-mode 30Km); 12~36VDC (voltage booster).

(W x D x H) is 46mm x 99mm x 142mm

Figure 2.1

LNP-0501-24 Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V2.0

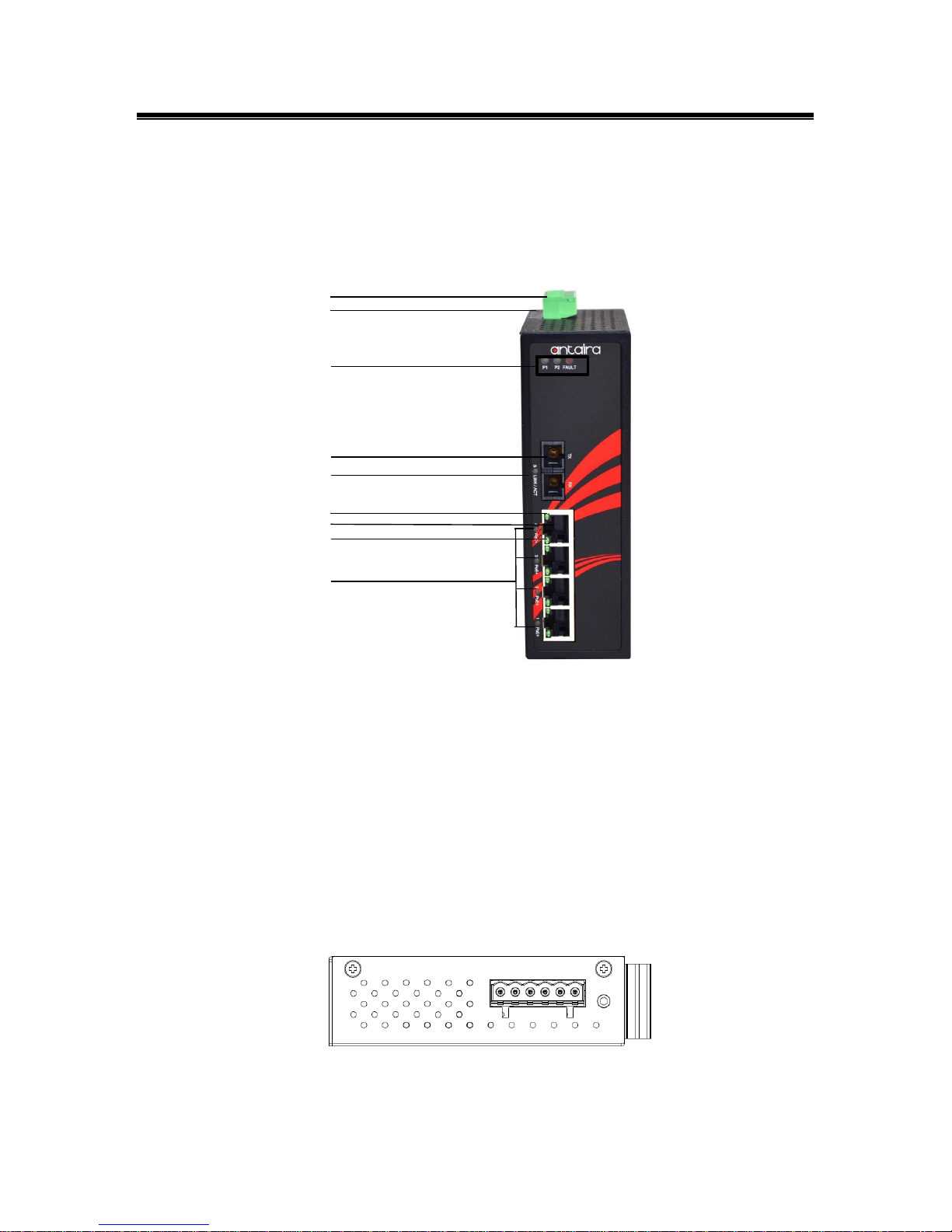

2.2 Front Panel

The front panel of the LNP-0501-24 series: 5-port industrial PoE+ unmanaged Ethernet switch with

4*10/100Tx (30W/port), 1*100Fx fiber SC/ST type connector (Multi-mode 2Km, or Single-mode

30Km); 12~36VDC (voltage booster) is shown below in Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LNP-0501-24 series switch that is equipped with

one 6-pin removal terminal block connector for dual DC power inputs (12~36 VDC).

Figure 2.2 - Front Panel of the LNP-0501-24 Series

Figure 2.3

Top Panel View of LNP-0501-24 Series

6-Pin Removal Terminal Block (Power Input)

Grounding Screw

LED for PWR1, PWR2, and Fault

Fiber Port #5 –100Fx (Tx/Rx)

LED for Fiber Port Status

LED for 100MB network speed status

LAN Port (1~4) 10/100Tx

LED for 10MB network speed Status

LED for PoE Status

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V2.0

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has its

own specific meaning, see below in Table 2.1.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Power input 1 or 2 is inactive

Off

Power input 1 and 2 are both functional, or no power

inputs

PoE Indicators

(Port 1~4)

Green

The port is supplying PoE power

powered-device

Off

No powered-device attached or power supplying fails

LAN Port 1 ~ 4

(Upper LED)

Green

Connected to network, 100Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port 1 ~ 4

(Lower LED)

Green

Connected to network, 10Mbps

Flashing

Networking is active

Off

Not connected to network

Fiber Port

Green

Connected to network, 100Mbps

Flashing

Networking is active

Off

Not connected to network

2.5 Ethernet Ports

RJ-45 Ports

RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~4) are auto-sensing for 10Base-T, or

100Base-Tx devices connections. Auto MDI/MDIX means that the switch can connect to another

switch or workstation without changing the straight-through or crossover cabling. See the figures

shown below for the straight-through and crossover cabling schematics.

Table 2.1

LED Indicators for LNP-0501-24 Series

Antaira Technologies - Industrial Ethernet Switches

LNP-0501-24 Series User Manual V2.0

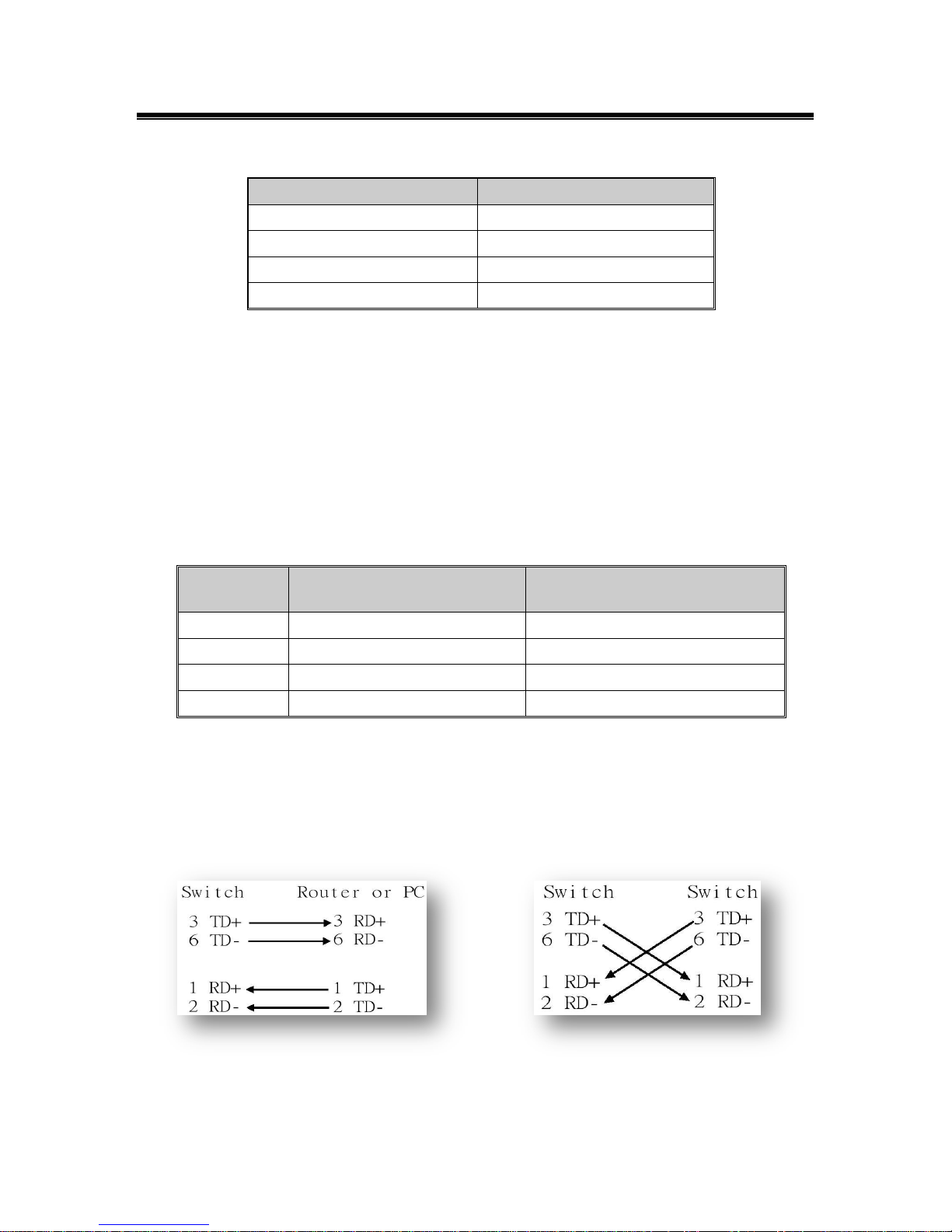

RJ-45 Pin Assignments (Table 2.2)

Pin Number

Assignment

Rx+

Rx-

Tx+

Tx-

All ports on this industrial Ethernet switch support automatic MDI/MDI-X operations. Users can use

straight-through cables (see figure below) for all network connections to PCs, servers, and other

switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are

connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below

(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs.

The following figures show the cabling schematics for straight-through and crossover cables.

Note:

The “+” and “-” signs represent the polarity of the wires that make up each wire pair.

Pin MDI-X

Signal Name

MDI Signal Name

Receive Data plus (RD+)

Transmit Data plus (TD+)

Receive Data minus (RD-)

Transmit Data minus (TD-)

Transmit Data plus (TD+)

Receive Data plus (RD+)

Transmit Data minus (TD-)

Receive Data minus (RD-)

Table 2.2

RJ45 Pin Assignments

Table 2.3

Ethernet Signal Pin Outs

Figure 2.4 - Straight-Through Cables Schematic Figure 2.5 - Crossover Cables Schematic

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LMP-0501-M-V2 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0600 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0804G-SFP-T Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0600 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0602 V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1600G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1802G-M12-10G-SFP-67-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1802GN Manuel utilisateur

ANTAIRA

ANTAIRA LNX-800A-E Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0800-T Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1204G-SFP-bt Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0602-24-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1600 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-800-M12-T Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0501 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0500-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-2602G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1002G-10G-SFP-24 Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0702G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-800AG Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0702G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1204G-SFP-bt Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
