ANTAIRA Lanolinx LNX-1002GN Manuel utilisateur

8-port 10/100TX + 2-port Gigabit

Copper/Mini GBIC

SNMP Managed Industrial Ethernet Switch

with Xtreme Ring

User Manual

The contents in this manual were based on the listed versions

shown on the table below (software kernel version, hardware

version, and firmware version). If there are any discrepancies

between the switch functions and the manual content

descriptions, please contact your local distributor for more

information.

Firmware Version

V1.06

Kernel Version

V1.15

Hardware Version

----------

Notice

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Contact local Sales Dealer Distributors or an experienced radio/TV

technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

Content

Introduction................................................................ 1

Features................................................................... 1

Package Contents.................................................... 3

Hardware Description ............................................... 4

Physical Dimension.................................................. 4

Front Panel .............................................................. 4

Bottom View............................................................. 5

LED Indicators ......................................................... 5

Ports......................................................................... 7

Cabling..................................................................... 8

Wiring the Power Inputs........................................... 9

Wiring the Fault Alarm Contact................................ 9

Wiring the Fault Alarm Contact.............................. 10

Mounting Installation .............................................. 11

DIN-Rail Mounting.................................................. 11

Wall Mount Plate Mounting.................................... 13

Hardware Installation .............................................. 14

Installation Steps.................................................... 14

Network Application................................................ 15

Xtreme Ring Application ........................................ 15

Coupling Ring Application...................................... 16

Dual Homing Application........................................ 17

Console Management ............................................. 18

Connecting to the Console Port............................. 18

CLI Management ................................................... 19

Commands Level............................................................ 20

Commands Set List......................................................... 22

Web-Based Management........................................ 45

About Web-based Management............................ 45

Preparing for Web Management............................ 45

System Login ......................................................... 46

Main interface ........................................................ 47

System Information................................................ 48

IP Configuration ..................................................... 48

DHCP Server – System configuration.................... 49

DHCP Client – System Configuration.................... 50

DHCP Server - Port and IP Bindings..................... 51

TFTP - Update Firmware ....................................... 51

TFTP – Restore Configuration............................... 52

TFTP - Backup Configuration ................................ 52

System Event Log – Syslog Configuration............. 53

System Event Log - SMTP Configuration.............. 54

System Event Log - Event Configuration............... 55

Fault Relay Alarm .................................................. 57

SNTP Configuration............................................... 58

IP Security.............................................................. 60

User Authentication................................................ 61

Port Statistics......................................................... 62

Port Control............................................................ 63

Port Trunk .............................................................. 64

Aggregator setting .......................................................... 64

Aggregator Information................................................... 66

State Activity................................................................... 66

Port Mirroring ......................................................... 67

Rate Limiting.......................................................... 68

VLAN configuration................................................ 69

VLAN configuration - Port-based VLAN.......................... 70

802.1Q VLAN.................................................................. 72

802.1Q VLAN.................................................................. 73

Rapid Spanning Tree............................................. 76

RSTP - System Configuration......................................... 76

RSTP - Port Configuration.............................................. 77

SNMP Configuration.............................................. 78

System Configuration...................................................... 78

Trap Configuration.......................................................... 79

SNMPV3 Configuration................................................... 80

QoS Configuration ................................................. 84

QoS Policy and Priority Type.......................................... 84

Port Base Priority............................................................ 85

COS Configuration.......................................................... 86

TOS Configuration.......................................................... 86

IGMP Configuration ............................................... 86

Xtreme Ring........................................................... 88

802.1X/Radius Configuration.......................................... 90

MAC Address Table........................................................ 92

Factory Default....................................................... 95

Save Configuration ................................................ 95

System Reboot ...................................................... 96

Troubles shooting ................................................... 97

Technical Specification........................................... 98

Introduction

The 8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed industrial switch is a cost-

effective solution and meets the high reliability requirements demanded by industrial

applications. The 8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed industrial

switch can be easily managed through the Web GUI. By using fiber port can extend the

connection distance that increases the network elasticity and performance. It also

provides the Xtreme Ring function that can prevent the network connection failure.

Features

System Interface/Performance

RJ-45 port support Auto MDI/MDI-X Function

Store-and-Forward Switching Architecture

Back-plane (Switching Fabric): 5.6Gbps

1Mbits Packet Buffer

8K MAC Address Table

Power Supply

Input Power Isolation design for Telcom application, Pass Hi-Pot test~1.5KV

Wide-range Redundant Power Design

Power Polarity Reverse Protect

VLAN

Port Based VLAN

Support 802.1 Q Tag VLAN

GVRP

Port Trunk with LACP

QoS (Quality of Service)

Support IEEE 802.1p Class of Service,

Per port provides 4 priority queues

Port Base, Tag Base and Type of Service Priority

Port Mirror: Monitor traffic in switched networks.

TX Packet only

RX Packet only

Both of TX and RX Packet

Security

Port Security: MAC address entries/filter

IP Security: IP address security management to prevent unauthorized intruder.

Login Security: IEEE802.1X/RADIUS

IGMP with Query mode for Multi Media Application

Case/Installation

IP-30 Protection

DIN Rail and Wall Mount Design

Spanning Tree

Support IEEE802.1d Spanning Tree

Support IEEE802.1w Rapid Spanning Tree

Xtreme Ring

Xtreme Ring, Dual Homing, and Couple Ring Topology

Provide redundant backup feature and the recovery time below 20ms

Bandwidth Control

Ingress Packet Filter and Egress Rate Limit

Broadcast/Multicast Packet Filter Control

System Event Log

System Log Server/Client

SMTP e-mail Alert

Relay Alarm Output System Events

SNMP Trap

Device cold start

Power status

Authentication failure

Xtreme Ring topology changed

Port Link up/Link down

TFTP Firmware Update and System Configure Restore and Backup

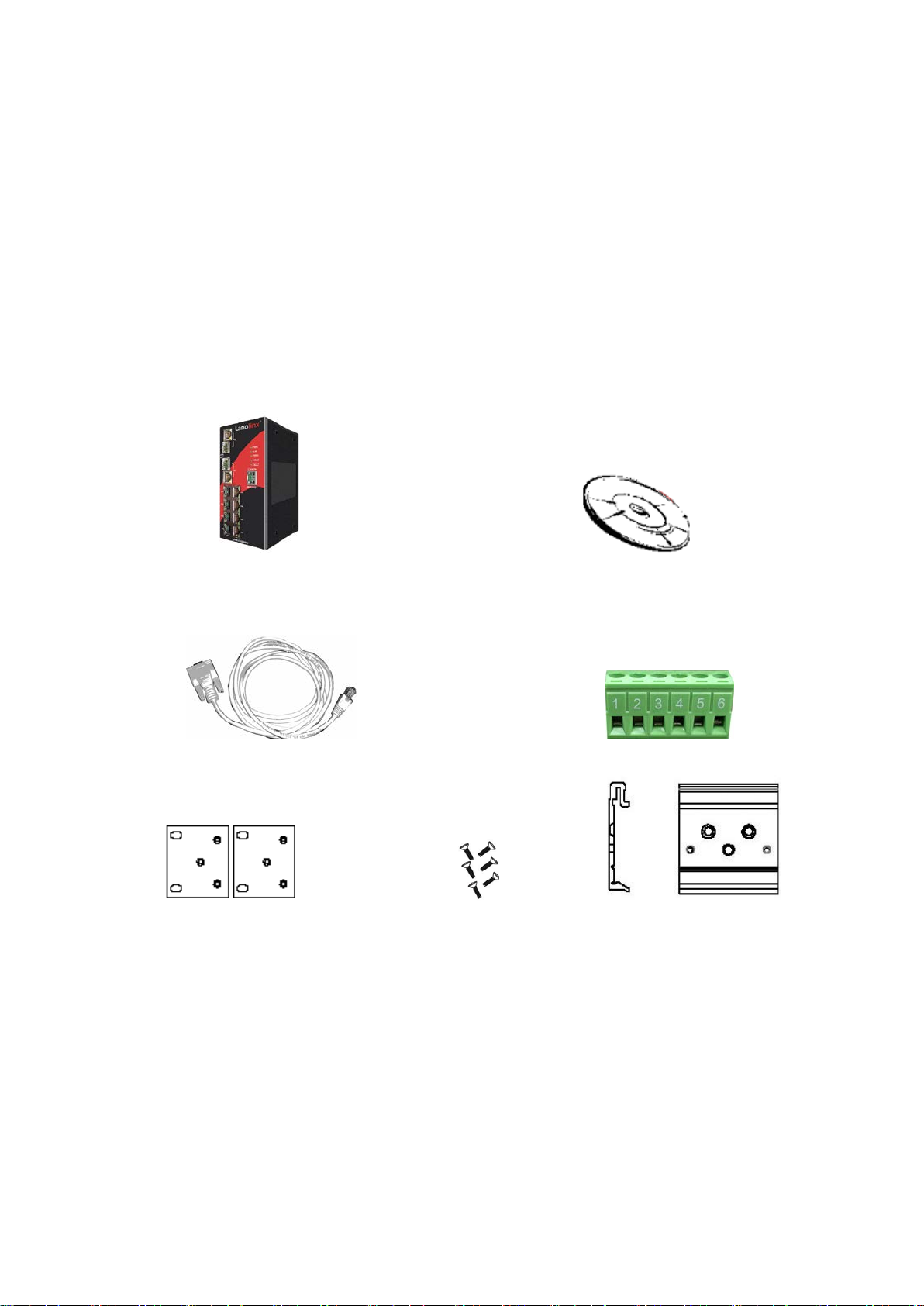

Package Contents

Please refer to the package content list below to verify them against the checklist.

8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed industrial switch

User manual

RS-232/RJ-45 cable

Block connector

2 wall mount plates and 6 screws

One DIN-Rail (attached on the switch)

8 10/100TX plus 2 Gigabit Copper/Mini GBIC User Manual

managed industrial switch

RS-232/RJ-45 connector cable block connector

Wall Mount Plate Screws DIN-Rail

Compare the contents of the industrial switch with the standard checklist above. If any

item is damaged or missing, please contact the local dealer for service.

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LNP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2012G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1604G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0702G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0602 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800G-M12-67-24 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0501-M-V2 Manuel utilisateur

ANTAIRA

ANTAIRA LMX-C602G-SFP-T-V2 Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800G-M12-67-24 Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0702G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1600-E Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-C602G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0501 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0600 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0500-M12-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-800AGH Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1204G-10G-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1204G-SFP-bt Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67-110 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1204G-SFP-bt-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C500 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0702C-SFP-24 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
