Evaluation Board User Guide

UG-388

One Technology Way •P. O. Box 9106 •Norwood, MA 02062-9106, U.S.A. •Tel: 781.329.4700 •Fax: 781.461.3113 •www.analog.com

Daughter Card Evaluation Board for the ADP1053 Digital Power Supply Controller

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS.Rev. 0 | Page 1 of 8

FEATURES

ADP1053 daughter card with 40-pin connector

and I2C interface

Plugs into ADP1053 evaluation motherboard

PMBus compliant

Low component count

PCB size: 28 mm × 50 mm

Robust design

GENERAL DESCRIPTION

The ADP1053, based on a voltage mode PWM architecture, is

a flexible, application dedicated digital controller designed for

isolated and nonisolated dc-to-dc power supply applications.

The ADP1053 enables highly efficient power supply design and

facilitates the introduction of intelligent power management

techniques to improve energy efficiency at a system level. The

ADP1053 operates from a single 3.3 V supply.

The ADP1053 provides control, monitoring, and protection

of up to three independent channel outputs. The eight flexible

PWM outputs can be configured as three independent channels:

two regulated channels with feedback control plus one additional

unregulated channel with a fixed duty cycle. The frequency of

these three channels can be programmed individually from

50 kHz to 625 kHz; all channels can be synchronized internally

or to an external signal.

Features include differential voltage sensing, fast current sensing,

flexible start-up sequencing and tracking, and synchronization

between devices to reduce low frequency system noise. Protection

and monitoring features include overcurrent protection (OCP),

undervoltage protection (UVP), overvoltage protection (OVP),

and overtemperature protection (OTP).

EVALUATION BOARD DESCRIPTION

The ADP1053 daughter card evaluation board allows the user

to quickly evaluate the ADP1053 (see Figure 1). The ADP1053

daughter card plugs into an existing ADP1053 evaluation

motherboard. Communication to the daughter card is established

by connecting the USB-to-I2C dongle interface between the

daughter card and a PC running Windows® 2000, Windows NT,

Windows XP, Windows Vista®, or Windows 7.

The USB-to-I2C dongle interface (Part No. ADP-I2C-USB-Z)

must be purchased separately from Analog Devices, Inc. The

graphical user interface (GUI) software for the ADP1053

daughter card evaluation board can be downloaded from the

ADP1053 product page.

This user guide describes how to set up and use the ADP1053

daughter card evaluation board. The user guide should be read

in conjunction with the ADP1053 data sheet, which provides

detailed information about the ADP1053 3-channel digital

power supply controller.

ADP1053DC-EVALZ DAUGHTER CARD EVALUATION BOARD

PIN 1

40-PIN

CONNECTOR

ADP1053

USB-TO-I2C

DONGLE

CONNECTOR

10612-001

Figure 1.

UG-388 Evaluation Board User Guide

Rev. 0 | Page 2 of 8

TABLE OF CONTENTS

Features .............................................................................................. 1

General Description ......................................................................... 1

Evaluation Board Description......................................................... 1

ADP1053DC-EVALZ Daughter Card Evaluation Board............ 1

Revision History ............................................................................... 2

Hardware Description...................................................................... 3

40-Pin Connector ......................................................................... 3

USB-to-I2C Dongle .......................................................................3

Operating Instructions for the Evaluation Board .........................4

Evaluation Board Schematic and Artwork.....................................5

Ordering Information.......................................................................7

Bill of Materials..............................................................................7

Related Links..................................................................................7

REVISION HISTORY

5/12—Revision 0: Initial Version

Evaluation Board User Guide UG-388

Rev. 0 | Page 3 of 8

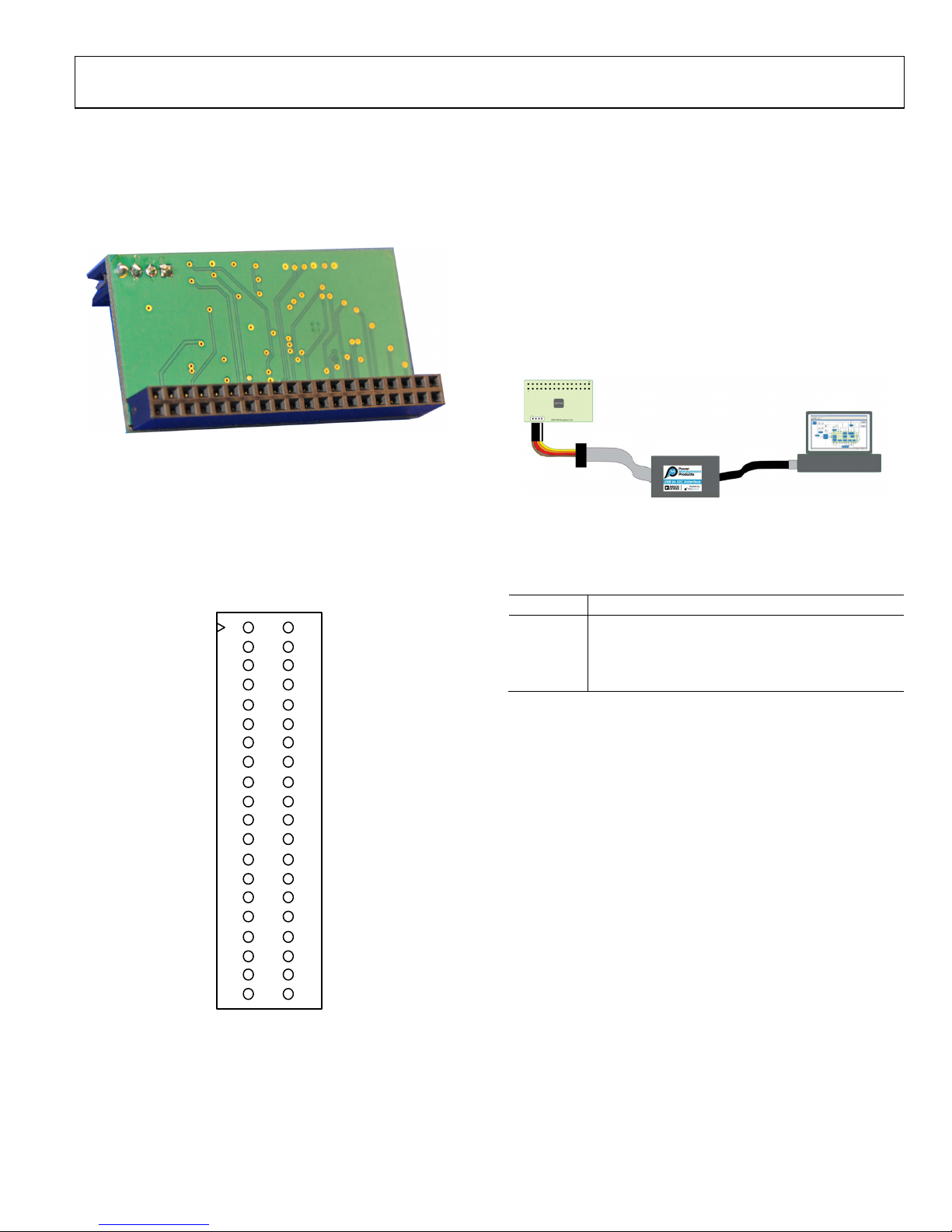

HARDWARE DESCRIPTION

40-PIN CONNECTOR

The ADP1053 daughter card PCB is 28 mm × 50 mm. A

40-pin connector is soldered to the back of the daughter

card evaluation board (see Figure 2).

10612-002

Figure 2. Backside of the Daughter Card

The 40-pin connector plugs directly into an existing ADP1053

evaluation motherboard. A 5 V source from the USB connection

provides power to the on-board ADP3303 LDO, which, in turn,

provides the 3.3 V power to the ADP1053.

Figure 3 shows the pin assignments for the 40-pin connector on

the ADP1053 daughter card evaluation board.

NC 40

12V_AUX

FLAGOUT

TOP VIEW

(COMPONENT SIDE)

RTD1

VS+_A

VS–_A

PGND_A

OVP_A

CS2–_A

CS2+_A

PGOOD_A

CS1_A

ACSNS

PSON_A

SCL

OUT1

OUT2

OUT3

OUT4

AGND

3.3V

FLAGIN

RTD2

VS+_B

VS–_B

PGND_B

OVP_B

CS2–_B

CS2+_B

PGOOD_B

CS1_B

PSON_B

SDA

OUT8

OUT7

OUT6

OUT5

10612-004

Figure 3. 40-Pin Connector Pin Assignments

USB-TO-I2C DONGLE

For a complete evaluation of the ADP1053, the following items

are required:

•ADP1053 evaluation motherboard

•ADP1053 evaluation daughter card

•USB-to-I2C dongle interface

•Software GUI

Figure 4 shows how to use the USB-to-I2C dongle to connect

the ADP1053 daughter card to the PC.

DONGLE

CABLE

ADP1053

DAUGHTER CARD

USB TO I2C

DONGLE USB

CABLE

10612-003

Figure 4. Connecting the ADP1053 Daughter Card to a PC

Using the USB-to-I2C Dongle

The USB-to-I2C dongle interface has four pins (see Table 1).

Table 1. I2C Connector Pin Assignment

Pin No.

Evaluation Board Function

5 V

2 SCL (clock)

3 SDA (data)

4 Ground

UG-388 Evaluation Board User Guide

Rev. 0 | Page 4 of 8

OPERATING INSTRUCTIONS FOR THE EVALUATION BOARD

To use the ADP1053 evaluation board, follow these steps:

1. Insert the ADP1053DC-EVALZ daughter card into the

ADP1053 evaluation motherboard (see Figure 5). Note

that users must create a motherboard for the ADP1053

evaluation daughter card (the motherboard shown in

Figure 5 is a prototype).

2. Connect the cables of the USB-to-I2C dongle to the daughter

card and to the PC (see Figure 4).

The USB interface provides the 5 V supply to the daughter

card. The daughter card has an on-board LDO (the ADP3303)

that provides the 3.3 V power to the ADP1053.

3. Download the ADP1053 GUI software from the ADP1053

product page and install the software on a PC.

4. Run the GUI software to verify the connection to the

ADP1053 before applying the input supply voltage to

the motherboard.

5. Apply power to the input terminals of the motherboard.

ADP1053

DAUGHTER CARD

10612-005

Figure 5. ADP1053 Evaluation Board with Daughter Card Plugged In

Evaluation Board User Guide UG-388

Rev. 0 | Page 5 of 8

EVALUATION BOARD SCHEMATIC AND ARTWORK

DGND PGND_BPGND_A AGND

SCL

PSON_A

ACSNS

CS1_B

CS1_A

PGOOD_A

PGOOD_B

CS2+_A

CS2-_A

OVP_A

CS2+_B

CS2-_B

PGND_A

VS-_A

VS+_A

PGND_B

VS-_B

RTD2

12V

FLAGIN

RTD1

12V

3.3V

FLAGOUT

OVP_B

PSON_B

VS+_B

SDA

12V_A UX

FLAGOUT

OUT6

OUT4

SCL

OUT3

OUT2

SDA

OUT1

OUT8

OUT7

OUT5

AGND

TBD1

TBD2

TBD3

PGND_BPGND_A

SDA

SCL

3.3V

12V

3.3V

0 0

R1610k

C14

1nF

R1510k

R25200

R7 2.2k

R26200

R12

27K

C21

100pF

1uF

COM2

C11

0.1uF

C17

100pF

ADP1053

VS+_A

VS-_A

PGND_ A

OVP_A

CS2-_A

CS2+_A

PGOOD_A

CS1_A

ACSNS

PSON_ A

OUT1

OUT2

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

SDA

SCL

PSON_ B

CS1_B

PGOOD_B

CS2+_B

CS2-_B

OVP_B

PGND_ B

VS-_B

VS+_B

FLAGIN/SYNC

FLAGOUT

RTD2

DGND

VCORE

VDD

AGND

RES

ADD

RTD1

C3 1nF

ADP1053 DAUGHTER CARD CONNECTOR

R2347.5k

R210R

BAV70WT1

R2 4.99k

C7 0.1uF

C15

1nF

0.1uF

R8 2.2k

R11

C13

1nF

R17 2

R9 4.99k

C16

1nF

R241k

C4 1nF

R220R

C19

100pF

27K

C18

100pF

ADP3303

OUT1

OUT2

GN D#SD

#ERR

IN1

IN2

R180R

R202.2k

C1 1nF

R14 27K

R19

2.2k

R10 4.99k

C10

0.1uF

C20

100pF

R13

27K

C12

1uF

R1 4.99k

D1 BAV70W T1

C2 1nF

C8 330nF

0.1uF

10612-006

Figure 6. Schematic of the Evaluation Board

UG-388 Evaluation Board User Guide

Rev. 0 | Page 6 of 8

10612-007

Figure 7. Top Layer and Silkscreen

Evaluation Board User Guide UG-388

Rev. 0 | Page 7 of 8

ORDERING INFORMATION

BILL OF MATERIALS

Table 2.

Qty Reference Description Vendor Part No.

1 U1 ADP1053 (device under test), 40-lead LFCSP Analog Devices ADP1053ACPZ-R7

1 U2 ADP3303 low dropout linear regulator Analog Devices ADP3303ARZ-3.3

8 C1, C2, C3, C4, C13, C14,

C15, C16

Capacitor, MLCC, 1 nF, 50 V, C0G, 0603 Digi-Key C1608C0G1H102J

5 C5, C6, C7, C10, C11 Capacitor, MLCC, 0.1 µF, 50 V, X7R, 0603 Digi-Key C1608X7R1H104K

1 C8 Capacitor, MLCC, 330 nF, 50 V, X7R, 0603 Digi-Key C1608X7R1H334K

2 C9, C12 Capacitor, MLCC, 1 µF, 16 V, X7R, 0603 Digi-Key C1608X7R1C105K

5 C17, C18, C19, C20, C21 Capacitor, MLCC, 100 pF, 50 V, C0G, 0603 Digi-Key C1608C0G1H101J

2 D1, D2 Diode, 200 mA, 70 V Digi-Key BAV70WT1G

1 J1 40-pin connector Digi-Key PPTC202LFBN-RC

1 J2 Connector, header, 4-pin, single, PCB 30GOLD Digi-Key 609-2411-ND

4 R1, R2, R9, R10 Resistor, 4.99 kΩ, 0.1%, 1/10 W, 0603 Digi-Key TNPW06034K99BEEA

4 R3, R6, R12, R14 Resistor, 27 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF2702V

5 R4, R5, R11, R13, R24 Resistor, 1 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF1001V

4 R7, R8, R19, R20 Resistor, 2.2 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF2201V

2 R15, R16 Resistor, 10 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF1002V

1 R17 Resistor, 2 Ω, 5%, 1/10 W, 0603 Digi-Key ERJ-3GEYJ2R0V

3 R18, R21, R22 Resistor, 0 Ω, 50 mΩ max, 1/10 W, 0603 Digi-Key ERJ-3GEY0R00V

1 R23 Resistor, 47.5 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF4752V

2 R25, R26 Resistor, 200 Ω, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF2000V

RELATED LINKS

Resource Description

ADP1053 Product Page, 3-Channel Digital Power Supply Controller

ADP-I2C-USB-Z Product Page, USB to I2C Interface Connector

UG-388 Evaluation Board User Guide

Rev. 0 | Page 8 of 8

NOTES

ESD Caution

ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection

circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.

Legal Terms and Conditions

By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions

set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you

have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your a

cceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc.

(“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, A

DI hereby grants to Customer a free, limited, personal,

temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and agrees that the Evaluation Board is provided

for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted is expressly made subject to the following additional

limitations: Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board; and (ii) permit any Third Party to access the Evaluation Board. As used herein, the term

“Third Party” includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is NOT sold to Customer; all rights not expressly granted herein, including

ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all be considered the confidential and proprietary information of ADI. Customer may

not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of use of the Evaluation Board or termination of this Agreement, Customer agrees to

promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile or reverse engi

neer chips on the Evaluation Board. Customer shall inform ADI of any

occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited to soldering or any other activity that affects the material content of the Evaluation Board.

Modifications to the Evaluation Board must comply with applicable law, including but not limited

to the RoHS Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice

to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS” AND ADI MAKES NO

WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED

TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL

PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF

THE EVALUATION BOARD, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE

AMOUNT OF ONE HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable

United States federal laws and regulations relating to exports. GOVERNING LAW. Th

is Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of

Massachusetts (excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby

submits to the personal jurisdiction and venue of such courts.The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.

registered trademarks are the property of their respective owners.

UG10612-0-5/12(0)

Table des matières

Autres manuels Analog Devices Carte mère

Analog Devices

Analog Devices DC2702B-B Guide de configuration rapide

Analog Devices

Analog Devices ADP1071-1EVALZ Manuel utilisateur

Analog Devices

Analog Devices EV-ADA4571RSDZ Manuel utilisateur

Analog Devices

Analog Devices iMEMS ADXL345 Manuel utilisateur

Analog Devices

Analog Devices Blackfin/SHARC USB EZ-Extender... Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADAQ4001 Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD4001FMCZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD7903SDZ Manuel utilisateur

Analog Devices

Analog Devices Linear Technology DC2472A Guide de configuration rapide

Analog Devices

Analog Devices Linear ADI Power SCP-LT3094-EVALZ Guide de configuration rapide

Analog Devices

Analog Devices ADuCM362 Manuel utilisateur

Analog Devices

Analog Devices ADN4612-EVALZ Manuel utilisateur

Analog Devices

Analog Devices AD9858PCB Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADUSB2EBZ Manuel utilisateur

Analog Devices

Analog Devices MicroConverter ADuC824 Manuel utilisateur

Analog Devices

Analog Devices EVAL-LTC9101-3 Manuel utilisateur

Analog Devices

Analog Devices ADuCM350 Manuel utilisateur

Analog Devices

Analog Devices DC2990A Manuel utilisateur

Analog Devices

Analog Devices Linear Technology DC2432B Guide de configuration rapide

Analog Devices

Analog Devices EVAL-LTC3313EV-A-Z Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD5693RSDZ Manuel utilisateur

Analog Devices

Analog Devices DC456 Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADN4680EEBZ Manuel utilisateur

Analog Devices

Analog Devices AD8143-EVALZ Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
