DEMO MANUAL DC2665B-A

Rev. 0

DESCRIPTION

LTM4626

20VIN, 12A Step-Down

µModule Regulator

Demonstration circuit 2665B-A features the LTM

4626

µModule

regulator, a high performance, high efficiency

step-down regulator. The LTM4626 is a complete DC/DC

point-of-load regulator in a thermally enhanced 6.25mm

× 6.25mm × 3.87mm BGA package. The LTM4626 has an

operating input voltage range of 3.1V to 20V and provides

an output current up to 12A. The output voltage is pro-

grammable from 0.6V to 5.5V and can be remotely sensed.

The stacked inductor design improves thermal dissipation

and significantly reduces the package area. Output volt-

age tracking is available through the TRACK/SS pin for

All registered trademarks and trademarks are the property of their respective owners.

supply rail sequencing. External clock synchronization

is available through the SYNC/MODE pin. For high effi-

ciency at low load currents, select discontinuous current

mode(DCM) operation using the MODE jumper (JP7) in

less noise sensitive applications. Refer to the LTM4626

data sheet in conjunction with this demo manual for

working on or modifyingthe DC2665B-A.

Design files for this circuit board are available.

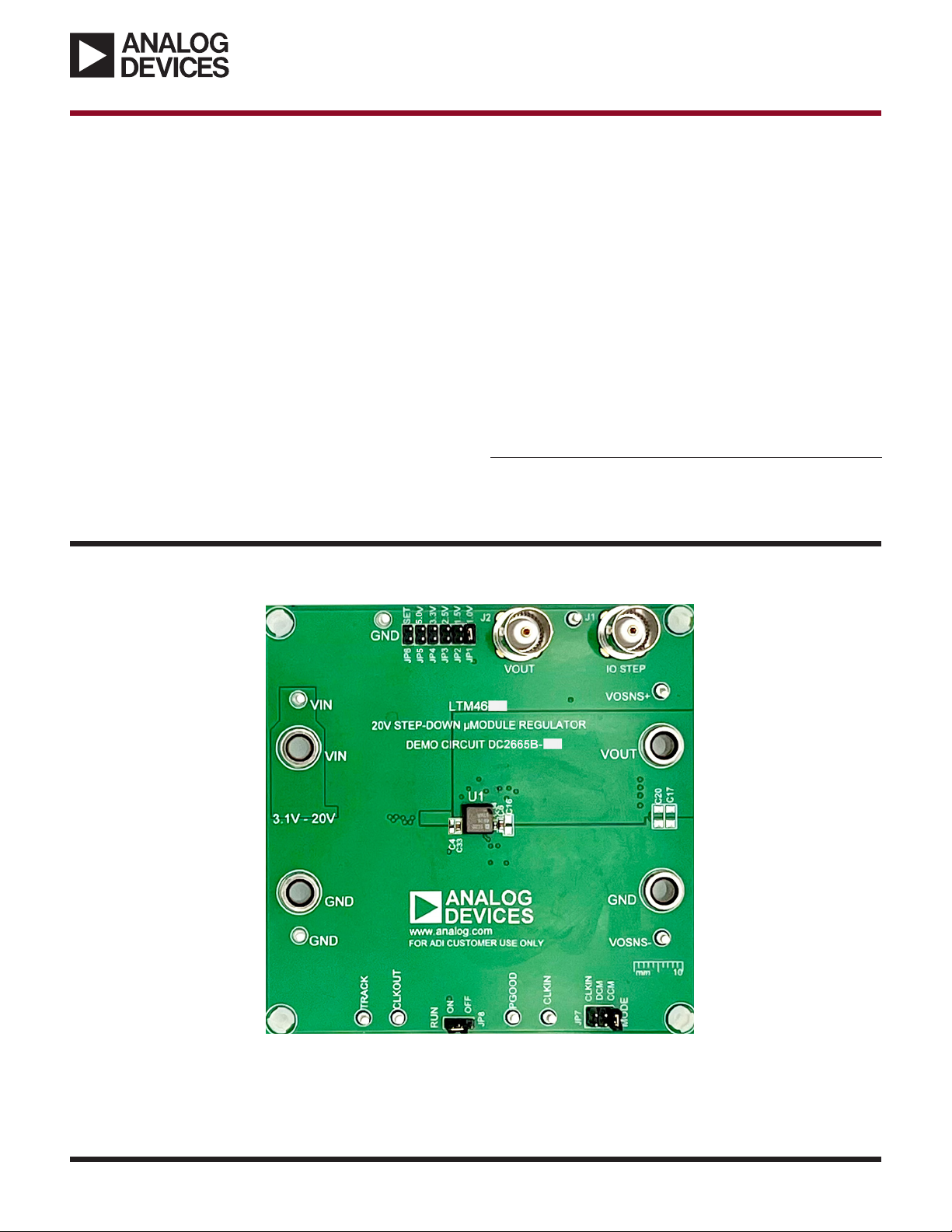

BOARD PHOTO

Part marking is either ink mark or laser mark

DEMO MANUAL DC2665B-A

Rev. 0

Demonstration circuit 2665B-A is an easy way to evaluate

the performance of the LTM4626EY. Refer to Figure1 for

test setup connections and use the following procedure.

1. With power off, place the jumpers in the following

positions:

JP8 JP7 JP1 TO JP6

RUN MODE VOUT Select

ON CCM 1V

2. Before connecting the input supply, load, and meters,

preset the input voltage supply between 3.1V and 20V.

Preset the load current to 0A.

3. With the power off, connect the load, input voltage

supply, and meters as shown in Figure1.

4. Turn on the input power supply. The output voltage

meters for each phase display the ±1.2% programmed

output voltage .

5. Once the proper output voltage is established, adjust

the load current in the 0A to 12A range and observe

the load regulation, efficiency, and other parameters.

Measure the output voltage ripple across the furthest

output cap with a BNC cable and oscilloscope from J2.

6. Place the MODE pin jumper (JP7) in the DCM position

to observe increased light load efficiency.

For optional load transient testing, an onboard

transient circuit is provided to measure transient

response. Place a positive pulse signal between the

IO_STEP_CLK (E10) pin and GND pin. The pulse

amplitude sets the load step current amplitude. Keep

the pulse width short (<1ms) and the pulse duty cycle

low (<15%) to limit the thermal stress on the load

transient circuit. Monitor the load step with a BNC

connected to J1 (5mV/A).

QUICK START PROCEDURE

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITIONS MIN TYP MAX UNITS

Input Voltage Range 3.1 20 V

Output Voltage, VOUT Jumper Selection on JP1

Jumper Selection on JP2

Jumper Selection on JP3

Jumper Selection on JP4

Jumper Selection on JP5

0.98

1.47

2.45

3.23

4.9

1.0

1.5

2.5

3.3

5.0

1.02

1.53

2.55

3.37

5.1

Maximum Continuous Output Current Derating Is Necessary for Certain Operating Conditions

(See Data Sheet for Details)

12 A

Default Operating Frequency 600 kHz

Efficiency VIN = 12V, VOUT = 1V, IOUT = 12A 85 %

DEMO MANUAL DC2665B-A

Rev. 0

QUICK START PROCEDURE

Figure1. Test Setup of DC2665B-A

NOTES:

1. To achieve the minimum output ripple voltage, optimize the operation frequency at different input and output volt-

ages. Suggested operation frequencies at different voltages are shown in Table1. Adjust the operation frequency by

changing the value of RfSET (R5). Refer to the LTM4626 data sheet for a detailed calculation of RfSET (R5).

Table1. Suggested Operation Frequencies

3.3VIN 5VIN 12VIN

VOUT (V) 1 1.2 1.5 1.8 2.5 1 1.2 1.5 1.8 2.5 3.3 1 1.2 1.5 1.8 2.5 3.3 5

fSW (kHz) 600 600 600 600 600 600 600 800 800 1000 1000 600 800 800 1000 1500 1500 2000

For applications that require small output voltage ripple, add shunt-through three-terminal capacitors on the output

at C41 and C42.

DEMO MANUAL DC2665B-A

Rev. 0

QUICK START PROCEDURE

Figure2. Measured Supply, CCM Efficiency vs Load Current

Figure3. Measured Thermal Capture at 12V

, I

OUT

=12A at 25°C Ambient with No Airflow

(a) 3.3VIN (b) 5VIN (c) 12VIN

(a) 1VOUT, 600kHz (b) 5VOUT, 2MHz

dc2665ba F02a

LOAD CURRENT (A)

EFFICIENCY (%)

1VOUT, 600kHz

1.2VOUT, 600kHz

1.5VOUT, 600kHz

1.8VOUT, 600kHz

2.5VOUT, 600kHz

dc2665ba F02b

LOAD CURRENT (A)

EFFICIENCY (%)

1VOUT, 600kHz

1.2VOUT, 600kHz

1.5VOUT, 800kHz

1.8VOUT, 800kHz

2.5VOUT, 1MHz

3.3VOUT, 1MHz

dc2665ba F02c

LOAD CURRENT (A)

EFFICIENCY (%)

1VOUT, 600kHz

1.2VOUT, 800kHz

1.5VOUT, 800kHz

1.8VOUT, 1MHz

2.5VOUT, 1.5MHz

3.3VOUT, 1.5MHz

5VOUT, 2MHz

DEMO MANUAL DC2665B-A

Rev. 0

Figure4. Load Transient (6A to 9A) Response Waveform at 12VIN

(a) 1VOUT

(b) 5VOUT

dc2665ba F04a

40μs/DIV

VOUT(PK-PK) = 42mV

VOUT

50mV/DIV

ILOAD

2A/DIV

dc2665ba F04b

40μs/DIV

VOUT(PK-PK) = 52mV

VOUT

50mV/DIV

ILOAD

2A/DIV

QUICK START PROCEDURE

DEMO MANUAL DC2665B-A

Rev. 0

QUICK START PROCEDURE

Figure5. Tested VOUT AC Ripple at 12VIN, IOUT = 12A, VOUT Ripple Is Tested Across C12

(a) 1VOUT, 600kHz, Full Bandwidth (500MHz) (b) 1VOUT, 600kHz, 20MHz Bandwidth

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 3 C1, C6, C31 CAP., 2.2μF, X7R, 10V, 20%, 0603 TDK, C1608X7R1A225M080AC

2 3 C2, C3, C38 CAP., 22μF, X5R, 25V, 10%, 1206 AVX, 12063D226KAT2A

3 1 C33 CAP., 1μF, X7R, 25V, 10%, 0603 TDK, C1608X7R1E105K080AB

4 4 C5, C11, C12, C30 CAP., 220μF, X5R, 6.3V, 20%, 1206 MURATA, GRM31CR60J227ME11L

5 1 C7 CAP., 0.1μF, X7R, 25V, 10%, 0603 AVX, 06033C104KAT2A

6 1 C8 CAP., 100pF, X7R, 25V, 5%, 0603 AVX, 06033C101JAT2A

7 1 C10 CAP., 220μF, ALUM HYB, 35V, 20% SUN ELECTRONIC, 35HVH220M

dc2665ba F05a

1μs/DIV

VOUT(PK-PK) = 27.6mV

VOUT

10mV/DIV

dc2665ba F05b

1μs/DIV

VOUT(PK-PK) = 4.8mV

VOUT

10mV/DIV

dc2665ba F05c

1μs/DIV

VOUT(PK-PK) = 27.6mV

VOUT

10mV/DIV

dc2665ba F05d

1μs/DIV

VOUT(PK-PK) = 5.6mV

VOUT

10mV/DIV

DEMO MANUAL DC2665B-A

Rev. 0

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

8 1 C18 CAP., 1μF, X7R, 10V, 20%, 0603 AVX, 0603ZC105MAT2A

9 1 C29 CAP., 0.022μF, X7R, 50V, 10%, 0603 KEMET, C0603C223K5RAC7867

10 1 C34 CAP., 1μF, X7R, 6.3V, 10%, 0402 MURATA, GRM155R70J105KA12D

11 1 R3 RES., 10k, 1%, 1/10W, 0603 VISHAY, CRCW060310K0FKEAC

12 1 R4 RES., 90.9k, 0.5%, 1/10W, 0603 SUSUMU, RG1608P-9092-D-T5

13 1 R6 RES., 40.2k, 0.5%, 1/10W, 0603 SUSUMU, RG1608P-4022-D-T5

14 1 R14 RES., 13.3k, 0.5%, 1/10W, 0603 SUSUMU, RG1608P-1332-D-T5

15 1 R15 RES., 19.1k, 0.5%, 1/10W, 0603 SUSUMU, RG1608P-1912-D-T5

16 1 R24 RES., 8.25k, 0.5% 1/10W 0603 SUSUMU, RG1608P-8251-D-T5

17 2 R8, R16 RES., 100k, 1%, 1/10W, 0603 STACKPOLE ELECTRONICS, RMCF0603FG100K

18 2 R9, R10 RES., 0Ω, 5%, 1/16W, 0402 ROHM, SFR01MZPJ000

19 1 R17 RES., 0Ω, 1/10W, JUMPER, 0603 YAGEO, RC0603FR-070RL

20 1 R7 RES., 150k, 5%, 1/10W, 0603 YAGEO, RC0603JR-07150KL

21 1 Q1 XSTR, MOSFET, N-CH, 40V, TO-252 (DPAK) VISHAY, SUD50N04-8M8P-4GE3

22 1 RS2 RES., SENSE, 0.005Ω, 1%, 1W, 2512 VISHAY, WSL25125L000FEA

23 1 U1 IC, 20V, 12A STEP-DOWN μModule REG. ANALOG DEVICES, INC. LTM4626EY#PBF

Additional Demo Board Circuit Components

24 0 C4, C9, C15, C36, C19, C43, C44 CAP., OPTION, 0603 OPTION

25 0 C13, C16, C22-C24, C37 CAP., OPTION, 0805 OPTION

26 0 C21, C20, C17 CAP., OPTION, 1206 OPTION

27 0 C25-C28 CAP., OPTION, 1210 OPTION

28 0 C39 CAP., OPTION, 0805, 3 PC PAD MURATA, NFM21PC104R1E3D

29 0 C40 CAP., OPTION, 1206, 3 PC Pad TDK, YFF31HC2A104MT000N

30 0 C41 CAP., OPTION, 0603, 3 PC PAD MURATA, NFM18CC223R1C3D

31 0 C42 CAP., OPTION, 1206, 3 PC PAD MURATA, NFM31PC276B0J3L

32 0 R18 RES., OPTION, 0805 OPTION

33 0 C35 CAP., OPTION, 0805 OPTION

34 0 R21-R23 RES., OPTION, 0402 OPTION

35 0 R1, R2, R5, R11-R13, R19, R20 RES., OPTION, 0603 OPTION

36 0 L1 IND., OPTION, 1812 OPTION

37 0 L2 IND., OPTION, 4mm × 4mm, AEX-Q200 COILCRAFT, XEL4020-800MEC

Hardware: For Demo Board Only

38 10 E1, E3, E5, E6, E8-E12, E14 TESTPOINT, TURRET 0.064" MILL-MAX, 2308-2-00-80-00-00-07-0

39 4 E2, E4, E7, E13 JACK, BANANA KEYSTONE, 575-4

40 2 J1, J2 CONN, BNC, 5 PINS AMPHENOL RF, 112404

41 5 JP1-JP6 HEADER, 1×2, 2mm SULLINS, NRPN021PAEN-RC

42 1 JP7 HEADER, 2×3, 2mm SULLINS, NRPN032PAEN-RC

43 1 JP8 HEADER, 1×3, 2mm SAMTEC, TMM-103-02-L-S

44 4 MP1-MP4 STAND-OFF, NYLON 0.5" KEYSTONE, 8833(SNAP ON)

45 3 XJP1, XJP7, XJP8 SHUNT, 2mm SAMTEC, 2SN-BK-G

PARTS LIST
