Analog Devices EVAL-AD2437B1MZ Manuel utilisateur

EVAL-AD2437B1MZ Manual

Revision 2.1 , August 2023

Part Number

EVAL-AD2437B1MZ

Analog Devices, Inc.

One Technology Way

Norwood, MA 02062-9106

without prior, express written consent from Analog Devices, Inc.

Disclaimer

Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Ana-

log Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its

use; nor for any infringement of patents or other rights of third parties which may result from its use. No license is

granted by implication or otherwise under the patent rights of Analog Devices, Inc.

Trademark and Service Mark Notice

The Analog Devices logo, Blackfin, SHARC, A2B, SigmaDSP, SigmaStudio+, and EngineerZone are registered

trademarks of Analog Devices, Inc.

All other brand and product names are trademarks or service marks of their respective owners.

Regulatory Compliance

The EVAL-AD2437B1MZ evaluation board is designed to be used solely in a laboratory environment. The board is

not intended for use as a consumer-end product or as a portion of a consumer-end product. The board is an open

system design, which does not include a shielded enclosure and, therefore, may cause interference to other electrical

devices in close proximity. This board should not be used in or near any medical equipment or RF devices.

The EVAL-AD2437B1MZ evaluation board contains ESD (electrostatic discharge) sensitive devices. Electrostatic

charges readily accumulate on the human body and equipment and can discharge without detection. Permanent

damage may occur on devices subjected to high-energy discharges. Proper ESD precautions are recommended to

avoid performance degradation or loss of functionality. Store unused boards in the protective shipping package.

EVAL-AD2437B1MZ Manual ii

Contents

Preface

Purpose of This Manual.................................................................................................................................1–2

Manual Contents ........................................................................................................................................... 1–2

Technical Support.......................................................................................................................................... 1–3

Supported Integrated Circuit ......................................................................................................................... 1–3

Supported Tools............................................................................................................................................. 1–3

Product Information...................................................................................................................................... 1–3

Analog Devices Website.............................................................................................................................. 1–3

EngineerZone ............................................................................................................................................. 1–4

Using the Board

Product Overview .......................................................................................................................................... 2–1

Package Contents........................................................................................................................................... 2–2

Default Configuration ................................................................................................................................... 2–2

Reference Design Information .......................................................................................................................2–3

AD2437 - Audio Bus A2B Transceiver ........................................................................................................... 2–3

ADA4661 -18 V, Precision, 725 µA, 4 MHz, CMOS RRIO Operational Amplifier ...................................... 2–4

ADAU1701 SigmaDSP 28-/56-Bit Audio Processor with Two ADCs and Four DACs .................................. 2–4

ADP2360 - 50 mA, 60 V, High Efficiency Buck Regulator............................................................................ 2–5

BD28623MUV - Class D Speaker Amplifier ................................................................................................. 2–5

IM69D120 High Performance Digital MEMS Microphone .......................................................................... 2–5

LT3502/LT3502A - 1.1MHz/2.2MHz, 500mA Step-Down Regulators in 2mm × 2mm DFN and MS10 .... 2–5

M24512-RMN6TP - Automotive 512-Kbit Serial I2C EEPROM with 1MHz clock..................................... 2–6

Hardware Reference

Connectors .................................................................................................................................................... 3–1

Stereo Connectors( TP5-TP8 ).................................................................................................................. 3–2

Audio I2S Connector ( P1) ........................................................................................................................ 3–3

EVAL-AD2437B1MZ Manual iii

SigmaStudio+ ( P2) .................................................................................................................................... 3–3

Multipurpose pins( P5 ) ............................................................................................................................. 3–3

ADC Input Connector( P7 ) ...................................................................................................................... 3–3

DAC Output Connector( P20 ) ................................................................................................................. 3–3

A2B ( P27 and P21) .................................................................................................................................. 3–3

Jumpers ......................................................................................................................................................... 3–4

AD2437 SIO0 Routing ( P4) ..................................................................................................................... 3–4

AD2437 SIO1 Routing ( P23)................................................................................................................... 3–5

AD2437 BCLK Select ( P16)..................................................................................................................... 3–5

ADAU1701 I2C Bus Switch ( P18 and P22)......................................................................................... 3–5

LEDs ............................................................................................................................................................. 3–5

A2B Interrupt ( DS2).................................................................................................................................. 3–6

Power Status Indicator ( DS1, DS3, DS5) ................................................................................................. 3–6

I2C Bus Switch ( DS4) ............................................................................................................................... 3–7

BD28623MUV Error Status ( DS6) ........................................................................................................... 3–7

iv EVAL-AD2437B1MZ Manual

1 Preface

Thank you for purchasing the Analog Devices, Inc. EVAL-AD2437B1MZ evaluation board.

The EVAL-AD2437B1MZ is an evaluation board to evaluate various peripherals of AD2437 A2B (Audio Bus) trans-

ceiver. Refer datasheet/manual to get more details about AD2437.

The EVAL-AD2437B1MZ is configured to be a Bus-Powered Sub (BPS) node. The EVAL-AD2437B1MZ can be

connected to a Main Node, Local-Powered Sub (LPS) or a Bus-Powered Sub (BPS) Node. These evaluation boards

are intended to be used with the SigmaStudio+ graphical development tool.

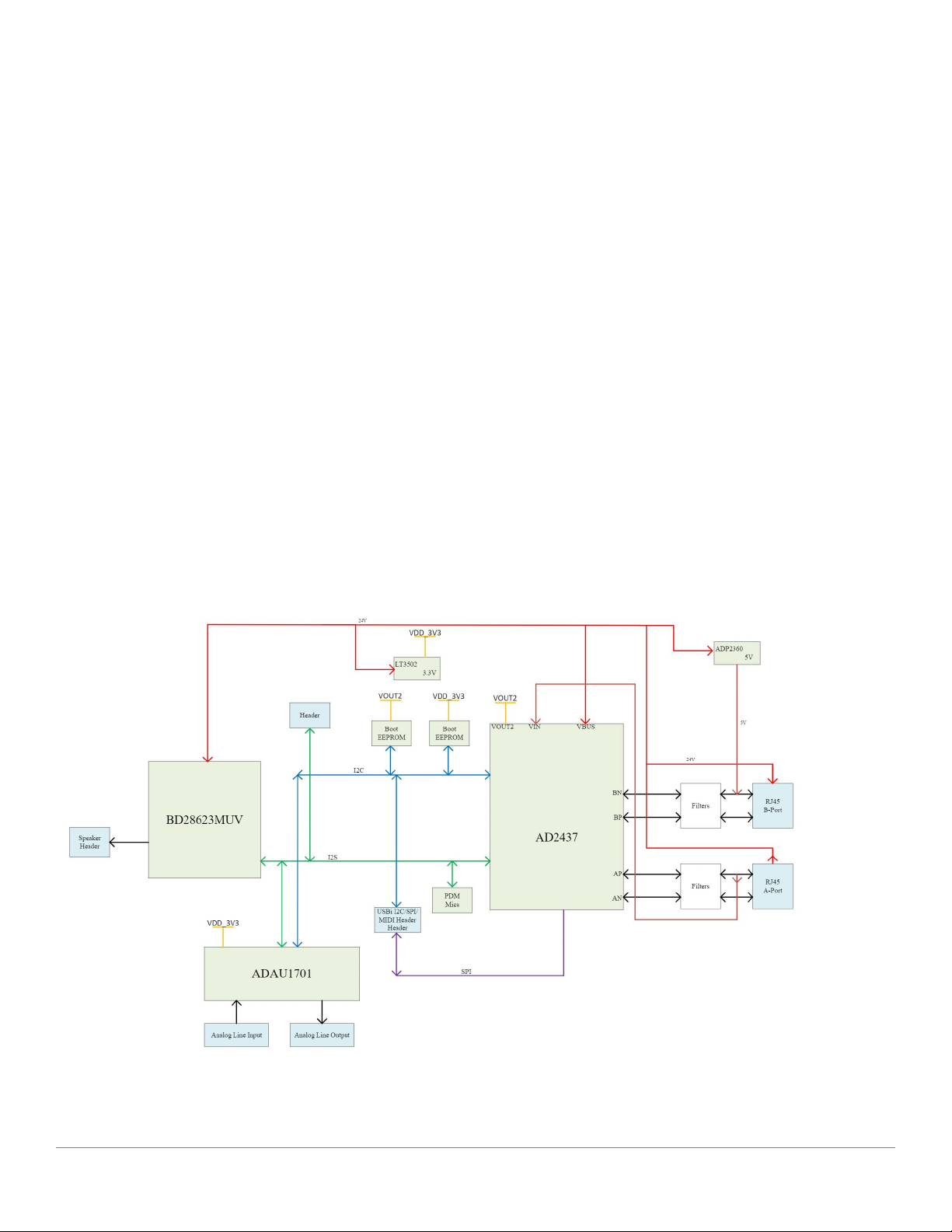

Block Diagram of Evaluation Board:

Preface

EVAL-AD2437B1MZ Manual 1–1

A PC host controls the AD2437 A2B main transceiver I2C/SPI signals over the USB-to- I2C/SPI bridge, the US-

Bi(EVAL-ADUSB2EB). This allows the PC to directly discover and control an A2B network as well as to read back

registers and monitor performance.

The SigmaStudio+®graphical development tool is the programming, development, and tuning software for the Sig-

maDSP, A2B, and Sharc processors. Familiar audio processing blocks can be wired together as in a schematic, and

the compiler generates DSP-ready code and a control surface for setting and tuning parameters. This tool allows

engineers with no DSP code writing experience to easily implement a DSP into their design and yet is still powerful

enough to satisfy the demands of experienced DSP designers. SigmaStudio+ links with both Analog Devices evalua-

tion boards and production designs to provide full in-circuit real-time IC control.

SigmaStudio+ includes an extensive library of algorithms to perform audio processing such as filtering, mixing, and

dynamics processing, as well as basic low-level DSP functions and control blocks. Advanced record-side processing

algorithms such as Enhanced Stereo Capture and wind noise detection are included in the standard libraries. Plug-in

algorithms from Analog Devices and 3rd party partners can be added to SigmaStudio+'s drag-and-drop library.

Along with its graphical DSP signal flow development, SigmaStudio+ also includes other features to speed up the

design cycle from product concept to release. SigmaStudio+ includes tools for intuitively setting control registers,

calculating tables of filter coefficients, visualizing filter magnitude and phase responses, generating C header files,

and sequencing a series of controls to ease your transition from SigmaStudio+ to system implementation on your

microcontroller.

Purpose of This Manual

This manual provides instructions for installing the product hardware (board). This manual describes the operation

and configuration of board components and provides guidelines for running code on the board.

Manual Contents

The manual consists of:

•Using the board

Provides basic board information.

•Hardware Reference

Provides information about the hardware aspects of the board.

•Bill of Materials

A companion file in PDF format that lists all of the components used on the board is available on the website

at https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/EVAL-

AD2437B1MZ.html.

•Schematic

Purpose of This Manual

1–2 EVAL-AD2437B1MZ Manual

A companion file in PDF format documenting all of the circuits used on the board is available on the website

at https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/EVAL-

AD2437B1MZ.html.

Technical Support

You can reach Analog Devices technical support in one of the following ways:

•Post your questions in the A2B support community at EngineerZone®:

http://ez.analog.com/a2b/

•Submit your questions to technical support directly at:

http://www.analog.com/support

•E-mail your questions about A2B transceiver applications and SigmaStudio+ to:

[email protected]

•Contact your Analog Devices sales office or authorized distributor. Locate one at:

http://www.analog.com/adi-sales

Supported Integrated Circuit

This evaluation system supports the Analog Devices AD2437 IC.

Supported Tools

Information about SigmaStudio+ and the A2B software plug-in for the EVAL-AD2437B1MZ evaluation board is

available at: www.analog.com/SigmaStudio+.

Product Information

Information about the AD2437 product family is available at: www.analog.com/A2B

Analog Devices Website

The Analog Devices website, http://www.analog.com, provides information about a broad range of products - ana-

log integrated circuits, amplifiers, converters, transceivers, and digital signal processors.

Also note, MyAnalog.com is a free feature of the Analog Devices website that allows customization of a web page to

display only the latest information about products you are interested in. You can choose to receive weekly e-mail

notifications containing updates to the web pages that meet your interests, including documentation errata against

all manuals. MyAnalog.com provides access to books, application notes, data sheets, code examples, and more.

Technical Support

EVAL-AD2437B1MZ Manual 1–3

Visit MyAnalog.com to sign up. If you are a registered user, just log on. Your user name is your e-mail address.

EngineerZone

EngineerZone is a technical support forum from Analog Devices, Inc. It allows you direct access to ADI technical

support engineers. You can search FAQs and technical information to get quick answers to your embedded process-

ing and DSP design questions.

Use EngineerZone to connect with other DSP developers who face similar design challenges. You can also use this

open forum to share knowledge and collaborate with the ADI support team and your peers. Visit http://

ez.analog.com to sign up.

Product Information

1–4 EVAL-AD2437B1MZ Manual

2 Using the Board

This chapter provides information on the major components and peripherals on the board, along with instructions

for installing and setting up the emulation software.

Product Overview

The board features:

•Analog Devices AD2437 - Audio Bus Transceiver

•Analog Devices ADA4661 -18 V, Precision, 725 µA, 4 MHz, CMOS RRIO Operational Amplifier

•Analog Devices ADP2360 - 50 mA, 60 V, High Efficiency Buck Regulator

•Analog DevicesLT3502/LT3502A - 1.1MHz/2.2MHz, 500mA Step-Down Regulators in 2mm × 2mm DFN

and MS10

•Microchip Technology 25AA256 - 256K SPI Bus Serial EEPROM

•Infineon IM69D120 High Performance Digital MEMS Microphone

•Mouser M24512-RMN6TP - Automotive 512-Kbit Serial I2C EEPROM with 1MHz clock

•Audio

•Analog Devices ADAU1701 SigmaDSP 28-/56-Bit Audio Processor with Two ADCs and Four DACs

•BD28623MUV - Class D Speaker Amplifier

•Four Stereo MEMS Microphones

•EEPROM

•Three 3.5mm audio jacks, One input, Two output

•A2B

•Two RJ45 Shielded Terminals

•LEDs

•Six LEDs : 3.3V, 5V, Power, Error, IRQ, Bus Switch

Using the Board

EVAL-AD2437B1MZ Manual 2–1

Package Contents

Your EVAL-AD2437B1MZ package contains the following items.

•EVAL-AD2437B1MZ board

•1m RJ45 Cable

•A2B Software - Online Request Documention

Contact the vendor where you purchased your EVAL-AD2437B1MZ evaluation board or contact Analog Devices,

Inc. if any item is missing.

Default Configuration

The Default Hardware Setup figure shows the default settings for jumpers and switches and the location of the

jumpers, switches, connectors, and LEDs. Confirm that your board is in the default configuration before using the

board.

Default Config of Sub Node

Package Contents

2–2 EVAL-AD2437B1MZ Manual

Table des matières

Autres manuels Analog Devices Carte mère

Analog Devices

Analog Devices EVAL–ADM2486EBZ Manuel utilisateur

Analog Devices

Analog Devices AD9574 Guide de démarrage rapide

Analog Devices

Analog Devices EVAL-ADPD7000 Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD7405FMCZ Manuel utilisateur

Analog Devices

Analog Devices SHARC EZ-Extender Manuel utilisateur

Analog Devices

Analog Devices Linear Technology DC2483A-B Guide de configuration rapide

Analog Devices

Analog Devices EVAL-LTC9101-3 Manuel utilisateur

Analog Devices

Analog Devices DC353A Manuel utilisateur

Analog Devices

Analog Devices MAX77857Q Manuel utilisateur

Analog Devices

Analog Devices 2787A Manuel utilisateur

Analog Devices

Analog Devices iCoupler ADuM4160 Manuel utilisateur

Analog Devices

Analog Devices ADZS-BF707-BLIP2 Guide de l'utilisateur

Analog Devices

Analog Devices UG-160 Manuel utilisateur

Analog Devices

Analog Devices ADuCM362 Manuel utilisateur

Analog Devices

Analog Devices EV-ADF4356SD1Z Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADPD2140Z Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADXL362Z-MLP Manuel utilisateur

Analog Devices

Analog Devices SSM3582 Manuel utilisateur

Analog Devices

Analog Devices ADL6316-EVALZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD4115SDZ Manuel utilisateur

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF707 Manuel utilisateur

Analog Devices

Analog Devices UG-469 Manuel utilisateur

Analog Devices

Analog Devices ADMV8818-EVALZ Manuel utilisateur

Analog Devices

Analog Devices Blackfin Audio EZ-Extender Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
