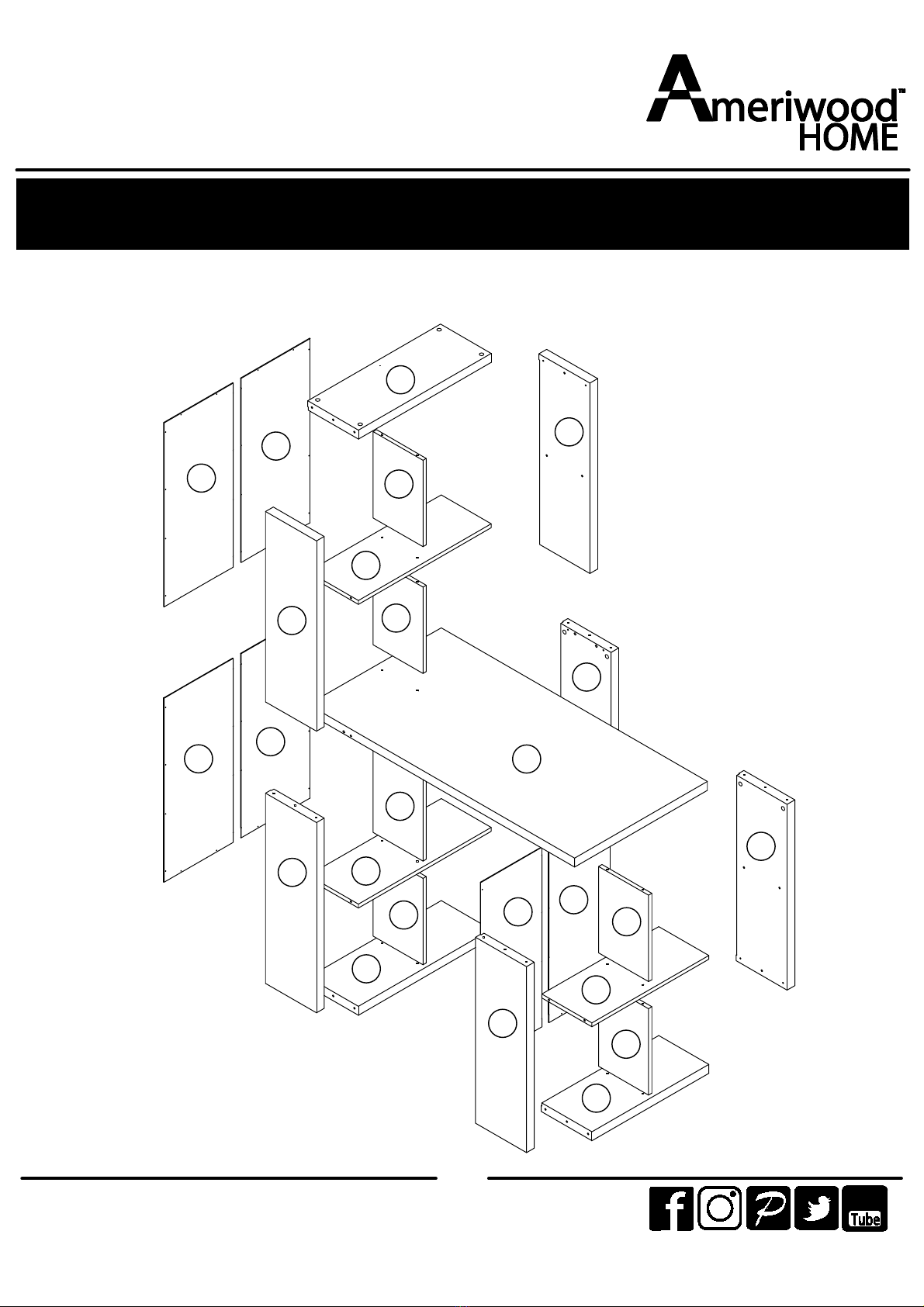

Ameriwood HOME 9358850COM Manuel utilisateur

9358850COM

Desk- Silverton oak

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B349358850COM00GO

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1-1.5 HOUR

Helpful Hints

ameriwoodhome.com

Quick

Tip

Assembly

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

Tube

You

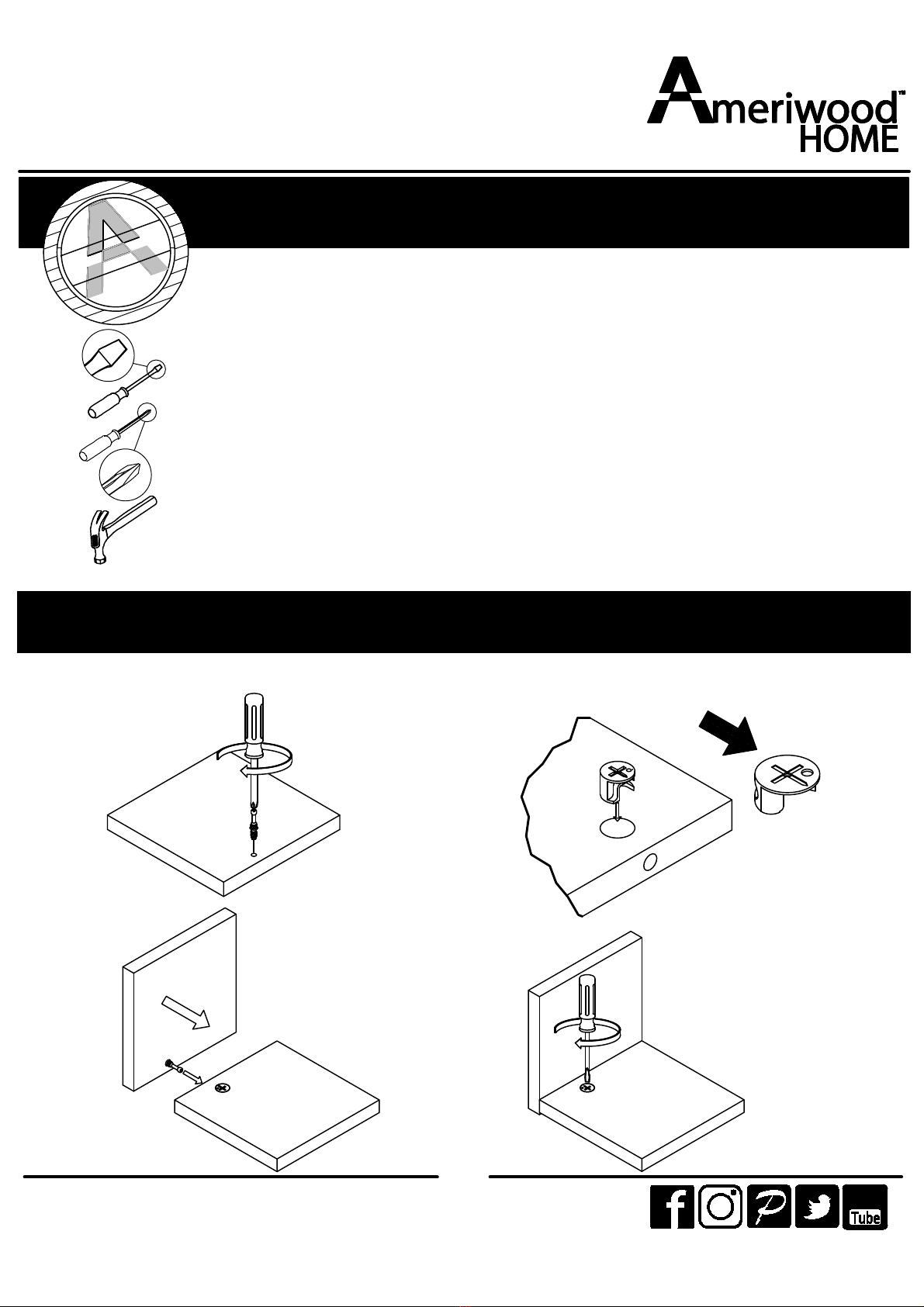

This Cam Lock Fastening System will be used throughout the assembly process.

Cam Lock Fastening System

ameriwoodhome.com

Board Identification

Not Actual Size

Tube

You

Desk top

T9358850010GO

QTY: 1 PC

Right panel

T9358850020GO

QTY: 1 PC

Left panel

T9358850030GO

QTY: 1 PC

Right panel

T9358850040GO

QTY: 1 PC

Left panel

T9358850050GO

QTY: 1 PC

Upper right panel

T9358850060GO

QTY: 1 PC

Upper left panel

T9358850070GO

QTY: 1 PC

Bottom

T9358850080GO

QTY: 1 PC

Fixed shelf

T9358850090GO

QTY: 1 PC

ameriwoodhome.com

Board Identification

Not Actual Size

Tube

You

Fixed shelf

T9358850100GO

QTY: 2 PCS

Partition

T9358850110GO

QTY: 6 PCS

Back panel

T9358850120GO

QTY: 2 PCS

Back panel

T9358850130GO

QTY: 4 PCS

Top and Bottom

T9358850140GO

QTY: 2 PCS

KLM

ameriwoodhome.com

Board Identification

Not Actual Size

Tube

You

ameriwoodhome.com

Part List

Tube

You

Hardware Bag Reference Number:

29358850COM0GO

Actual Size

Not Actual Size

Cam cover

TGO2228

2 3

Ø15X12 mm

Cam lock

TGO2101

Spare: 2

× 24

8× 12

Wall anchor

TGO6501

Wall bracket

TGO3502

× 1

50*30*20mm

× 24

Cam bolt

TGO2001

× 52

Ø3X12 mm

Screw

TGO1301W

Ø10X50 mm

× 4

Wood dowel

TGO2902

Ø8X30 mm

× 24

Wood dowel

TGO2900

Ø8X50 mm

× 16

Wood dowel

TGO2901

× 1

6× 1

Screw

TGO1304

Screw

TGO1314

Ø20 mm

Ø6X25mm

Ø4.2X28 mm

Ø6 x 30mm

Ø4.2X13 mm

× 1

Glue

TGO9001 7

ameriwoodhome.com

Tube

You

Use one drop of glue in dowel hole.

lue

Wooden

Dowel

Hole for

wooden

dowel

1× 8 4

Ø8X30 mm

× 24 5

Ø8X50 mm

× 4 12

1.1 Attach (5) to (A), (B) & (C) as illustrated.

1.2 Attach (1) to (A), (B) & (C) as illustrated.

1.2 Attach (4) to (J), (K) & (L) as illustrated.

Ø6X25mm

L x 6

K x 2

ameriwoodhome.com

STEP 1

Tube

You

1× 16 5

Ø8X50 mm

× 6

Ø10X50 mm

× 4 12

Use one drop of glue in dowel hole.

lue

Wooden

Dowel

Hole for

wooden

dowel

2.1 Attach (5) to (D), (E), (F) & (G) as illustrated.

2.2 Attach (3) to (D) & (E) as illustrated.

2.3 Attach (1) to (D), (E), (F) & (G) as illustrated.

Ø6X25mm

ameriwoodhome.com

STEP 2

Tube

You

Ø8X50 mm

× 2

3.1 Attach (L) to (J) & (H) with (5) as illustrated.

FINISHED EDGE

GROOVE

ameriwoodhome.com

STEP 3
