Ameriwood HOME 1125335WCOM Manuel utilisateur
1125335WCOM
TV STAND
B341125335WCOM0
Follow Ameriwood Home
Tube
You
Date of Purchase ___ / ___ / ___
Lot Number:
Assembly Difficulty Meter
Easy Tough
0 29986 11245 3
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
WARNING
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT
SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Contact Us!
Helpful Hints
2
ameriwoodhome.com
Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com to view the
limited warranty valid in the U.S. and Canada.
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a
R
(right) and
L
(left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 1 HOUR
3
ameriwoodhome.com
Before You Start
P
Quick
Tip
Assembly
P
P
P
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
Tube
You
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P
4
ameriwoodhome.com

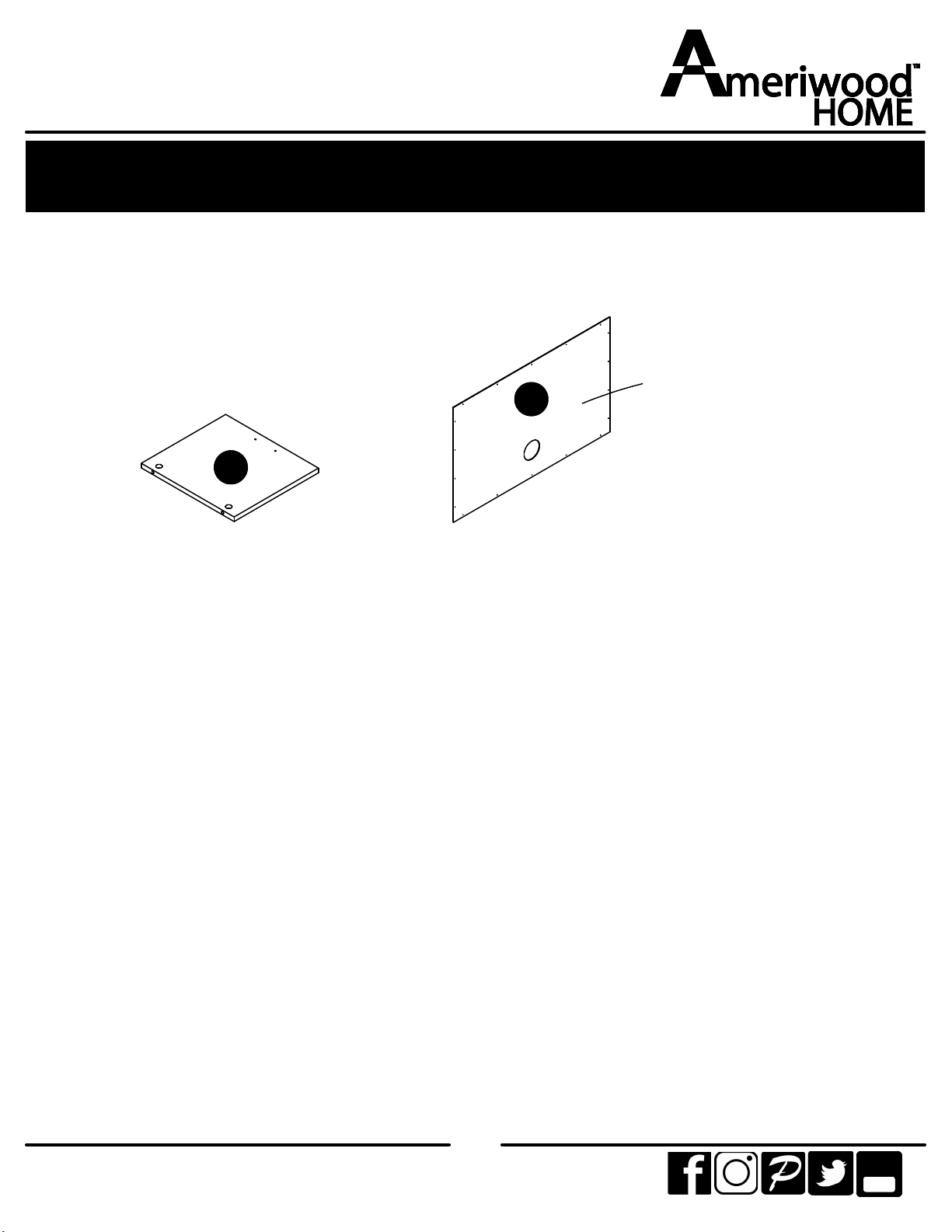

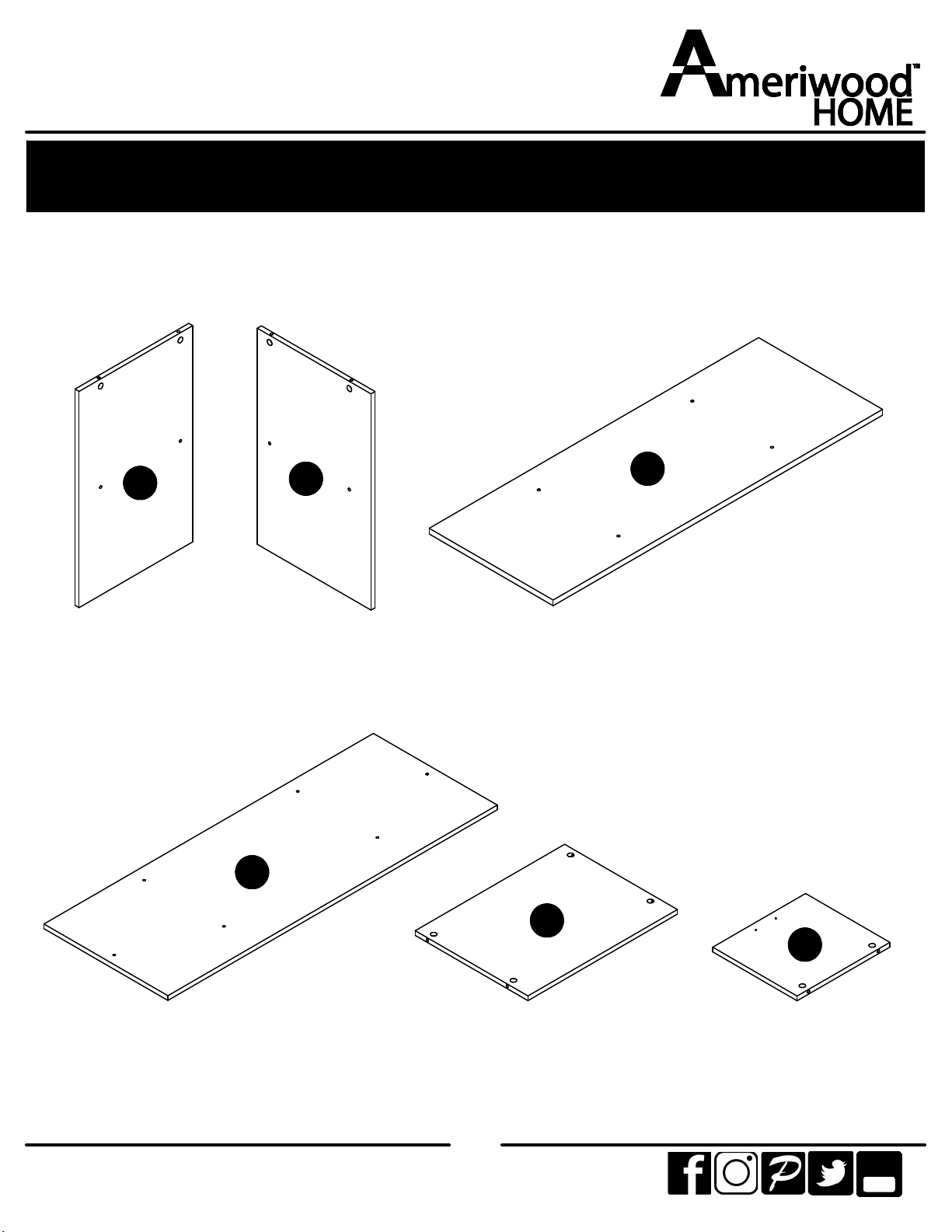

Board Identification
Not actual size
Tube
You
Left Panel
31125335012
Right Panel
31125335022
Top
31125335031
Bottom
31125335041
Center Shelf
31125335052
Left Shelf
31125335061
ABC
D
EF
5
ameriwoodhome.com
Board Identification
Not actual size
Tube
You
Right Shelf
31125335071
Back Panel
K112500000
This piece is
paperboard
construction.
G
H
6
ameriwoodhome.com
Board Identification
Not actual size
Tube
You
A
B
C
D
E
F
G
H
This piece is
paper board
construction.
7
ameriwoodhome.com

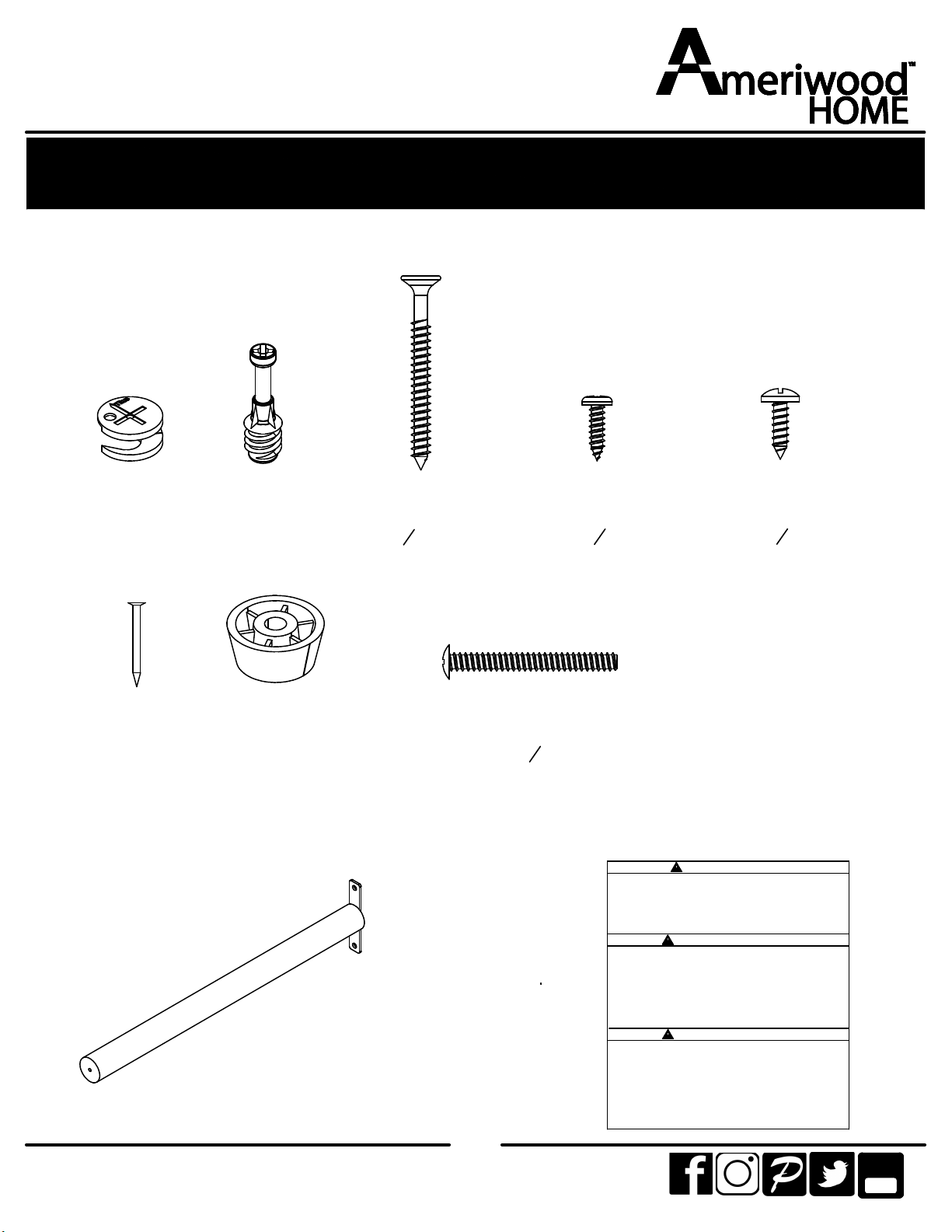

Part List
Actual Size
Tube
You
Not Actual Size
(x2)
#I35140
post
(x12)
#A22570
cam lock
(x12)
#A22510
cam bolt
(x4)
#A13410
1-
34
" flat head
(x8)
#A11130
#6 x
12
" pan head
(x4)
#A12210
#8 x
12
" pan head
(x18)
#A21110
nail
(x8)
#A43320
plastic foot
(x2)
#A17750
#8-32 x 1-
12
" truss head
No usar nunca este mueble con una TV que es demasiado larga o
demasiado pesada. Podría producir la lesión severa o la muerte. La TV y
el mueble podrían ser instables y podrín inclinar.
* La TV debe pesar menos de 50 lbs. (22.7 kg)
* La base de la TV debe ser capaz de sentarse por completo sobre esta
superficie.
NO CRT (TIPO DE TUBO) TV PERMITIDO.
Esta pieza está diseñado para la mayoría de las TVs de PANEL PLANA
que tienen pantallas diagonales de hasta 42 pulgadas (106 cm).
Refiérase al libro de instrucciones para información completa de seguridad.
ADVERTENCIA
WARNING
Never use this furniture with a TV that is too large or too heavy. Severe injury or
death can occur. The TV and furniture can be unstable and may tip.
* The TV must weigh less than 50 lbs. (22.7 kg)
* The base of the TV must be able to sit completely on this surface.
NO CRT (TUBE TYPE) TV PERMITTED. This item is designed for most FLAT
PANEL TV's having up to a 42 in. (106 cm) diagonal screen measurement.
Refer to instruction book for complete safety information.
B64354
Ne jamais utiliser ce mobilier avec un téléviseur trop grand ou trop lourd.
Des blessures graves ou la mort peuvent survenir. Le téléviseur et le
meuble peuvent devenir instable et renverser.
Le téléviseur doit peser moins de 22.7 kg (50 lb).
La base du téléviseur doit être capable de reposer complètement sur cette
surface.
AUCUN TÉLÉVISEUR TRC (TYPE TUBE) PERMIS. Ce produit est conçu
pour la plupart des TÉLÉVISEURS À ÉCRAN PLAT avec un écran
mesurant 106 cm (42 po) diagonalement.
Veuillez vous reporter au manuel d'instruction pour de l'information
complète sur la sécurité.
ADVERTISSEMENT
(x1)
#B64354
warning label
8
ameriwoodhome.com

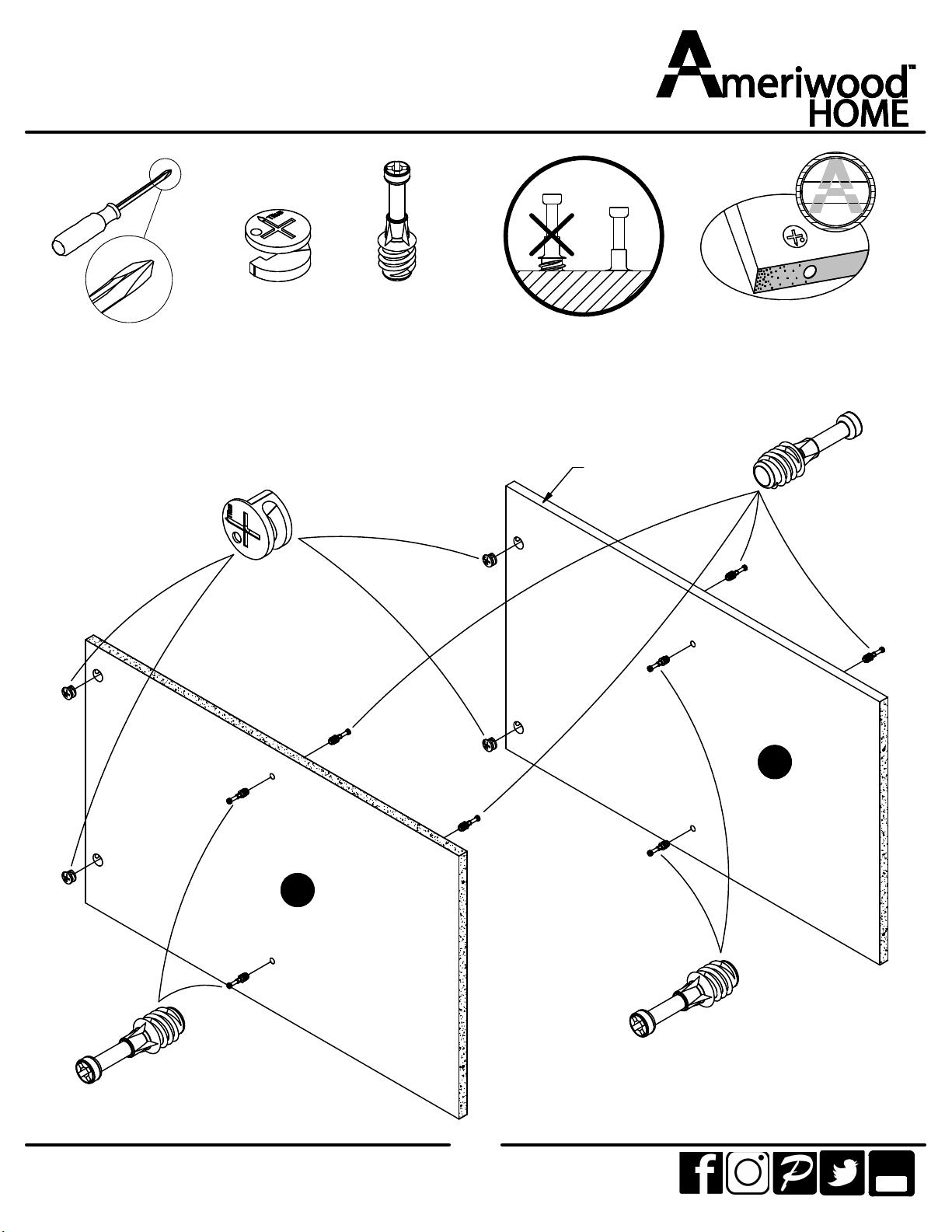

STEP1
Proper orientation of CAM LOCK
Tip
Assembly
Quick
Tube
You
(x4)
#A22570
* raw edges are shaded
E
C
(x4)
#A22510
Insert four cam locks into panel (E) and screw four cam bolts into panel (C) as shown.
9
ameriwoodhome.com
STEP2
Tube
You
(x8)
#A11130
(x8)
#A43320
D
Notice: Do not get the #6 x
12
" screw mixed up with the #8 x
12
" screw.
The #6 is smaller diameter than the #8 screw.
10
ameriwoodhome.com
STEP3
Proper orientation of CAM LOCK
Tip
Assembly
Quick
(x8)
#A22510
(x4)
#A22570
B
A
* raw edges are shaded
Tube
You
Insert two cam locks and screw four cam bolts into each panel as shown.
finished edge
