Ameriwood HOME 9107328PCOM Manuel utilisateur

B349107328PCOD4

STOP

1-800-489-3351

Need Parts or Assistance?

WWW.AMERIWOODHOME.COM/PARTS

If a part is missing or damaged, visit our website or call our toll-free

customer service line. We will gladly ship your replacement parts

FREE of charge.

For prompt, reliable service please have your assembly manual ready.

DO NOT RETURN PRODUCT TO THE STORE

Individual stores do not stock parts.

or call toll free:

Recommended # of people needed for assembly: 1

(however it is always better to have an extra hand.)

Estimated assembly time is 1 hours.

Se localizan las traducciones españolas en el centro de este

manual.

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT SAFETY INFORMATION. PLEASE

READ AND KEEP FOR FUTURE REFERENCE.

Date of Purchase

___ / ___ / ___

Please Recycle

Recicle Por Favor

Lot Number:

9107328PCOM

Visit www.AMERIWOODHOME.com to view the limited warranty valid in the U.S. and Canada.

Thank you for purchasing from AMERIWOOD.

HELPFUL HINTS

BEFORE STARTING

-Read each step carefully before starting. It is very important that each

step of instruction is performed in the correct order. If these steps are not

followed in sequence, assembly difficulties will occur.

-Make sure all parts are included. Most board parts are labeled or

stamped on the raw edge.

-Work in spacious area, preferably on a carpet, near the place the unit will

be used.

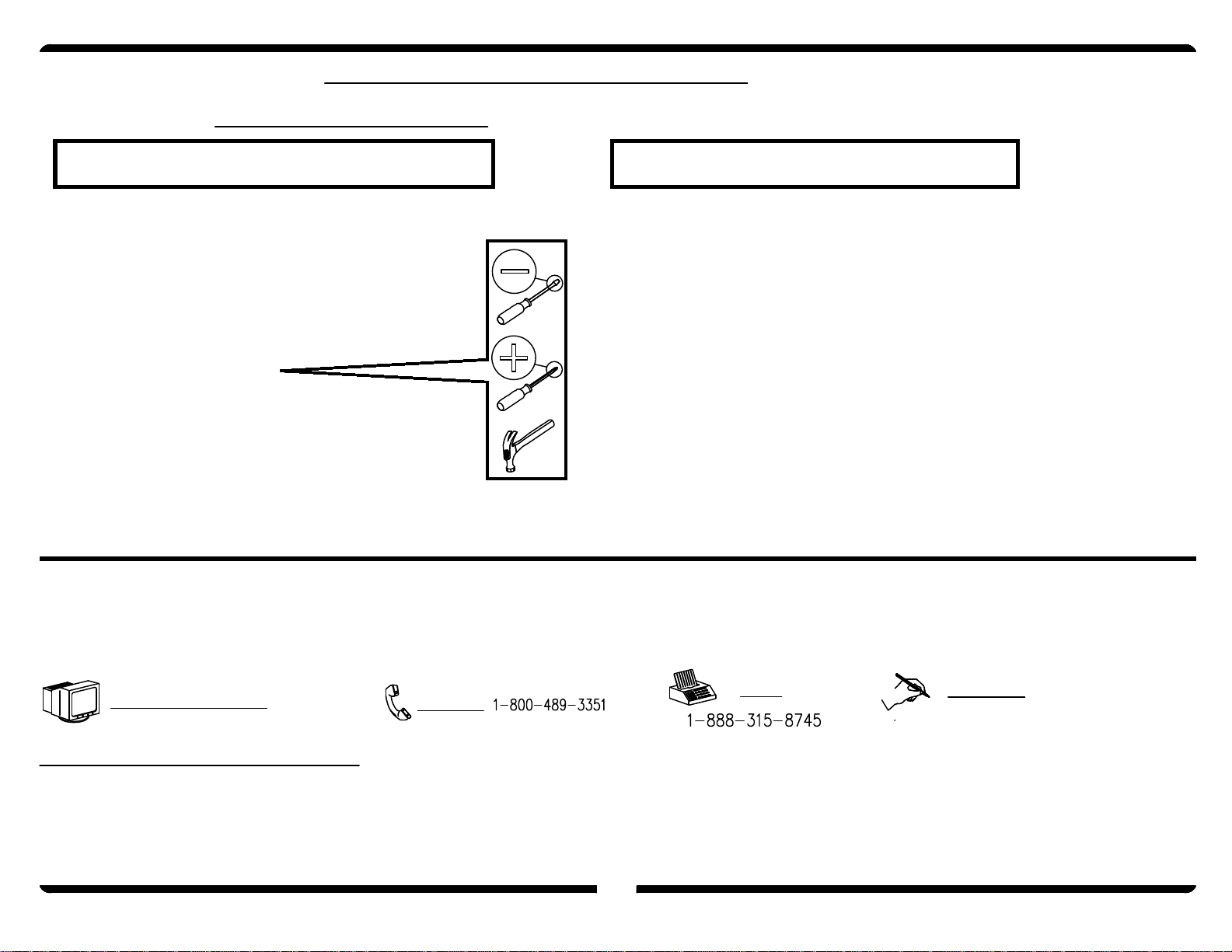

-Have the following tools close at hand.

-Do not use power tools to assemble your furniture. Power tools may strip

or damage the parts.

- Visit our website for basic assembly tips and to order replacement parts..

- Call our toll free number if you need assistance.

- Compression dowels are tapped in with a hammer.

- Back panels provide stability and support. Use all the nails provided. Units without the back panel

installed may collapse.

- When tapping nails into a board, be sure there are equal margins on all sides to square the unit.

- Move your new furniture carefully, with two people lift and carry the unit to it's new location.

- Never push, drag or scoot your furniture (especially on carpet).

- Additional parts are available for a nominal fee.

For help with assembly, identifying parts, product information or to order parts, please contact us:

AMERIWOOD

410 East First Street South

Wright City, MO 63390

Attention: Consumer Service

Write to:

USA

Visit our website: FAX:

Call us at:

(Central Time)

9:00 am - 5:00 pm

Monday - Friday

available 24 hours a day,

7 days a week

available 24 hours a day,

7 days a week

WWW.AMERIWOODHOME.COM/PARTS

B349107328PCOD4

3 /20

www.ameriwoodhome.com

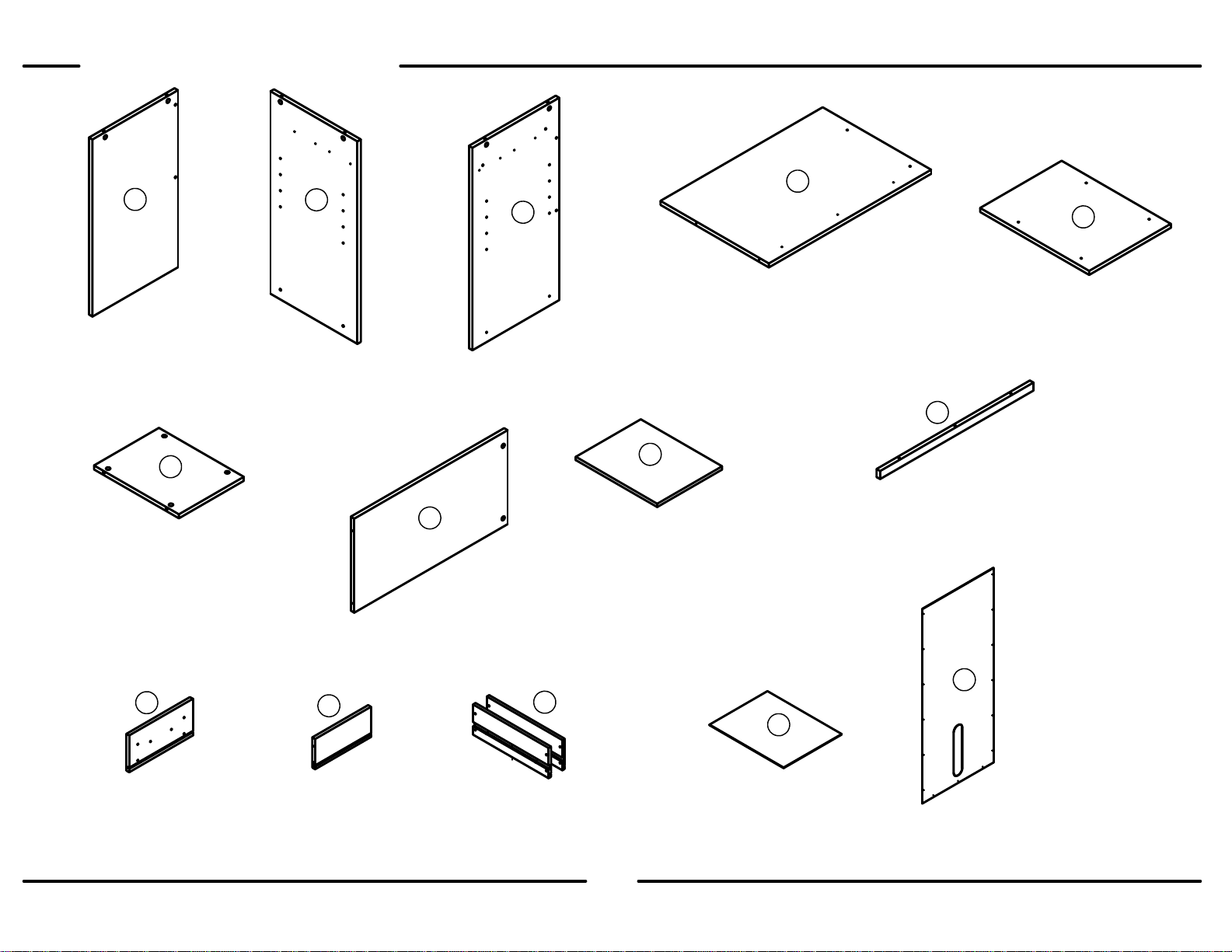

PARTS - PIEZAS - PIECES

left panel

39107328011 right panel

39107328021

partition

39107328031

desktop

39107328042 hutch top

39107328051

bottom

39107328061 modesty panel

39107328071

adjustable shelf

39107328080

rail

39107328091

drawer front

39107328103 drawer back

39107302114 2 drawer sides

39107302120 drawer bottom

K910730263

back panel

K910732800

ABCD

JKLM

B349107328PCOD4

4 /20

www.ameriwoodhome.com

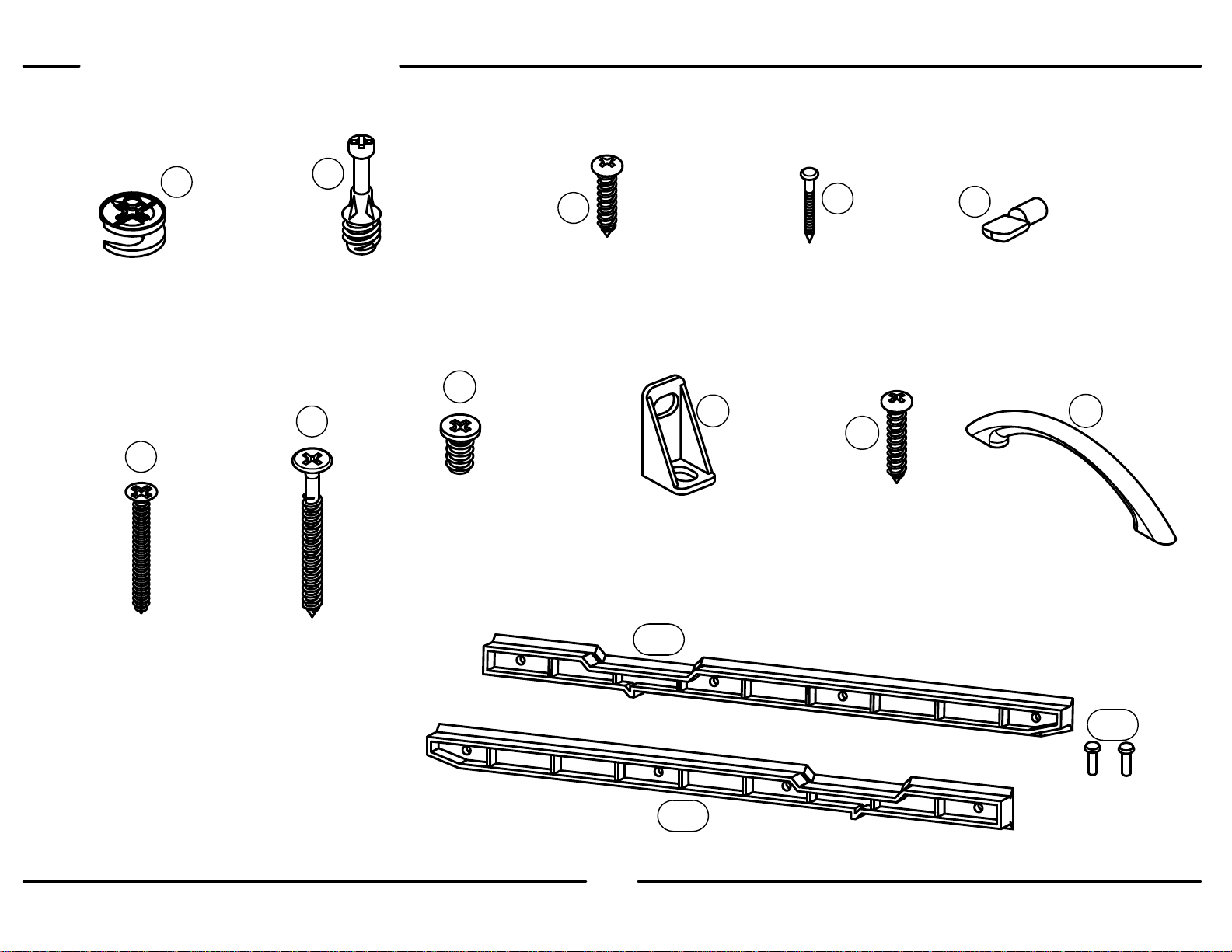

PARTS - PIEZAS - PIECES

cam lock

#A22620

Qty: 12

cam bolt

#A22610

Qty: 12

nail

#A21110

Qty: 15

shelf support

#A80250

Qty: 4

1-1/4" flat head

#A11600

Qty: 4

euro drawer screw

#A15600

Qty: 8

drawer bracket

#A53760

Qty: 4 handle

#A50690

Qty: 1

drawer runners

#A57000

Qty: 1

left runner

drawer stops

12567

8910 11 12 13

14a

14b

14c

7/8" pan head

#A12700

Qty: 2

1-3/4" flat head

#A13410

Qty: 7

right runner

3/4" pan head

#A12610

Qty: 8

B349107328PCOD4

5 /20

www.ameriwoodhome.com

3½ turn to fully

lock.

½ se vuelven a

totalmente

cerradura.

Tighten to fully seat. Do not over

tighten.

Apriétese a totalmente asiento. No

haga encima de apriétese. Proper orientation of cam.

La orientación apropiada de leva.

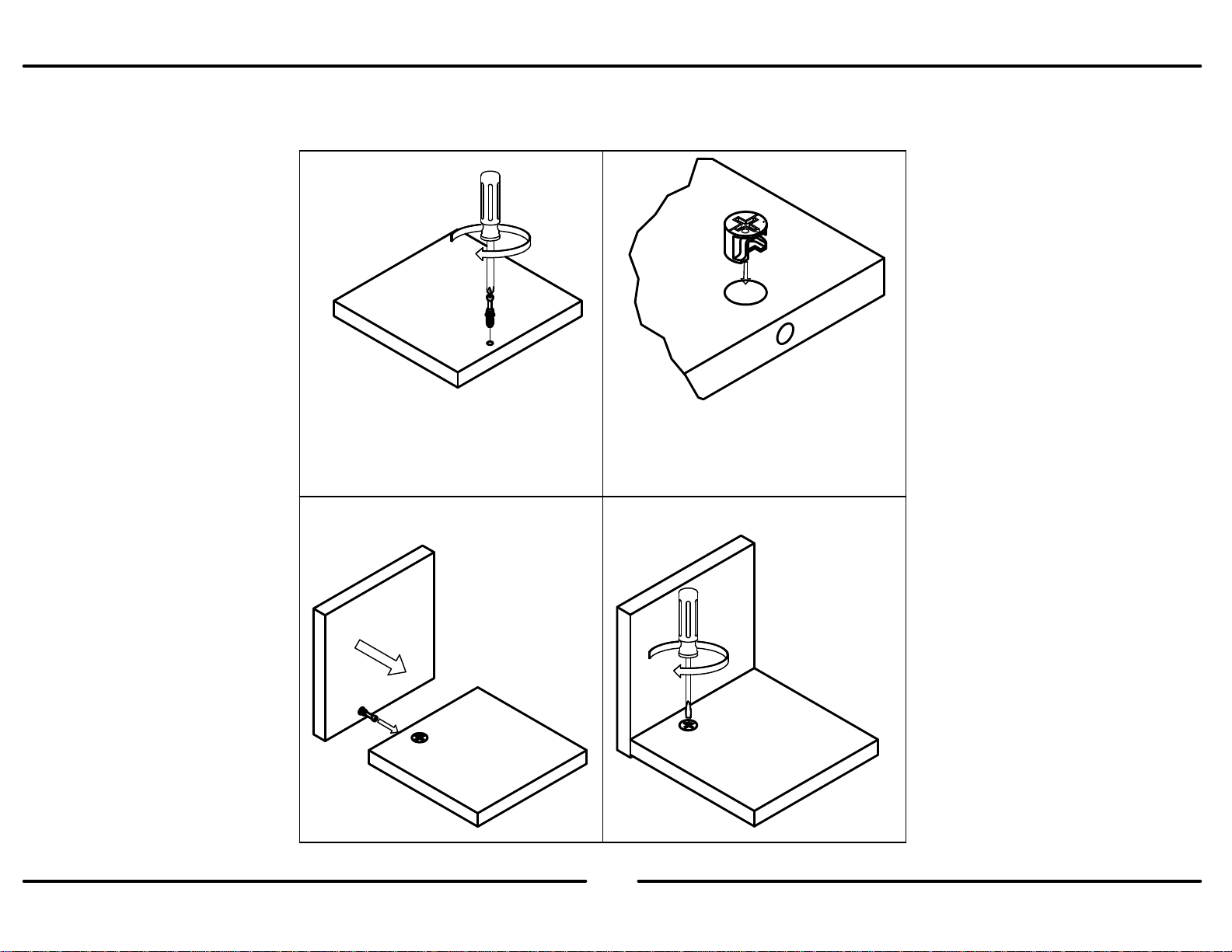

This illustration shows how the CAM fastening system works.

Esta ilustración muestra el sistema de fijación de leva y como funciona.

Lock

Apretar

B349107328PCOD4

6 /20

www.ameriwoodhome.com

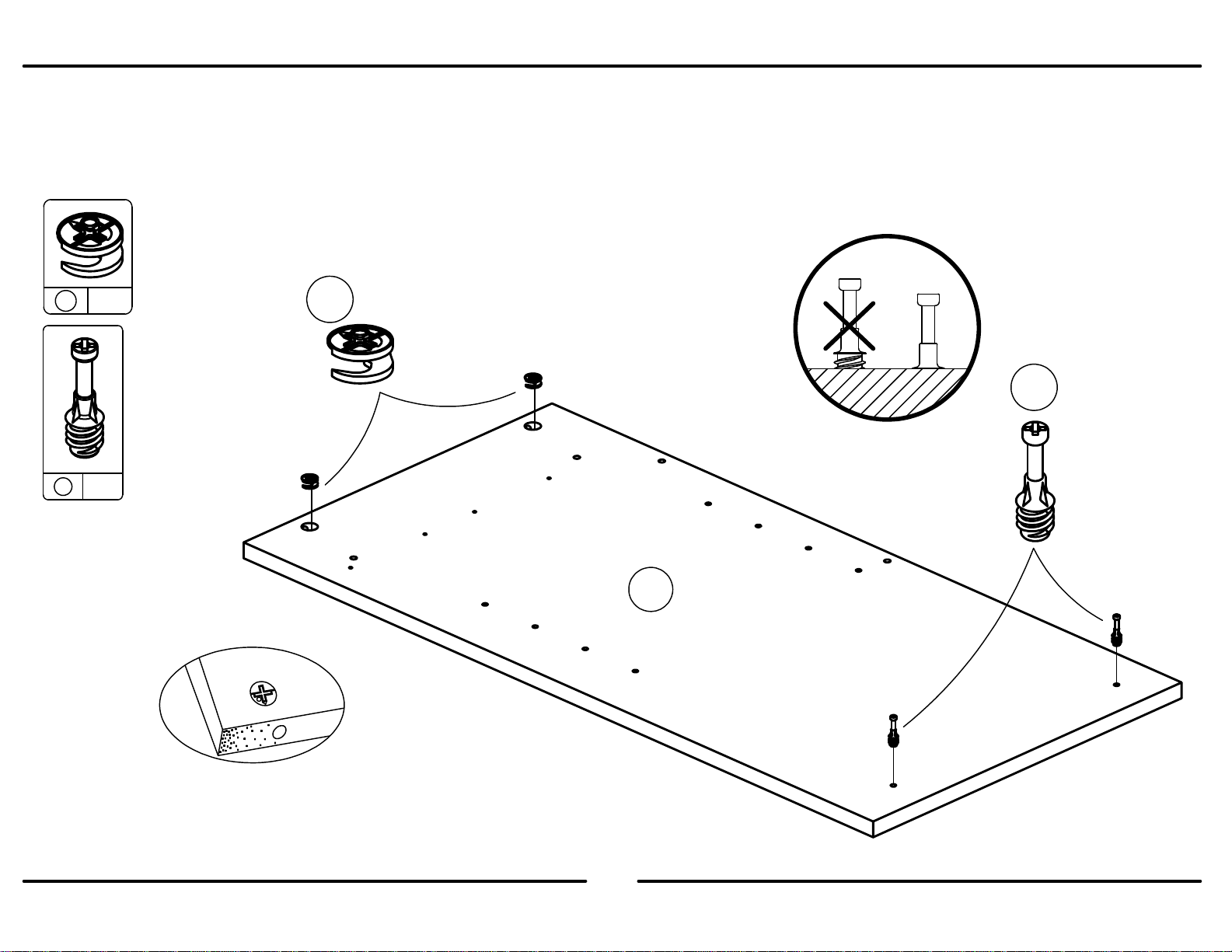

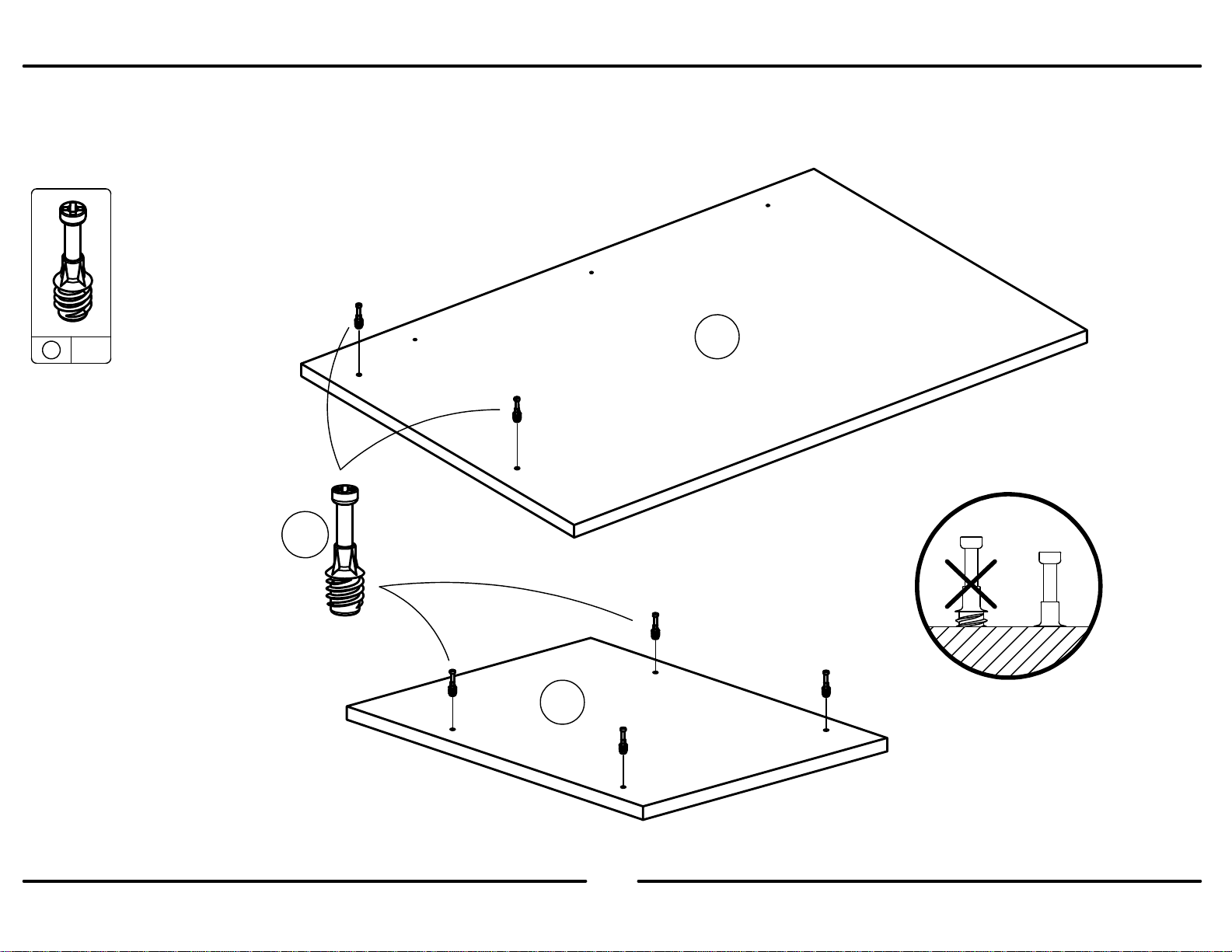

Proper orientation of CAM LOCK

Posición correcta de la cerradura de leva.

B349107328PCOD4

7 /20

www.ameriwoodhome.com

B349107328PCOD4

8 /20

www.ameriwoodhome.com

Proper orientation of CAM LOCK

Posición correcta de la cerradura de leva.

B349107328PCOD4

9 /20

www.ameriwoodhome.com

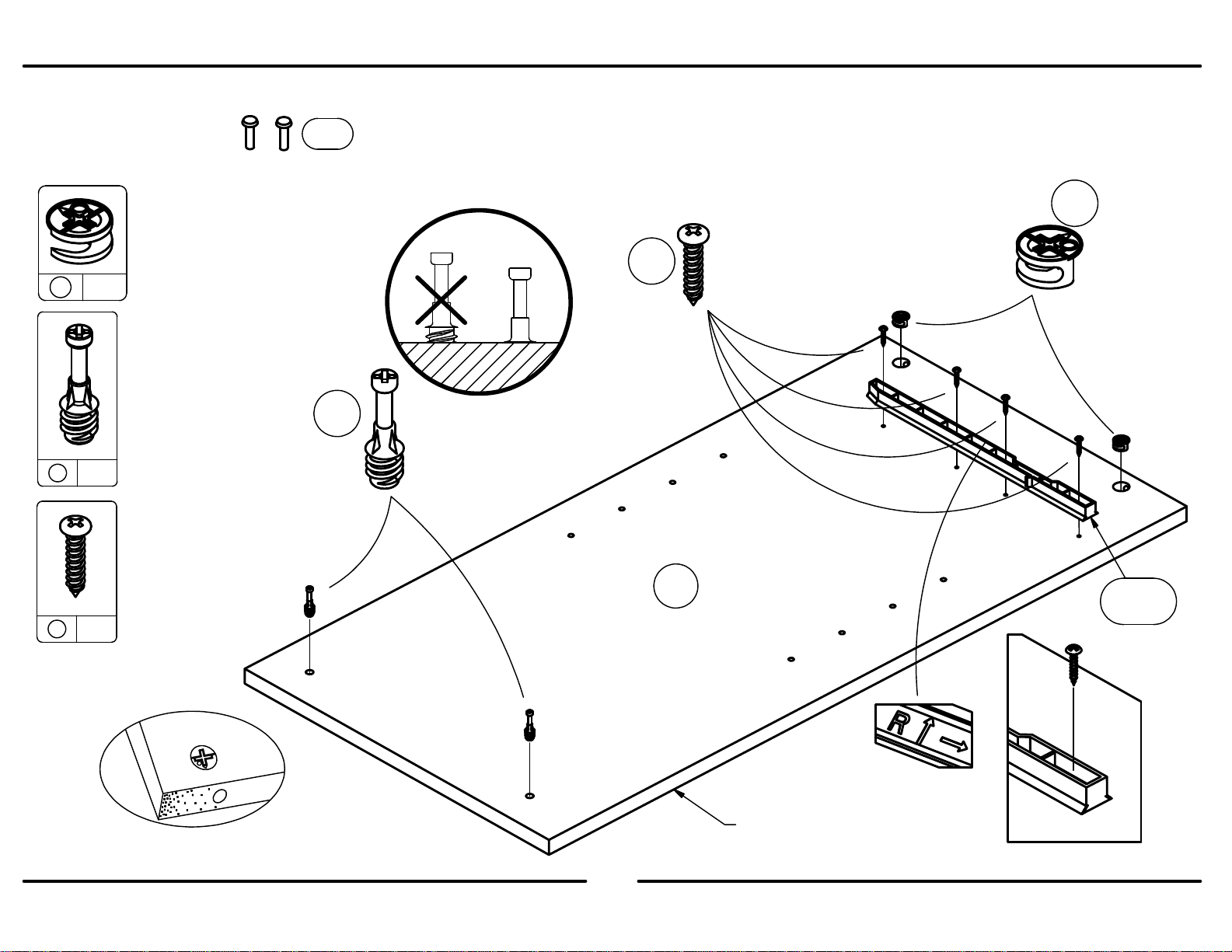

14b

Finished Edge

Borde Acabado

STOP - Do not discard drawer stops, they will be used later in the assembly.

14c

Proper orientation of CAM LOCK

Posición correcta de la cerradura de leva.

B349107328PCOD4

10 /20

www.ameriwoodhome.com

Proper orientation of CAM LOCK

Posición correcta de la cerradura de leva.
