Ameriwood HOME 7522332COM Manuel utilisateur

B347522332COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

7522332COM

Assembly Difficulty Meter

Easy Tough

Tube

You

Entryway Storage Bench With Cushion

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR

Helpful Hints

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

Tube

You

Cam Lock Fastening System

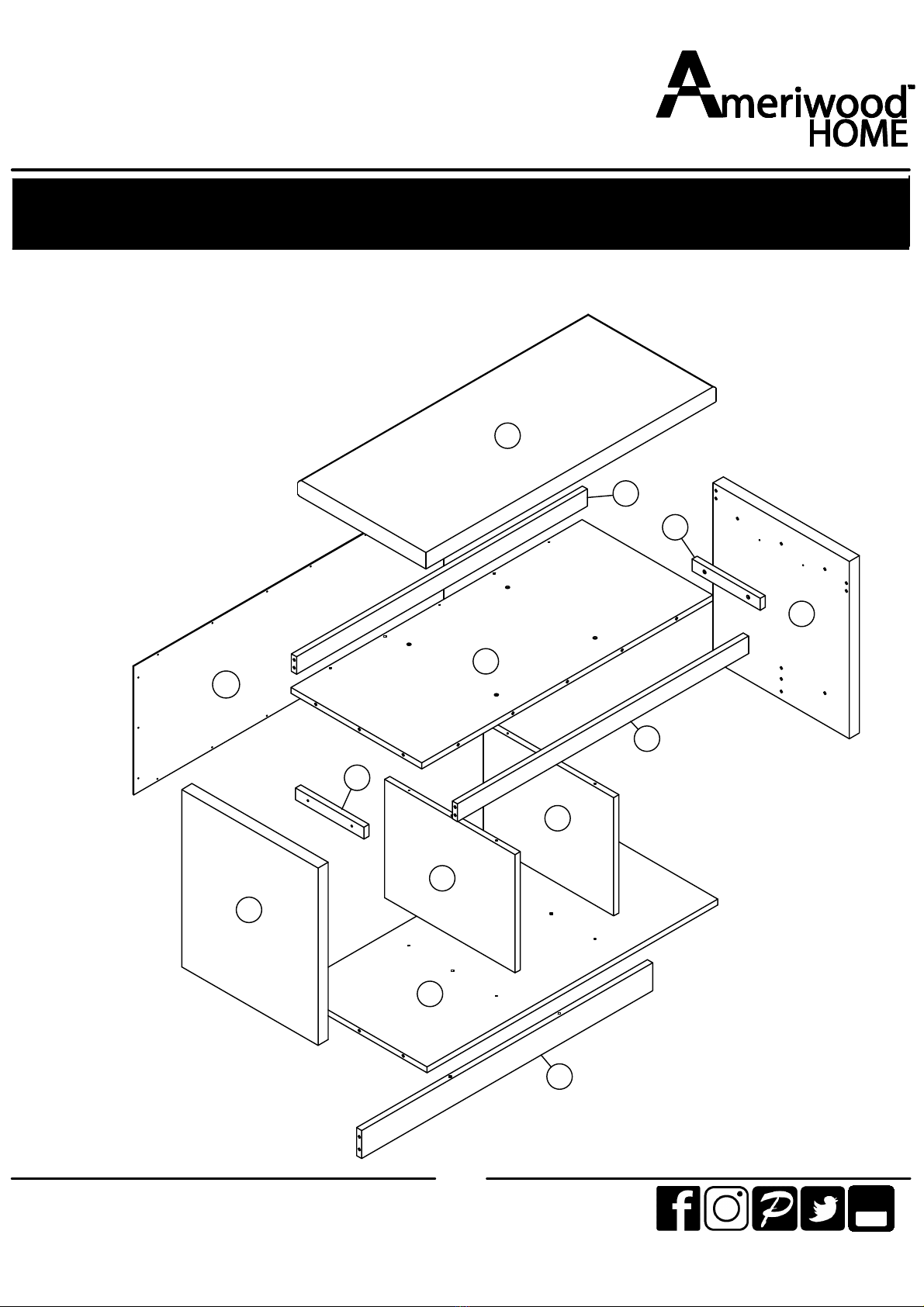

Board Identification

Not actual size

ameriwoodhome.com

BOTTOM

T7522332020GO

QTY: 1 PC

CUSHION

T7522332030GO

QTY: 1PC

FRONT TOP

T7522332050GO

QTY:

1PC

PARTITION

T7522332070GO

QTY: 2 PCS

TOP

T7522332010GO

QTY: 1 PC

BACK TOP

T7522332040GO

QTY: 1PC

Tube

You

RAIL

T7522332060GO

QTY:

2PCS

E F

RIGHT SIDE PANEL

T7522332090GO

QTY:

1PC

BACK PANEL

T7522332110GO

QTY: 1PC

LEFT SIDE PANEL

T7522332080GO

QTY: 1PC

SUPPORT

T7522332100GO

QTY:

1PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

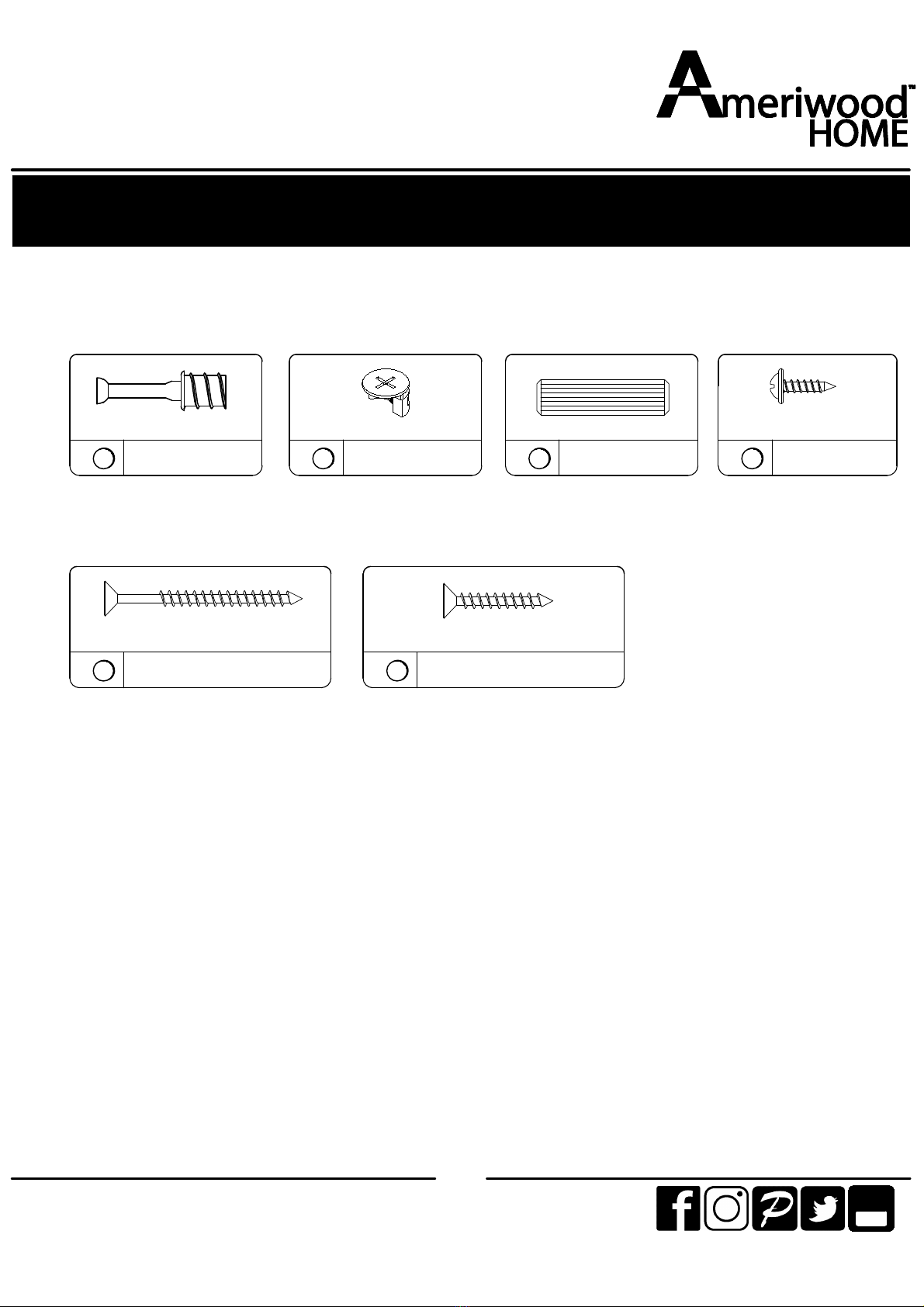

Part List

ameriwoodhome.com

Hardware Bag Reference number:

27522332COM0GO

Actual Size

CAM LOCK

TGO2100

CAM BOLT

TGO 2000

Ø8x20mm

WOOD DOWEL

TGO2900 SCREW

TGO1301

Ø3 X 12mm

SCREW

TGO1008

Ø4.2 X 45MM

M8x30mm

Ø15x10mm

2 ×13 ×13 ×24 ×18

×11

Tube

You

SCREW

TGO1001

Ø4.2 X 25MM

6 ×4

ameriwoodhome.com

STEP

3 ×20

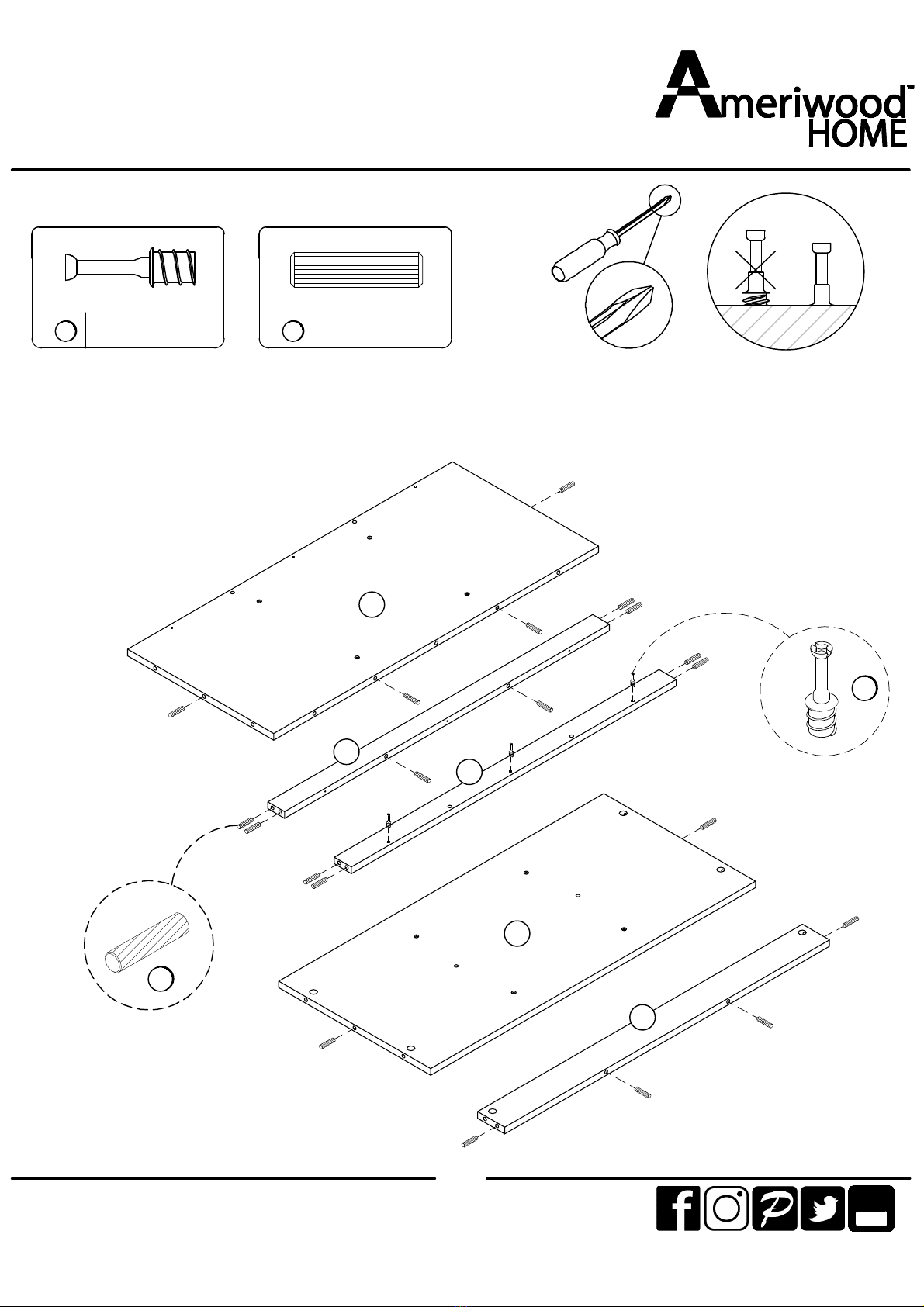

1.1 Cam bolt (1) into (E) as illustrated.

1.2 Insert (3) into (A), (D), (E), (B) & (J) as illustrated.

1 ×3

Tube

You

ameriwoodhome.com

STEP

3 ×4

Gx 2

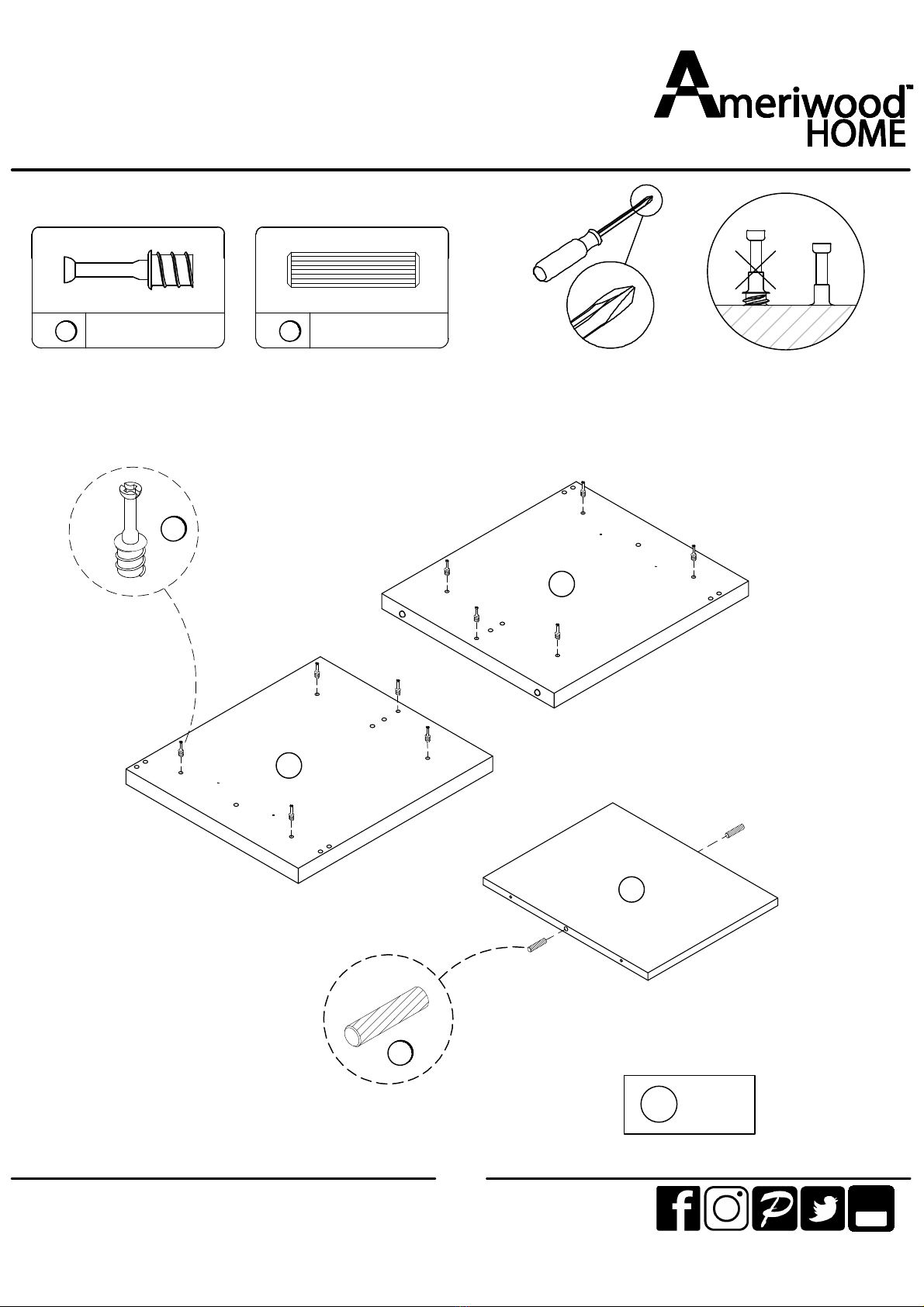

2.1 Cam bolt (1) into (H) &(I) as illustrated.

2.2 Insert (3) into (G) as illustrated.

1 ×10

Tube

You

ameriwoodhome.com

STEP

5 ×3

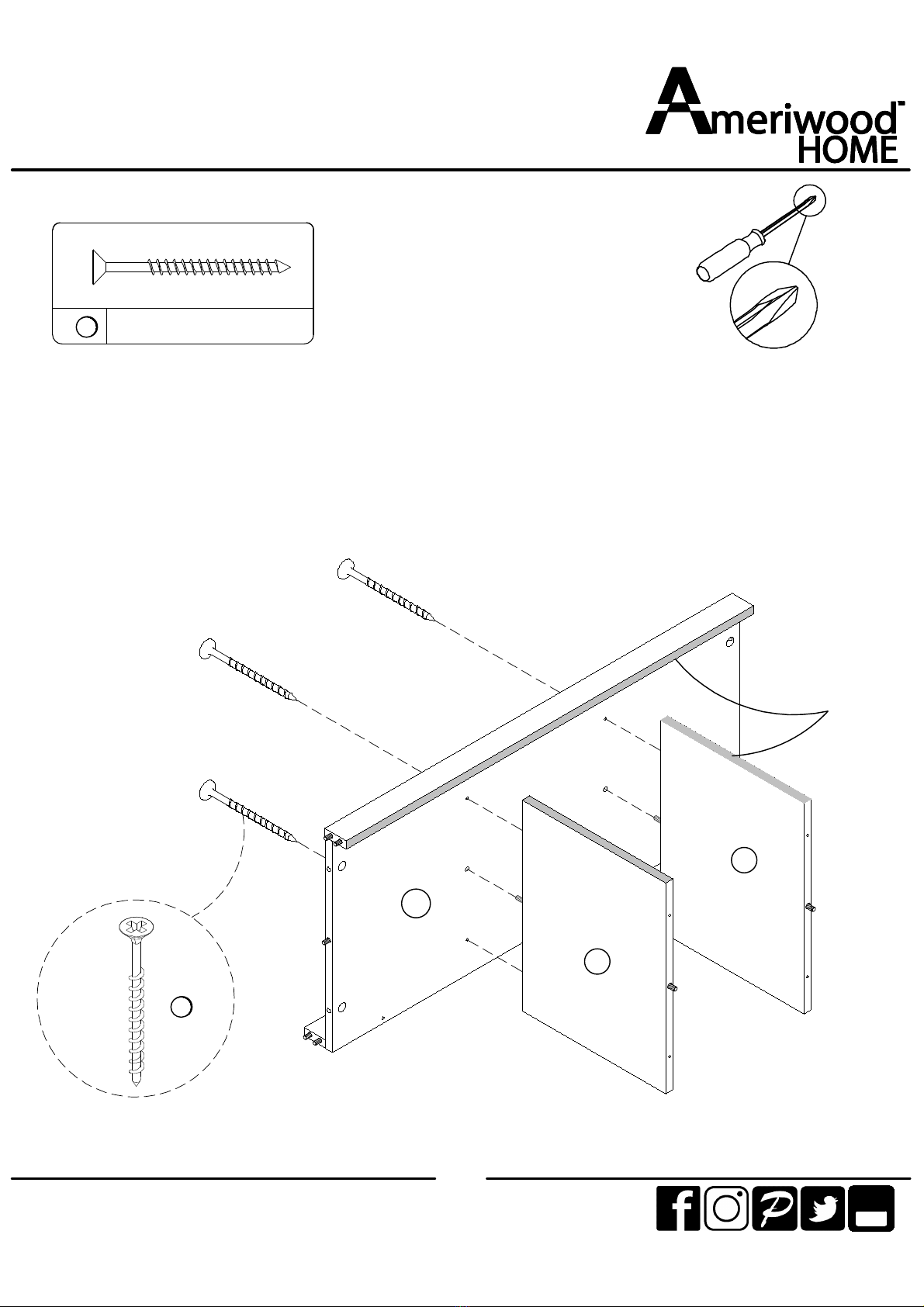

3.1 Attach (A) into (D) with (5) as illustrated.

3.2 Attach (A) into (E) with (2) as illustrated.

Tube

You

FINISHED FACE

2 ×3

Proper orientation of CAM LOCK

Tip

Quick

Assembly

UNLOCK

LOCK

ameriwoodhome.com

STEP

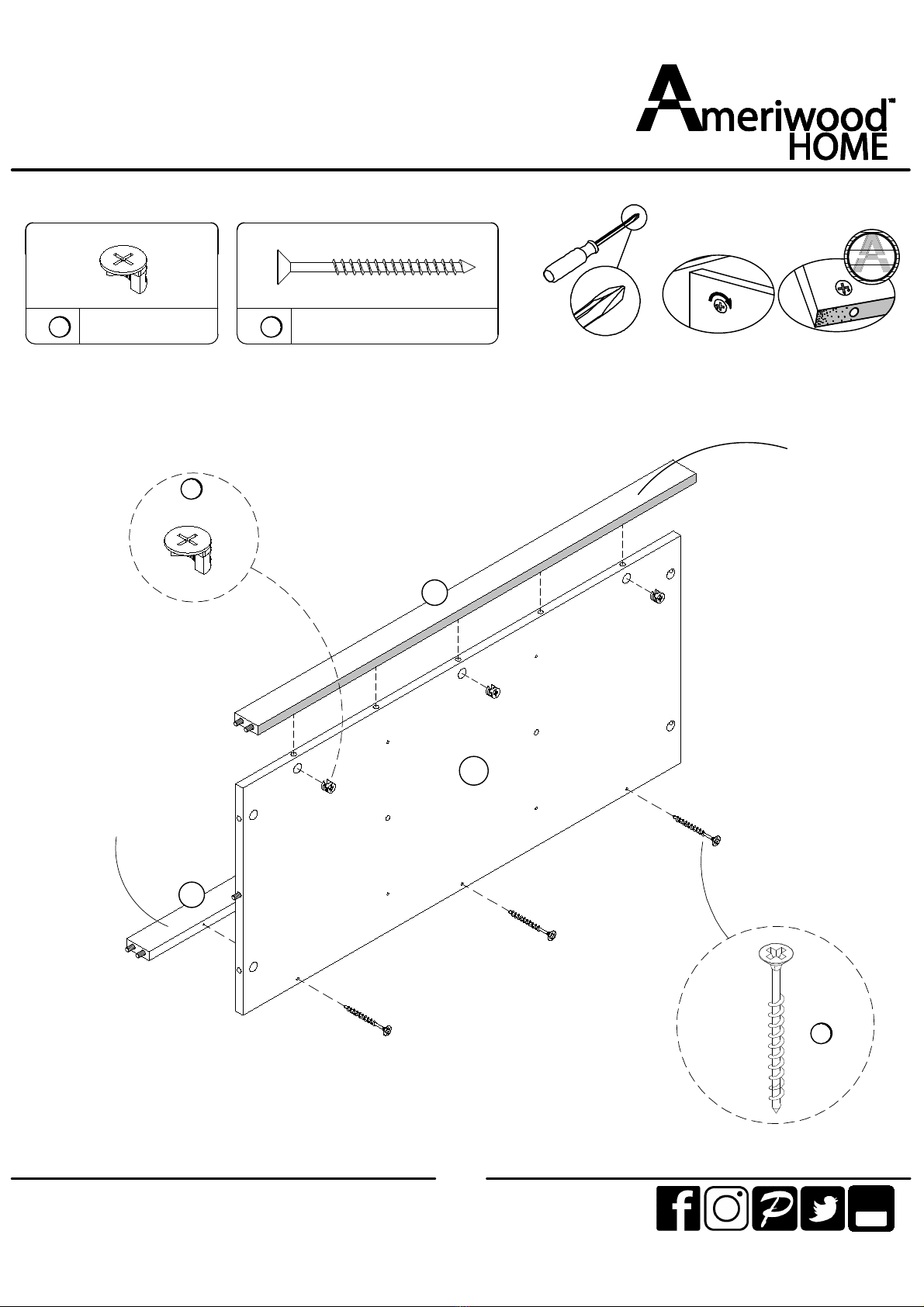

4.1 Attach (A) into (G) with (5) as illustrated.

Tube

You

5 ×4

FINISHED EDGE
