Ameriwood HOME 6544817COM Manuel utilisateur

6544817COM

ModernAccentCabinet

B346544817COM

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

FollowAmeriwoodHome

Tube

You

DateofPurchase___/___/___

LotNumber:

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com

AssemblyDifficultyMeter

Easy Tough

SecureYourFurniture

Keepyourhomeandfamilysafe

withthewallanchorkitthatis

includedwiththeproduct.



Seriousorfatalcrushinginjuriescan

occurfromtippingfurniture.

WARNING:Manufacturerassumesnoliability

forimproperinstallationorexcessiveloads

placedonscrewsorbracket.Thiswallanchor

isnotasubstituteforproperadultsupervision.

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.comtoviewthe

limitedwarrantyvalidintheU.S.andCanada.

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.



‐Identify,sortandcountthepartsbeforeattemptingassembly.



‐Compressiondowelsarelightlytappedinwithahammer.



‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.



‐Backpanelmustbeusedtomakesureyourunitissturdy.



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.



‐Neverpush,pull,ordragyourfurniture.

Tube

You

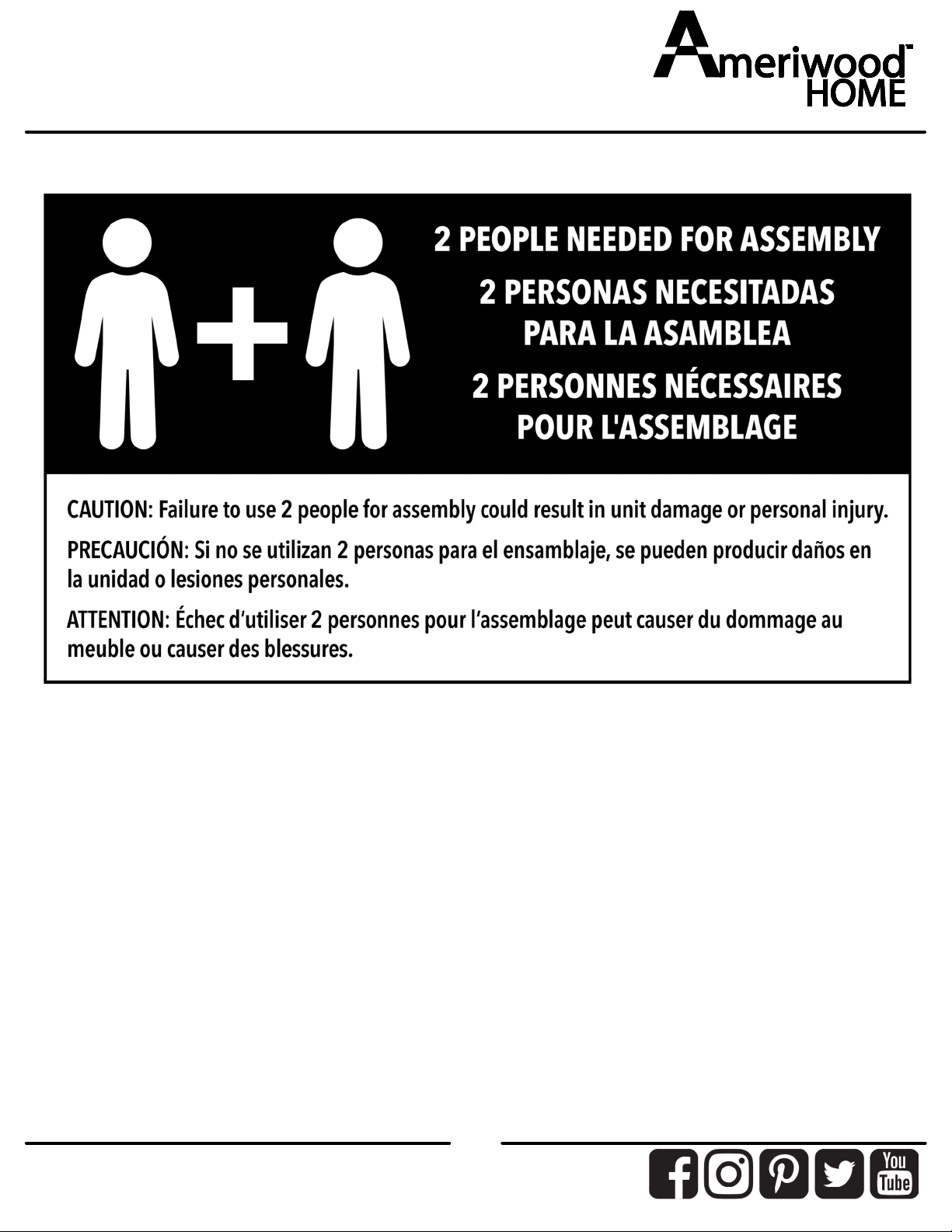

PEOPLENEEDEDFORASSEMBLY:2

ESTIMATEDASSEMBLYTIME:1HOUR

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Readthrougheachstepcarefullyandfollowtheproperorder



Separateandcountallyourpartsandhardware



Giveyourselfenoughroomfortheassemblyprocess



Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



4

ameriwoodhome.com

5

ameriwoodhome.com

BoardIdentification

Notactualsize

LeftPanel

36544015010

RightPanel

36544015020

Partition

36544015030

Top

36544015040

Bottom

36544015050

AdjustableShelf(x2)

36544015060 Door(x2)

36544222070

BackPanel

K65441500

ABC

Thispieceispaper‐

boardconstruction.

Itisnotmade

fromwoodbut

isrequired

fortheassembly

ofyourunit.

6

ameriwoodhome.com

BoardIdentification

Notactualsize

Thispieceispaperboardconstruction.

Itisnotmadefromwoodbutisrequired

fortheassemblyofyourunit.

7

ameriwoodhome.com

PartList

ActualSize

NotActualSize

(x6)

#A22620

camlock

123

Note that your unit may contain extra hardware

(x6)

#A22610

cambolt (x6)

#A21660

wooddowel

(x6)

#A23030

confirmat

(x8)

#A80250

shelfsupport

(x4)

#A17400

7/8"bolt

(x2)

#A89210

rubberpad

(x4)

#A65640

eurohinge

(x24)

#A21110

nail

(x12)

#A12105

#8x7/16"pan

11a

11b

11c 11d

(x1)

#A84050

safetybracketkit

8

ameriwoodhome.com

Note that your unit may contain extra hardware

PartList

NotActualSize

(x4)

#A44320

woodfoot

(x2)

#A50415

handle

(x4)

#A54800

metalfootbracket

9

ameriwoodhome.com

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

#A22620

(x2)

#A21660

10

ameriwoodhome.com

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

#A22620

(x2)

#A21660
