Ameriwood HOME 1444869COM Manuel utilisateur

1444869COM

Fireplace TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B34 1444869 COM00SF

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

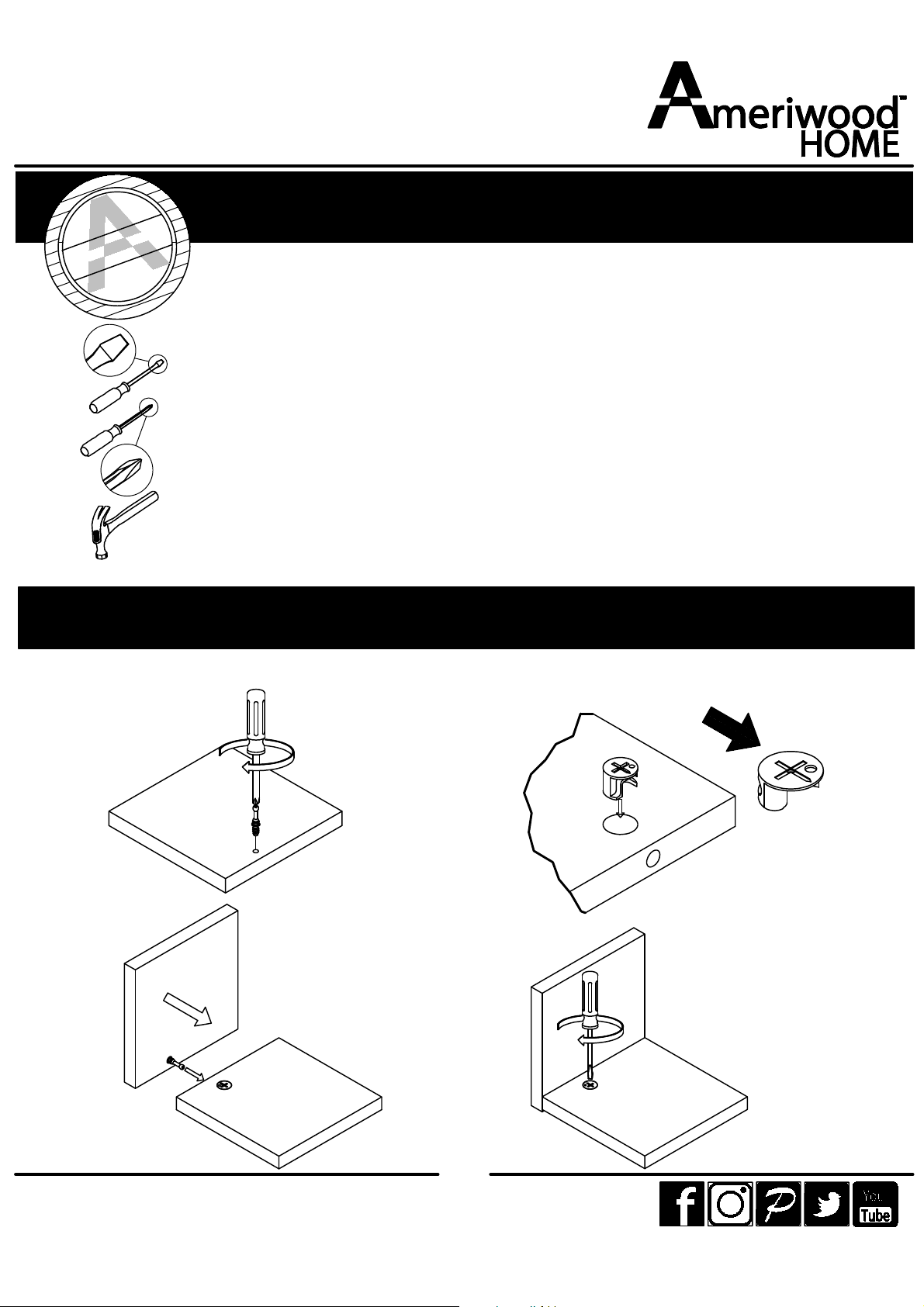

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not Actual Size

Top shelf

T1444869010SF

Bottom shelf

T1444869020SF

Fixed shelf

T1444869030SF

Upper back panel

T1444869040SF

ameriwoodhome.com

Board Identification

Not Actual Size

Left side panel

T1444869050SF

Right side panel

T1444869060SF

Left partition

T1444869070SF

Right partition

T1444869080SF

Upper partition

T1444869090SF

QTY: 2 PCS

Upper rail

T1444869100SF

Left rail

T1444869110SF

IJK

ameriwoodhome.com

Board Identification

Not Actual Size

Right rail

T1444869120SF

Side back panel

T1444869130SF

QTY: 2 PCS

Support tube

T1444869140SF

QTY: 2 PCS

Metal foot frame

T1444869150SF

QTY: 2 PCS

Glass shelf

T1444869160SF

QTY: 2 PCS

Fireplace

FA23V60L-C8

Remote control FA23V60L-C801

Acrylic crystal FA23V60L-

C802

LED light bar (2) FA23V60L-C803

ameriwoodhome.com

Board Identification

Not actual size

Actual Size

ameriwoodhome.com

Part List

Hardware Bag Reference Number:

21444869COM0SF

x 34

Ø8X30mm

Wood dowel

TSF0501

Ø3.5X14mm

Screw

TSF1003

2x 28

Bolt

TSF1607

Ø1/4X40

3x 4

Ø4X12mm

Screw

TSF1004

5x 6

x 12

Screw

TSF1017

Ø1/4X30mm

Bolt

TSF0007

6x 12

Ø3X12mm

Not Actual Size

ameriwoodhome.com

Part List

Hardware Bag Reference Number:

21444869COM0SF

Shelf support

TSF0552

10 x 8

Cam bolt

TSF0354

9x 35

Cam lock

TSF0307

8x 35

x 1

Glue

TSF0015

x 16 x 16

Ø7X13XT1.5mm

Ø7 X10XT1.5mm

Spring washer

TSF0009

Washer

TSF2403

x 1

M4X54mm

Hex key

TSF0011

x 2

61X35X20(T1.5)

Angle Bracket

TSF0012

x 2

Metal plate

TSF2402

WARNING

ADVERTENCIA

AVERTISSEMENT

Warning label

TSF2909

80 LBS

17 x 1

15 x 2

Wire clip

TSF2853

ameriwoodhome.com

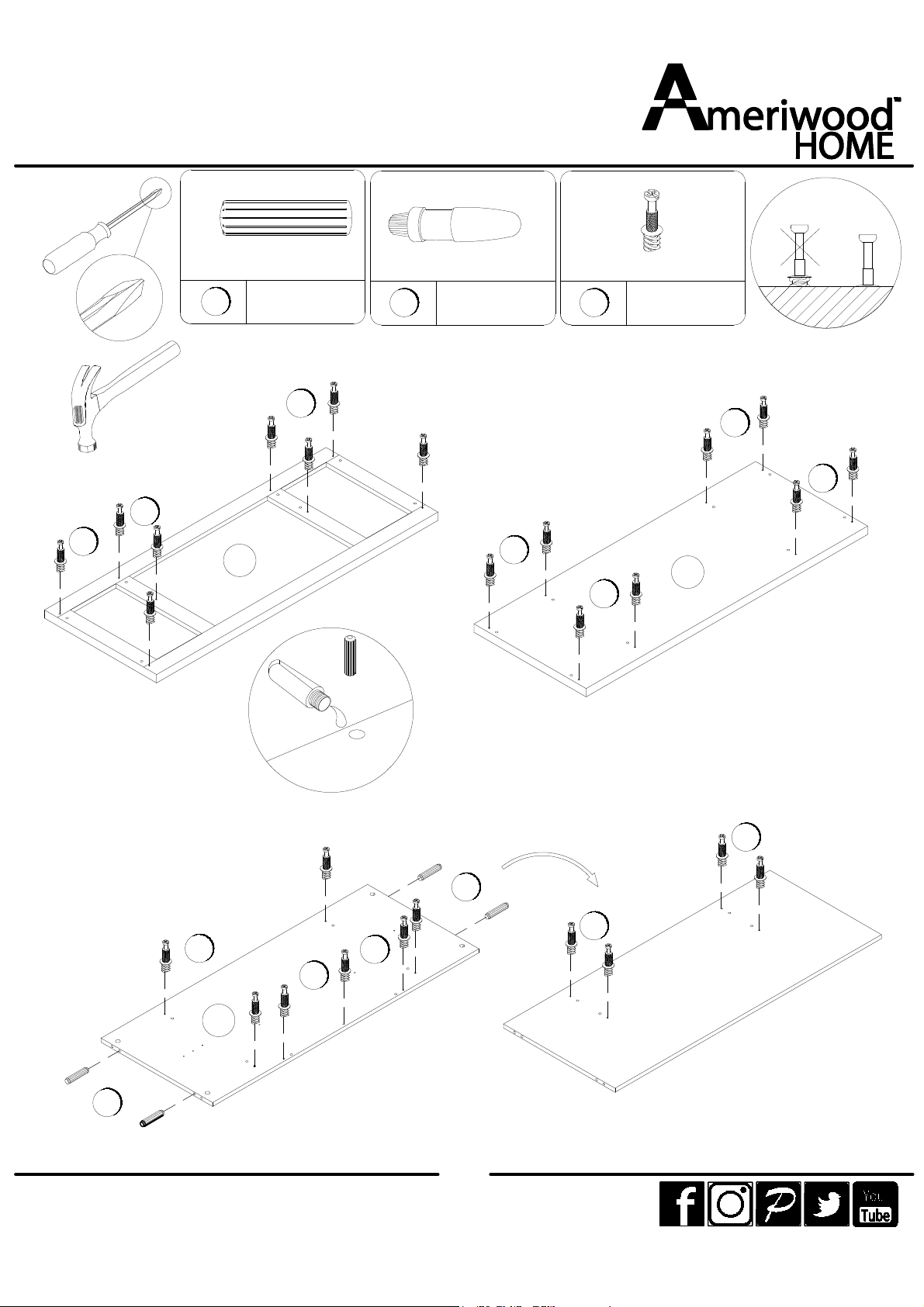

STEP

TURN OVER

x 4

Ø8X30mm

79x 27

lue

Wooden

Dowel

Hole for

wooden dowel

Use one drop of glue

in dowel hole.
