Ameriwood HOME 5594500COM Manuel utilisateur

5594500COM

6 Drawer Dresser

B345594500COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Assembly Difficulty Meter

Easy Tough

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

Secure Your Furniture

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 2-3 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

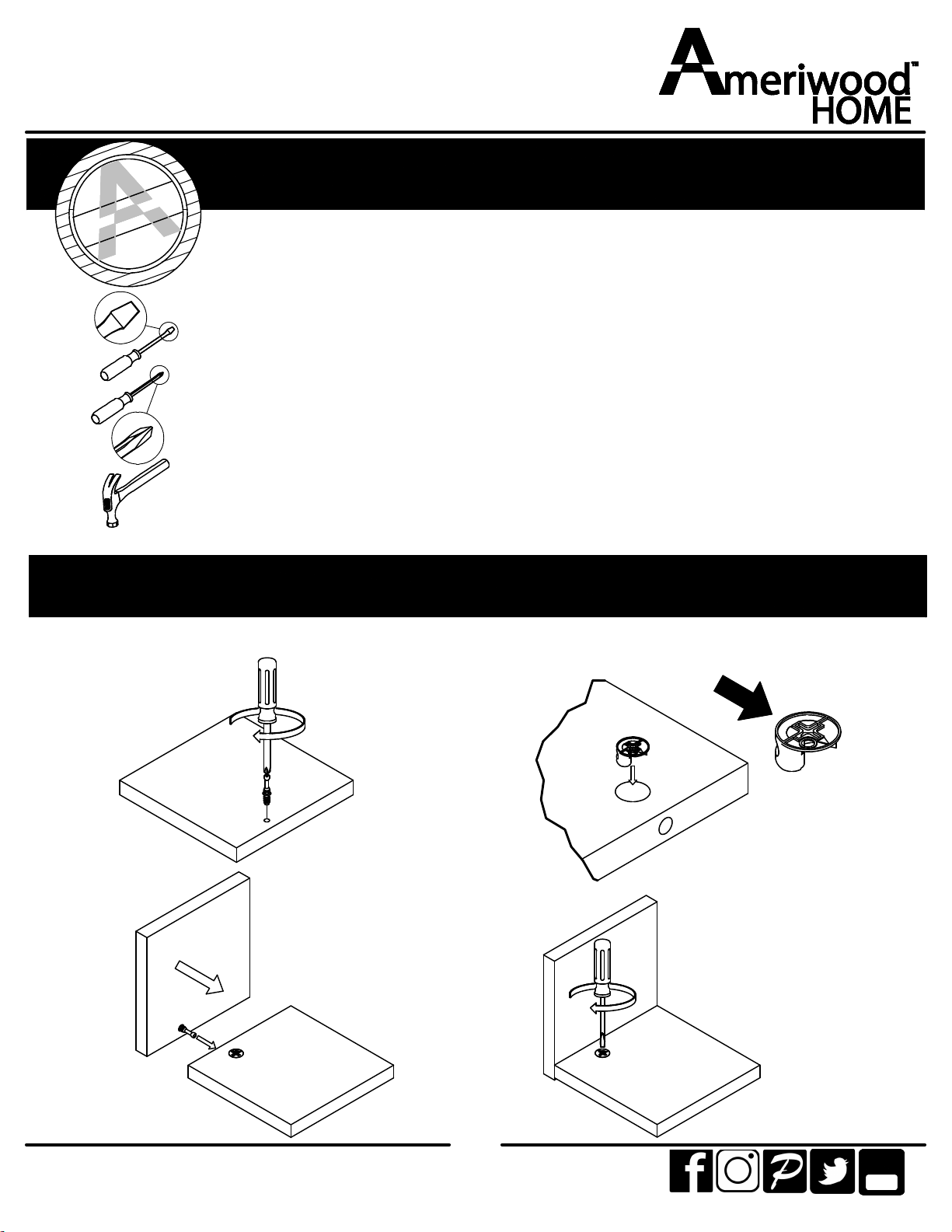

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

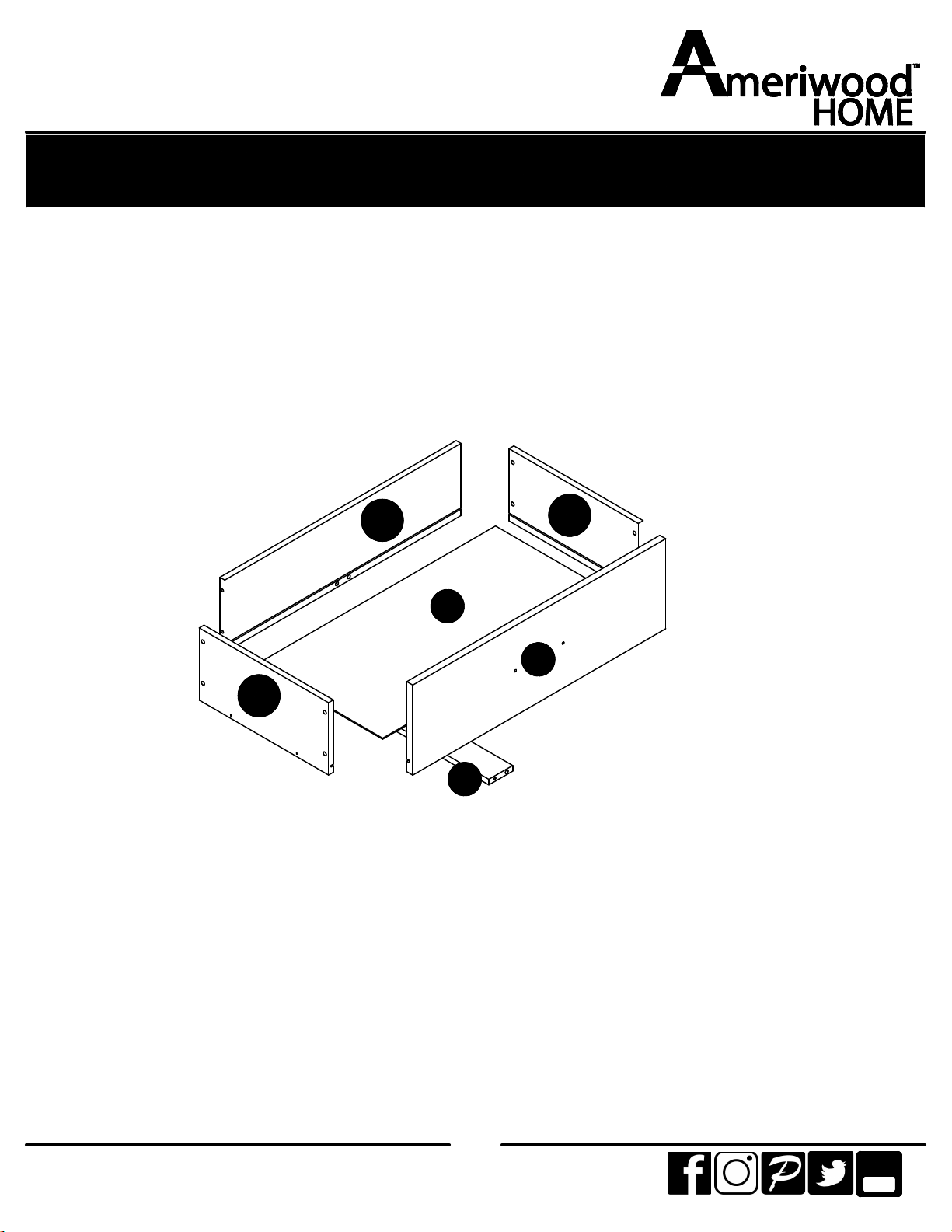

Board Identification

Not actual size

Tube

You

Left Panel

35594340010 Right Panel

35594340020

Top

35594340030

Bottom

35594340040

Support (4)

35594340050

Front Base Rail

35594340060

Rear Base Rail

35594000070

Left Base Rail

35594340080

Right Base Rail

35594340090 Front Vertical

Molding (2)

35594340100

Rear Vertical

Molding (2)

35594340110

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Drawer Brace (6)

35538000121

Partition

35594340130 Drawer Front (6)

35594333140

Drawer Bottom (6)

35594331150

Side Rail (4)

35594340160

Apron (2)

35594340170

Upper Side

Molding (2)

35594340180

Upper Front Molding

35594340190

Back Panel

K559400000

This piece is paperboard construction. It is not

made from wood, but is required for the

assembly of your unit.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

This piece is paperboard construction. It is

not made from wood, but is required for

the assembly of your unit.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

DWR

BACK

DWR

SIDE

DWR

SIDE

ameriwoodhome.com

Part List

Actual Size

Tube

You

(x28)

#A22620

cam lock

(x28)

#A22610

cam bolt

(x4)

#A22920

connector

(x4)

#A22910

connector bolt

(x60)

#A11080

#6 x 7/16" screw

(x92)

#A12120

#8 x 7/16" screw

(x12)

#A17250

bolt

(x9)

#A21660

wood dowel

(x20)

#A12930

#8 x 1-1/8" screw

(x11)

#A13020

#8 x 1-1/2" screw

(x22)

#A53600

angle bracket

(x6)

#A23030

confirmat screw

(x36)

#A21110

nail

(x4)

#A21550

5x50 wood dowel

(x36)

#A21970

drive fastener

(x6)

#A21520

compression dowel

123456

78910 11

12 13 14 15

ameriwoodhome.com

Not actual size

Tube

You

Part List

(x1)

#A84050

safety bracket kit

(x6)

#A56750

drawer slide

(x12)

#A54520

drawer bracket

(x6)

#A50875

handle

Left Cabinet Member

Right Cabinet Member

Left Drawer Member

Right Drawer Member

(x2)

#A43490

spacer

(x1)

#A43105

plastic foot

17b

17a 17c

17d

18a

18b

18c

18d

20 21

ameriwoodhome.com

STEP1

Tube

You

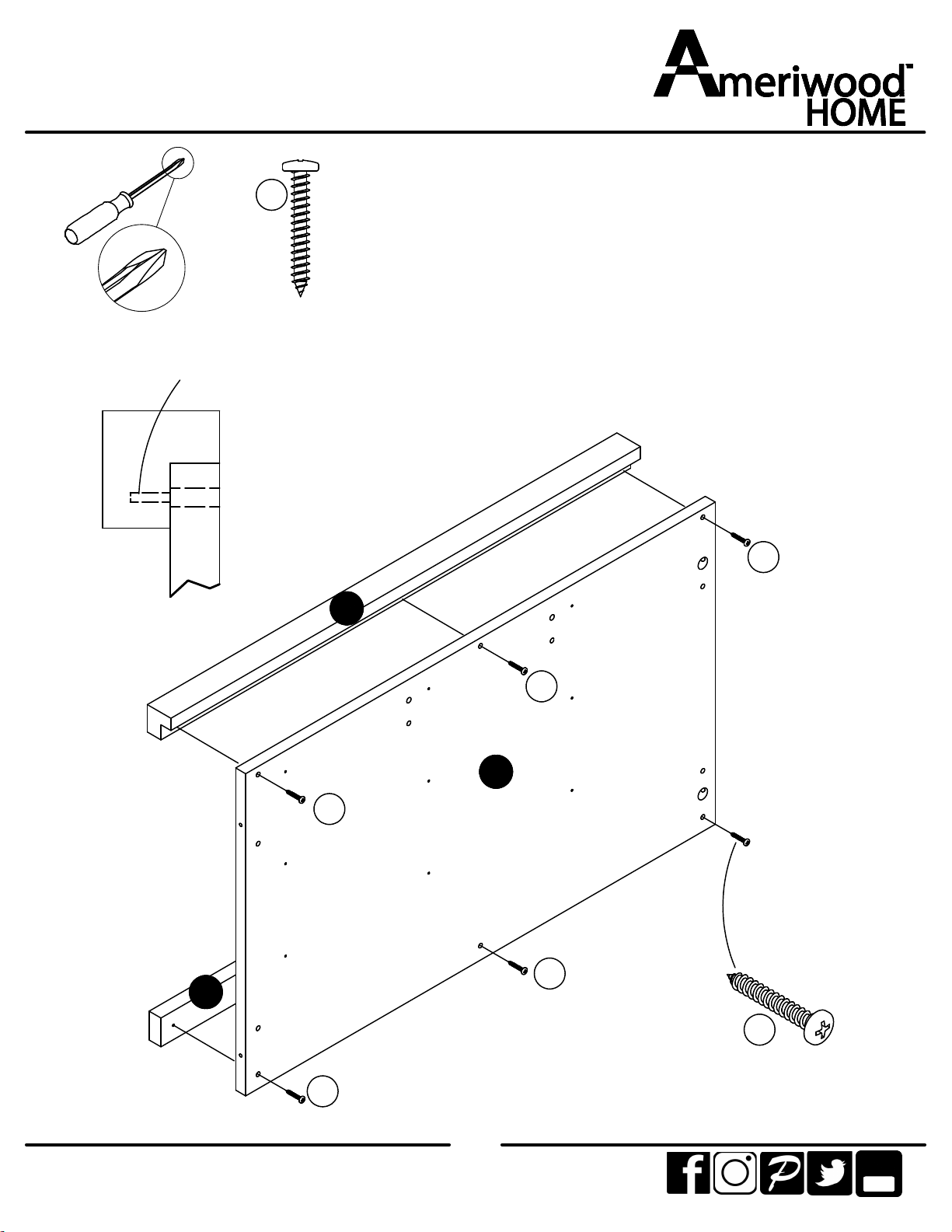

Using screw (9), attach the front vertical molding (J) and rear

vertical molding (K) to the left panel (A).

Please be sure to screw into the surface of the front vertical

molding with the pilot holes.

Do not fully tighten the screws until next step is completed.

Pilot hole in front

vertical molding.

(x6)

#A12930
