Ameriwood HOME 2189500COM Manuel utilisateur

2189500COM

AccentCabinet

B342189500COM0

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

FollowAmeriwoodHome

Tube

You

DateofPurchase___/___/___

LotNumber:

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com

AssemblyDifficultyMeter

Easy Tough

SecureYourFurniture

Keepyourhomeandfamilysafe

withthewallanchorkitthatis

includedwiththeproduct.



Seriousorfatalcrushinginjuriescan

occurfromtippingfurniture.

WARNING:Manufacturerassumesnoliability

forimproperinstallationorexcessiveloads

placedonscrewsorbracket.Thiswallanchor

isnotasubstituteforproperadultsupervision.

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.comtoviewthe

limitedwarrantyvalidintheU.S.andCanada.

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.



‐Identify,sortandcountthepartsbeforeattemptingassembly.



‐Compressiondowelsarelightlytappedinwithahammer.



‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.



‐Backpanelmustbeusedtomakesureyourunitissturdy.



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.



‐Neverpush,pull,ordragyourfurniture.

Tube

You

PEOPLENEEDEDFORASSEMBLY:1‐2

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Readthrougheachstepcarefullyandfollowtheproperorder



Separateandcountallyourpartsandhardware

Partsarelabeledonthesurfaceoredgeofthepart



Giveyourselfenoughroomfortheassemblyprocess



Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



PresspartstogethersoCAMBOLTinserts

intoedgehole.

PressCAMBOLTintohole. PressCAMLOCKintohole.

Endhole

Usingascrewdriver,turntheCAMLOCKclockwiseto

locktheCAMLOCKandCAMBOLTintotheirholes

andfasteningpartstogether.

Arrowtopointtowardsend

holeinedgeofpart.

4

ameriwoodhome.com

BeforeYouStart

Quick

Assembly

Tip

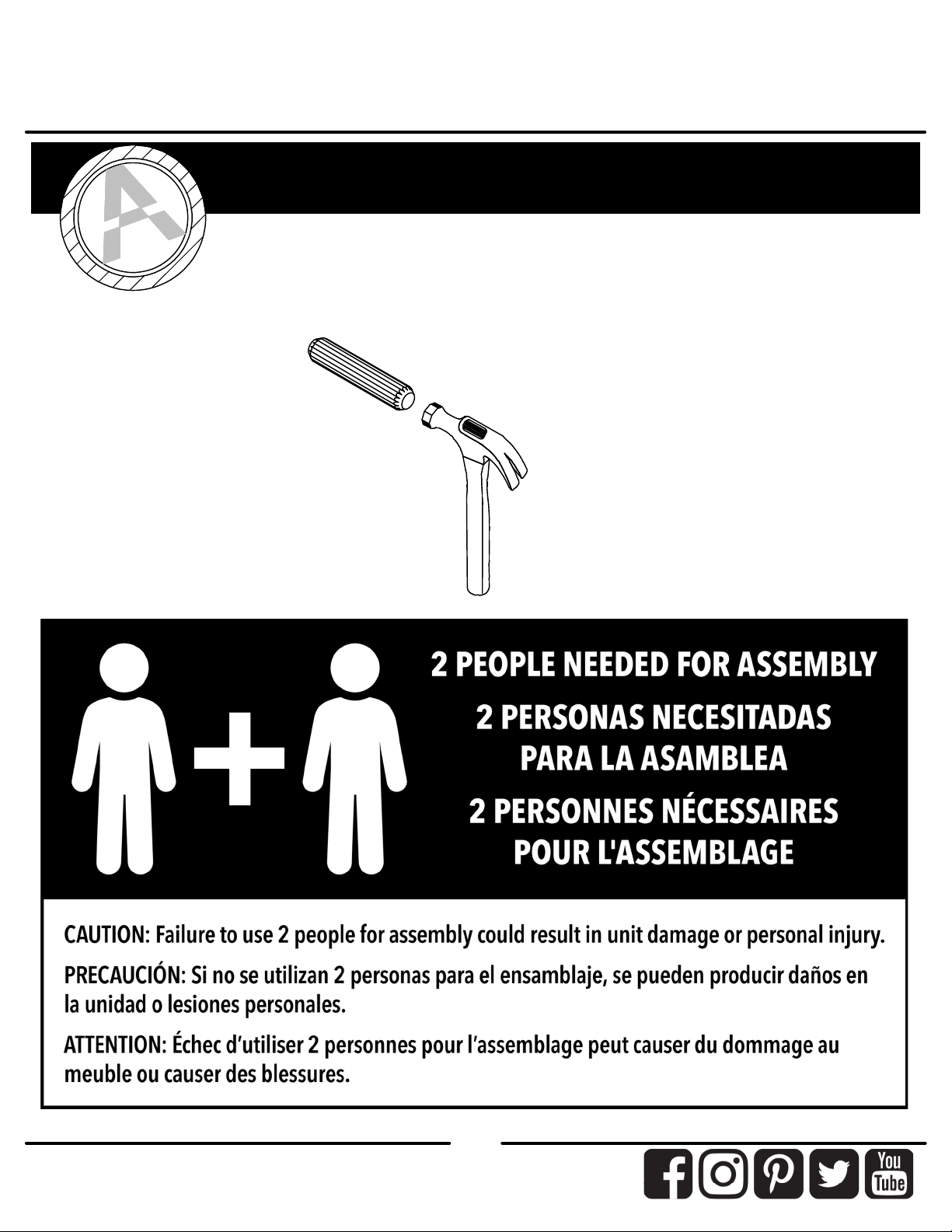

PleaseNote:

Youmayneedtolightlytapthewooddowelsintotheholesduring

yourassemblyprocess.

5

ameriwoodhome.com

BoardIdentification

Notactualsize

LeftPanel

32189408010

RightPanel

32189408020

Top

32189408030

Bottom

32189408040

AdjustableShelf

32189408050

LeftDoor

32189355060

RightDoor

32189355070

BackPanel

K218940800

Thispieceispaperboardconstruction.

Itisnotmadefromwood,butis

requiredfortheassemblyofyourunit.

BACK

PNL

6

ameriwoodhome.com

BoardIdentification

Notactualsize

BACK

PNL

7

ameriwoodhome.com

PartList

ActualSize

NotActualSize

(x4)

#A22700

camlock

(x4)

#A22710

cambolt

(x2)

#A21670

wooddowel

(x4)

#A23030

confirmatscrew

123

(x12)

#A14220

1/2"screw

(x2)

#A89020

plasticstop

(x2)

#A11170

5/8"screw

(x4)

#A80250

shelfsupport

(x4)

#A12105

7/16"screw

(x32)

#A21110

nail

(x1)

#A84050

safetybracketkit

(x2)

#A50580

pull

(x4)

#A65640

hinge

(x2)

#A95490

12 13

8a 8c

8

ameriwoodhome.com

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x4)

(x2)

9

ameriwoodhome.com

STEP2

(x4)

finished edges up

10

ameriwoodhome.com

STEP3

(x4)

(x2)

(x2) (x1)

Donotfullytightenscrew.
