Ameriwood HOME 2011339COM Manuel utilisateur

2011339COM

Storage Console

B342011339COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Assembly Difficulty Meter

Easy Tough

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 2 HOURS

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Tube

You

ameriwoodhome.com

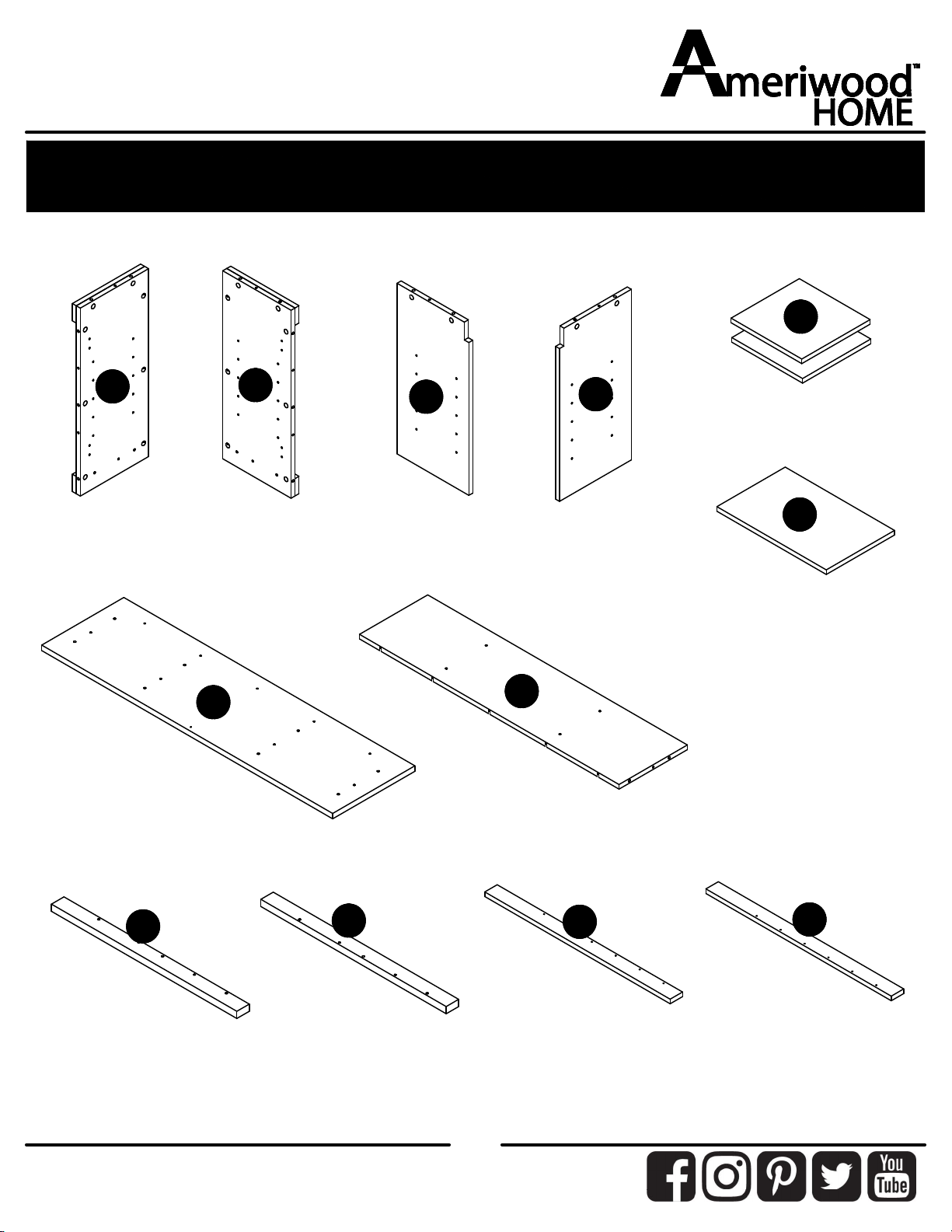

Board Identification

Not actual size

Left Panel

32011339010 Right Panel

32011339020 Left Partition

32011339030 Right Partition

32011339040

Top

32011339050

Left Front Leg

32011339090 Right Front Leg

32011339100

Left Rear Leg

32011339110 Right Rear Leg

32011339120

Bottom

32011339060

Adjustable Shelf (x2)

32011339070

Center Adjustable Shelf

32011339080

ameriwoodhome.com

Board Identification

Not actual size

This piece is paperboard

construction. It is not made

from wood, but is required for

the assembly of your unit.

Upper Rail

32011339130

Lower Rail

32011339140

Support

32011000150

MNO

Door (x2)

32011339160

Back Panel

K201133900

ameriwoodhome.com

Part List

Actual Size

(x24)

#A22620

cam lock

(x24)

#A22610

cam bolt

(x14)

#A21670

wood dowel

(x5)

#A22910

connector bolt

(x20)

#A12120

#8 x 7/16" pan head

(x5)

#A22920

connector

(x4)

#A53510

angle bracket

(x17)

#A21110

nail

(x4)

#A17400

8-32 x 7/8" truss

(x4)

#A23030

confirmat screw

(x5)

#A21960

hidden fastener

(x12)

#A80250

shelf support

(x2)

#A52480

knob

Please Note:

Your model may contain

extra hardware.

ameriwoodhome.com

Part List

Not Actual Size

15d

15c

15b

15a

(x1)

#A84050

safety bracket kit

(x4)

#A65640

hinge

ameriwoodhome.com

STEP1

(x8)

#A22620

(x2)

#A22610 (x5)

#A21670

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP2

(x8)

#A22620 (x2)

#A22610 (x5)

#A21670

Proper orientation of CAM LOCK

Tip

Assembly

Quick
