Trove1M1R
- Trove rack enclosure with Altronix/Mercury backplane (TM1R)
Installation Guide
All registered trademarks are property of their respective owners. More than just power.™
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
Access & Power Integration
- 2 - Trove1M1R
Overview:
Altronix Trove1M1R rack mount access & power integration solution accommodates various combinations of Mercury boards with or
without Altronix power supplies and accessories for access systems.
Specifications:
Backplane Accommodates a Combination of the Following:
Hardware and Accessories:
Agency Listings:
• CE European Conformity.
Trove1M1R
Trove1R rack mount enclosure with
TM1R Altronix/Mercury backplane.
• 16 Gauge black enclosure with ample knockouts for
convenient access.
• Modular 2U standard EIA 19” drawer with
extendable slides up to 48”.
• Dimensions (H x W x D): 3.25” x 19.0” x 26.5”
(82.6mm x 482.6mm x 673.1mm).
• Includes tamper switch (Altronix Model TS112 or equivalent)
and cam lock.
TM1R
Altronix/Mercury backplane.
• 16 Gauge backplane.
• Dimensions (H x W x D): 18.5” x 15.25” x 0.3125”
(469.9mm x 387.4mm x 7.9mm).
Optional Accessories:
• RE2: Rack Mount Battery Enclosure accommodates up to four (4)
12VDC/7AH batteries
• WM5, WM25, WM100: Magnetic Cable Tie Mounts
(5, 25, 100 counts).
• LC3: 6 ft. three-wire line cord.
Altronix:
• One (1) eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB,
ACMS8(CB) or ACM8(CB).
• Up to two (2) ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB),
PDS8(CB), or VR6.
Mercury:
• Up to four (4) EP1502, MR52, MR16IN or MR16OUT.
• Up to two (2) EP2500 or MUX8.
• Up to two (2) EP1501 or MR51e.
• Up to two (2) MR50.
Spacer | 5/16” Pan Head Screw | Lock Nut
Trove1M1R - 3 -
Fig. 2
Fig. 2a
Hardware (included):
Ten (10) bolts and eight (8) lock nuts
Two (2)
Fig. 1
Fig. 1b
Fig. 1a

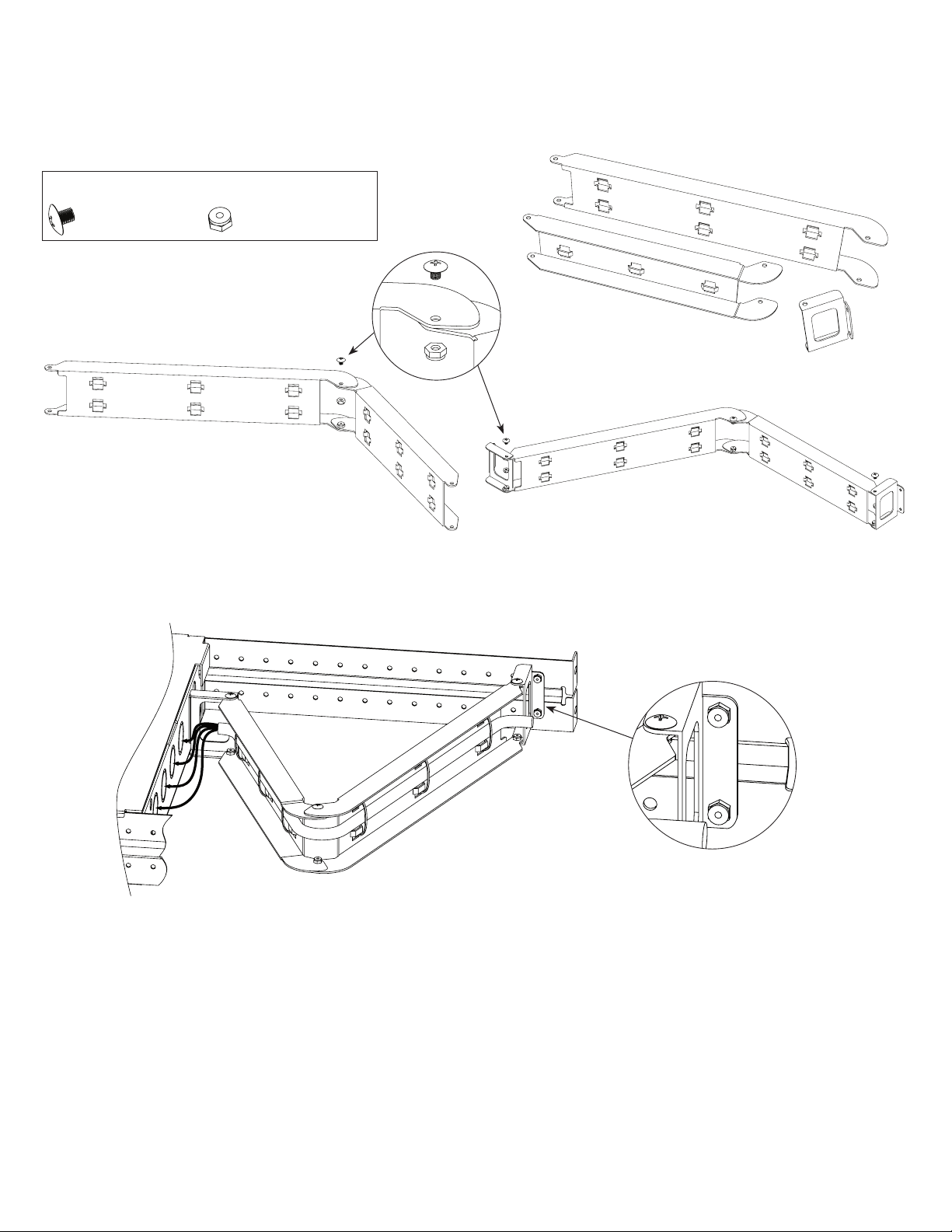

Assembling and Attaching Z Bracket Wire Management Accessory (included):
Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.
1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig. 1, pg. 3).
2. Attach arms to each other using bolts and lock nuts (Fig. 1a, pg. 3).
3. Attach the hinge brackets to the ends of arms using bolts and nuts positioning them as shown on Fig. 1b, pg. 3.
4. Make sure that all nuts are tightened.
5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable rail using bolts and lock nuts (included) (Fig. 2, 2a, pg. 3).
6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts (included).
- 4 - Trove1M1R
Installation Instructions for Trove1R:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.
1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware).
2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent), turn the enclosure upside down.
Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig. 3, pg. 4).
Insert the tamper switch into the knockout from outside of the drawer with the button facing outwards and spaded connectors inside
the drawer. Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.
3. Slide the Trove rack enclosure into an open 2U location in the rack cabinet.
4. Utilizing proper fasteners attach front ears to the rack rails.
5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.
6. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are complete before mounting backplane back
into enclosure.
7. After all components are mounted on the backplane, attach it to the enclosure using included hardware.

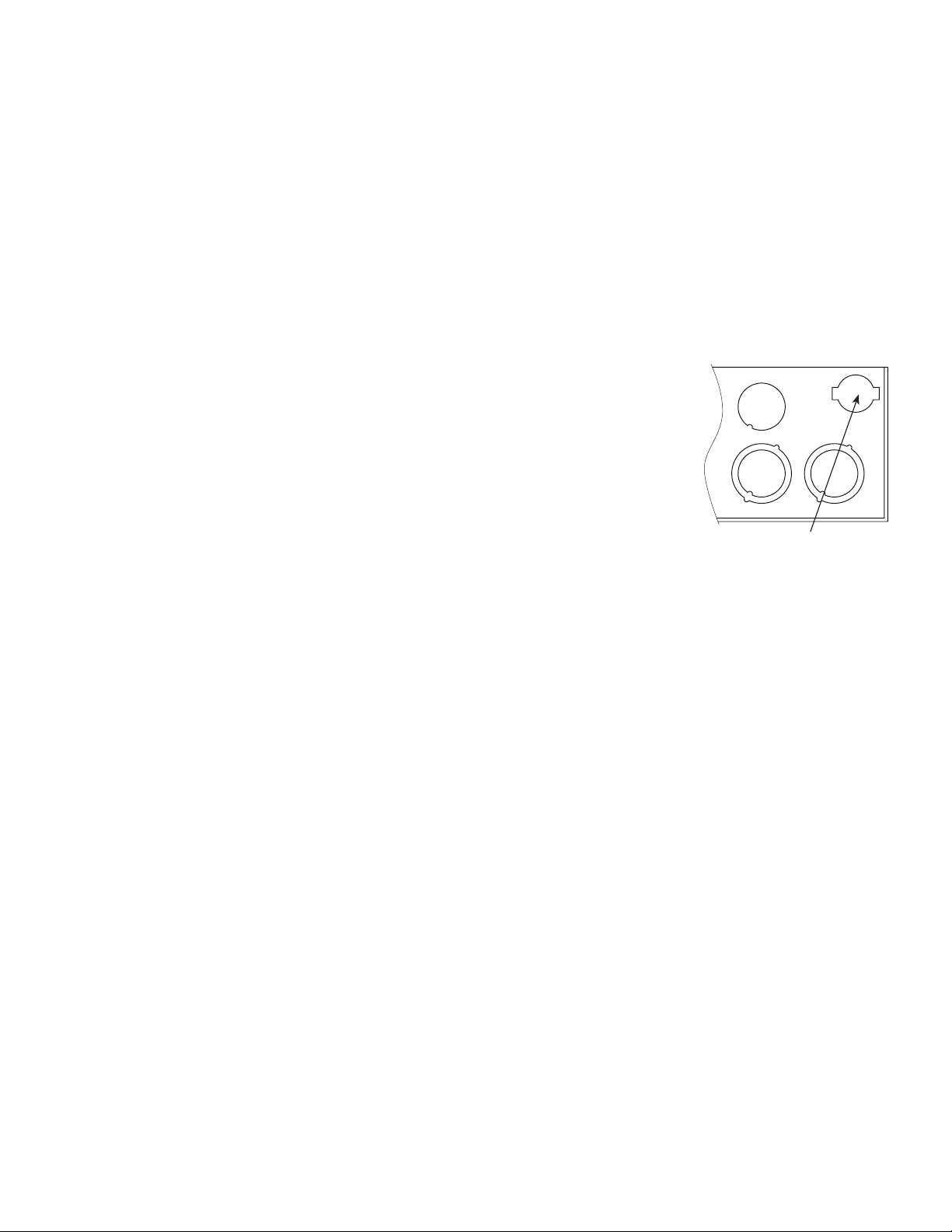

Fig. 3
Tamper Switch mounting location
Back of the drawer,
viewed from outside.
Trove1M1R - 5 -

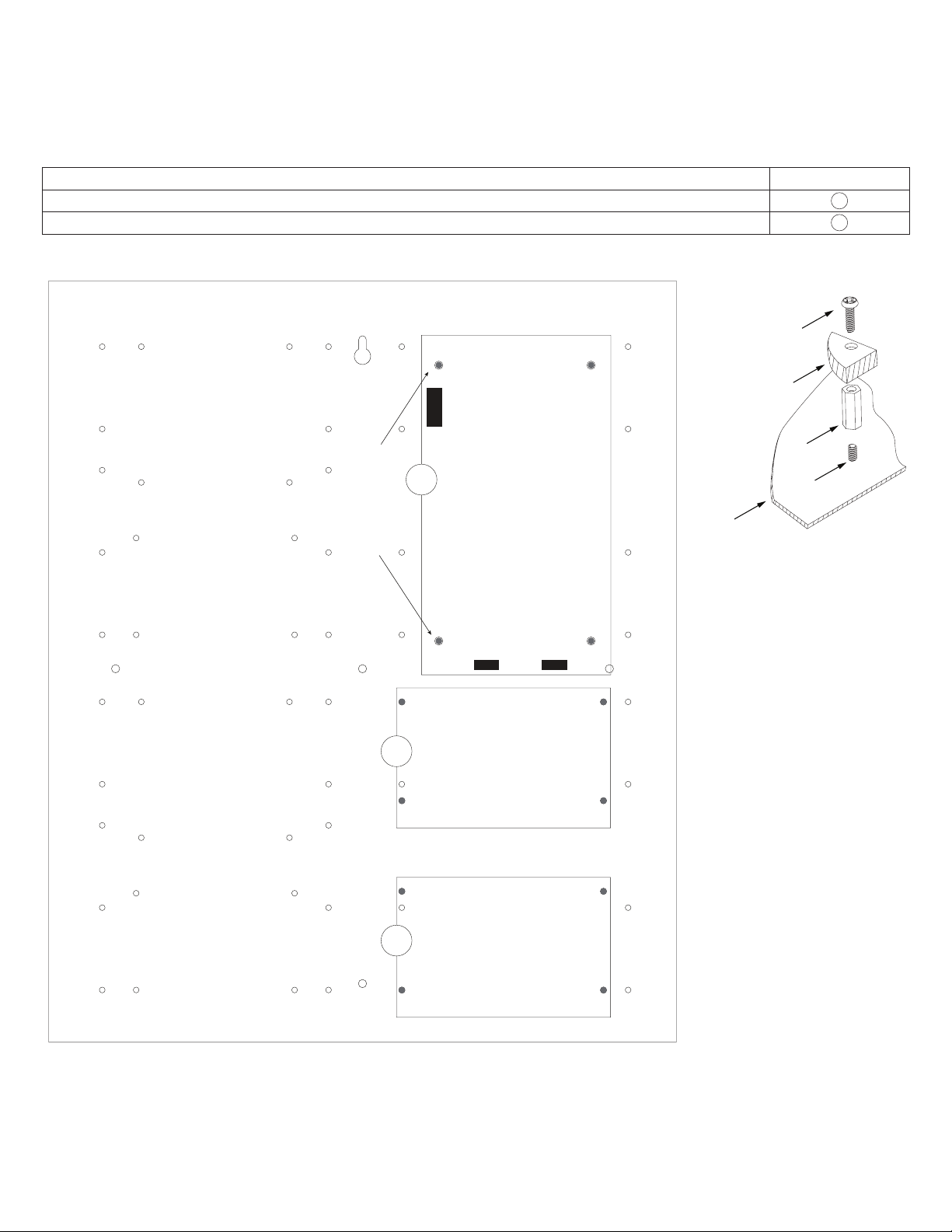

TM1R: Configuration of Altronix Power Supply and/or Sub-Assembly Boards
1. Fasten spacers onto metal pems configuration (A) or (B) of backplane depending on the power supply and/or Sub-Assembly
(Fig. 4, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 4a, pg. 5).
3. Mount backplane to enclosure with hardware.
Position Chart for the Following Models:
Altronix Power Supply/Charger or Sub-Assembly Pem Mounting
eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, ACMS8(CB), ACM8(CB) A
ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), or VR6 B
Fig. 4
A
B
B
Metal
Spacer
Placement
for Altronix
Power
Supplies
Pem
Spacer
Backplane
Power Supply or
Sub-Assembly
Pan Head Screw
Fig. 4a
- 6 - Trove1M1R

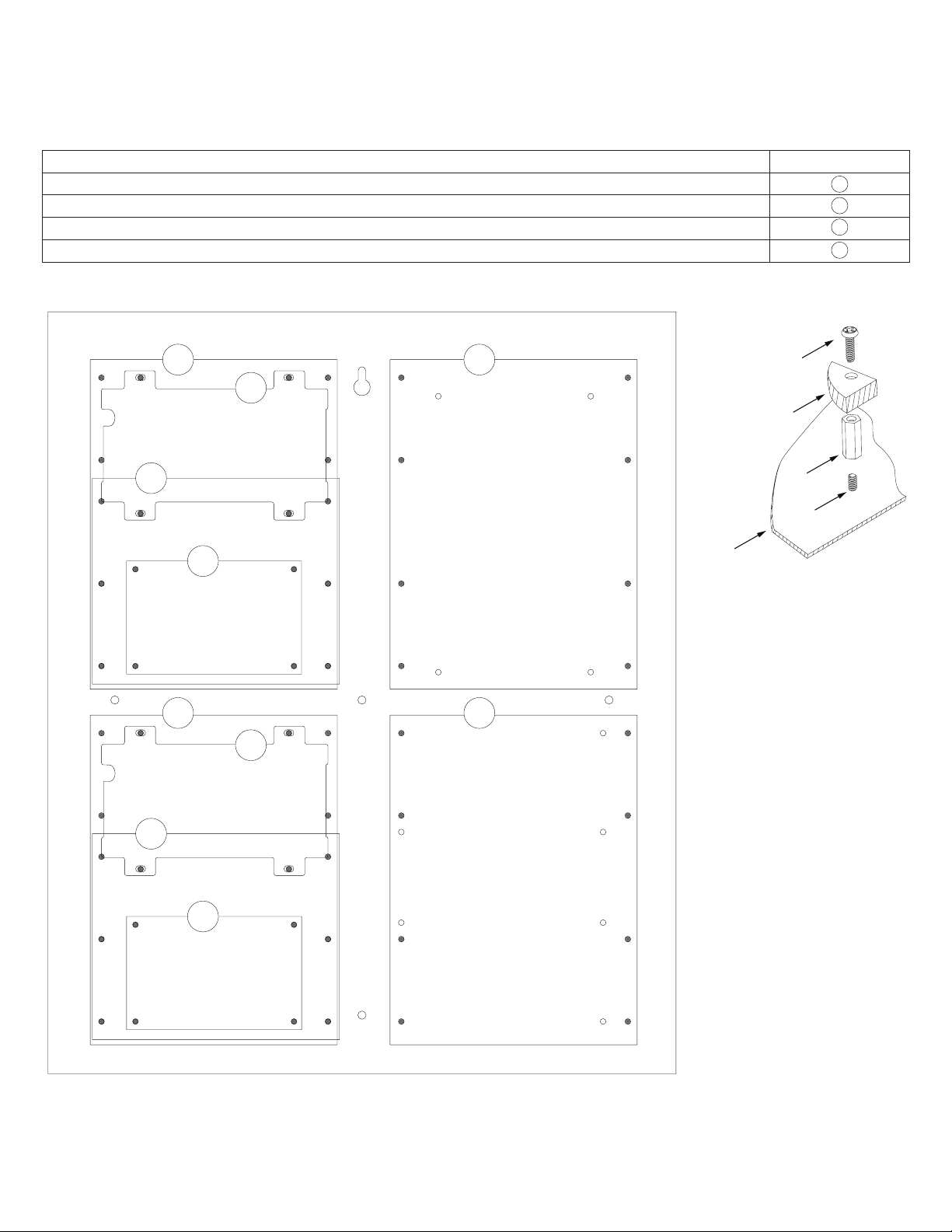

TM1R: Configuration of Mercury Boards
1. Fasten spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 5, pg. 6).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 6).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller Pem Mounting
EP1502, MR52, MR16IN, MR16OUT A
EP2500, MUX8 B
EP1501, MR51e C
MR50 D
Fig. 5
A
C
D
D
C
B
B
A
A A
Pem
Spacer
Backplane
Power Supply or
Sub-Assembly
Pan Head Screw
Fig. 5a
Trove1M1R - 7 -
TM1R Enclosure Dimensions (H x W x D):
18.5” x 15.25” x 0.3125” (469.9mm x 387.4mm x 7.9mm)
15.25” (387.4mm)
18.5”
469.9mm
- 8 - Trove1M1R

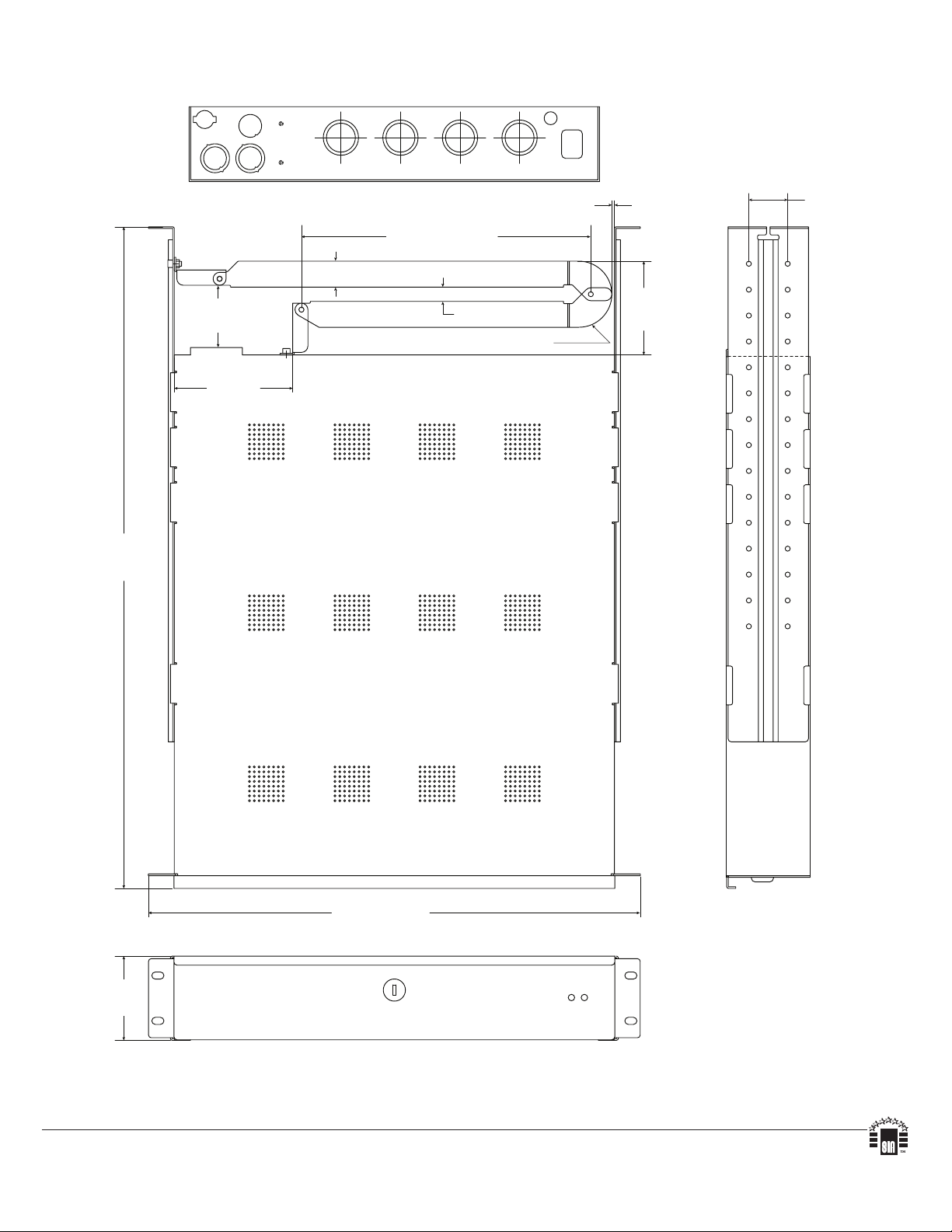

Trove1R Enclosure Dimensions (H x W x D):
3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.
3.25”
82.3mm
26.5”
673.1mm
19” (482.6mm)
2.4”
61mm
4.57”
116.1mm
11.175” (283.8mm)
R 1.27” (32.3mm)
1” (25.4mm)
0.55” (14mm)
3.62”
92mm
0.1”
2.5mm
1.5”
38.1mm
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
