Altinex MX2106AV Manuel utilisateur

SWITCHER

MANUAL PART NUMBER: 400-0365-002

MX2106AV

2X2 VGA + 3.5mm AUDIO

AUTO-SWITCHER

USER’S GUIDE

SWITCHER

TABLE OF CONTENTS

Page

PRECAUTIONS / SAFETY WARNINGS...............2

GENERAL..............................................................2

INSTALLATION .....................................................2

CLEANING.............................................................2

FCC / CE NOTICE.................................................2

ABOUT YOUR SWITCHER....................................3

TECHNICAL SPECIFICATIONS.............................3

DESCRIPTION OF MX2106AV..............................4

APPLICATION DIAGRAM.......................................5

DIAGRAM 1: TYPICAL CONFIGURATION ........5

DIAGRAM 2: INTERNAL VIEW............................6

INSTALLING YOUR SWITCHER...........................7

OPERATION.............................................................7

TROUBLESHOOTING GUIDE ...............................8

LEDS ARE OFF......................................................8

UNIT DOES NOT AUTO-SWITCH ......................8

NO DISPLAY..........................................................8

ALTINEX POLICY....................................................9

LIMITED WARRANTY/RETURN POLICY...........9

CONTACT INFORMATION..................................9

SWITCHER

PRECAUTIONS / SAFETY WARNINGS 1

Please read this manual carefully before using your

MX2106AV Switcher. Keep this manual handy for

future reference. These safety instructions are to

ensure the long life of your MX2106AV and to

prevent fire and shock hazard. Please read them

carefully and heed all warnings.

1.1 GENERAL

•Qualified ALTINEX service personnel, or their

authorized representatives must perform all

service.

1.3 INSTALLATION

•For best results, place the MX2106AV on a flat,

level surface. Keep in a dry area away from dust

and moisture.

•To prevent fire or shock, do not expose this unit

to rain or moisture. Do not place the MX2106AV

in direct sunlight, near heaters or heat radiating

appliances, or near any liquid. Exposure to direct

sunlight, smoke, or steam can harm internal

components.

•Handle the MX2106AV carefully. Dropping or

jarring can damage internal components.

•Do not place heavy objects on top of the

MX2106AV.

•To turn off the main power, be sure to remove

the cord from the power outlet. The power outlet

socket should be installed as close to the

equipment as possible, and should be easily

accessible.

•Do not pull the power cord or any cable that is

attached to the MX2106AV Switcher.

•If the MX2106AV is not used for an extended

time, disconnect power cord from the outlet.

1.4 CLEANING

•Unplug the MX2106AV power cord before

cleaning. Clean surfaces with a dry cloth. Never

use strong detergents or solvents, such as

alcohol or thinner. Do not use a wet cloth or

water to clean the unit.

1.5 FCC / CE NOTICE

•This device complies with Part 15 of FCC Rules.

Operation is subject to the following two

conditions: (1) This device may not cause

harmful interference, and (2) this device must

accept any interference, including interference

that may cause undesired operation.

•This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of FCC Rules. These

limits are designed to provide reasonable

protection against harmful interference when

equipment is operated in a commercial

environment. This equipment generates and

uses radio frequency energy. If not installed and

used in accordance with the instruction manual,

it may cause harmful interference to radio

communications. Operation of this equipment in

a residential area is likely to cause harmful

interference in which case the user will be

required to correct the interference at his own

expense.

•Any changes or modifications to the unit not

expressly approved by Altinex, Inc. could void

the user’s authority to operate the equipment.

SWITCHER

ABOUT YOUR SWITCHER 2

MX2106AV

2-In, 2-Out VGA+3.5mm AUDIO

Auto-Switcher

The MX2106AV is a 2-In, 2-Out VGA + 3.5mm

AUDIO Auto-Switcher. The MX2106AV

automatically switches on signal detection, but may

also be controlled manually if desired. The

MX2106AV is designed to switch VGA signals and

stereo audio.

The unit is encased in a solid metal enclosure and

ships with an external, 9V 500mA, power adapter.

Override switching is made through the INPUT

SELECT/RS-232 input. Manual override switching

is made via a contact closure on the INPUT

SELECT jack. This switch may be used for manual

control, or the contact closure may be controlled

from a control system. RS-232 control is

accomplished by sending ASCII commands to

select either Input 1 or Input 2.

TECHNICAL SPECIFICATIONS 3

FEATURES/DESCRIPTION MX2106AV

Inputs Two

VGA (2) 15 Pin HD Female

Audio (2) 3.5mm Jack

Control 3.5mm Jack

Outputs Two

VGA (2) 15 Pin HD Female

Audio (2) 3.5mm Jack

Compatibility Audio + VGA thru

UXGA

Table 1. MX2106AV General

MECHANICAL MX2106AV

Material 0.1” Al

Finish Black

Height (inches) 4.40in (112mm)

Width (inches) 4.08in (104mm)

Depth (inches) 1.00in (25mm)

Weight (pounds) 0.4lbs (0.18kg)

Ship Weight (pounds) 2.0lbs (0.91kg)

T°Operating 10°C-35°C

T°Maximum 50°C

Humidity 90%non-condensing

MTBF (calculations) 40,000 hrs (min.)

Table 2. MX2106AV Mechanical

ELECTRICAL MX2106AV

Video Input Signal

Video Signal 1.5V p-p max

Video Impedance 75 Ohms

SYNC Signal TTL (+/-)

SYNC Impedance 10K Ohms

Audio Input Signal

Impedance 10K Ohms

Level 0dBU

Video Output Signals

Video Gain 1.05

Video Impedance 75 Ohms

Sync Signal TTL (+/-)

Frequency Compatibility

Horizontal 15-200 kHz

Vertical 20-190 Hz

Typical Video Bandwidth 350 MHz @ -3dB

Cross-talk -40dB @10 MHz

Coupling DC

Audio Output Signals

Impedance 75 Ohms

Gain 0dB

Power

External Power Adapter 9V 500mA (included)

Power Consumption 3 watts max.

Table 3. MX2106AV Electrical

SWITCHER

DESCRIPTION OF MX2106AV 4

SWITCHER

APPLICATION DIAGRAM 5

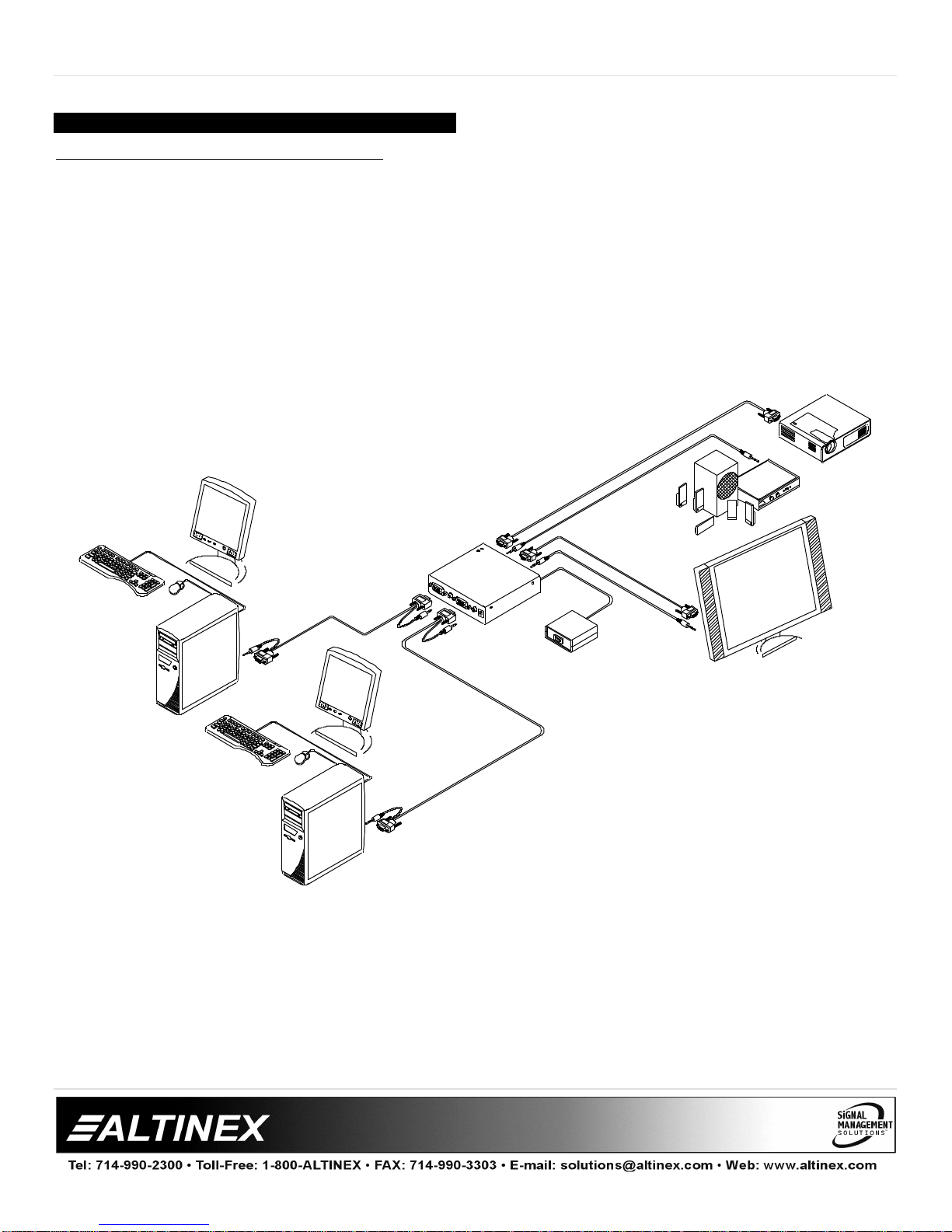

DIAGRAM 1: TYPICAL CONFIGURATION

In addition to automatic switching, the MX2106AV may be controlled manually with an external switch, or using

ASCII commands over the RS-232 bus.

If a remote switch is connected to the INPUT SELECT jack, INPUT 1 will be selected when the contact is open.

INPUT 2 will be selected if the channel select contact is closed. If the RS-232 cable is connected, the user may

send the command [ON1] to select input 1 or [ON2] to select input 2.

Auto-switching is disabled with either manual or RS-232 control. The switching will be identical whether there

are one or two active signals. The indicator lights located next to the input ports indicate which input is selected.

MX2106AV

SWITCHER

DIAGRAM 2: INTERNAL VIEW

POWER

SUPPLY

CONTACT

CLOUSURE

RS-232

2.5mm

9V,500mA

3.5mm

AUDIO

VGA

INPUT2

INPUT1

INPUT2

INPUT1

CONTROL

SIGNAL

DETECT

OUTPUT1

OUTPUT2

3.5mm

AUDIO

OUTPUT2

VGA

OUTPUT1

INPUT1 INPUT2

SWITCHER

INSTALLING YOUR SWITCHER 6

Step 1. Make sure that the correct power adapter

is used. The Altinex power adapter is

supplied with the unit. Connect the power

adapter to the power port. The INPUT 2

indicator light should be ON and GREEN.

NOTE: INPUT 2 is the default if there is

no signal on INPUT 1.

Step 2. Connect the VGA source or sources to

the MX2106AV inputs. If there is a

properly formatted input signal on Input 1,

the switcher will switch Input 1 to the

outputs automatically.

Step 3. Connect a cable from one or both of the

output ports on the MX2106AV to display

devices.

Step 4. If a remote switch or RS-232 control is to

be used, connect the control cable to the

INPUT SELECT/RS-232 port. See

Section7 for specific control functions.

NOTE: See Figure 1below for cabling

information. The INPUT SELECT/RS-232

port receives a 3.5mm Stereo Plug.

Step 5. Verify that the picture quality on the

display is good. If a signal is not being

received, make sure that the display is

compatible with the resolution of the

computer graphics card.

Figure 1

CONTROL L R GND

Remote

Switch n/a Switch

Pole Switch

Throw

RS-232

DP9 Male Pin 3

TX n/a Pin 5

GND

OPERATION 7

There are no settings to adjust on the MX2106AV

Auto-Switcher. The MX2106AV will operate

successfully as long as cables are attached

properly and other specifications are followed.

AUTO-SWITCH MODE

The MX2106AV automatically selects INPUT 2 if no

active signals present. If a signal is on INPUT 2 and

not on INPUT 1, the MX2106AV will maintain

INPUT 2. However, when an active signal is

applied to INPUT 1, the MX2106AV will switch to

INPUT 1. If active signals are on both inputs, the

MX2106AV will automatically switch to INPUT 1.

MANUAL SWITCH MODE

Manual override is accomplished via a contact

closure on the INPUT SELECT/RS-232 jack.

Manual Switch Mode disables Auto-Switching.

This switch may be used for manual control, or the

contact closure may be made from a control

system.

INPUT 1 will be selected when the remote control

switch is connected to the INPUT SELECT jack and

the contact is open. INPUT 2 will be selected if the

contact is closed.

RS-232 SWITCH MODE

The MX2106AV may be switched using simple

ASCII commands through standard RS-232

communication. Connect the RS-232 cable to the

INPUT SELECT/RS-232 jack. In RS-232 Control

Mode, Auto-Switching is disabled. Send the

following commands over the RS-232 bus to select

the desired input.

[ON1] = Select INPUT 1

[ON2] = Select INPUT 2

NOTE: The "[" and "]" brackets are part of the

command and must be included.

CABLE/ACCESSORIES

Cable accessories for RS-232 Control and Remote

switching are available from Altinex.

L R GROUND

SWITCHER

TROUBLESHOOTING GUIDE 8

We have carefully tested and have found no

problems in the supplied MX2106AV unit. However,

we would like to offer the following suggestions:

8.1 LEDs ARE OFF

Cause 1: The power adapter is installed

wrong.

Solution 1: Make sure the adapter output is

connected to the POWER input jack

on the unit. If one of the LEDs is still

not on, see Solution 2.

Solution 2: Ensure the adapter is plugged into

an AC outlet that has power. If the

adapter has AC power and the LEDs

are still off, see Cause 2.

Cause 2: The wrong power adapter is

installed.

Solution 1: Please use the Altinex supplied

external adapter (9V, 500mA). If one

of the LEDs is still not on, please call

ALTINEX at (714) 990-2300.

8.2 UNIT DOES NOT AUTO-SWITCH

Cause 1: The manual override switch is

installed.

Solution: Remove the connection to the

INPUT SELECT jack on the unit. If a

plug is installed in the jack, even

without a switch, the unit will not

auto-switch properly. If the unit does

not auto-switch with the plug

removed, see Cause 2.

Cause 2: The signal is not active or is

improperly formatted.

Solution 1: Remove the input signals from the

switcher. If the IN 2 LED is OFF, call

ALTINEX at (714) 990-2300. If the

IN 2 LED is ON, see Solution 2.

Solution 2: Connect a properly formatted VGA

type signal from to INPUT 1. If the

switcher does not switch to INPUT

1, see Solution 3.

Solution 3: Bypass the switcher and connect the

output of the source directly to the

display. If the display is good, then

call ALTINEX at (714) 990-2300.

8.3 NO DISPLAY

Cause 1: The source has a problem.

Solution: Check the source and make sure

that there is a signal present and all

source connections are correct. If

the source is working and there is

still no display, see Cause 2.

Cause 2: Manual override is ON.

Solution: Make sure there is nothing

connected to the INPUT SELECT

port on the switcher. If there is

nothing connected, see Cause 3.

Cause 3: Signal is bad or missing.

Solution 1: Make sure the switcher output is

connected to the monitor. If there is

still no display, see Solution 2.

Solution 2: Remove both inputs to the switcher

and connect the active signal form

the source to INPUT 2. If there is still

no display, see Solution 3.

Solution 3: Bypass the switcher and connect the

output of the source directly to the

monitor. If the display is good, then

call ALTINEX at (714) 990-2300. If

there is still no display, see Cause 4.

Cause 4: Cable connections are incorrect.

Solution: Make sure the cables are properly

connected. Also, make sure that the

continuity and wiring are good. If

there is still no display present, see

Cause 5.

Cause 5: The display has a problem.

Solution: Make sure the display has power

and is turned ON. If there is still no

display, please call Altinex at

(714) 990-2300.

SWITCHER

ALTINEX POLICY 9

9.1 LIMITED WARRANTY/RETURN POLICY

Please see the Altinex website at

www.altinex.com for details on warranty and

return policy.

9.2 CONTACT INFORMATION

ALTINEX, INC

592 Apollo street

Brea, CA 92821 USA

TEL: 714 990-2300

TOLL FREE: 1-800-ALTINEX

WEB: www.altinex.com

E-MAIL: [email protected]

Autres manuels pour MX2106AV

Table des matières

Autres manuels Altinex Changer

Altinex

Altinex MX2106AV Manuel utilisateur

Altinex

Altinex MX2426CV Manuel utilisateur

Altinex

Altinex MX430-101 8x8 Manuel utilisateur

Altinex

Altinex MULTITASKER MT109-100 Manuel utilisateur

Altinex

Altinex Tilt 'N Plug Interconnect Box TNP100-HB Manuel utilisateur

Altinex

Altinex SW1956CT Manuel utilisateur

Altinex

Altinex SW104-130 Manuel utilisateur

Altinex

Altinex MT105-8X8 Manuel utilisateur

Altinex

Altinex MX2456RM Manuel utilisateur

Altinex

Altinex MT304-203 Manuel utilisateur

Altinex

Altinex MX2222AT Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

Altinex

Altinex Furniture Mount Interconnect Box... Manuel utilisateur

Altinex

Altinex MT104-100/103 Manuel utilisateur

Altinex

Altinex MX2226AT Manuel utilisateur

Altinex

Altinex MX2414RM Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT104-108 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT104-107 Manuel utilisateur

Altinex

Altinex MX2406RM Manuel utilisateur

Altinex

Altinex MX2436RM Manuel utilisateur

Altinex

Altinex Universal Tilt 'N Plug Interconnect Box... Manuel utilisateur

Altinex

Altinex DA1916SX Manuel utilisateur

Altinex

Altinex MX2456RM Manuel utilisateur

Altinex

Altinex MX2106AV Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
