MULTI-TASKER™

MANUAL PART NUMBER: 400-0177-002

6-IN, 1-OUT S-VIDEO SWITCHER

CARD FOR MULTI-TASKER™

ENCLOSURES USER’S GUIDE

MT104-108

MULTI-TASKER™

TABLE OF CONTENTS

Page

PRECAUTIONS / SAFETY WARNINGS.............. 2

1.1 GENERAL................................................. 2

1.2 INSTALLATION......................................... 2

1.3 CLEANING................................................ 2

1.4 FCC / CE NOTICE..................................... 2

ABOUT YOUR MULTI-TASKER™....................... 3

TECHNICAL SPECIFICATION............................ 3

PRODUCT DESCRIPTION..................................4

APPLICATION DIAGRAM.................................... 4

INSTALLING YOUR MULTI-TASKER™.............. 6

OPERATION........................................................ 6

7.1 RS-232 CONTROL.................................... 6

7.2 DESCRIPTION OF COMMANDS.............. 6

7.3 SUMMARY OF COMMANDS................... 10

TROUBLESHOOTING GUIDE........................... 11

8.1 LED IS NOT LIT...................................... 11

8.2 NO DISPLAY........................................... 11

ALTINEX POLICY.............................................. 11

9.1 LIMITED WARRANTY/RETURN POLICY11

9.2 CONTACT INFORMATION...................... 11

MULTI-TASKER™

PRECAUTIONS / SAFETY WARNINGS 1

Please read this manual carefully before using

your MT104-108. Keep this manual handy for

future reference. These safety instructions are to

ensure the long life of your MT104-108 and to

prevent fire and shock hazard. Please read them

carefully and heed all warnings.

1.1 GENERAL

•Qualified ALTINEX service personnel, or their

authorized representatives must perform all

service.

1.2 INSTALLATION

•To prevent fire or shock, do not expose this unit

to rain or moisture. Do not place theMT104-108

in direct sunlight, near heaters or heat radiating

appliances, or near any liquid. Exposure to

direct sunlight, smoke, or steam can harm

internal components.

•Handle the MT104-108 carefully. Dropping or

jarring can damage the card.

•Do not pull the cables that are attached to the

MT104-108.

•Insert the card carefully into the slots of the

Multi-Tasker™ without bending any edges.

•When removing a card, please make sure that

the card to which it is attached is also pulled out

simultaneously.

1.3 CLEANING

•Clean only the connector area with a dry cloth.

Never use strong detergents or solvents, such

as alcohol or thinner. Do not use a wet cloth or

water to clean the card. Do not clean or touch

any component or PCB.

1.4 FCC / CE NOTICE

•This device complies with part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) This device may not cause

harmful interference, and (2) this device must

accept any interference received, including

interference that may cause undesired

operation.

•This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates, uses,

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications. Operation

of this equipment in a residential area is likely to

cause harmful interference in which case the

user will be required to correct the interference

at his own expense.

•Any changes or modifications to the unit not

expressly approved by ALTINEX, Inc. could void

the user’s authority to operate the equipment.

MULTI-TASKER™

ABOUT YOUR MULTI-TASKER™ 2

MT104-108

6-in 1-out S-Video Switcher Card

The MT104-108 is a 6-in (+1 internal input) 1-out

S-Video Switcher Card designed for use in

Multi-Taskerenclosures. The MT S-Video SW

card enables 6 S-Video sources to be connected

and switched to a single display or recording

device. The MT104-108 is compatible with NTSC,

PAL and SECAM S-Video signals.

The MT104-108 card utilizes solid state switching

technology, and offers video bandwidth of

350 MHz, enabling it to pass high-resolution video

signals without degradation. Inputs are selected

via easy-to-use ASCII commands from a control

system or computer connected to the RS-232 port

of a Multi-Tasker™ enclosure.

Additionally, VIS (Vertical Interval Switching)

capability may be added by special order. This is a

feature that eliminates the "glitch" normally

associated with video switching when all input

video signals are gen-locked together. Also

available through ASCII control is “on-off” output

control.

TECHNICAL SPECIFICATION 3

FEATURES/DESCRIPTION MT104-108

GENERAL

Inputs (6)

External Input Connectors 4-pin Mini DIN

Connectors

Internal Input Connector (1) 10-pin IDC

Connector

Outputs (1)

Output Connector (1) 4-pin Mini DIN

Connector

Approvals CE/FCC

Table 1. MT104-108 General

MECHANICAL MT104-108

Enclosure Slots Req'd One

Weight 0.43lb (0.19kg)

Shipping Weight 1 lb. (0.45kg)

Connector Panel Black

T° Operating 10°C to 40°C

T° Storage 0°C to 50°C

Humidity 90% non-condensing

MTBF (calc.) 55,000 hrs

Table 2. MT104-108 Mechanical

ELECTRICAL MT104-108

Input Signals

Analog +/-1.5V (1.5Vp-p)

Impedance 75 Ohms

Type Differential

Return Loss -38dB @ 50MHz

Output Signals

Gain 1.05 (+/-5%)

Impedance 75 Ohms

Propagation Delay (Sync) 4nS max.

Rise/Fall time (Sync) 6nS max.

Differential Phase Error 01° @ 4.5 MHz

Bandwidth 350 MHz @ -3dB

Power

Power from Enclosure +6V DC (80mA)

-6V DC (60mA)

Power Consumption 1 watt max.

Optional Accessories

MS8112CA 6ft., 15-pin HD Female

to 5 BNC Male

MS8102CA 6ft., 15-pin HD Female

to 5 BNC Male

Table 3. MT104-108 Electrical

MULTI-TASKER™

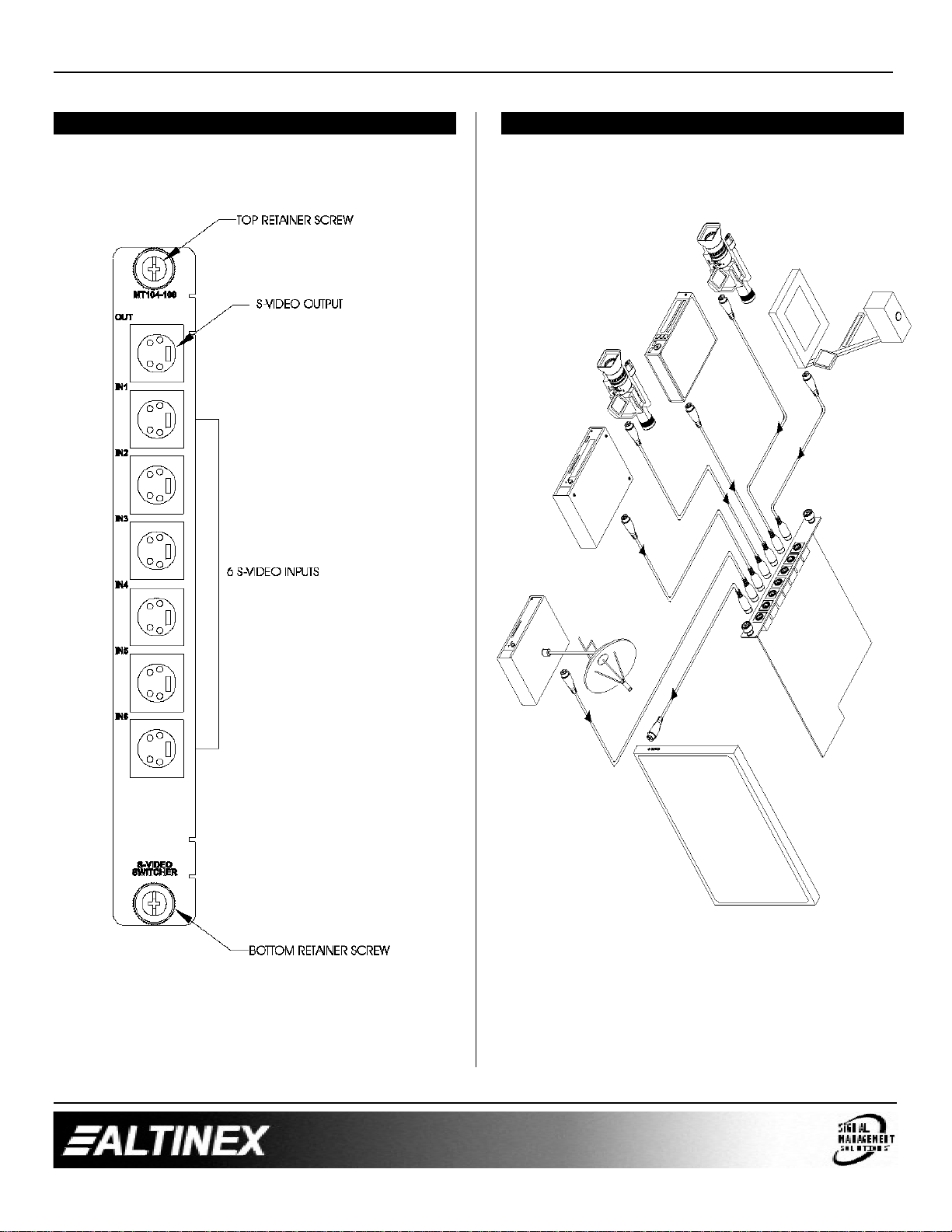

PRODUCT DESCRIPTION 4APPLICATION DIAGRAM 5

MULTI-TASKER™

Diagram 2: Block Diagram

6-IN 1-OUT S-VIDEO SWITCHER

POWER

IN OUT

(4-PIN MINI DIN CONNECTORS IN/OUT)

MT104-108

INPUT SELECT

OUTPUT ON/OFF

CONTROL

EXPANSION

MULTI-TASKER™

INSTALLING YOUR MULTI-TASKER™ 6

Step 1. Slide the MT104-108 into an available

slot in the Multi-Tasker™ Enclosure in

order to connect to the bus. Make sure

that the MT104-108 card fits into place.

Secure the card to the Multi-Tasker™ by

tightening the retainer screws located on

the top and bottom of the MT104-108

card.

Step 2. The LED on the card panel will turn red

indicating that the card is in full operation.

Step 3. Connect a coaxial cable from the video

source to the input connector of the

MT104-108. Connect the output

connectors of the MT104-108 to the

display devices through a coaxial cable.

Step 4. Starting from the left, identify the slot

number where the MT104-108 card is

plugged into the Enclosure and note that

it is for RS-232 control.

OPERATION 7

7.1 RS-232 CONTROL

When used in the Multi-Tasker™ Enclosure, the

MT104-108 has many advanced remote control

capabilities, which are accessible through standard

RS-232 communication. The actual controlling can

be accomplished through a computer control

system or any other device capable of sending

RS-232 commands.

7.1.1 RS-232 INTERFACE

The RS-232 commands for the MT104-108 are

in a simple ASCII character format.

1. Square brackets “[ ]” are part of the

command.

2. Use uppercase letters for all commands.

After processing a command, an OK or ER will

be returned as feedback if "F" is included at the

end of a command string.

Commands such as [ON], [OFF], and [IO] that

end in "S" will be saved into memory.

Commands not ending in "S" will still be

executed but will not be restored when the

system is reset (power off & power on again).

7.2 DESCRIPTION OF COMMANDS

Each command consists of three parts:

Function, card ID, and unit ID. [Function,

Card ID, Unit ID]

Example:

[VERC3U2]

VER = Function

C3 = Card ID

U2 = Unit ID

For Function, see a detailed explanation under

each command description.

The Card ID is an assigned value from 1 to 19,

1 to 8, or 1 to 4 depending on which enclosure

is being used. The Card ID represents the slot

number where the board resides. Card

ID 0 (C0) is used for the controller (see user’s

guide for the MT100-100). Changing the

position of a card will significantly affect the

commands recorded on software definitions or

a third party control system.

The Unit ID has a value from 0 to 9. Unit ID 0

should be used for single unit operation. If the

Unit ID is set to 0, then each command can be

used without Ui (use command [SETU0]; see

user’s guide for the MT100-100).

Example:

[VERC3]: for unit ID zero

[VERC3Ui]: for unit ID other than zero

[VERC3]: equivalent to [VERC3U0]

1. [VER]

This command receives the software version

and card type for theMT104-108 card.

Command Format: [VERCnUi]

Cn = card ID (n = # from 1 to max slots)

Ui = Unit ID (i = # from 0 to 9) (refer to the

MT100-100 user’s guide for explanation)

MULTI-TASKER™

Example:

One MT104-108 card is in slot #2 of unit 3:

Send the command [VERC2U3] and the

Multi-Tasker™ Enclosure will return:

MT104-108 690-0160-002

MT104-108 = card type

690-0160-002= software version

2. [C]

This command receives the status of the card.

Command Format: [CnUi]

Cn = card ID (n = # from 1 to max slots)

Ui = unit ID (i = from 0 to 9) (refer to the

MT100-100 user’s guide for explanation)

Example:

An MT104-108 card is in slot #2 of unit 3 and

input 1 is ON. Sending the command [C2U3]

will yield the following feedback from the

Multi-Tasker™:

ON: 1 C02

ON: 1= input 1 is ON

C02 = card is in slot 2

If there is no card in slot #2 of unit 3, sending

the [C2U3] command will not return any

feedback.

3. [CnS]

This command saves the current status of the

card's input selection configuration. This

configuration will be restored after system is

reset or powered off then on.

Cn = card number

S= save configuration

If Inputs 1,2,3,4,5 and 6 are enabled, the

feedback after sending the command [C4S], for

slot 4, would be:

ON:1,2,3,4,5,6 C04 Saved

4. [ON]

This command enables one input of a single

card or a group of cards.

[ONmCnUiS]: for a SINGLE card

This command enables input “m” and disables

all other inputs.

[ONmCnUi]: enables input

Default when plugged in = Input 1 is ON

m = Input number (m = 1 to 7, 7 is internal)

Cn = Card ID (n = slot # from 1 to max slots)

Ui = Unit ID number (i = 0 to 9)

S= saves command to memory

Example:

If all of the inputs on the MT104-108 card are

OFF and the card is in slot #5 of unit 3:

1) [ON1C5U3]: Turns ON input 1.

2) [ON3C5U3]: Turns ON input 3 (input 1 is

now OFF).

[ONmGkUiS]: for a GROUP of cards

This command enables input "m" for each card

in group "k" of unit "i".

[ONmGkUi]: enables a group of inputs

m= Input (m = 1 to 7, input 7 is internal)

Gk = group number (k = # from 1-9)

Ui = unit number (i = # from 0-9)

S=saves command to memory

Example:

[ON1G1U1]: Turns ON input 1 for each card in

group 1 of unit 1.

[ON…..P]: sets path

This command will set the path for the output,

but it is not active until the switch command,

[SW], is executed. Commands ending in "P" are

not executed immediately. The path for outputs

on multiple cards or the same card can be

preloaded and then all switched at the same

time.

Command Format:[ONmCnUiP]

m= Input number (m = 1 to 7, 7 is internal)

Cn = card ID (n = slot # from 1 to max slots)

Ui = Unit ID number (i = 0 to 9)

P= path

MULTI-TASKER™

Example:

There are two MT104-108 cards in slots 6 and

7 of unit 3. Enable input 1 of card 6 and input 3

of card 7 simultaneously. Use the following

commands:

[ON1C6U3P]

[ON3C7U3P]

[SW]

If "F" is included, use the [ONmCnUiPF]

command or the [ONmCnUiFP]command.

[ON…..F]: feedback

After processing a command, an OK or ER will

be returned as feedback if "F" is included at the

end of a command string.

Example:

[ON1C2U3F]: if path is not set

[ON1C2U3PF]: if path is set

5. [OFF]

This command disables one input of a single

card or a group of cards.

[OFFmCnUiS]: for a SINGLE card

This command disables input “m” or all inputs.

The command [OFFC5CnUi], turns OFF all

inputs of the MT104-108 card.

m= Input (m = 1 to 7, input 7 is internal

Cn = Card ID (n = slot # from 1 to max slots)

Ui = Unit ID number (i = 0 to 9)

S= saves command to memory

Example:

Card 5 of unit 3 has input 1 ON. Card 6 of unit

3 has input 5 ON. The following commands

can be used to turn OFF the inputs on both

cards simultaneously.

1) [OFF1C5U3]: Turns OFF input 1.

2) [OFF3C6U3]: Turns OFF input 3.

3) [OFFmGkUiS]: for a group of cards

This command disables input "m" for each card

in group "k" of unit "i".

m= Input (m = 1 to 7, 7 is internal)

Cn = Card ID (n = slot # from 1 to max slots)

Ui = Unit ID number (i = 0 to 9)

S= saves command to memory

Example:

1) [OFF1G1U1]: Turns OFF input 1 for each

card in group 1 of unit 1.

2) [OFFG1U1]: Turns OFF all inputs for each

card in group 1 of unit 1.

[OFF…..P]: sets path

This command will set the path for the output,

but it is not active until the switch command,

[SW], is executed. Commands ending in "P" are

not executed immediately. The path for outputs

on multiple cards or the same card can be

preloaded. Then, all connection may be made

simultaneously.

Command Format: [OFFmCnUiP]

m= Input (m = 1 to 7, 7 is internal)

Cn = card ID (n = slot # from 1 to max slots)

Ui = Unit ID number (i = 0 to 9)

P= path

Example:

There are twoMT104-108 cards in slot 6 and 7

of unit 3. Enable input 1 of card 6 and input 3

of card 7 simultaneously. Use the following

commands:

[OFF1C6U3P]

[OFF3C7U3P]

[SW]

If "F" is included, use the [OFFmCnUiPF]

command or the [OFFmCnUiFP]command.

[OFF…..F]: feedback

After processing a command, an OK or ER will

be returned as feedback if "F" is included at the

end of a command string.

Example:

[OFF1C2U3F]: if path is not set

[OFF1C2U3PF]: if path is set

MULTI-TASKER™

6. […S] – Save

This command will save the configuration

command being sent in memory. When

sending the command [ON1C4S], after reset or

power up, output 1 on C4 will be enabled.

7. […F] – Feedback

After processing a command, an OK or ER will

be returned as feedback if "F" is included at the

end of a command string.

8. […P] – Path

This command will set the path for the output,

but it is not active until the switch command,

[SW], is executed. Commands ending in "P" are

not executed immediately. The path for outputs

on multiple cards or the same card can be

loaded. See examples in ON and OFF

commands.

9. [SW] – Switch

The switch command immediately connects

inputs and outputs, which were previously set

with the path command. This command effects

this card and all other cards in the MT100-100.

Example:

[ON1C6U3P]

[ON3C7U3P]

[SW]

The system will return feedback as OK if the

unit ID is zero.

Command Format: [HELPCnUi]

Cn = card ID number (n = # from 1 to max slots)

Ui = Unit ID (i = # from 0 to 9) (refer to the

MT100-100 user’s guide for explanation)

10. [HELP]

This command displays information available

for the Multi-Tasker interface commands.

Example:

In order to view the RS-232 commands

available for the MT104-108 card in slot 2 of

unit 3, send the command [HELPC2U3]. The

commands along with a brief description will be

displayed in the Terminal Window

11. [WR]

This command groups multiple cards in the

Enclosure. Each unit contains a maximum of

nine groups.

Command Format:[WRCn…GkUi]

Cn = card ID (n = slot # from 1 to max slots)

Gk = group number (k = # from 1-9)

Ui = unit number (i = # from 0-9)

Example:

To group cards #1, 2, and 3 as group 5 of unit

#1, send the command [WRC1C2C3G5U1].

After executing this command, cards 1, 2 and 3

will be grouped together as group 5 of unit 1.

12. [CLR]

This command clears the members for a single

group or for all nine groups.

Command Format: [CLRGkUi]

Gk = group number (k = # from 1-9)

Ui = unit number (i = # from 0-9)

Example:

1) To clear group #1, send the [CLRG1U1]

command. This command clears the

members for the specified group only.

2) To clear all groups of unit 1, send the

[CLRG[U1] command.

13. [G]

This command is used to request group data.

With the command, the user can identify which

input or output of a particular group is on.

Command Format: [GkUi]

Gk = group number (k = # from 1-9)

Ui = unit number (i = # from 0-9)

Example:

In unit ID0, if group 1 has DA Cards with

outputs 1 and 2 on, while group 2 has SW

Cards with input 2 on:

Table des matières

Autres manuels Altinex Changer

Altinex

Altinex Universal Tilt 'N Plug Interconnect Box... Manuel utilisateur

Altinex

Altinex SW1956CT Manuel utilisateur

Altinex

Altinex MX2100AV Manuel utilisateur

Altinex

Altinex MX2426CV Manuel utilisateur

Altinex

Altinex MX430-101 8x8 Manuel utilisateur

Altinex

Altinex MX2226AT Manuel utilisateur

Altinex

Altinex MT304-203 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT104-107 Manuel utilisateur

Altinex

Altinex MX2414RM Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT104-102 Manuel utilisateur

Altinex

Altinex DA1916SX Manuel utilisateur

Altinex

Altinex MX2214RM Manuel utilisateur

Altinex

Altinex MULTITASKER MT109-100 Manuel utilisateur

Altinex

Altinex MT105-8X8 Manuel utilisateur

Altinex

Altinex MX2206RM Manuel utilisateur

Altinex

Altinex MX2106AV Manuel utilisateur

Altinex

Altinex MX2406RM Manuel utilisateur

Altinex

Altinex UT260-041 Manuel utilisateur

Altinex

Altinex MX2106AV Manuel utilisateur

Altinex

Altinex MX2216RM Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

Altinex

Altinex MX2456RM Manuel utilisateur

Altinex

Altinex MX2456RM Manuel utilisateur

Altinex

Altinex MT104-100/103 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
