Altinex MX2106AV Manuel utilisateur

SWITCHER

MANUAL PART NUMBER: 400-0365-003

2X2 VIDEO + STEREO AUDIO

AUTO-SWITCHER

USER’S GUIDE

MX2106AV

SWITCHER

400-0365-0031

TABLE OF CONTENTS

Page

PRECAUTIONS / SAFETY WARNINGS................ 2

GENERAL..........................................................2

INSTALLATION..................................................2

CLEANING.........................................................2

FCC NOTICE .....................................................2

ABOUT YOUR MX2106AV....................................... 3

TECHNICAL SPECIFICATIONS.............................. 3

PRODUCT DESCRIPTION ...................................... 4

APPLICATION DIAGRAMS...................................... 5

DIAGRAM1: TYPICAL SETUP ..........................5

DIAGRAM2: INTERNAL VIEW..........................6

INSTALLING YOUR MX2106AV............................ 7

OPERATION............................................................... 7

TROUBLESHOOTING GUIDE................................. 8

LEDS ARE OFF..................................................8

UNIT DOES NOT AUTO-SWITCH......................8

NO DISPLAY......................................................8

ALTINEX POLICIES.................................................. 9

LIMITEDWARRANTY/RETURN POLICIES.......9

CONTACT INFORMATION................................9

SWITCHER

400-0365-0032

PRECAUTIONS / SAFETY WARNINGS 1

Please read this manual carefully before using your

MX2106AV Switcher. Keep this manual handy for

future reference. These safety instructions are to

ensure the long life of your MX2106AVand to

prevent fire and shock hazards. Please read them

carefully and heed all warnings.

1.1 GENERAL

•Qualified ALTINEX service personnel or their

authorized representatives must perform all

service.

1.3 INSTALLATION

•For best results, place the MX2106AVon a flat,

level surface. Keep in a dry area away from dust

and moisture.

•To prevent fire or shock, do not expose this unit

to water or moisture. Do not place the

MX2106AVin direct sunlight, near heaters or

heat-radiating appliances, or near any liquid.

Exposure to direct sunlight, smoke, or steam can

harm internal components.

•Handle the MX2106AVcarefully. Dropping or

jarring can damage internal components.

•Do not place heavy objects on top of the

MX2106AV.

•To turn off the main power, be sure to remove

the cord from the power outlet. The power outlet

should be installed as close to the equipment as

possible, and should be easily accessible.

•Do not pull the power cord or any cable that is

attached to the MX2106AVSwitcher.

•If the MX2106AVis not used for an extended

time, disconnect the power cord from the outlet.

1.4 CLEANING

•Unplug the MX2106AVpower cord before

cleaning. Clean surfaces with a dry cloth. Never

use strong detergents or solvents such as

alcohol or thinner. Do not use a wet cloth or

water to clean the unit.

1.5 FCC NOTICE

•This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) This device may not cause

harmful interference, and (2) this device must

accept any interference, including interference

that may cause undesired operation.

•This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

equipment is operated in a commercial

environment. This equipment generates and

uses radio frequency energy. If not installed and

used in accordance with this instruction manual,

it may cause harmful interference to radio

communications. Operation of this equipment in

a residential area is likely to cause harmful

interference in which case the user will be

required to correct the interference at his own

expense.

•Any changes or modifications to the unit not

expressly approved by ALTINEX, Inc. could void

the user’s authority to operate the equipment.

SWITCHER

400-0365-0033

ABOUT YOUR MX2106AV 2

MX2106AV

2-In, 2-Out Video +Stereo Audio

Auto-Switcher

The MX2106AVis a 2-In, 2-Out VGA + Audio

Auto-Switcher. The MX2106AVswitches

automatically upon signal detection, but may also

be controlled manually if desired. The MX2106AV

is designed to switch computer video signals and

stereo audio.

The unit is encased in a solid metal enclosure and

ships with an external, 9V 500mA power adapter.

Override switching is made through the

INPUT SELECT/RS-232 input. Manual override

switching is made via a contact closure on the

INPUT SELECT jack. This switch may be used for

manual control, or the contact closure may be

controlled from a control system. RS-232 control is

accomplished by sending ASCII commands to

select either Input 1 or Input 2.

TECHNICAL SPECIFICATIONS 3

Specifications are subject to change.

See www.altinex.com for up-to-date information.

FEATURES/DESCRIPTION MX2106AV

Inputs 2

Video (2) 15-pin HD female

Audio (2) 3.5mm female

Control (1) 3.5mm female

Outputs 2

Video (2) 15-pin HD female

Audio (2) 3.5mm female

Compatibility Audio +

VGA through UXGA

Table 1. MX2106AVGeneral

MECHANICALMX2106AV

Material 0.1” Al

Finish Black

Height (inches) 4.40 in (112 mm)

Width (inches) 4.35 in (110 mm)

Depth (inches) 1.00 in (25 mm)

Weight (pounds) 0.75 lb (0.34 kg)

T°Operating 10°C-35°C

T°Maximum 50°C

Humidity 90%non-condensing

MTBF (calculations) 40,000 hrs (min.)

Table 2. MX2106AVMechanical

ELECTRICALMX2106AV

Video Input

Video Signal 1.5 Vp-p max

Video Impedance 75 ohms

SYNC Signal TTL (+/-)

SYNC Impedance 10 kohms

Audio Input Signal

Impedance 10K Ohms

Level 0dBU

Video Output Signals

Video Gain 0 +/-0.5 dB

Video Impedance 75 ohms

Sync Signal TTL (+/-)

Coupling DC

Audio Output Signals

Impedance 75 Ohms

Gain 0dB

Power

External Adapter (included) 9V 500mA

Total Power 3 watts max.

Table 3. MX2106AVElectrical

SWITCHER

400-0365-0034

PRODUCT DESCRIPTION 4

VIDEO INPUT 2

AUDIO INPUT 2

POWER

VIDEO OUTPUT 2

AUDIO OUTPUT 2

INPUT SELECT

AUDIO INPUT 1

VIDEO INPUT 1 VIDEO OUTPUT 1

AUDIO OUTPUT 1

OUTPUT MODE SELECT

INPUT LEDs/

SWITCHER

400-0365-0035

APPLICATION DIAGRAMS 5

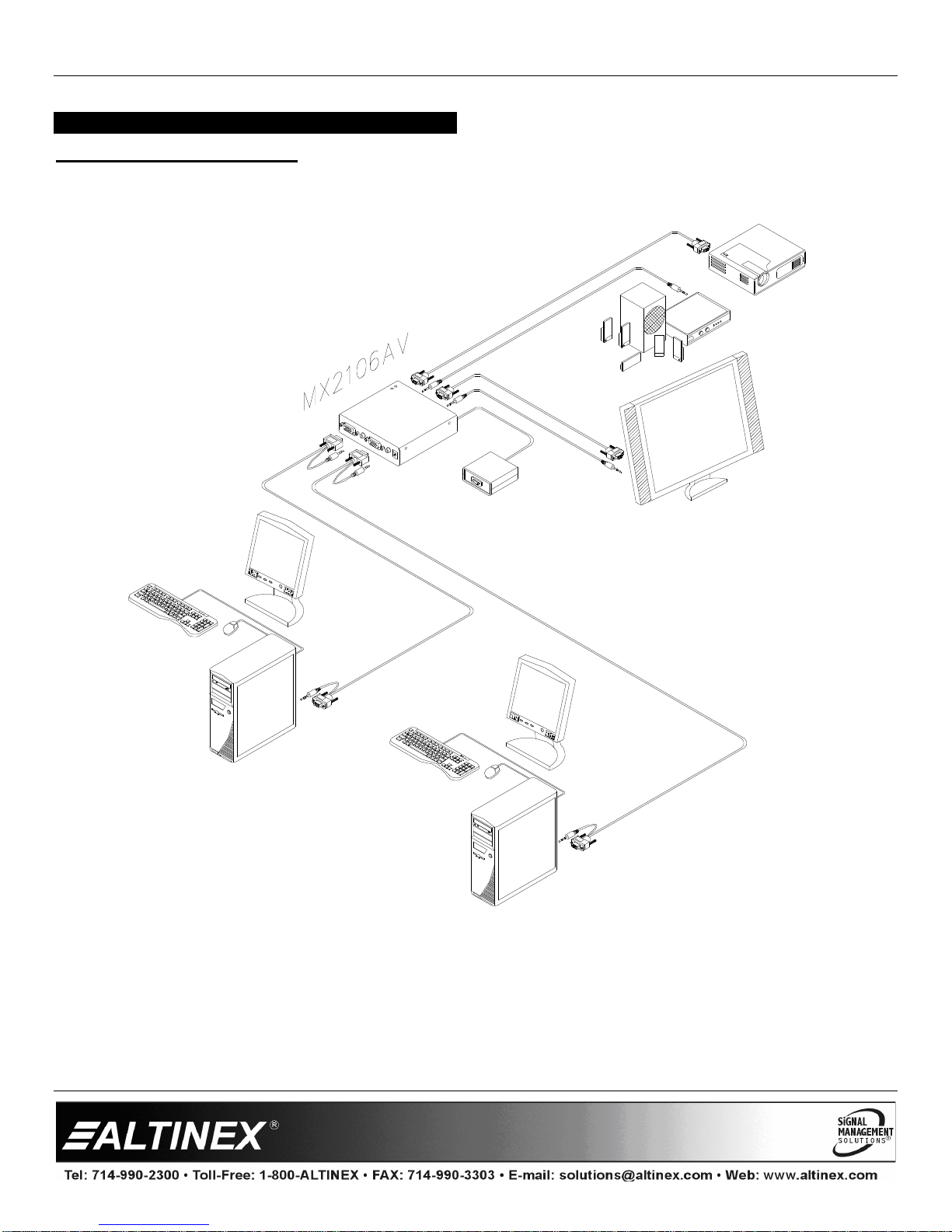

DIAGRAM 1: TYPICAL SETUP

SWITCHER

400-0365-0036

DIAGRAM 2: INTERNAL VIEW

9V,500mA

2.5mm RS-232

INPUT SELECT/

3.5mm

INPUT1

VIDEO INPUT 1

INPUT2

MPPS

PNP

15-PIN HD

AUDIO INPUT 1

3.5mm

AUDIO INPUT 2

3.5mm

VIDEO INPUT 2

15-PIN HD

3.5mm

AUDIO OUTPUT 2

VIDEO OUTPUT 2

15-PIN HD

AUDIO OUTPUT 1

3.5mm

VIDEO OUTPUT 1

15-PIN HD

SWITCHER

400-0365-0037

Standard 3.5mm plug.

GROUNDRL

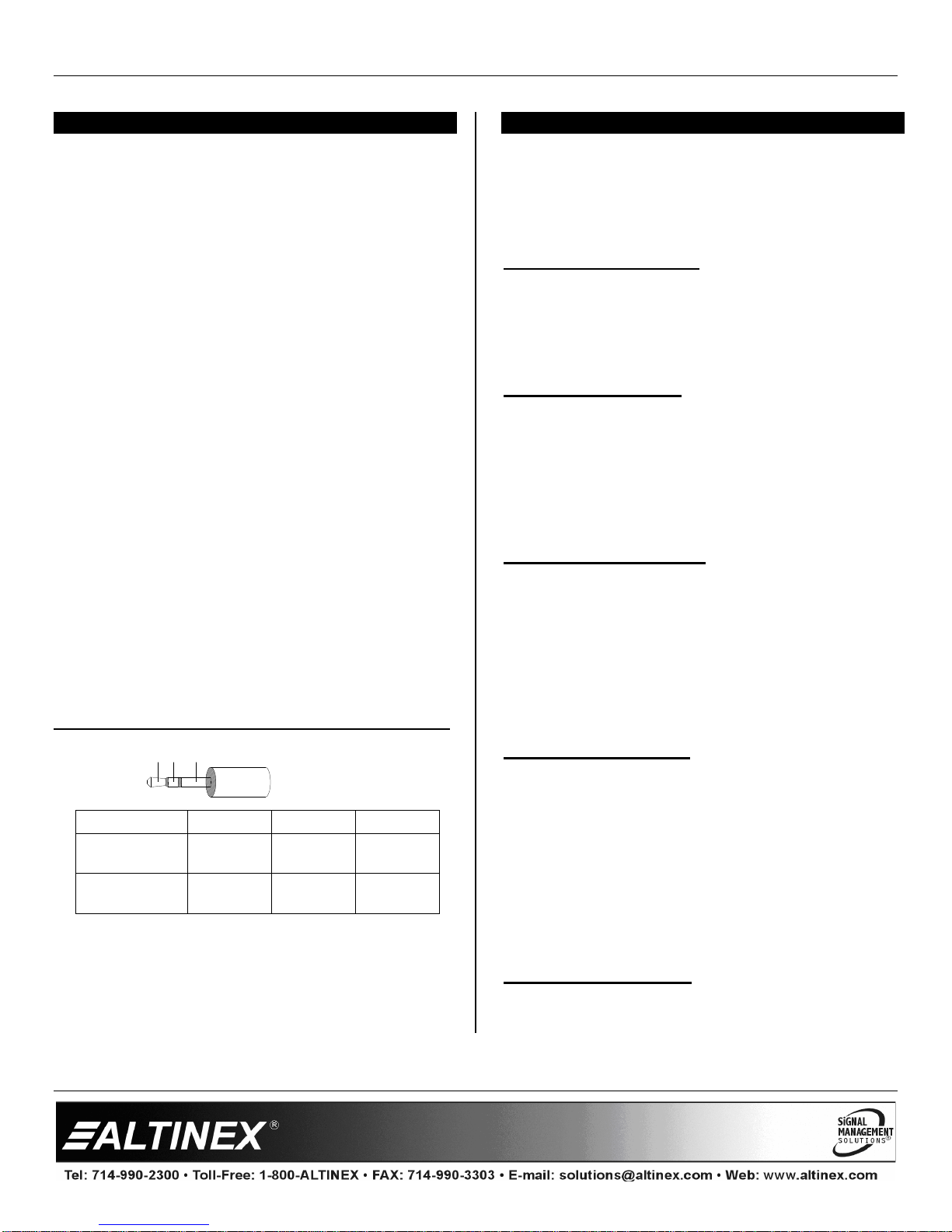

INSTALLING YOUR MX2106AV 6

Step 1. Make sure that the correct power adapter

is used. The ALTINEX power adapter is

supplied with the unit. Connect the power

adapter to the power port. The IN 2

indicator light should be on and green.

NOTE: Input 2 is the default if there is no

signal on Input 1.

Step 2. Connect the audio/video source or

sources to the MX2106AVinputs. If there

is a properly formatted input signal on

Input 1, the switcher will switch to Input 1

automatically.

Step 3. Connect a cable from one or both of the

output ports on the MX2106AVto display

and audio devices.

Step 4. If a remote switch or RS-232 control is to

be used, connect the control cable to the

INPUT SELECT/RS-232 port. See the

next section for specific control functions.

NOTE: Seethe figure and table below for cabling

and communication information.

Step 5. Verify that the picture quality on the

display is good. If a signal is not being

received, make sure that the display is

compatible with the resolution of the

computer graphics card.

CONTROL L R GND

Remote

Switch n/a Switch

PoleSwitch

Throw

RS-232*

DB9Pin 3

TX n/a Pin 5

GND

*Port settings for RS-232 communication:

Baud rate... 9600 Parity...............None

Data bits.......... 8Flow Control....None

Stop Bits.......... 1

OPERATION 7

The MX2106AVwill operate successfully as long

as cables are attached properly and other

specifications are followed. The MX2106AVwill

function as it is shipped, but additional controlsare

available as described below.

OUTPUT MODE (switch)

The default mode is OUT1=OUT2. In this mode,

the audio/video for whichever input is selected will

be present on both outputs. However, Output 2

may be set to always display the audio/video from

Input 1by setting the mode switch to OUT2=IN1.

AUTO-SWITCH MODE

The MX2106AVautomatically selects Input 2 if no

active signals are present. If a signal is on Input 2

and not on Input 1, the MX2106AVwill maintain

Input 2. However, when an active signal is applied

to Input 1, the MX2106AVwill switch to Input 1. If

active signals are on both inputs, the MX2106AV

will automatically switch to Input 1.

MANUAL SWITCH MODE

Manual override is accomplished via a contact

closure on the INPUT SELECT/RS-232 jack.

Manual Switch Mode disables Auto-Switching.

This switch may be used for manual control, or the

contact closure may be made from a control

system. Input 1 will be selected if the switch is

connected to the INPUT SELECT jack and open;

Input 2 will be selected if the switch is closed.

RS-232 SWITCH MODE

The MX2106AVmay be switched using simple

ASCII commands through standard RS-232

communication. Connect the RS-232 cable to the

INPUT SELECT/RS-232 jack. In RS-232 Control

Mode, Auto-Switching is disabled. Send one of the

following commands to select the desired input.

[ON1] = Input 1[ON2] = Input 2

NOTE: The "[" and "]" brackets are part of the

command and must be included.

CABLE/ACCESSORIES

Cable accessories for RS-232 control and remote

switching are available from ALTINEX.

SWITCHER

400-0365-0038

TROUBLESHOOTING GUIDE 8

We have carefully tested and have found no

problems in the supplied MX2106AVunit. However,

we would like to offer the following suggestions:

8.1 LEDs ARE OFF

Cause 1: The 9V adapter is installed wrong.

Solution 1: Make sure the adapter output is

connected to the POWER input jack

on the unit. If one of the LEDs is still

not on, see Solution 2.

Solution 2: Ensure the adapter is plugged into

an AC outlet that has power. If the

adapter has AC power and the LEDs

are still off, see Cause 2.

Cause 2: The wrong 9V adapter is installed.

Solution 1: Please use the ALTINEX supplied

external adapter (9VDC 500mA). If

one of the LEDs is still not on, call

ALTINEX at (714) 990-2300.

8.2 UNIT DOES NOT AUTO-SWITCH

Cause 1: The manual switch is installed.

Solution: Remove the connection to the

INPUT SELECT jack. If a plug is

installed in the jack, auto-switching

is disabled. If the unit still does not

auto-switch,see Cause 2.

Cause 2: The video signal is bad.

Solution 1: Remove the input signals from the

switcher. If the IN 2 LED is off, call

ALTINEX at (714) 990-2300. If the

IN 2 LED is on, see Solution 2.

Solution 2: Connect a properly formatted

VGA-type signal to Input 1. If the

switcher does not switch to Input 1,

see Solution 3.

Solution 3: Bypass the switcher and connect the

output of the source directly to the

display. If the display is good, then

call ALTINEX at (714) 990-2300.

8.3 NO DISPLAY

Cause 1: The source has a problem.

Solution: Check the source and make sure

that there is a signal present and all

source connections are correct. If

the source is working and there is

still no display, see Cause 2.

Cause 2: Manual override is on.

Solution: Make sure there is nothing

connected to the INPUT SELECT

port on the switcher. If there is

nothing connected, see Cause 3.

Cause 3: Signal is bad or missing.

Solution 1: Make sure the switcher output is

connected to the monitor. If there is

still no display, see Solution 2.

Solution 2: Remove both inputs to the switcher

and connect the active signal from

the source to Input 2. If there is still

no display, see Solution 3.

Solution 3: Bypass the switcher and connect the

output of the source directly to the

monitor. If the display is good, then

call ALTINEX at (714) 990-2300. If

there is still no display, see Cause 4.

Cause 4: Cable connections are incorrect.

Solution: Make sure the cables are properly

connected. Also, make sure that the

continuity and wiring are good. If

there is still no display present, see

Cause 5.

Cause 5: The display has a problem.

Solution: Make sure the display is powered

and is turned on. If there is still no

display, please call ALTINEX at

(714) 990-2300.

SWITCHER

400-0365-0039

ALTINEX POLICIES 9

9.1 LIMITED WARRANTY/RETURN POLICIES

Please see the ALTINEX website at

www.altinex.com for details on warranty and

return policies.

9.2 CONTACT INFORMATION

ALTINEX, Inc.

592 Apollo Street

Brea, CA 92821 USA

TEL: 714 990-2300

TOLL FREE: 1-800-ALTINEX

WEB: www.altinex.com

E-MAIL: [email protected]

Autres manuels pour MX2106AV

Table des matières

Autres manuels Altinex Changer

Altinex

Altinex SW104-130 Manuel utilisateur

Altinex

Altinex MT104-100/103 Manuel utilisateur

Altinex

Altinex MX2436RM Manuel utilisateur

Altinex

Altinex MX2100AV Manuel utilisateur

Altinex

Altinex MX2216RM Manuel utilisateur

Altinex

Altinex Furniture Mount Interconnect Box... Manuel utilisateur

Altinex

Altinex MX2214RM Manuel utilisateur

Altinex

Altinex MX2206RM Manuel utilisateur

Altinex

Altinex MX430-101 8x8 Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

Altinex

Altinex MX2426CV Manuel utilisateur

Altinex

Altinex UT260-102 Manuel utilisateur

Altinex

Altinex Tilt 'N Plug Interconnect Box TNP100-HB Manuel utilisateur

Altinex

Altinex MX2456RM Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT104-107 Manuel utilisateur

Altinex

Altinex SW1956CT Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT104-102 Manuel utilisateur

Altinex

Altinex DA1916SX Manuel utilisateur

Altinex

Altinex MT105-8X8 Manuel utilisateur

Altinex

Altinex MULTI-TASKER MT104-108 Manuel utilisateur

Altinex

Altinex MX2222AT Manuel utilisateur

Altinex

Altinex MULTITASKER MT109-100 Manuel utilisateur

Altinex

Altinex MX2406RM Manuel utilisateur

Altinex

Altinex MX2106AV Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
