Alliance Laundry Systems FLW700C Manuel utilisateur

Installation

www.comlaundry.com

Tumble Action

Washers

FLW700C

NOTA: El manual en

españolaparecedespués

del manual en inglés.

Part No. 800971

July 2001

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

means without the expressed written consent of the publisher.

800971 1

Table of

Contents

Replacement Parts.............................................................................. 3

Installation........................................................................................... 5

Dimensions and Specifications............................................................. 5

Before You Start................................................................................... 6

Tools ................................................................................................ 6

Electrical .......................................................................................... 6

Water................................................................................................ 6

Accessories Bag............................................................................... 6

Installing the Unit ................................................................................. 7

Step 1: Position Washer Near Installation Area .............................. 7

Step 2: Connect Water Inlet Hoses .................................................. 7

Step 3: Connect Drain Hose to Drain Receptacle............................ 8

Step 4: Position and Level the Washer ............................................ 10

Step 5: Remove the Shock Sleeves and Shipping Brace ................. 11

Step 6: Wipe Out Inside of Washer Drum....................................... 11

Step 7: Plug In the Washer............................................................... 11

Step 8: Check Installation ................................................................ 12

Moving Unit to a New Location ...................................................... 12

Electrical Requirements........................................................................ 12

Grounding Instructions .................................................................... 13

Water Supply Requirements................................................................. 14

Water Temperature .......................................................................... 14

Water Pressure ................................................................................. 14

Risers................................................................................................ 14

Information for Handy Reference......................................................... 15

Installer Checklist................................................................. Back Cover

2800971

Notes

800971 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Replacement Parts

If replacement parts are required, contact the source

from where you purchased your washer, or contact:

Alliance Laundry Systems

Shepard Street

P.O. Box 990

Ripon, WI 54971-0990

U.S.A.

Phone: (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

800971

4© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Notes

800971 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Installation

Dimensions and Specifications

FLW701N

28"

(71.1 cm)

2" (5.1 cm)

17.5"

(44.8 cm)

41.2" (104.6 cm)

14.9"

(37.9 cm)

29.6" (75.1 cm)

31.1" (79 cm)

26.9"

(68.3 cm)

Installation

800971

6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Before You Start

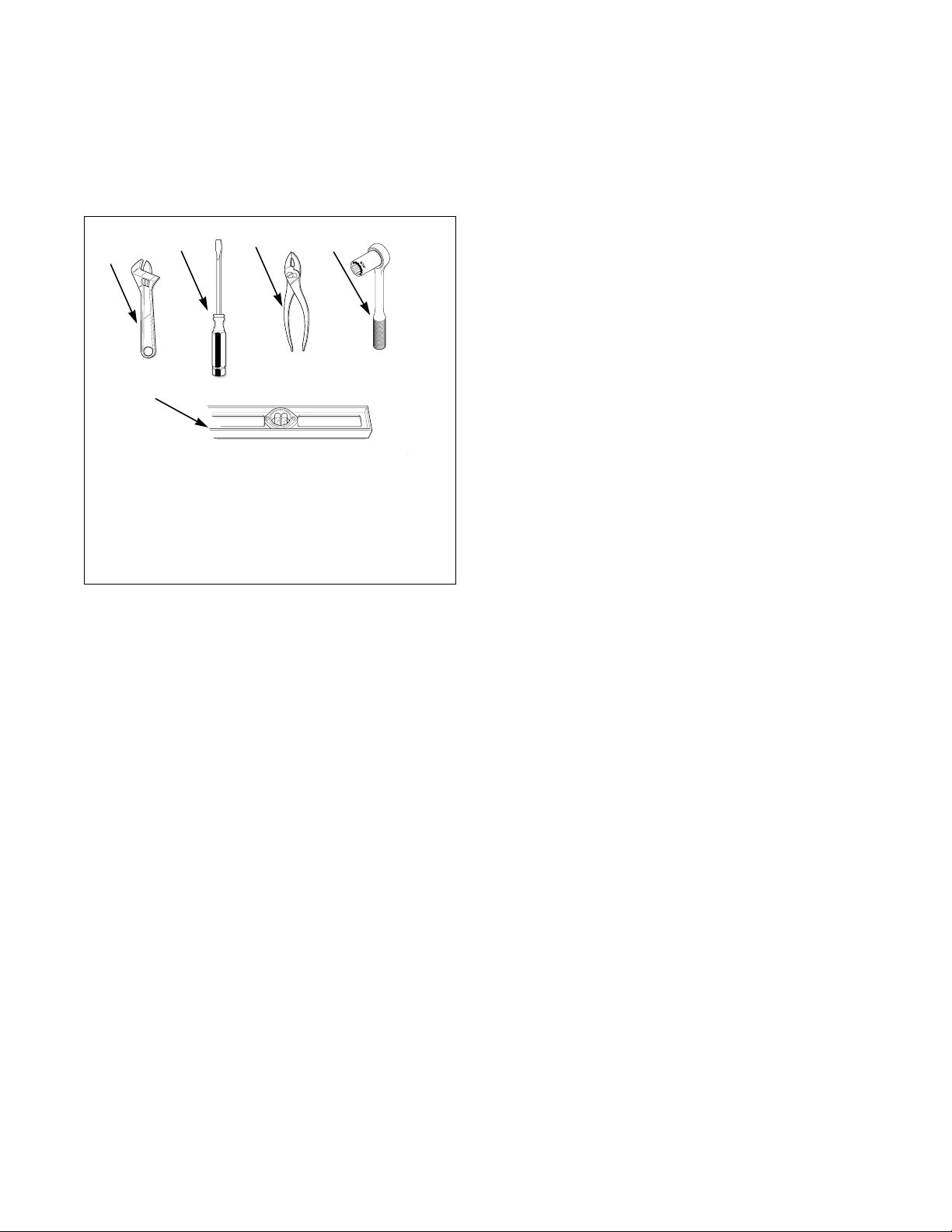

Tools

For most installations, the basic tools you will need

are:

Figure 1

Electrical

Refer to serial plate for specific electrical

requirements. For more detailed information refer to

section on Electrical Requirements.

Water

Washer needs two standard 3/4 in. (19.1 mm) water

supply faucets with a pressure between 138 and

827 kPa (20 to 120 pounds per square inch). For more

detailed information refer to section on Water Supply

Requirements.

Accessories Bag

An accessories bag has been shipped inside your

washer. It includes:

●Two inlet hoses with washers. Refer to step 2 of

Installation.

●Four rubber feet. Refer to step 4 of Installation.

●Beaded tie-down strap. Refer to step 3 of

Installation.

●Installation instructions.

●Use and Care Guide.

●Operating insert.

●Warranty bond.

●Helpful Hints insert.

●Bag for storing shipping materials.

D820I

1Wrench

2Screwdriver

3Pliers

4Socket Wrench

5Level

1234

Installation

800971 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Installing the Unit

Step 1: Position Washer Near Installation

Area

IMPORTANT: Install dryer before washer. This

allows room for attaching exhaust duct.

Move washer as close to the desired area of

installation as possible.

Figure 2

Step 2: Connect Water Inlet Hoses

NOTE: Refer to section on Water Supply

Requirements before connecting water inlet hoses.

Remove the four plain rubber washers from

accessories bag, and install them according to

Figure 3.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the screens in the water

mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

IMPORTANT: Thread hose couplings onto valve

connections finger-tight, then approximately

1/4 turn with pliers. DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

Figure 3

Figure 4

FLW702N

H091I

1Rubber Washer (Plain)

2Inlet Hose

FLW723N

1Water Supply Faucets

2Cold Water Connection

3Hot Water Connection

4Water Inlet Hoses

H091I

FLW723N

123

WATER

MIXING

VALVE

Installation

800971

8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Step 3: Connect Drain Hose to Drain

Receptacle

Remove the drain hose from its shipping position on

the rear of the washer by unhooking the hose from the

retainer clamp.

Find the instructions, on the following pages, that are

appropriate for your type of drain receptacle

(standpipe, sink, wall, or laundry tub). Follow these

instructions to properly install the drain hose.

IMPORTANT: Drain receptacle must be capable of

handling a minimum of 1-1/4 inch (3.2 cm) outside

diameter drain hose.

Figure 5

Standpipe Installation

Place the drain hose into the standpipe.

Remove the beaded tie-down strap from accessories

bag and place around standpipe and drain hose and

tighten strap to hold hose to standpipe. This will

prevent the drain hose from dislodging from drain

receptacle during use.

Figure 6

Sink Installation

For this type of installation, use the beaded tie-down

strap (supplied in accessories bag) or use a large wire

tie (available from your local hardware store), and

secure the drain hose to the cabinet top hinge (refer to

Figure 7). This will prevent the drain hose from

dislodging during use.

Figure 7

FLW703N

1Retainer Clamp

FLW704N

124" to 36" (91.44 cm recommended height)

2Standpipe 2" (5.08 cm) or 1-1/2" (4 cm)

3Beaded Tie-Down Strap

FLW705N

1Drain Hose

2Tie-Down Strap (Wire tie or tape if

necessary)

FLW704N

FLW705N
