Alliance Laundry Systems P Series Manuel utilisateur

Programming

www.comlaundry.com

Washer-Extractor

Cabinet Hardmount

P-Series Microcomputer

Refer to page 2 for Model Identification

CHM166C

Part No. F232064R3

May 2008

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.

means without the expressed written consent of the publisher.

F232064 1

Table of

Contents

Introduction......................................................................................... 2

Model Identification ............................................................................. 2

Nameplate Location.............................................................................. 3

Replacement Parts ................................................................................ 3

Customer Service.................................................................................. 3

Safety Information.............................................................................. 4

Explanation of Safety Messages........................................................... 4

Important Safety Instructions ............................................................... 4

Safety Decals ........................................................................................ 6

Operator Safety..................................................................................... 7

Programming ...................................................................................... 8

P-Series Microcomputers...................................................................... 8

Key Functions In Programming Mode ................................................. 8

Setup Mode........................................................................................... 8

Run Mode or Test Mode .................................................................. 8

Vend Price Enabled or Disabled ...................................................... 9

Coin Blocking Coil or Supply 3....................................................... 9

1 or 4 Amounts to Start.................................................................... 9

Coin Value ....................................................................................... 9

Amount to Start................................................................................ 9

Cycle Programming .............................................................................. 9

Entering Program Mode................................................................... 10

Programming a Cycle ...................................................................... 10

Supply Dispenser .................................................................................. 12

Cycle Segment Charts........................................................................... 13

P-Computer Cycle Charts ..................................................................... 16

Introduction

Model Identification

Information in this manual is applicable to these

models.

HC18PC2 UC18PC2

HC25PC2 UC25PC2

HC35PC2 UC35PC2

HC50PC2 UC50PC2

HC80PC2 UC80PC2

Introduction

F232064

Nameplate Location

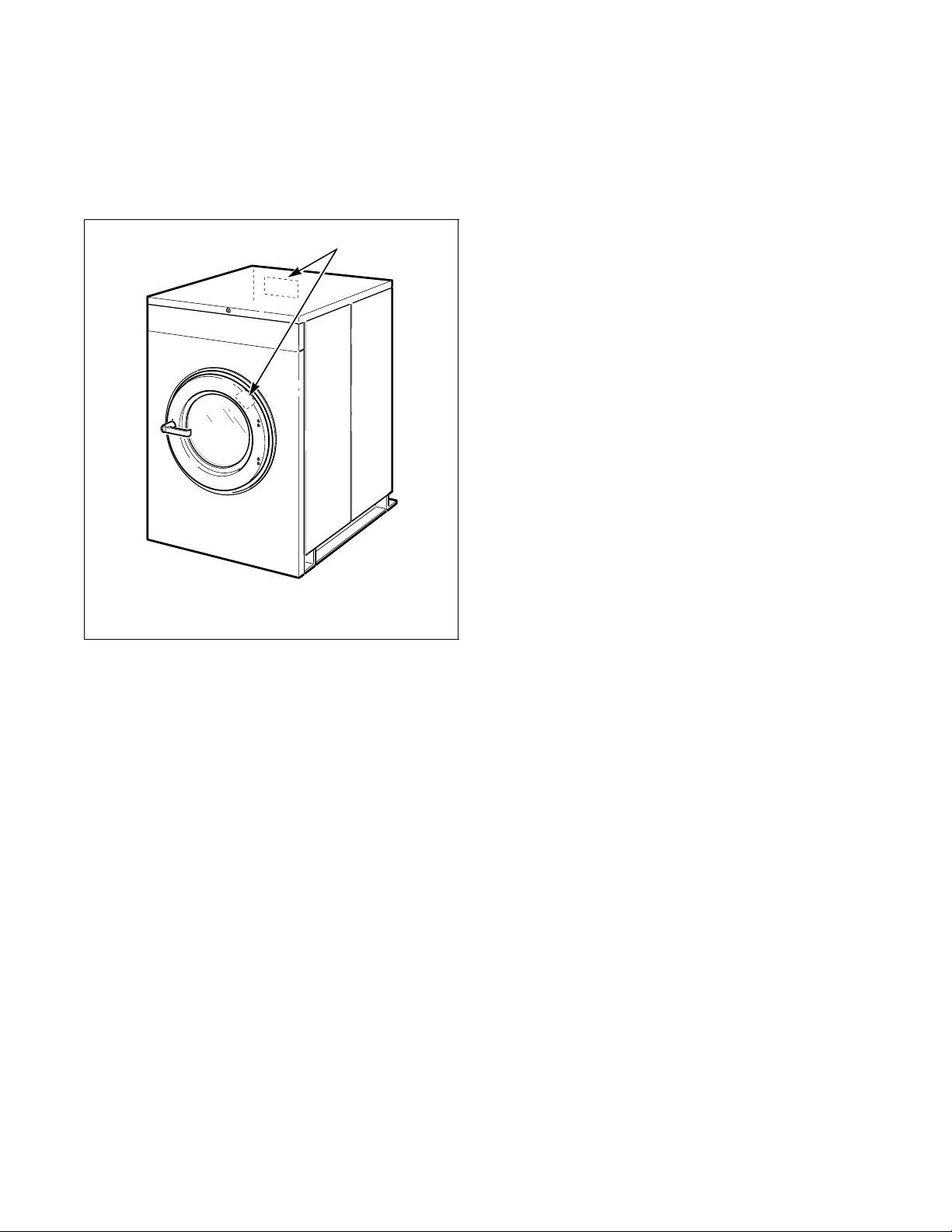

The nameplate is located at the rear of the machine and

inside door. Always provide the machine’s serial

number and model number when ordering parts or

when seeking technical assistance.

Replacement Parts

If literature or replacement parts are required, contact

the source from whom the machine was purchased

or contact Alliance Laundry Systems LLC at

(920) 748-3950 for the name and address of the

nearest authorized parts distributor.

Customer Service

For technical assistance, call the following number:

(920) 748-3121

Ripon, Wisconsin U.S.A.

CHM167R

1Nameplate

CHM167R

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents, or other flammable or

explosive substances as they give off vapors that

could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable, do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

F232064

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

13. Use washer only for its intended purpose,

washing textiles.

14. Never wash machine parts or automotive parts in

the machine. This could result in serious damage

to the basket.

15. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

16. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

17. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc., or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

18. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

19. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

20. If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

21. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

22. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT bypass

the loading door switch by permitting the washer

to operate with the loading door open.

23. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

24. Always follow the fabric care instructions

supplied by the textile manufacturer.

25. Never operate the washer with any guards and/or

panels removed.

26. DO NOT operate the washer with missing or

broken parts.

27. DO NOT bypass any safety devices.

28. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

Safety Information

F232064

IMPORTANT: Ensure that the recommended

clearances for inspection and maintenance

are provided. Never allow the inspection and

maintenance space to be blocked.

Safety Decals

Safety decals appear at crucial locations on the

machine. Failure to maintain legible safety decals

could result in injury to the operator or service

technician.

To provide personal safety and keep the machine in

proper working order, follow all maintenance and

safety procedures presented in this manual. If

questions regarding safety arise, contact the

manufacturer immediately.

Use manufacturer-authorized spare parts to avoid

safety hazards.

This machine must be installed, adjusted,

and serviced by qualified electrical

maintenance personnel familiar with the

construction and operation of this type of

machinery. They must also be familiar

with the potential hazards involved.

Failure to observe this warning may result

in personal injury and/or equipment

damage, and may void the warranty.

SW004

WARNING

Install the machine on a level floor of

sufficient strength. Failure to do so may

result in conditions which can produce

serious injury, death and/or property

damage.

W703

WARNING

Be careful around the open door,

particularly when loading from a level

below the door. Impact with door edges

can cause personal injury.

SW025

CAUTION

Never touch internal or external steam

pipes, connections, or components.

These surfaces can be extremely hot and

will cause severe burns. The steam must

be turned off and the pipe, connections,

and components allowed to cool before

the pipe can be touched.

SW014

WARNING

Safety Information

F232064

Operator Safety

To ensure the safety of machine operators, the

following maintenance checks must be performed

daily:

1. Prior to operating the machine, verify that all

warning signs are present and legible. Missing or

illegible signs must be replaced immediately.

Make certain that spares are available.

2. Check door interlock before starting operation of

the machine:

a. Attempt to start the machine with the door

open. The machine should not start with the

door open.

b. Close the door without locking it and attempt

to start the machine. The machine should not

start with the door unlocked.

c. Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in

progress. The door should not open.

If the door lock and interlock are not functioning

properly, call a service technician.

3. Do not attempt to operate the machine if any of

the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

NEVER insert hands or objects into

basket until it has completely stopped.

Doing so could result in serious injury.

SW012

WARNING

Never operate the machine with a

bypassed or disconnected balance

system. Operating the machine with

severe out-of-balance loads could result

in personal injury and serious equipment

damage.

SW039

WARNING

Programming

P-Series Microcomputers

The computer board is inside the control module. Near

the center of the board is a small toggle switch: this is

the RUN/PROGRAM mode switch.

The switch is normally in the up (RUN mode)

position. To enter PROGRAM mode, flip the switch to

the down position. The display will now show “Pro.”

Since the keypad operates in a slightly different

fashion when in PROGRAM mode, pay careful

attention to the programming instructions provided in

this manual.

Key Functions In Programming

Mode

Hot–The Hot key is used to enter and exit cycle

PROGRAM mode. The Hot key can also be used to

exit SETUP mode.

Warm–The Warm key is used to scroll forward

through program segment steps and setup options.

Cold/Normal–The Cold/Normal key is used to scroll

forward from segment to segment, to increase

numerical values such as step times, coin

denomination, and vend prices, and to switch between

available options.

Cold/Delicate–The Cold/Delicate key is used to enter

SETUP mode. The Cold/Delicate key is also used to

scroll backward from segment to segment, to decrease

numerical values such as step times, coin

denomination, and vend prices, and to switch between

available options.

Setup Mode

Setup options are programmable options that are in

effect for all wash formulas. These options include:

●RUN mode or TEST mode

●Vend price enabled or disabled

●Coin blocking coil or supply 3

●1 or 4 amounts to start

●Coin value

●Amount to start

To enter SETUP mode, press the Cold/Delicate key

while the display is showing “Pro.” Once in SETUP

mode, use the Cold/Normal or Cold/Delicate key to

change the selected option. Use the Warm key to

accept the selected option and move on to the next one.

Press the Hot key at any time to exit SETUP mode.

Run Mode or Test Mode

This setup option allows the machine to be placed in

TEST mode for troubleshooting purposes. When in

TEST mode, the computer allows one cycle to be run

without having to meet the vend price. While that

cycle is running, pressing the keypad keys will

advance the cycle to the next cycle step. The computer

returns to RUN mode upon completion of the test

cycle.

If “tESt” is selected, the machine will be in TEST

mode when the RUN/PROGRAM switch is placed in

the RUN (up) position. If “norN” is selected, the

machine will be in RUN mode when the RUN/

PROGRAM switch is placed in the RUN (up) position.
