Alliance Laundry Systems FLW1527C Mode d’emploi

Installation/Operation

www.comlaundry.com

Frontload Washers

Metered Commercial

FLW1527

Part No. 803447R1

January 2010

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

803447 1

NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all

possible conditions and situations that may occur. It must be understood that common sense, caution, and

carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by the

person(s) installing, maintaining, or operating the washer.

Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not

understand.

Failure to install, maintain, and/or operate this machine according to the manufacturer's

instructions may result in conditions which can produce bodily injury and/or property

damage. W030

WARNING

means without the expressed written consent of the publisher.

2803447© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Table of

Contents

Safety Information.............................................................................. 3

Explanation of Safety Messages........................................................... 3

Important Safety Instructions ............................................................... 3

Installation........................................................................................... 5

Dimensions and Specifications............................................................. 5

Before You Start................................................................................... 6

Tools ................................................................................................ 6

Central Pay Models.......................................................................... 6

Installing the Washer............................................................................ 7

Step 1: Position Washer Near Installation Area .............................. 7

Step 2: Connect Fill Hoses............................................................... 7

Step 3: Connect Drain Hose to Drain Receptacle............................ 9

Step 4: Position and Level the Washer............................................ 10

Step 5: Remove the Shock Sleeves and Shipping Brace ................. 11

Step 6: Wipe Out Inside of Wash Drum.......................................... 11

Step 7: Connect the Washer to Electrical Power ............................. 12

Step 8: Check Installation................................................................ 14

Operation............................................................................................. 15

Operation Instructions .......................................................................... 15

Step 1: Load Laundry....................................................................... 15

Step 2: Close Loading Door............................................................. 15

Step 3: Add Laundry Supplies......................................................... 16

Step 4: Set Fabric Selector/Wash Temperature............................... 16

Step 5: Insert Coin(s), if Necessary ................................................. 16

Step 6: Start Washer......................................................................... 17

Indicator Lights................................................................................ 17

Maintenance........................................................................................ 18

User-Maintenance Instructions............................................................. 18

Lubrication....................................................................................... 18

Cold Weather Care........................................................................... 18

Care of Your Washer ....................................................................... 18

Cleaning Glass Sealing Area ........................................................... 18

Replacing Hoses............................................................................... 18

Filter Screens ................................................................................... 18

Vacations and Extended Non-Use ................................................... 18

Reinstallation of Shipping Materials ............................................... 19

Cleaning Foreign Object Trap ......................................................... 19

Troubleshooting.................................................................................. 20

Contact Information........................................................................... 22

Installer Checklist................................................................ Back Cover

803447 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Safety Information

Explanation of Safety Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for the

personal safety of the operator, user, servicer, and

those maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

(Save These Instructions)

1. Read all instructions before using the washer.

2. Refer to the EARTHING INSTRUCTIONS in

the INSTALLATION manual for the proper

earthing of the washer.

3. Do not wash articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, or other

flammable or explosive substances as they give

off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas

is flammable, do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

This appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure

that they do not play with the appliance.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions: W023

WARNING

Safety Information

803447

4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

11. Do not repair or replace any part of the washer,or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power

source.

13. Use your washer only for its intended purpose,

washing clothes.

14. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

15. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

earthing must comply with local codes and be

made by licensed personnel when required. Do

not do it yourself unless you know how!

16. To reduce the risk of fire, clothes which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc. or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

17. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

18. Keep your washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have your washer checked by a

qualified service person.

19. If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

20. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

21. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT bypass

the loading door switch by permitting the washer

to operate with the loading door open.

22. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

23. Always follow the fabric care instructions

supplied by the garment manufacturer.

24. Never operate the washer with any guards and/or

panels removed.

25. DO NOT operate the washer with missing or

broken parts.

26. DO NOT bypass any safety devices.

27. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Always contact your dealer, distributor, service agent

or the manufacturer about any problems or conditions

you do not understand.

803447 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Installation

Dimensions and Specifications

FLW2192N

5.1 cm

(2 in.)

110.7 cm (43.6 in.)

75.1 cm (29.6 in.)

71.1 cm (28 in.)

61.0 cm (24 in.)

68.3 cm (26.9 in.)

79 cm (31.1 in.)

5.1 cm

(2 in.)

93.83 cm (36.94 in.)

37.08 cm

(14.6 in.)

33.3 cm

(13.1 in.)

3.8 cm

(1.5 in.) COIN MODELS

FLW2249N

104.6 cm (41.2 in.)

75.1 cm (29.6 in.)

71.1 cm (28 in.)

61.0 cm (24 in.)

68.3 cm (26.9 in.)

79 cm (31.1 in.)

5.1 cm

(2 in.)

93.8 cm (36.94 in.)

37.1 cm

(14.6 in.)

33.3 cm

(13.1 in.)

3.8 cm

(1.5 in.)

CENTRAL PAY MODELS

Installation

803447

6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Before You Start

Tools

For most installations, the basic tools you will need

are:

Figure 1

NOTE: A 20.32 cm (8 in.) coin drawer is required

for coin operated models.

NOTE: If the washer is delivered on a cold day

(below freezing), or is stored in an unheated room

or area during the cold months, do not attempt to

operate it until the washer has had a chance to

warm up.

NOTE: Install dryer before washer. This allows

room for attaching exhaust duct.

NOTE: Some moisture in the wash drum is normal.

Water is used during testing at the manufacturer.

Central Pay Models

The machine is shipped from the factory with the

Electronic Control Diagnostic Harness Assembly

unplugged. To avoid unauthorized manual

programming or vending perform the following steps.

1. Open service door. Refer to Figure 2.

2. Locate diagnostic harness on electronic control.

3. Plug connectors for “white/black” wire and “red/

blue” wire together.

Figure 2

D074I

1Wrench

2Screwdriver

3Pliers

4Socket Wrench

5Level

123

DRY2074N

1Service Door

Installation

803447 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Installing the Washer

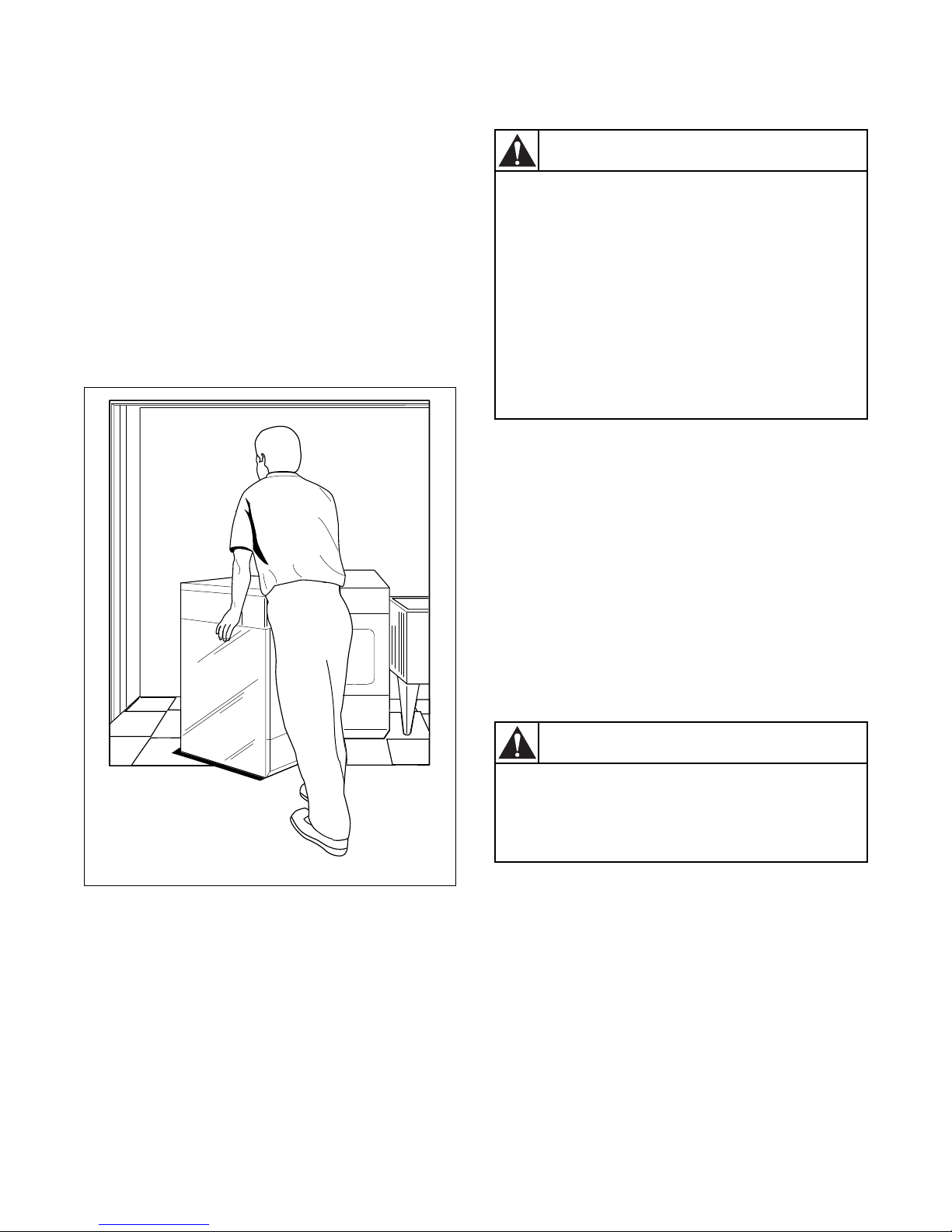

Step 1: Position Washer Near Installation

Area

Move washer so that it is within 1.2 meters (4 feet) of

the desired area of installation.

NOTE: For best performance and to minimize

vibration or movement, install washer on a solid,

sturdy and level floor. Some floors may need to be

reinforced, especially on a second floor or over a

basement. Do not install the washer on carpeting,

soft tile, a platform or other weakly supported

structures.

Figure 3

Step 2: Connect Fill Hoses

Water Supply

Water supply faucets must fit standard 19.1 mm

(3/4 inch) female garden hose couplings. DO NOT

USE SLIP-ON OR CLAMP-ON CONNECTIONS.

Water supply faucets should be readily accessible to

permit turning them off when washer is not being

used.

Recommended cold water temperature is 16° to 27°

Celsius (60° to 80° Fahrenheit). Recommended

maximum hot water temperature is 51° Celsius

(125° Fahrenheit). Warm water is a mixture of hot and

cold water. Warm water temperature is dependent

upon water temperature and pressure of both the hot

and cold water supply lines.

Water pressure must be a minimum of 138 to a

maximum of 827 kPa (20 to 120 psi) static pressure

measured at the faucet.

NOTE: Water pressure under 138 kPa (20 psi) will

cause an extended fill time in the washer and may

not properly flush out the detergent dispenser.

The appliance is to be connected to the water mains

using new hose-sets and old hose-sets should not be

reused.

H054I

Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks or

more. HYDROGEN GAS IS EXPLOSIVE. If

the hot water system has not been used

for such a period and before using the

washer, turn on all hot water faucets and

let the water flow from each for several

minutes. This will release any

accumulated hydrogen gas. The gas is

flammable. Do not smoke or use an open

flame during this time. W029

WARNING

To prevent personal injury, avoid contact

with inlet water temperatures higher than

51oCelsius (125o Fahrenheit) and hot

surfaces. W750

WARNING

Installation

803447

8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the screens in the water

mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

Connecting Hoses

Insert each filter screen into the end of each fill hose

that will connect to the water supply faucet. The screen

must be facing outward. Refer to Figure 4.

Insert each plain rubber washer into the other end of

each fill hose that will connect to the water mixing

valve at the rear of the washer. Refer to Figure 4.

For hoses with metric couplings, connect black hose

coupling to water supply faucet. Connect brass hose

coupling to water mixing valve connection at rear of

washer.

Thread hose couplings onto valve connections finger-

tight, then approximately 1/4 turn with pliers.

IMPORTANT: DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

Figure 4

IMPORTANT: Hoses and other natural rubber

parts deteriorate after extended use. Hoses may

develop cracks, blisters or material wear from the

temperature and constant high pressure they are

subjected to.

All hoses should be checked on a monthly basis for

any visible signs of deterioration. Any hoseshowing

the signs of deterioration listed above should be

replaced immediately. All hoses should be replaced

every five years.

Figure 5

IMPORTANT: Turn off water supply faucets after

check-out and demonstration. Owner should turn

off water supply whenever there will be an

extended period of non-use.

NOTE: Longer fill hoses are available (as optional

equipment at extra cost) if the hoses supplied with

the washer are not long enough for the installation.

Order hoses as follows:

No. 37380 Fill Hose 2.44 m (8 feet - 1 standard, 1

metric hose coupling)

No. 37381 Fill Hose 3.05 m (10 feet - 1 standard, 1

metric hose coupling)

No. 20617 Fill Hose 2.44 m (8 feet- 2 standard hose

couplings)

No. 20618 Fill Hose 3.05 m (10 feet - 2 standard

hose couplings)

TLW1976N

1Faucet

2Fill Hoses

3Plain Rubber Washer

4Install this end of hose to valve connections

at rear of washer

5Install this end of hose to water supply faucet

(Black colored coupling for metric)

6Filter Screens

HOT

COLD

FLW1981N

1Water Supply Faucets

2Hot Water Connection

3Cold Water Connection

4Fill Hoses

FLW1981N

WATER

MIXING

VALVE

Table des matières

Autres manuels Alliance Laundry Systems Rondelle

Alliance Laundry Systems

Alliance Laundry Systems PHM798N Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CHM1766C Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems LTS95A*N Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 201932R5 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washers Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 800138R2 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems TR7104WN Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 801455R2 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HCL020HDF Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CS018 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HWTB21 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems DRY2033N Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems UW35PV Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TLW22C SVG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CCN020HNF Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems 38900R11 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen FF7008WN Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems POCKET HARDMOUNT UW50P4 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CS2000 Manuel de la liste des pièces

Alliance Laundry Systems

Alliance Laundry Systems SH180-QED-SELECT Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems SF135PV Guide de maintenance et de service

Alliance Laundry Systems

Alliance Laundry Systems HX Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Home Laundry Automatic Washers Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP113TN01 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
