Installation Instructions

for Stacked Dryers

Dimensions........................................................................ 3

Before You Start................................................................ 4

Installing the Dryer............................................................ 5

Installer Checklist................................................. Back Cover

Date Purchased _____________________

Model Number _____________________

Serial Number ______________________

Part No. 512042R4

December 2008

Inside.......................................

IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the

dryer user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above

must be posted in a prominent location near the dryer for customer use.

The following information applies to the state of Massachusetts, USA.

•This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.

•This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.

•A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.

•This appliance must not be installed in a bedroom or bathroom.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or the gas

supplier.

W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk

of fire or explosion or to prevent property damage, personal injury or death. W033

WARNING

• Installation of unit must be performed by a qualified installer.

• Install clothes dryer according to manufacturer’s instructions and local codes.

• DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil

type) duct is installed, it must be of a specific type identified by the appliance manufacturer

as suitable for use with clothes dryers. Refer to section on connecting exhaust system.

Flexible venting materials are known to collapse, be easily crushed, and trap lint. These

conditions will obstruct clothes dryer airflow and increase the risk of fire.

W729R1

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

W053

means without the expressed written consent of the publisher.

512042

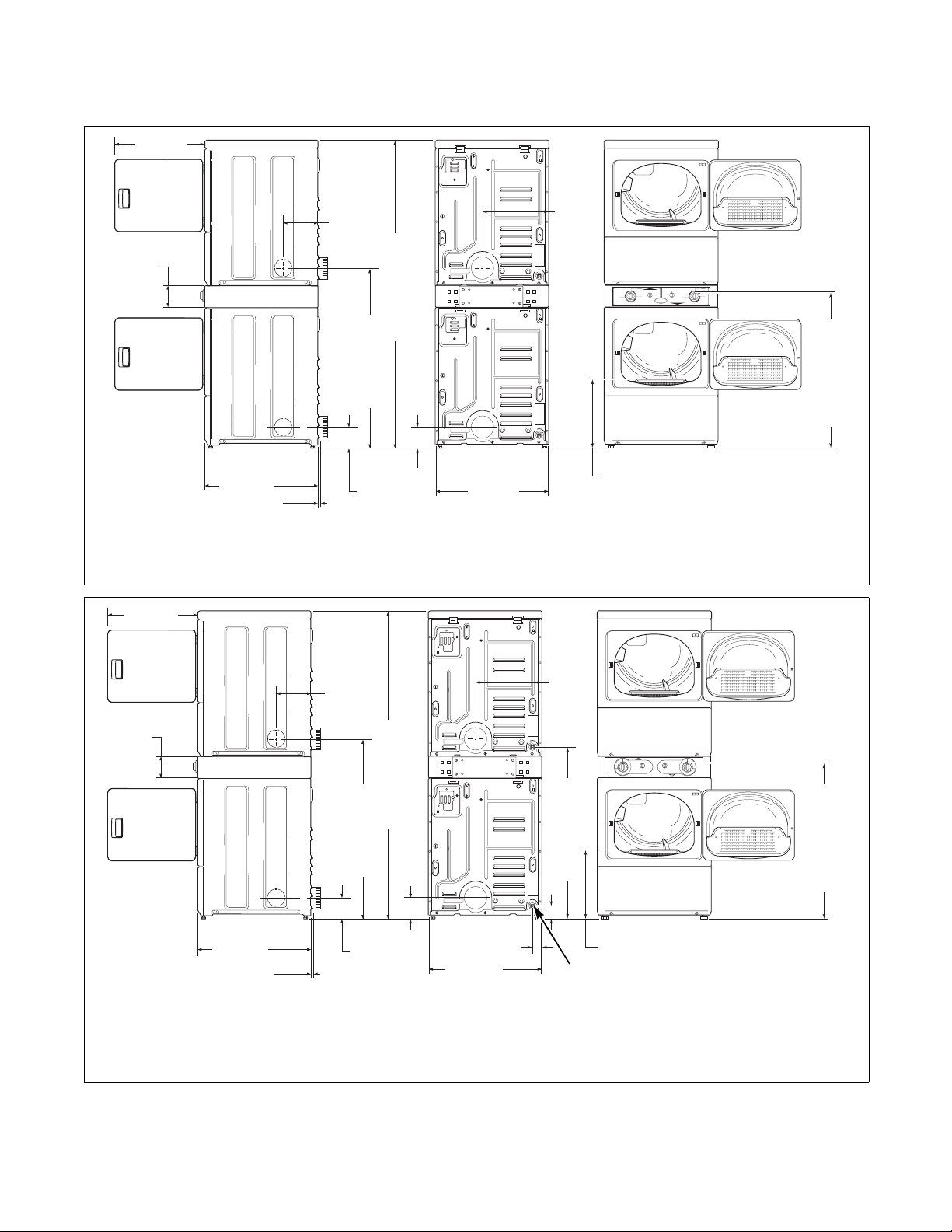

Dimensions

DRY2210N

*With leveling legs turned into base.

DRY2210N

ELECTRIC DRYERS

23.5 in.

(59.7 cm)

28 in.

(71.1 cm)

0.4 in.

(1.1 cm)

*4.5 in.

(11.4 cm)

26.9 in.

(68.3 cm)

*4.0 in. (10.2 cm)

5.25 in.

(13.3 cm)

8.0 in.

(20.3 cm)

*44.1 in. (112 cm)

*75.38 in. (191.5 cm)

15.4 in.

(39.1 cm)

*37.44 in. (95.1 cm)

*15.44 in.

(39.2 cm)

DRY2285N

*With leveling legs turned into base.

13/8 in. N.P.T. Gas Connection

DRY2285N

GAS DRYERS

23.5 in.

(59.7 cm)

28 in.

(71.1 cm)

0.4 in.

(1.1 cm)

*4.5 in.

(11.4 cm) 26.9 in.

(68.3 cm)

*4.0 in. (10.2 cm)

15.4 in.

(39.1 cm)

5.25 in.

(13.3 cm)

8.0 in.

(20.3 cm)

*44.1 in. (112 cm)

*75.38 in. (191.5 cm)

*42.4 in. (107.7 cm)

*2.8 in. (7 cm)

*37.44 in. (95.1 cm)

*15.44 in.

(39.2 cm)

2.3 in.

(6 cm)

Before You Start

Supplies

For most installations, the basic supplies you will need

are:

Figure 1

D818I

1Wrench

2Screwdrivers

3Level

4Teflon Tape

5Duct Tape

Any disassembly requiring the use of

tools must be performed by a suitably

qualified service person.

W299

WARNING

512042

Installing the Dryer

Step 1: Position and Level the Dryer

Install dryer before washer. This allows room for

attaching exhaust duct.

Select a location with a solid floor. Dryers installed in

residential garages must be elevated 18 inches (46 cm)

above the floor.

No other fuel burning appliance should be installed in

the same closet with the dryer.

The dryer must not be installed or stored in an area

where it will be exposed to water and/or weather.

Leveling legs can be adjusted from inside the dryer

with a 1/4 in. driver. All four legs must rest firmly on

the floor so the weight of the dryer is evenly

distributed. The dryer must not rock.

The dryers needs sufficient clearance and an adequate

air supply for proper operation and ventilation, and for

easier installation and servicing. (Minimum clearances

are shown below).

Figure 2

DRY2053N

**NOTE: For new installations, locate top of wall vent 42 inches (106.7 cm) above floor to make venting

easier to connect.

DRY2053N

OUTER WALL OF

ENCLOSURE

FRONT VIEW SIDE VIEW

Area Description Closet Installation

ADryer sides 0 in. (0 cm)

BDryer top (Rear 24 in.) 12 in. (30.5 cm)

CDryer rear 4 in. (10.2 cm)

DDryer Top (Front 4 in.) .5 in. (1.3 cm)

EExhaust duct clearance to combustible material 2 in. (5.1 cm)

Place the dryer in position, and adjust the legs until the

dryer is level from side to side and front to back. The

dryer must not rock.

Figure 3

IMPORTANT: In mobile home installations, gas

dryers MUST be permanently attached to the floor

at the time of installation. Order No. 526P3 Dryer

Installation Kit (available at extra cost) for a

manufactured (mobile) home installation. Follow

the instructions supplied with the kit.

Step 2: Connect Dryer Exhaust System

DRY2054N

1Level

2Leveling Leg

3Dryer Base

DRY2054N

A clothes dryer produces combustible lint.

To reduce the risk of fire and combustion

gas accumulation the dryer MUST be

exhausted to the outdoors.

W116

To reduce the risk of fire and the

accumulation of combustion gases, DO NOT

exhaust dryer air into a window well, gas

vent, chimney or enclosed, unventilated

area, such as an attic, wall, ceiling, crawl

space under a building or concealed space

of a building.

W045

WARNING

This gas appliance contains or produces a

chemical or chemicals which can cause

death or serious illness and which are

known to the State of California to cause

cancer, birth defects, or other reproductive

harm. To reduce the risk from substances in

the fuel or from fuel combustion, make sure

this appliance is installed, operated, and

maintained according to the instructions in

this manual.

W115

To reduce the risk of fire, DO NOT use

plastic or thin foil ducting to exhaust the

dryer.

W354

WARNING

512042

•DO NOT use plastic or thin foil ducting. Rigid

metal duct is recommended.

•Locate dryer so exhaust duct is as short as

possible.

•Be certain old ducts are cleaned before installing

your new dryer.

•Use 4 inch (102 mm) diameter rigid or flexible

metal duct.

•The male end of each section of duct must point

away from the dryer.

•Use as few elbows as possible.

•Use duct tape or pop-rivets on all duct joints. DO

NOT use sheet metal screws or fasteners on

exhaust pipe joints which extend into the duct

and catch lint.

•Ductwork that runs through unheated areas must

be insulated to help reduce condensation and lint

build-up on pipe walls.

•Each exhaust duct must be vented separately.

•Install backdraft dampers (obtain locally) in

multi-dryer installation.

•When exhausting the dryer to the outdoors, the

dryer can be installed with “0” inch clearance at

the sides and rear. Clearance of the duct from

combustible construction must be a minimum of

2 inches (5.08 cm).

•For proper operation, it is important that the dryer

has an ample amount of outside make-up air. The

free area of any opening for the introduction of

outside air must be at least 25 in2(163 cm2).

•In mobile home installations, dryer exhaust duct

must be secured to mobile home structure.

•Dryer exhaust duct MUST NOT terminate under

mobile home.

•Exhaust duct must not be connected to any other

duct, vent, or chimney.

•Never install flexible duct in concealed spaces,

such as a wall or ceiling.

•Dryer exhausts 220 cfm (measured at back of

dryer).

•Static pressure in exhaust duct should not be

greater than .6 inches water column (1.5 cm),

measured with manometer placed on exhaust

duct two feet (61 cm) from dryer (check with

dryer running and no load).

•Exhausting dryer in hard-to-reach locations can

be done by installing 521P3 Flexible Metal Vent

Kit (available as optional equipment at extra

cost).

•Failure to exhaust dryer properly will void

warranty.

NOTE: Venting materials are not supplied with the

dryer (obtain locally).

DRY2010N

1Two (2) individual, separately vented,

4 in. (10 cm) exhaust ducts.

Figure 4

DRY2010N

DON’TDO

D802I

Exhaust Direction

The dryer can be exhausted to the outdoors through the

back, left, right or bottom of the dryer. EXCEPTION:

Gas dryers cannot be vented out the left side

because of the burner housing.

Dryer is shipped from factory ready for rear exhaust.

Exhausting the dryer through sides or bottom can be

accomplished by installing a Directional Exhaust Kit,

528P3, available as optional equipment at extra cost.

Exhaust System

For best drying results, recommended maximum

length of exhaust system is shown in Table 1.

To prevent backdraft when dryer is not in operation,

outer end of exhaust pipe must have a weather hood

with hinged dampers (obtain locally).

NOTE: Weather hood should be installed at least

12 inches (30.5 cm) above the ground. Larger

clearances may be necessary for installations where

heavy snowfall can occur.

Table 1

NOTE: The maximum length of a 4 inch (10.2 cm)

diameter flexible metal duct must not exceed

7.87 feet (2.4 m), as required to meet UL2158,

clause 7.3.2A.

Number of

90° Elbows

Weather Hood Type

Recommended Use Only for Short Run installations

Maximum length of 4 in. (10.2 cm) diameter rigid metal duct.

0 65 feet (19.8 m) 55 feet (16.8 m)

1 55 feet (16.8 m) 47 feet (14.3 m)

2 47 feet (14.3 m) 41 feet (12.5 m)

3 36 feet (11.0 m) 30 feet (9.1 m)

4 28 feet (8.5 m) 22 feet (6.7 m)

NOTE: Deduct 6 feet (1.8 m) for each additional elbow.

4 in.

(10.2 cm)

4 in.

(10.2 cm)

2-1/2 in.

(6.35 cm)

D673I

512042

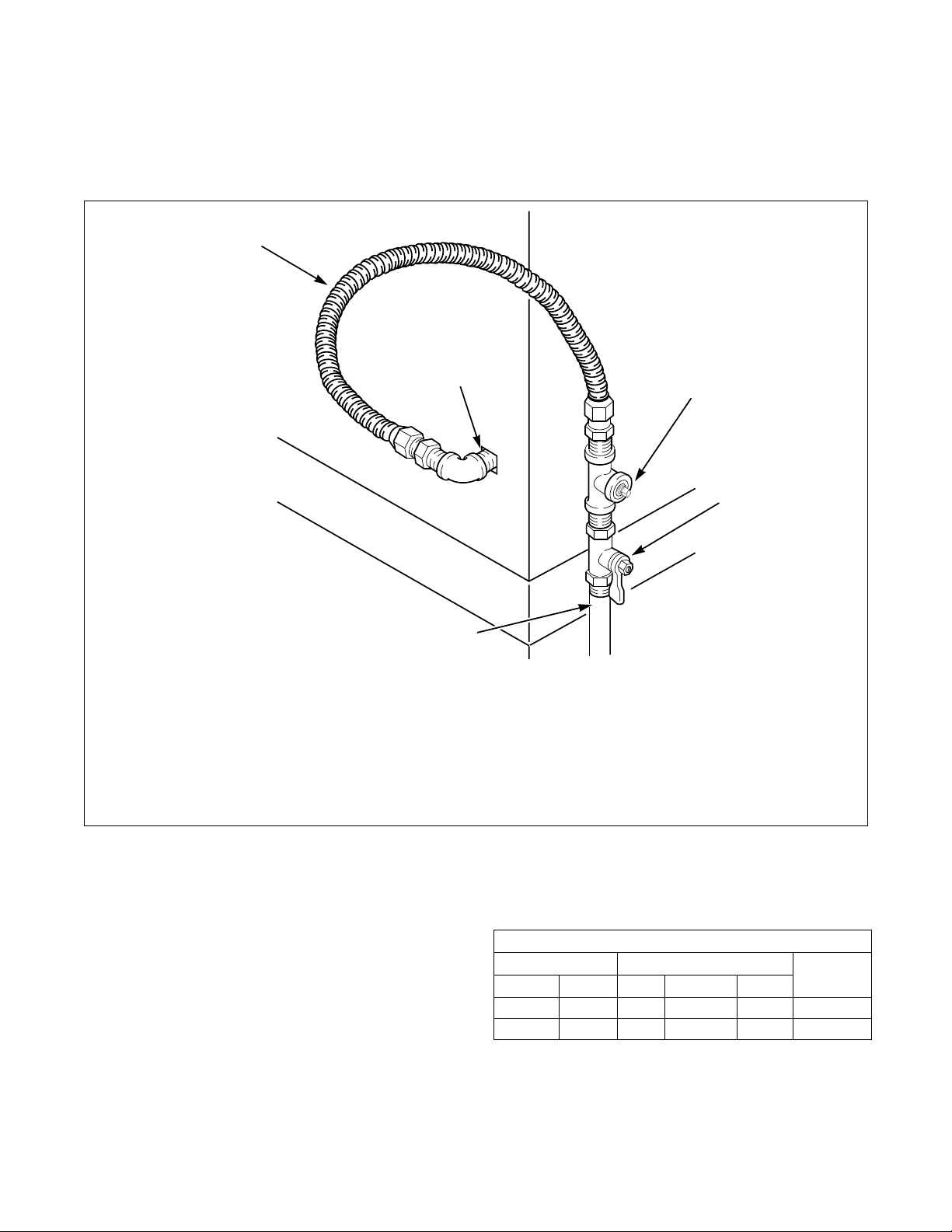

Step 3: (Gas Dryer Only) Connect Gas

Supply Pipe

1. Make certain your dryer is equipped for use with

the type of gas in your laundry room. Dryer is

equipped at the factory for Natural Gas with a

3/8 inch NPT gas connection.

NOTE: The gas service to a gas dryer must

conform with the local codes and ordinances, or in

the absence of local codes and ordinances, with the

latest edition of the National Fuel Gas Code ANSI

Z223.1/NFPA 54 or the CAN/CSA-B149.1 Natural

Gas and Propane Installation Code.

Natural Gas, 1000 Btu/ft3(37.3 MJ/m3) service must

be supplied at minimum 5.0 inch water column

pressure to maximum 10.5 inch water column

pressure.

For proper operation at altitudes above 3000 feet

(915 m) the natural gas valve spud orifice size must be

reduced to ensure complete combustion. Refer to

Table 2.

2. Remove the shipping cap from the gas

connection at the rear of the dryer. Make sure you

do not damage the pipe threads when removing

the cap.

3. Connect to gas supply pipe using a new flexible

stainless steel connector.

To reduce the risk of gas leaks, fire or

explosion:

• The dryer must be connected to the type

of gas as shown on nameplate located in

the door recess.

• Use a new flexible stainless steel

connector.

• Use pipe joint compound insoluble in L.P.

(Liquefied Petroleum) Gas, or Teflon tape,

on all pipe threads.

• Purge air and sediment from gas supply

line before connecting it to the dryer.

Before tightening the connection, purge

remaining air from gas line to dryer until

odor of gas is detected. This step is

required to prevent gas valve

contamination.

• Do not use an open flame to check for gas

leaks. Use a non-corrosive leak detection

fluid.

• Any disassembly requiring the use of

tools must be performed by a suitably

qualified service person.

W316

WARNING

Natural Gas Altitude Adjustments

Altitude Orifice Size Part No.

feet m No. inches mm

3000 915 43 0.0890 2.26 503778

6000 1830 44 0.0860 2.18 58719

8000 2440 45 0.0820 2.08 503779

9000 2740 46 0.0810 2.06 503780

10,000 3050 47 0.0785 1.99 503781

Table 2

NOTE: When connecting to a gas line, an

equipment shut-off valve must be installed within

6 feet (1.8 m) of the dryer. An 1/8 in. NPT pipe plug

must be installed as shown for checking inlet

pressure. Refer to Figure 5.

Figure 5

4. Tighten all connections securely. Turn on gas and

check all pipe connections (internal & external)

for gas leaks with a non-corrosive leak detection

fluid.

NOTE: The dryer and its appliance main gas valve

must be disconnected from the gas supply piping

system during any pressure testing of that system

at test pressures in excess of 1/2 psi (3.45 kPa).

Refer to Step 9 (Check Heat Source).

L.P. (Liquefied Petroleum) Gas, 2500 Btu/ft3

(93.1 MJ/m3) service must be supplied at 10 ± 1.5 inch

water column pressure.

For proper operation at altitudes above 3000 feet (915 m)

the L.P. gas valve spud orifice size must be reduced to

ensure complete combustion. Refer to Table 3.

NOTE: DO NOT connect the dryer to L.P. Gas

Service without converting the gas valve. Install

L.P. Gas Conversion Kit 649P3, available at extra

cost.

D434I

1New Stainless Steel Flexible Connector – Use

only if allowed by local codes (Use Design

A.G.A. Certified Connector)

4Black Iron Pipe

Shorter than 20 ft. (6.1 m) – Use 3/8 in. pipe

Longer than 20 ft. (6.1 m) – Use 1/2 in. pipe

21/8 in. N.P.T. Pipe Plug

(for checking inlet gas pressure)

53/8 in. N.P.T. Gas Connection

3Equipment Shut-Off Valve – Installed within 6 ft.

(1.8 m) of dryer

L.P. Altitude Adjustments

Altitude Orifice Size Part No.

feet m No. inches mm

3000 915 55 0.0520 1.32 58755

8000 2440 56 0.0465 1.18 503786

Table 3

Table des matières

Autres manuels Alliance Laundry Systems Séchoir

Alliance Laundry Systems

Alliance Laundry Systems LGS19A-1188 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems D677I_SVG Instructions d'utilisation d'origine

Alliance Laundry Systems

Alliance Laundry Systems DRY735C-SVG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HA025L Guide de dépannage

Alliance Laundry Systems

Alliance Laundry Systems DRY735C SVG Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 75 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems ATB50CG Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems BA025E Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 505048R2 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems LTS87A*H Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CA050L Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2-CA025L Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems 602004144 Guide de dépannage

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers 50 Pound Capacity 75 Pound Capacity Model Identification Part No.... Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems DR7000WE Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 70223701R2 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 602004144 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems Clothes Dryer Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DV6010WE Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems DRY688C Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems LES33A Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AT170FG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems SFE107*A Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB1276C Manuel du propriétaire

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
