Alliance Laundry Systems HA025L Guide de dépannage

Operation/Maintenance

www.comlaundry.com

Tumble Dryers

25 Pound Capacity

30 Pound Capacity

35 Pound Capacity

55 Pound Capacity

Starting Serial No. 0602004144

Refer to Page 3 for Model Identification

Part No. 70380401R9EN

January 2012

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

70380401 (EN) 1

Installation must conform with local codes or in the absence of local codes with:

In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/

NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”

In Canada, installation must comply with Standards CAN/CSA-B149.1 or Natural Gas and Propane Code

CSA C22.1, latest edition, Canadian Electric Code, Part I.

In Australia, installation must comply with the Australian Gas Association Installation Code for Gas

Burning Appliances and Equipment.

IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the

user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the

above safety information must be posted in a prominent location near the tumble dryer for customer use.

FOR YOUR SAFETY, the information in this

manual must be followed to minimize the

risk of fire or explosion or to prevent

property damage, personal injury or death.

W033

WARNING

• Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do

not use any phone in your building.

– Clear the room, building or area of all

occupants.

– Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

– If you cannot reach your gas supplier,

call the fire department.

• Installation and service must be

performed by a qualified installer, service

agency or the gas supplier.

W052

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

W053

• Évitez de ranger ou d’utiliser de

l’essence ou tout autre liquide

inflammable ou produisant des vapeurs

inflammables à proximité de cet appareil

ou de tout autre appareil.

• PRÉCAUTIONS À PRENDRE SI VOUS

SENTEZ UNE ODEUR DE GAZ :

– Ne tentez d’allumer aucune veilleuse.

– Évitez tout contact avec les

interrupteurs électriques; ne vous

servez d’aucun téléphone de votre

édifice.

– Évacuez toute personne du local, de

l’édifice ou de la zone concerné(e).

– Téléphonez immédiatement à votre

fournisseur du gaz en vous servant du

téléphone d’un voisin. Suivez les

instructions du fournisseur du gaz.

– Si vous n’arrivez pas à vous mettre en

contact avec votre fournisseur du gaz,

appelez les pompiers.

• L’installation et l’entretien de cet appareil

doivent être exécutés par un installateur

qualifié, un centre de service agréé ou

votre fournisseur du gaz.

W052FR

•POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence ou

autres gaz et liquides inflammables au

voisinage de cet appareil ou de tout autre.

W053FR

POUR VOTRE SÉCURITÉ, veillez à bien

respecter les indications de ce manuel afin

de minimiser les risques d’incendie ou

d’explosion ou d’écarter les dangers de

dommages matériels, corporel ou de mort.

W033FR

MISE EN GARDE

means without the expressed written consent of the publisher.

70380401 (EN)

Table of

Contents

Introduction......................................................................................... 3

Model Identification ............................................................................. 3

Customer Service.................................................................................. 4

Wiring Diagram .................................................................................... 4

Serial Plate Location............................................................................. 4

Safety Information.............................................................................. 5

Explanation of Safety Messages........................................................... 5

Important Safety Instructions ............................................................... 6

Operating Instructions ....................................................................... 8

Emergency Stop Button on CE Models................................................ 8

Operating Instructions .......................................................................... 8

Control Instructions .............................................................................. 9

Dual Digital Timer Control.............................................................. 9

Electronic OPL Control ................................................................... 11

Single Drop Control......................................................................... 12

MDC Coin Control .......................................................................... 14

MDC Card Control .......................................................................... 15

NetMaster Coin Control................................................................... 16

NetMaster Card Control................................................................... 17

Quantum Control ............................................................................. 18

LED OPL Control ............................................................................ 19

UniLinc OPL Control ...................................................................... 20

Ignition Control Operation for

Non-CE Models.................................................................................. 21

Ignition Control Operation for CE Models........................................... 22

Maintenance ........................................................................................ 24

Daily ..................................................................................................... 24

Monthly................................................................................................. 26

Quarterly ............................................................................................... 26

Bi-Annually .......................................................................................... 26

Annually ............................................................................................... 26

Before You Call for Service ............................................................... 30

Customer Service.................................................................................. 30

70380401 (EN)

Introduction

Model Identification

Information in this manual is applicable to these models.

Includes models with control suffixes:

Gas Steam Electric

25 Pound

HA025L

HA025N

HT025L

HT025N

HU025L

HU025N

SA025L

SA025N

ST025L

ST025N

SU025L

SU025N

UA025L

UA025N

UT025L

UT025N

UU025L

UU025N

YT025L

YT025N

YU025L

YU025N

HT025S

HU025S

ST025S

SU025S

UT025S

UU025S

YT025S

YU025S

HT025E

HU025E

ST025E

SU025E

UT025E

UU025E

YT025E

YU025E

30 Pound

HA030L

HA030N

HT030D

HT030L

HT030N

HU030L

HU030N

SA030L

SA030N

ST030D

ST030L

ST030N

SU030L

SU030N

UA030L

UA030N

UT030L

UT030N

UU030L

UU030N

YT030L

YT030N

YU030L

YU030N

HT030S

HU030S

ST030S

SU030S

UT030S

UU030S

YT030S

YU030S

HT030E

HU030E

ST030E

SU030E

UT030E

UU030E

YT030E

YU030E

35 Pound

AT035L

AT035N

HA035L

HA035N

HT035L

HT035N

HU035L

HU035N

SA035L

SA035N

ST035L

ST035N

SU035L

SU035N

UA035L

UA035N

UT035L

UT035N

UU035L

UU035N

YT035L

YT035N

YU035L

YU035N

AT035S

HT035S

HU035S

ST035S

SU035S

UT035S

UU035S

YT035S

YU035S

AT035E

HT035E

HU035E

ST035E

SU035E

UT035E

UU035E

YT035E

YU035E

55 Pound

HA055L

HA055N

HT055D

HT055L

HT055N

HU055L

HU055N

SA055L

SA055N

ST055D

ST055L

ST055N

SU055L

SU055N

UA055L

UA055N

UT055L

UT055N

UU055L

UU055N

Not

Applicable

HT055E

HU055E

ST055E

SU055E

UT055E

UU055E

BC – basic electronic, coin NC – NetMaster coin UO – UniLinc OPL

BL – basic electronic, central pay NR – NetMaster card WC – network ready coin

BX – basic electronic, prep for coin NX – NetMaster, prep for coin WX – network ready, prep for coin

BY – basic electronic, prep for card NY – NetMaster, prep for card WY – network ready, prep for card

EO – LED OPL OM – OPL micro ZC – NetMaster network coin

LC – network adaptable coin QT – dual digital timer ZR – NetMaster network card

LX – network adaptable, prep for coin SD – single drop ZX – NetMaster network, prep for coin

LY – network adaptable, prep for card SX – single drop, prep for coin ZY – NetMaster network, prep for card

Introduction

70380401 (EN)

Customer Service

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

Wiring Diagram

The wiring diagram is located in the junction or

contactor box. The wiring diagram part number in the

lower portion of the electrical data on the serial plate.

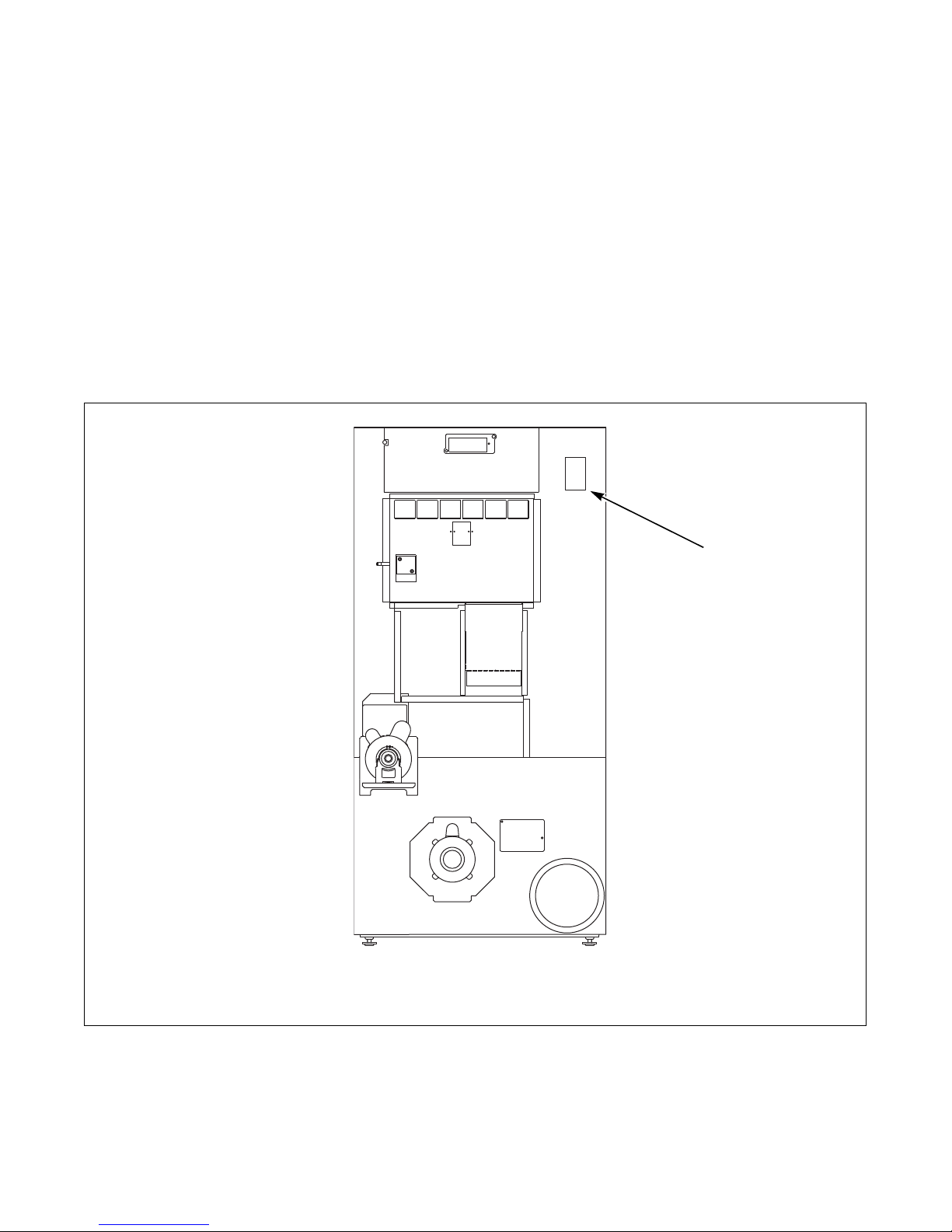

Serial Plate Location

When calling or writing for information about your

product, be sure to mention model and serial numbers.

Model and serial numbers are found on serial plate on

rear of machine, and inside door hinge. Refer to

Figure 1.

Figure 1

TMB2098N

1Serial Plate

70380401 (EN)

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

IMPORTANT: Warranty is void unless tumble

dryer is installed according to instructions in the

Installation Manual. Compliance with minimum

specifications and requirements detailed herein,

and with applicable local gas fitting regulations,

municipal building codes, water supply regulations,

electrical wiring regulations, and any other

relevant statutory regulations. Because of varied

requirements, applicable local codes should be

thoroughly understood and all pre-installation

work arranged for accordingly.

NOTE: The WARNING and IMPORTANT

instructions appearing in this manual are not

meant to cover all possible conditions and

situations that may occur. It must be understood

that common sense, caution and carefulness are

factors which CANNOT be built into this tumble

dryer. These factors MUST BE supplied by the

person(s) installing, maintaining or operating the

tumble dryer.

Always contact your dealer, distributor, service agent

or the manufacturer on any problems or conditions you

do not understand.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

Failure to install, maintain, and/or operate

this machine according to manufacturer’s

instructions may result in conditions which

can produce serious injury, death and/or

property damage.

W051R1

WARNING

Safety Information

70380401 (EN)

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the tumble

dryer.

2. Refer to the GROUNDING INSTRUCTIONS

for the proper grounding of the tumble dryer.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry cleaning solvents, other flammable

or explosive substances as they give off vapors

that could ignite or explode.

4. Do not allow children on or in the tumble dryer.

This appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure

that they do not play with the appliance.

5. Before the tumble dryer is removed from service

or discarded, remove the door to the drying

compartment and the door to the lint

compartment.

6. Do not reach into the tumble dryer if the cylinder

is revolving.

7. Do not install or store the tumble dryer where it

will be exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the tumble

dryer, or attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. Always clean the lint filter daily.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the tumble dryer and the exhaust

duct should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Tumble dryer will not operate with the loading

door open. DO NOT bypass the door safety

switch to permit the tumble dryer to operate with

the door open. The tumble dryer will stop

tumbling when the door is opened. Do not use the

tumble dryer if it does not stop tumbling when

the door is opened or starts tumbling without

pressing or turning the START mechanism.

Remove the tumble dryer from use and call for

service.

17. Tumble dryer will not operate with lint panel

open. DO NOT bypass lint panel safety switch to

permit the tumble dryer to operate with the lint

panel open.

18. Do not put articles soiled with vegetable or cooking

oil in the tumble dryer, as these oils may not be

removed during washing. Due to the remaining

oil, the fabric may catch on fire by itself.

19. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc. or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with dry-cleaning

solvent in the tumble dryer.

20. Use the tumble dryer only for its intended

purpose, drying fabrics.

21. ALWAYS disconnect and lockout the electrical

power to the tumble dryer before servicing.

Disconnect power by shutting off appropriate

breaker or fuse.

22. Install this tumble dryer according to the

INSTALLATION INSTRUCTIONS. All

connections for electrical power, grounding, and

gas supply must comply with local codes and be

made by licensed personnel when required.

Hazardous Voltage. Can cause shock, burn

or cause death. Allow machine power to

remain off for two minutes prior to working

in and around AC inverter drive.

W359

WARNING

Safety Information

70380401 (EN)

23. Remove laundry immediately after tumble dryer

stops.

24. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of reach of children at all times

(preferably in a locked cabinet).

25. Do not tumble fiberglass curtains and draperies

unless the label says it can be done. If they are

dried, wipe out the cylinder with a damp cloth to

remove particles of fiberglass.

26. Always follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the tumble dryer with any guards

and/or panels removed.

28. DO NOT operate the tumble dryer if it is

smoking, grinding, has missing or broken parts.

29. DO NOT bypass any safety devices.

30. Solvent vapors from dry-cleaning machines

create acids when drawn through the heater of the

drying unit. These acids are corrosive to the

tumble dryer as well as to the laundry load being

dried. Be sure make-up air is free of solvent

vapors.

31. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

WARNING

To reduce the risk of serious injury, install

lockable door(s) to prevent public access

to rear of tumble dryers.

W055R1

70380401 (EN)

Operating Instructions

Emergency Stop Button on CE

Models

All CE approved OPL tumble dryers are factory

equipped with an emergency stop button located on

the front panel. Refer to Figure 2.

Figure 2

To operate emergency stop button:

a. Press red emergency stop button to stop all

action.

b. To restart machine, pull red emergency stop

button out and press START pad or button.

NOTE: Activation of the emergency stop button

stops all machine control circuit functions, but

DOES NOT remove all electrical power from

machine.

Operating Instructions

Step 1: Clean Lint Screen/Compartment

Remove any accumulated lint from the lint screen and

compartment. Close panel tightly against tumble dryer

frame and lock panel securely, if applicable.

IMPORTANT: Clean lint screen and lint

compartment daily. Failure to clean the lint screen

daily will result in higher than normal

temperatures that may damage laundry.

Step 2: Load Laundry

Open loading door and load cylinder with laundry. DO

NOT OVERLOAD.

NOTE: Overloading causes slow drying and

wrinkling.

Close loading door. Tumble dryer will not operate with

the door open.

Step 3: Determine Control Type and

Temperature Setting

Refer to the various controls, pages 9 - 20, follow

instructions for the appropriate control type.

The type of fabric being dried will determine the

temperature setting. Consult the fabric care label or

fabric manufacturer to determine proper temperature

setting.

IMPORTANT: Always follow the fabric care

instructions supplied by the garment manufacturer.

Step 4: Remove Laundry

When the cycle is complete, open door and remove the

laundry.

To reduce the risk of fire:

• DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials.

• DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning

cloths, or anything dry-cleaned at home with a dry-cleaning solvent.

• DO NOT TUMBLE fiberglass curtains and draperies unless the label says it can be done. If

they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass.

W076

To reduce the risk of serious injury, allow cylinder to stop before cleaning lint screen.

W412

WARNING

TMB1664N

1Emergency Stop Button

Ce manuel convient aux modèles suivants

145

Table des matières

Autres manuels Alliance Laundry Systems Séchoir

Alliance Laundry Systems

Alliance Laundry Systems DC5102WE Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY725C_SVG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DR3000WG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LTS97A*N Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 70260301?8 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB1276C Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DV6010WE Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems LES17A*M4588 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems LES33 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems SE5130 Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems SFG109*F Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumbler 70278501R5EN Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems SFE107*A Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DR7000WE Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manuel

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers 50 Pound Capacity 75 Pound Capacity Model Identification Part No.... Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems AES17AWF Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems T477C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AE Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Dryer Tumblers Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR7004WE Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY724C_SVG Mode d’emploi

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
