Alliance Laundry Systems T453I Guide de dépannage

Operation/Maintenance/Programming

www.comlaundry.com

Drying Tumblers

Refer to Page 3 for Model Numbers

START

HIGH

TEMP

MED

TEMP

LOW

TEMP

HEAT

123

SELECT

TEMP

INSERT

COIN

PUSH

START

123

SELECT

TEMP

INSERT

COIN

PUSH

START

HIGH

TEMP

MED

TEMP

LOW

TEMP

HEAT

T477C

T478C

T433I

NOTA: El manual en

españolaparecedespués

del manual en inglés.

Part No. M414462R1

March 2001

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

M414462 1

In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1

“National Fuel Gas Code”and Standard ANSI/NFPA 70 “National Electric Code”.

In Canada, installation must comply with Standards CAN1-B149.1 or CAN1-B149.2 codes for gas burning

appliances and equipment and CSA C22.1, latest edition, Canadian Electric Code, Part I.

In Australia, installation must comply with the Australian Gas Association Installation Code for Gas

Burning Appliances and Equipment.

IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the

user smells gas. These instructions must be posted in a prominent location.

Step-by-step instructions of the above safety information must be posted in a prominent location near the

tumbler for customer use.

FOR YOUR SAFETY, the information in this

manual must be followed to minimize the

risk of fire or explosion or to prevent

property damage, personal injury or death.

W033

• Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do

not use any phone in your building.

– Clear the room, building or area of all

occupants.

– Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

– If you cannot reach your gas supplier,

call the fire department.

• Installation and service must be

performed by a qualified installer, service

agency or the gas supplier.

W052

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

W053

WARNING

POUR VOTRE SÉCURITÉil est impératif de

suivre les instructions de ce manuel pour

minimiser les risques d’incendie ou

d’explosion et pour éviter les dommages

matériels, les blessures corporelles ou la

mort.

W033Q

•Ne pas entreposer ni utiliser d’essence ni

d’autres vapeurs ou liquides

inflammables dans le voisinage de cet

appareil ou de tout autre appareil.

•QUE FAIRE SI VOUS SENTEZ UNE

ODEUR DE GAZ :

–Ne pas tenter d’allumer d’apareil.

–Ne touchez àaucun interrupteur. Ne

pas vous servir des téléphones se

trouvant dans le bâtiment oùvous vous

trouvez.

–Évacuez la pièce, le bâtiment ou la

zone.

–Appelez immédiatement votre

fournisseur de gaz depuis un voisin.

Suivez les instructions du fournisseur.

–Si vous ne pouvez rejoindre le

fournisseur de gaz, appelez le service

des incendies.

•L’installation et l’entretien doivent être

assurés par un installateur ou un service

d’entretien qualifiéou par le fournisseur

de gaz.

W052Q

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence ni

d’autres vapeurs ou liquides inflammables

dans le voisinage de cet appareil ou de

tout autre appareil.

W053Q

MISE EN GARDE

2M414462

means without the expressed written consent of the publisher.

Table of

Contents

Introduction......................................................................................... 3

Model Identification ............................................................................. 3

Customer Service.................................................................................. 4

Wiring Diagram.................................................................................... 4

Nameplate Location.............................................................................. 5

Safety Information.............................................................................. 7

Important Safety Instructions ............................................................... 8

Operating Instructions ....................................................................... 11

Step 1: Clean Lint Screen/Compartment.............................................. 11

Step 2: Load Laundry ........................................................................... 11

Step 3: Determine Required Temperature ............................................ 11

Step 4: Determine Control Type........................................................... 11

Manual Timer Tumblers .................................................................. 12

Electro-Mechanical Coin Control Tumbler ..................................... 13

NetMaster Coin Control................................................................... 14

NetMaster Card Control................................................................... 15

Electronic OPL Control ................................................................... 16

Electronic Coin Control ................................................................... 17

Reversing Operation ........................................................................ 18

Reverse Control Switch ................................................................... 18

Programming the Electronic OPL Control...................................... 19

Signal .................................................................................................... 20

Reversing .............................................................................................. 20

Status Lights ......................................................................................... 20

Automatic Dry and Condition Mode.................................................... 21

Time Dry and No Heat Modes.............................................................. 22

Custom.................................................................................................. 23

Custom Cycle Record ..................................................................... 23

Special Cycle Mode.............................................................................. 24

Special Time Mode............................................................................... 24

Security Lock-Out ................................................................................ 24

Show Mode........................................................................................... 24

Temperature Sensor.............................................................................. 25

Temperature Adjustment ...................................................................... 25

Temperature Display (°F/°C)................................................................ 25

Cylinder Temperature Display ............................................................. 25

Maintenance ........................................................................................ 27

Daily ..................................................................................................... 27

Monthly................................................................................................. 28

Every Three Months ............................................................................. 29

Every Six Months ................................................................................. 29

Before You Call for Service ............................................................... 31

M414462 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Introduction

Model Identification

Information in this manual is applicable to these

models: †

†Includes models with MT, EC, OM, CD, RM, EP, CX, CY, EX, EY, NX, NY, ZC, ZR, ZX, ZY, NC and NR

control suffixes.

Gas Steam Electric/Other

25 Pound

(220 Liter)

DT0220SFG DT0220SRG DT0220SSH DT0220SSL DT0220SEL DC0220SEL

JT0220SFG JT0220SRG JT0220SSH JT0220SSL JT0220SEL JC0220SEL

ST0220SFG ST0220SRG ST0220SSH ST0220SSL ST0220SEL SC0220SEL

DC0220SFG DC0220SRG DC0220SSL JC0220SSL

JC0220SFG JC0220SRG SC0220SSL

SC0220SFG SC0220SRG

Stacked

30 Pound

(300 Liter)

DT0300DFG DT0300DRG DT0300DSH DT0300DSL DT0300DEL DC0300DEL

JT0300DFG JT0300DRG JT0300DSH JT0300DSL JT0300DEL JC0300DEL

ST0300DFG ST0300DRG ST0300DSH ST0300DSL ST0300DEL SC0300DEL

DC0300DFG DC0300DRG DC0300DSL JC0300DSL

JC0300DFG JC0300DRG SC0300DSL

SC0300DFG SC0300DRG

NT0300DRG

30 Pound

(270 Liter)

DT0270SFG DT0270SRG DT0270SSH DT0270SSL DT0270SEL DC0270SEL

JT0270SFG JT0270SRG JT0270SSH ST0270SSL JT0270SEL JC0270SEL

ST0270SFG ST0270SRG ST0270SSH DC0270SSL ST0270SEL SC0270SEL

DC0270SFG DC0270SRG JC0270SSL SC0270SSL

JC0270SFG JC0270SRG JT0270SSL

SC0270SFG SC0270SRG

35 Pound

(350 Liter)

DT0350SFG JT0350SRG DT0350SSH JT0350SSL DT0350SEL DC0350SEL

JT0350SFG ST0350SRG JT0350SSH ST0350SSL JT0350SEL JC0350SEL

ST0350SFG DC0350SRG ST0350SSH DC0350SSL ST0350SEL SC0350SEL

DC0350SFG JC0350SRG DT0350SSL JC0350SSL

JC0350SFG SC0350SRG SC0350SSL AT0350SSL

SC0350SFG AT0350SRG

DT0350SRG

Introduction

M414462

4© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Information in this manual is applicable to these

models: †

†Includes models with MT, EC, OM, CD, RM, EP, CX, CY, EX, EY, NX, NY, ZC, ZR, ZX, ZY, NC and NR

control suffixes.

Customer Service

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

Wiring Diagram

The wiring diagram is located in the literature packet

supplied with all the non-European models. On

European models, it is located in the junction box.

The wiring diagram is inside the electrical junction

boxes located on the back of 0300D models, or under

the front control panel on 0220S, 0270S, and 0350S

models.

Gas Steam Electric/Other

50 Pound

ATB50CG DTB50EG STB50CSH STB50CSL STB50CE JCB50CE

STB50CG JTB50EG JTB50CSH JTB50CSL JTB50CE SCB50CE

DTB50CG JT50EG DTB50CSH DTB50CSL DTB50CE JC50CE

JTB50CG JC50EG JT50CSH JT50CSL JT50CE DCB50CE

JT50CG JCB50EG JCB50CSH SCB50CSH SC50CE SCB50AT

JC50CG SC50EG JC50CSH DCB50CSH

JCB50CG SCB50EG ATB50CSH

SC50CG DCB50CG

SCB50CG DCB50EG

STB50EG

75 Pound

STB75CG DTB75EG STB75CSH JTB75CSL STB75CE JCB75CE

DTB75CG JTB75EG JTB75CSH DTB75CSL JTB75CE SCB75CE

JTB75CG JT75EG DTB75CSH JT75CSL DTB75CE ST75CE

ATB75CG STB634 JT75CSH DCB75CSH JT75CE JC75CE

JT75CG DCB75CG ATB75CSH JCB75CSH DCB75CE SC75CE

DTB634 JCB75CG STB75CSL SCB75CSH

STB75EG SCB75CG SCB75CSL JCB75CSL

DCB75CSL

120 Pound

ST120FG JC120FG ST120CSH JC120CSH ST120AT SC120AT

JT120FG DC120FG JT120CSH DC120CSH

DT120FG AT120FG DT120CSH AT120CSH

SC120FG SC120CSH

170 Pound

ST170FG SC170FG ST170CSH SC170CSH

Not Applicable

JT170FG AT170FG JT170CSH AT170CSH

JC170FG DT170FG JC170CSH DT170CSH

DC170FG DC170CSH

Introduction

M414462 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

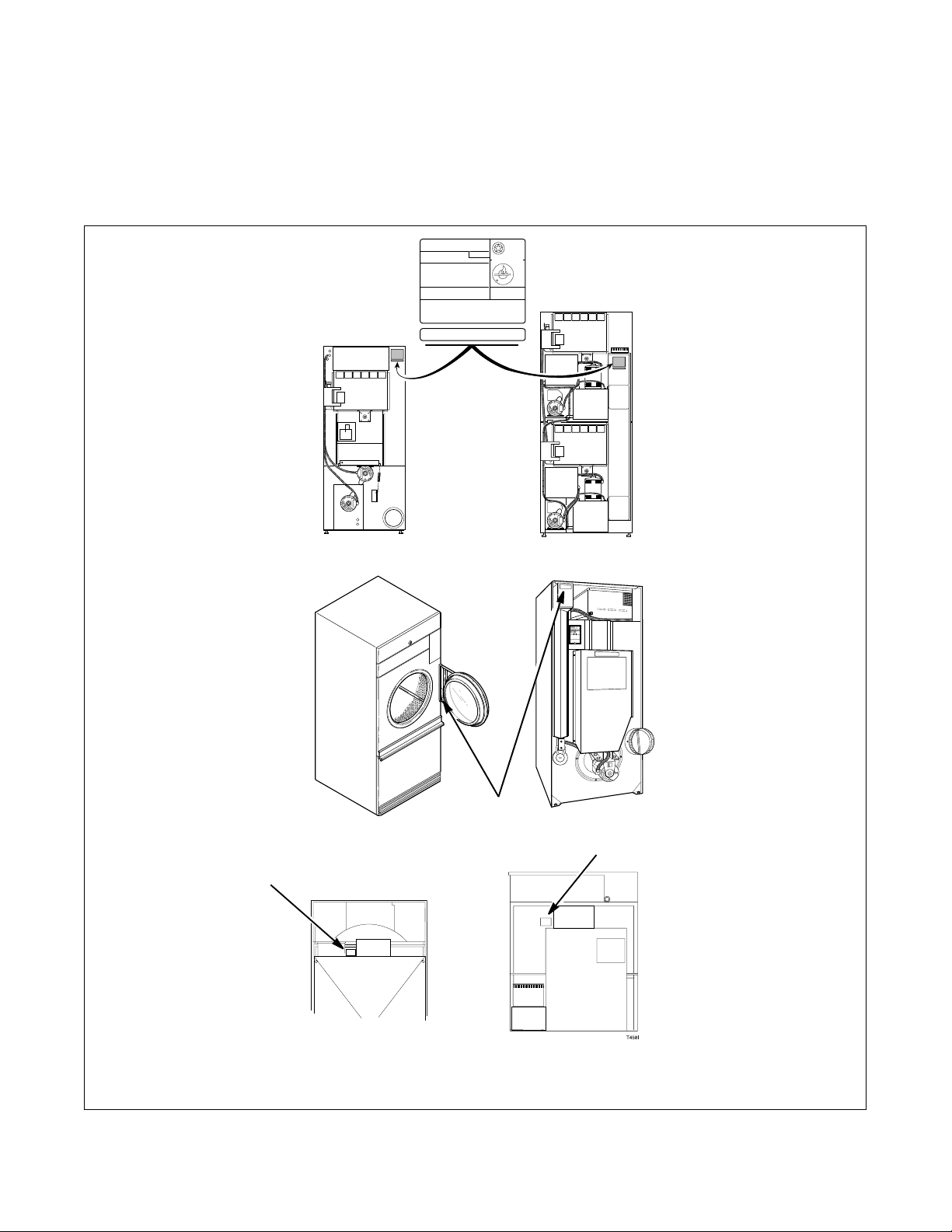

Nameplate Location

When calling or writing for information about your

product, be sure to mention model and serial numbers.

Model and serial numbers are located on the

nameplate as shown. The model number may also be

found inside the door.

Figure 1

1Nameplate

MODEL NO:

SERIAL NO:

V-/ HERTZ/ PHASE

AMPS, WIRES + GROUND

TOTAL kW, MOTOR kW

REQ'D CIRCUIT BREAKER: AMPS

FAN OUTPUT:

@MAX "WC STATIC PRESSURE

EQUIPPED FOR: GAS@ "WC MANIFOLD PRESS.

MIN SUPPLY

PRESSURE:

ANS 72152

CLOTHES DRYER.

VOL II

CGA 72

AMPLFIEDRER

TESTED FOR NATURAL &

LIQUID PETROLEUM GASSES

MAX SUPPLY

PRESSURE:

"WC. "WC.

INPUT: BTU/hr @ BTU/cu.ft.

MADE IN U.S.A./FABRIQUE AU ETATS UNIS/FABRICADO EN LOS ESTADOS UNIDOS 70051001

T448I

MODEL NO:

SERIAL NO:

T453I

120 POUND TUMBLER

50 AND 75 POUND TUMBLERS

170 POUND TUMBLER

0220S, 0270S, 0350S 0300D

M414462

6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Notes

M414462 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Safety Information

Precautionary statements (“CAUTION,”

“WARNING,”and “DANGER”), followed by specific

instructions, are found in this manual and on machine

decals. These precautions are intended for the personal

safety of the operator, user, servicer, and those

maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT”is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE”is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

IMPORTANT: Warranty is void unless drying

tumbler is installed according to instructions in this

manual. Compliance with minimum specifications

and requirements detailed herein, and with

applicable local gas fitting regulations, municipal

building codes, water supply regulations, electrical

wiring regulations, and any other relevant

statutory regulations. Because of varied

requirements, applicable local codes should be

thoroughly understood and all pre-installation

work arranged for accordingly.

NOTE: The WARNING and IMPORTANT

instructions appearing in this manual are not meant

to cover all possible conditions and situations that

may occur. It must be understood that common

sense, caution and carefulness are factors which

CANNOT be built into this tumbler. These factors

MUST BE supplied by the person(s) installing,

maintaining or operating the tumbler.

Always contact your dealer, distributor, service agent

or the manufacturer on any problems or conditions you

do not understand.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

Failure to install, maintain, and/or operate

this machine according to manufacturer’s

instructions may result in conditions which

can produce serious injury, death and/or

property damage.

W051

WARNING

Safety Information

M414462

8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Important Safety Instructions

1. Read all instructions before using the tumbler.

2. Refer to the GROUNDING INSTRUCTIONS

for the proper grounding of the tumbler.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry cleaning solvents, or other

flammable or explosive substances as they give

off vapors that could ignite or explode.

4. Do not allow children to play on or in the

tumbler. Close supervision of children is

necessary when the tumbler is used near children.

This is a safety rule for all appliances.

5. Before the tumbler is removed from service or

discarded, remove the door to the drying

compartment and the door to the lint

compartment.

6. Do not reach into the tumbler if the cylinder is

revolving.

7. Do not install or store the tumbler where it will

be exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the tumbler,

or attempt any servicing unless specifically

recommended in the User-Maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. Always clean the lint filter daily.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust, and dirt.

14. The interior of the tumbler and the exhaust duct

should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Tumbler will not operate with the loading door

open. DO NOT bypass the door safety switch to

permit the tumbler to operate with the door open.

The tumbler will stop tumbling when the door is

opened. Do not use the dryer if it does not stop

tumbling when the door is opened or starts

tumbling without pressing or turning the START

mechanism. Remove the tumbler from use and

call the service person.

17. Tumbler will not operate with lint panel open.

DO NOT bypass lint panel safety switch to

permit the tumbler to operate with the lint panel

open.

18. Do not put articles soiled with vegetable or

cooking oil in the tumbler, as these oils may not

be removed during washing. Due to the

remaining oil, the fabric may catch on fire by

itself.

19. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc. or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with dry-cleaning

solvent in the tumbler.

20. Use the tumbler only for its intended purpose,

drying water-washed fabrics.

21. ALWAYS disconnect the electrical power to the

tumbler before servicing. Disconnect power by

shutting off appropriate breaker or fuse.

22. Install this tumbler according to these

INSTALLATION INSTRUCTIONS. All

connections for electrical power, grounding, and

gas supply must comply with local codes and be

made by licensed personnel when required. Do

not do it yourself unless you know how!

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your tumbler, follow these basic

precautions:

W054

WARNING

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Alliance Laundry Systems Séchoir

Alliance Laundry Systems

Alliance Laundry Systems T463PE1A Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems HSE117*C802 Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems HSE117*A Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 50 Pound Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems ADE3TFWS431AW01 Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems 512685R2 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 70223701R2 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LTZ87A*H0902 Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CA050L Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems ADEE8B BLACK Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2-CA025L Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems 513218R5 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems SE5130 Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems 70420801 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 510963R6 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LES33 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY688C Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems DRY725C_SVG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumbler 110 Pound Capacity Part No.... Manuel d'installation et d'exploitation

Alliance Laundry Systems

Alliance Laundry Systems 513123 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers 175 Pound Capacity Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems DCB50EG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY710C Mode d’emploi

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
