Find the Rockwell / Allen-Bradley 161S-AA04NPU at our website: Click HERE

User

Manual

Bulletin 161

AC Drive

(Series B)

0.2-3.7kW

(0.3 to 5 hp)

FRN 2.001

Allen-Bradley

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Important User Information

Solid State equipment has operational characteristics differing from those of electromechanical

equipment. ªSafety Guidelines for the Application, Installation and Maintenance of Solid-State

Controlsº (Publication SGI-1.1) describes some important differences between solid-state

equipment and hardwired electromechanical devices. Because of this difference, and also because

of the wide variety of uses for solid-state equipment, all persons responsible for applying this

equipment must satisfy themselves that each intended application of this equipment is acceptable.

In no event will Rockwell Automation be responsible or liable for indirect or consequential damages

resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of

the many variables and requirements associated with any particular installation, Rockwell

Automation cannot assume responsibility or liability for actual use based on the examples and

diagrams.

No patent liability is assumed by Rockwell Automation with respect to use of information, circuits,

equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of

Rockwell Automation is prohibited.

Throughout this manual we use notes to make you aware of safety considerations

Attention statements help you to:

●Identify a hazard

●Avoid a hazard

●Recognize the consequences

IMPOR TAN T: Identifies information that is especially important for successful application and

understanding of the product.

ATTENTION: Identifies information about practices or circumstances that can lead to

personal injury or death, property damage or economic loss.

Shock Hazard labels located on or inside the drive indicate that dangerous voltage may be

present.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents

1. Getting Started ........................................................................................

Important Precautions p.1

Conventions used in this manual p.2

Catalog Number Explanation p.2

Receiving Your New Drive p.3

Nameplate Label p.3

Drive Features p.4

2. Installation & Wiring ...............................................................................

Storage and Operating Conditions p.5

CE Compliance p.5

Installation p.5

Clearances p.5

Terminal Blocks p.6

Power Wiring p.7

Power Terminal Block Wiring Specifications p.8

Branch Circuit Protection Devices p.8

Input Power Conditioning p.8

Grounding p.8

Control Wiring p.9

Control Terminal Descriptions p.10

Programmable Digital Input (Control terminal block inputs 1 through 5) Functions p.12

3. Parameters & Programming ..................................................................

Programming Keypad p.15

Programming Examples p.16

Initial Power Up p.16

Scrolling through parameter groups p.16

Operation of the Drive via the Fixed Keypad p.17

Activating the Speed Pot on the Keypad P.17

Restoring Factory Defaults p.18

Parameter Groups p.19

Parameter Descriptions p.21

d Group - Display and Diagnostic Parameters (Read Only) p.21

F Group – Basic Function Parameters p.22

A Group – Advanced Function Parameters p.22

b Group – Advanced Control and Protection Parameters p.29

C Group – Intelligent I/O and Communication Parameters p.33

4. Faults & Troubleshooting ......................................................................

Fault Information p.35

How to Clear a Fault p.35

Bulletin 161 Fault Descriptions p.35

Possible Problems and Corrective Actions p.36

Other Displays p.37

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

5. Specifications & Dimensions ................................................................

Technical Data p.39

Dimensions p.40

Accessories p.42

A. CE Conformity ........................................................................................

CE Compliance p.43

General Notes and Instructions p.43

Essential Requirements for a Conforming EMC Installation p.43

Motor Cable p.43

Control Cable p.43

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 1 – Getting Started

Important Precautions

In addition to the precautions listed throughout this manual, you must read and understand the following

statements which identify hazards associated with AC drives.

ATTENTION

The Bulletin 161 drive contains high voltage DC bus capacitors which take time to discharge after

removal of input power. Before working on the drive, wait five minutes for capacitors to discharge to

safe voltage levels.

Darkened display LEDs are not an indication that capacitors have discharged to safe voltage levels.

Failure to observe this precaution could result in severe bodily injury or loss of life.

ATTENTION

This Bulletin 161 drive generates dangerous electrical voltages and controls potentially dangerous

rotating mechanical parts. Disregarding the guidelines provided in this manual could result in severe

bodily injury or loss of life.

Only personnel familiar with the drive and associated machinery should plan or implement the

installation, start-up and subsequent maintenance of the system. Failure to comply could result in

bodily injury and/or damage to the equipment.

ATTENTION

This drive contains ESD (Electrostatic Discharge) sensitive parts and assemblies. Static control

precautions are required when installing, testing, servicing or repairing this assembly. Component damage

may result if ESD control procedures are not followed. Failure to observe this precaution could result in

damage to the equipment.

ATTENTION

The drive is intended to be installed with a fixed ground connection. The protective ground only offers

protection for the drive, not against personal injury. According to EN50178 it is not recommended to use

the Bulletin 161 drives on protective fault current switches as, due to a possible DC component (rectifier

load), the sensitivity of the safety switch will be reduced in the event of a failure. If unavoidable, only type

B Residual Current Operated Protective Devices (RCD’s) should be used. As a precautionary measure,

the EN50178 regulations should be observed. Failure to observe this precaution could result in severe

bodily injury or loss of life.

ATTENTION

An incorrectly applied or installed drive can result in component damage or reduction in product life.

Wiring or application errors such as undersizing the motor, supplying an incorrect or an inadequate AC

supply, or excessive ambient temperatures may result in system malfunction. Failure to observe this

precaution could result in damage to the equipment.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Getting Started

General information

Conventions used in this manual

To help differentiate parameter names and parameter settings from other text

the following conventions will be used:

•Parameter numbers and names are shown in the following way: Pd01 - [Output Frequency]

•Parameter Settings for inputs and outputs are shown with the setting number followed by the alpha

description in {Braces} ex: 18{RS}

Catalog Number Explanation

Figure 1.1 below describes the 161 catalog numbering scheme. Please note that not all combinations

can be configured as a Drive, refer to Chapter 5 – Specifications & Dimensions.

Figure 1.1Catalog Number

ATTENTION

•To prevent any injuries or damage, do not touch any components located within the housing with

your hands or with any other objects while input voltage is applied or if the DC-bus capacitors are

not discharged. Do not carry out any work on the wiring or check any signals if input voltage is

applied.

ATTENTION

•Ensure that the input voltage corresponds to the voltage indicated on the product nameplate.

Environmental influences such as high temperatures and high relative humidity are to be avoided as

well as dust, dirt and corrosive gases. The mounting location should be well ventilated and not

exposed to direct sunlight. Install the device upright on a non-flammable, vertical wall. Failure to

observe this precaution could result in damage to the equipment.

ATTENTION

•The drive start/stop and enable control circuitry includes solid-state components. If hazards due to

accidental contact with moving machinery or unintentional flow of liquid, gas or solids exist, an

additional hardwired stop circuit is required to remove AC input power to the drive.

•All the pertinent safety regulations, e.g. accident prevention regulations, professional association

regulations, EN, VDE regulations etc. must be observed. As these regulations are implemented

differently in different countries, the user must observe the regulations that apply for his particular

country.

Failure to observe these precautions could result in severe bodily injury or loss of life.

161S

First Position Second Position Third Position Fourth Position Fifth Position Sixth Position

Bulletin Number Voltage Rating Current Rating Enclosure Type Programmer Default Setting

S = Standard1A = 200-240V A 01 N = Open (IP20) P = Fixed Keypad K = 50 Hz default settings

AA01 NP K-

D = 100-120V A 02

A 03

A 04

A 05

A 07

A 10

A 15

U = 60 Hz default settings

1 Ratings through 3 HP (2.2 KW) are rated for single or three phase input

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Getting Started

Receiving Your New Drive

It is your responsibility to thoroughly inspect the equipment before accepting shipment from the freight

company. Check the item(s) received against your purchase order. If any items are obviously damaged, do

not accept delivery until the freight agent notes the damage on the freight bill.

Unpacking

Remove all packing material, wedges, or braces from within and around the drive. Remove all packing material

from the heat sink. Leave the debris cover in place on the top of the drive.

If you find any concealed damage during unpacking, notify the freight agent. Also, leave the shipping container

intact and have the freight agent make a visual inspection of the equipment to verify damage.

Inspecting

After unpacking, check the item(s) nameplate catalog number against your purchase order. An explanation of

the catalog numbering system for the Bulletin 161 drive was provided in Figure 1.1 as an aide for nameplate

interpretation.

IMPORTANT: Before you install and start up your Bulletin 161, inspect for mechanical integrity. Look closely for

loose parts, wires and connections.

Nameplate Label

Figure 1.2 depicts a typical Bulletin 161 Nameplate Label.

Figure 1.2Bulletin 161 Nameplate Label

161S-AA01NPK SERIESB

0.2 kW / 0.3 HP

FRN:2.001

V:200-230 3ØV:200-240 1Ø (3Ø)

A:3.1(1.8)

Hz:50/60

VA:500

Allen-Bradley

A:1.4

Motor

IP20

Hz:0.5-360

POWERTERMINALWIRE

S/N: Date: 9927 NE16452-2

MADE IN JAPAN

82TT1362281161

Rating:

Use 75°C CuWire

2.1- 0.75mm

(14-18AWG)

Torque 0.9 Nm (8 in.-lbs.)

Series

Letter

Catalog Number

Serial Number Enclosure Rating Firmware

Version

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Getting Started

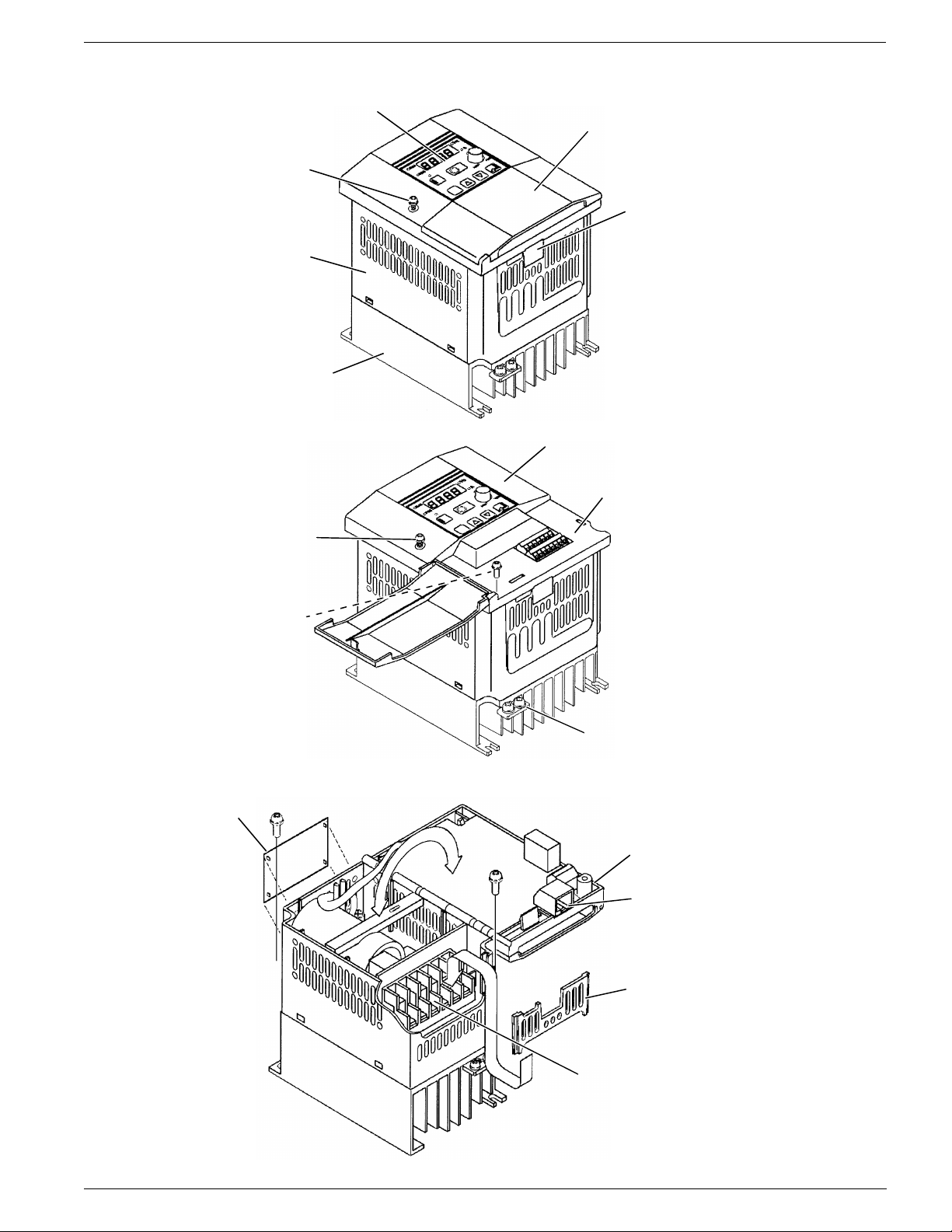

Drive Features

Terminal cover

Fault relay terminals

RS422 serial interface

Power terminal block

Debris

cover

Front case

To wire the power terminals

Control terminal block

Screw

Protective earth ground

connection

and fault relay, loosen the

screw and open the front

case.

Note that for ratings AA01-

AA03 the screw is located

under the control terminal

block cover.

Control terminal block cover

RS422 serial interface

Heat sink

Enclosure

Screw

Fixed keypad

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 2 – Installation & Wiring

Storage and Operating Conditions

Follow these recommendations to prolong drive life and performance:

• Store within an ambient temperature range of –25oC to 70oC.

• Store within a relative humidity range of 20 to 90%, non-condensing.

• Avoid storing or operating the drive where it could be exposed to a corrosive atmosphere.

• Protect from moisture and direct sunlight.

• Operate within an ambient temperature range of –10oC to 40oC.

IMPORTANT: To operate the drive between 40oC and 50oC, make the following adjustments:

➢Reduce the carrier frequency to 2kHz

➢Reduce the output current to 80% of the drives rated current

➢Remove the debris cover from the top of the drive

CE Compliance

Refer to Appendix A – CE Conformity.

Installation

Mount the drives on a flat, vertical and level surface. Drive orientation must be vertical (top up) for

proper heat dissipation.

• Install the drive with screws, recommended screw sizes are listed in the table below. Note that

ratings AA01-AA03 require screws at the upper left and lower right corners only.

• Ensure that debris cover is in place when installing the drive to prevent filings, cable insulation and dust

from entering the drive.

Clearances

• The drive should be installed using the minimum clearances shown in Figure 2.1.

Figure 2.1 Bulletin 161 Minimum Clearances and Airflow

Description Metric English

Mounting Torque 1.2 – 1.3 Nm 10.6 – 11.5 lb.in.

Mounting Base Screws M4 x 0.7 #8-32

100 mm

30 mm

Air

30 mm

Circulation

(3.94 in)

(1.18 in)

(3.94 in)

(1.18 in)

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table des matières

Autres manuels Allen-Bradley Contrôleurs

Allen-Bradley

Allen-Bradley 1769-L16ER-BB1B Manuel utilisateur

Allen-Bradley

Allen-Bradley SLC 500 Manuel utilisateur

Allen-Bradley

Allen-Bradley Studio 5000 Logix Emulate Manuel du propriétaire

Allen-Bradley

Allen-Bradley Studio 5000 Logix Emulate Manuel utilisateur

Allen-Bradley

Allen-Bradley controllogix 1756-L61 Manuel du propriétaire

Allen-Bradley

Allen-Bradley SLC 500 Manuel utilisateur

Allen-Bradley

Allen-Bradley PowerFlex 750 Series Manuel utilisateur

Allen-Bradley

Allen-Bradley ProcessLogix 1757-PLX52 Manuel utilisateur

Allen-Bradley

Allen-Bradley micrologix 1500 Manuel utilisateur

Allen-Bradley

Allen-Bradley PLC-2/20 Guide de configuration

Allen-Bradley

Allen-Bradley GuardPLC 1754 Manuel utilisateur

Allen-Bradley

Allen-Bradley CompactLogix 5480 Manuel utilisateur

Allen-Bradley

Allen-Bradley PowerFlex 70 Manuel utilisateur

Allen-Bradley

Allen-Bradley SMC-3 150-CF147 Manuel utilisateur

Allen-Bradley

Allen-Bradley ControlNet PLC-5 Manuel utilisateur

Allen-Bradley

Allen-Bradley Micro830 Manuel utilisateur

Allen-Bradley

Allen-Bradley SLC 500 1747-L20 Manuel utilisateur

Allen-Bradley

Allen-Bradley 1785-L11B Manuel utilisateur

Allen-Bradley

Allen-Bradley powerflex 700 Manuel utilisateur

Allen-Bradley

Allen-Bradley PowerFlex Manuel utilisateur

Allen-Bradley

Allen-Bradley PowerFlex 523 Manuel utilisateur

Allen-Bradley

Allen-Bradley CENTERLINE Manuel utilisateur

Allen-Bradley

Allen-Bradley PowerFlex 527 Manuel utilisateur

Allen-Bradley

Allen-Bradley FlexPak 3000 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
