Alcatel-Lucent 8262 Manuel utilisateur

8262 DECT Handset

Alarms: Geolocation and notification

Installation Manual

8AL90324ENAAed01-1602

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 2/22

TABLE OF CONTENTS

1CONFIGURATION DOCUMENTATION 4

1.1 INTRODUCTION 4

1.2 OVERALL SOLUTION ARCHITECTURE 4

1.3 FEATURE CONFIGURATION WITH ALARM SERVER 8

1.4 CONFIGURE EMERGENCY CALL 10

1.5 CONFIGURE THE “MANDOWN“ALARM (MANDOWN) 10

1.6 CONFIGURE THE “NO MOVEMENT“ALARM (NO MOVEMENT) 11

1.7 CONFIGURE THE ALARM SHOCK (SCHOCK) 11

1.8 CONFIGURE THE PULL CORD ALARM (PULL CORD) 12

1.9 CONFIGURE THE LIVE CALLS 12

1.10 CONFIGURE THE KEY EVENT CALLS 13

1.11 CONFIGURE THE STATUS CALLS 13

2ALARMS SETTINGS 14

2.1 CONFIGURE THE ALARM MODE (ALARM MODE) 14

2.2 CONFIGURE THE ALARM SERVER (NOTIFICATION SERVER) 14

2.3 CHANGE THE ALARM PASSWORD 15

2.4 CONFIGURE THE LOCATION AUDIO SIGNAL. 16

2.5 CONFIGURE THE ALARM ACKNOWLEDGEMENT:ALARM ACK 16

2.6 CONFIGURE THE PARAMETER:DELAY TIME 17

2.7 CONFIGURE THE PARAMETER:PREALARM TIME 17

2.8 CONFIGURE THE PARAMETER:USER DELAY 17

2.9 CONFIGURE THE PARAMETER:INACTIVE DIALING TIME 18

2.10 CONFIGURE THE PARAMETER:SMART BEACON 18

2.11 CONFIGURE THE PARAMETER:COVERAGE WARNING 18

2.12 CONFIGURE THE PARAMETER:PREFERRED LOCATION 19

2.13 RESET ALL ALARM PARAMETERS 19

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 3/22

3ALARM ACKNOWLEDGMENT 20

3.1 END THE LOCATION AUDIO SIGNAL 20

3.2 ALARM ACKNOWLEDGMENT 20

3.3 CHANGE THE ACKNOWLEDGMENT PASSWORD 20

4COMMUNICATION SERVER CONFIGURATION 21

4.1 INTRODUCTION 21

4.2 ALARM SYSTEM SUPPORT FOR OMNIPCX ENTERPRISE SERVER 21

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 4/22

1Configuration documentation

This document describes the various service configurations and related parameters to alarm

systems targeted to premises equipped with Alcatel-Lucent Enterprise (ALE) Call Servers

infrastructure, DECT radio coverage via Base Stations, DECT wireless handsets, associated with an

alarm server or not.

1.1 Introduction

In the current world, Isolated Worker protection is becoming more and more a concern inside

companies and utilities organizations. Therefore, the end user is able to trigger an alarm following

any unexpected event using the Alarm button.

Additionally, this alarm feature shall come with localization data, so that First Aid can be sent to

the right location within the shortest delay.

A site infrastructure system server shall also monitor that all Radio Base stations are working

correctly and report any defect, so that all isolated workers working on site remain under system

coverage and are able to trigger an alarm when an incident occurs. This is currently achieved by

Alcatel-Lucent Enterprise call servers.

If the wireless DECT handset goes out of coverage, it will alert the user that it is not possible to

ensure this service by an audible audio signal (loud beeps) if coverage warning setting is enabled

(ON).

1.2 Overall solution architecture

1.2.1 Alarm servers

When there is an alarm server, additional digits are sent containing data that the alarm server

can process to provide specific features.

ALE DECT handsets can trigger an alarm and also receive a notification. Alarm servers collect

and aggregate alarms from different subsystems including DECT handsets with lone worker

protection capability, and then notify, in real time, the most appropriate person to respond to

the situation.

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 5/22

1.2.2 Alcatel-Lucent Enterprise alarm server: OpenTouch Notification Service

The ALE OpenTouch Notification Service (OTNS) offers a native and optimized integration with

the ALE Call Servers and all ALE wired and wireless sets, including DECT handsets with lone

worker protection function.

Following is an example of such an architecture using the OpenTouch Notification Service.

The OTNS server interacts with the call server with signaling links and Voice links over an IP

connection. It is able to make or receive call to any fixed or wireless sets attached to the call

server.

•The OTNS server can receive or send alarms using the ALE ABC-F Protocol on IP with the

OmniPCX Enterprise, offering unique features such as long text messages of 40 characters

instead of 16 to convey richer alarm information, priority call feature or loudspeaker

announcement

•The OTNS server can also receive or send alarms from/to an OmniPCX Office RCE over a SIP

trunk, and also supports all ALE sets.

•OTNS interconnects with multiple alarm and notification subsystems thanks to its

compatibility with numerous industry standards, protocols and interfaces (ESPA/TAP, dry

contacts i.e. electric relays, DTMF, email, SMS, SNMP, KNX, social media, …)

•It also offers a set of applications to monitor alarms in real time (Real-Time Console), to

locate the origin of an alarm on a map (Graphical Floor Plan) and to generate reports

(Historical reporting) , all well fitting for the management of features such as isolated

worker protection.

•In addition to the support of wireless sets, OTNS offers several mobile applications for

smartphones and tablets over Wi-Fi and 3G/4G, allowing to generate alarms, receive

notifications as well as monitor alarms and manage their urgency.

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 6/22

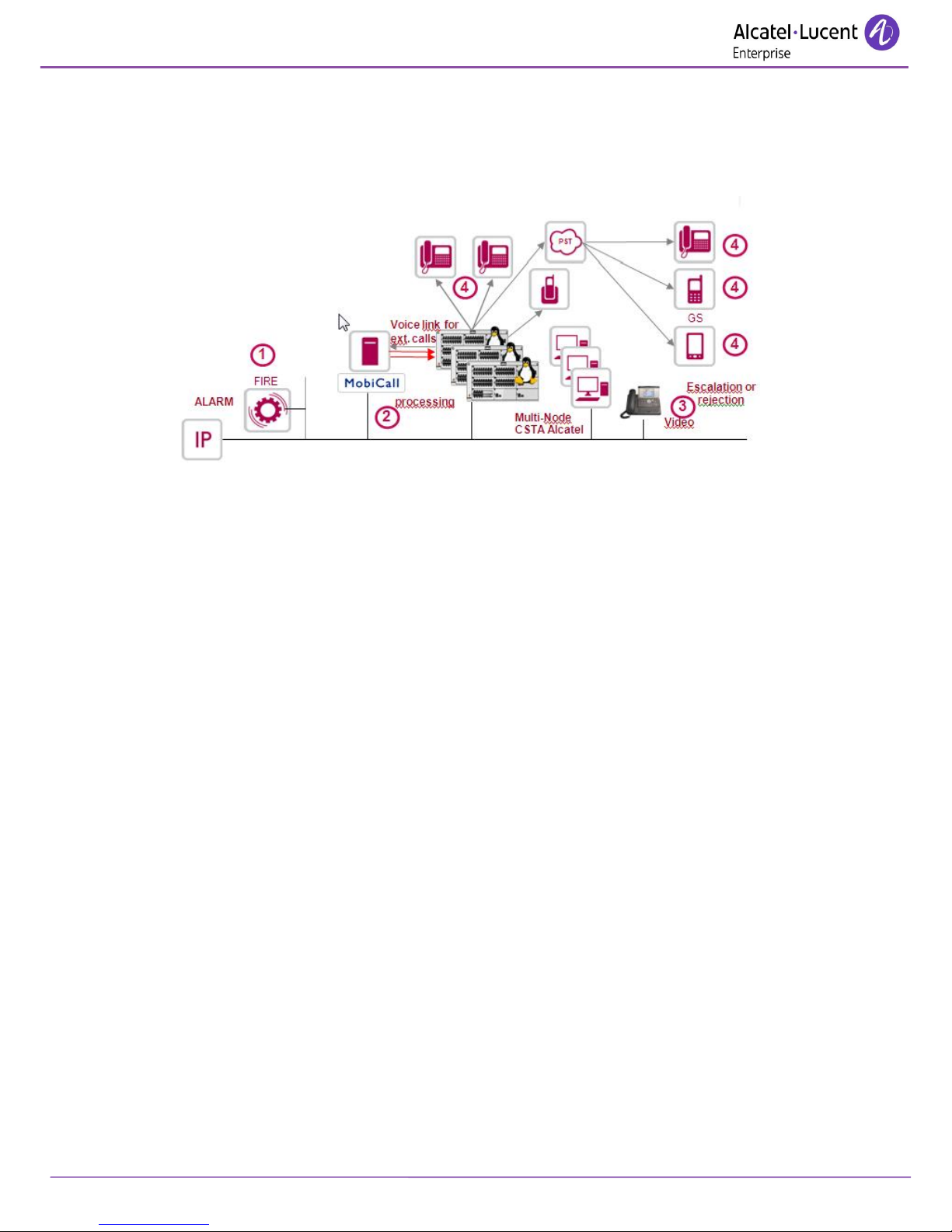

1.2.3 Third party alarm server architecture –example of New Voice Mobicall alarm server

Alarm processing will be managed together by the Alcatel-Lucent Enterprise call server and

third party alarm servers. Following is an example of such architecture using the New Voice

Mobicall alarm server.

The Mobicall server interacts with the call server with signaling links and Voice links. It is able

to make or receive call to any fixed or wireless sets attached to the Call server.

The Mobicall server can receive Alarms using the Alcatel-Lucent Enterprise Notification Server

(NS) Protocol (UDP & TCP/IP).

It can receive Alarms from multiples sources, such as:

ESPA 4.4.4: a serial protocol intended for the interconnection of paging equipment with

telephone exchanges or computer systems.

Connection & Alarm information forward over CSTA (identical to NS)

Sending alarms over voice links T0, T2, H.323, SIP etc. to address phones without display,

phones in multi-line mode, external fix and GSM phones.

Support of multi-connections to a multi –node A4400 and OXE structure

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 7/22

1.2.4 Offered Alarm services

The Alcatel-Lucent Enterprise DECT system coupled to an alarm server offers functionalities such as

live calls, emergency calls, event keys, status calls, Mandown alarm, no movement alarm, shock

alarm and pull cord alarm.

Live signals are calls that are made automatically (every 90 seconds by default) by the

handset to the alarm server. The information sent to the alarm server allows the server to

confirm that the handset has coverage and is working.

Emergency calls are initiated by the user pressing and holding (or pressing twice) the

“Emergency call“ key.

Key event calls are also initiated by users when pressing particular keys on the numeric

keypad and also with the function keys F1/F2 (if “Key event” is activated and F1/F2 keys

has been programmed in the key settings). These are designed to notify the server that

certain tasks have been completed, for example, “room is ready“ in the case of a hotel

application.

Status calls are automatically established by the handset each time the handset is plugged

into or removed from the charger and each time the handset is switched on and off.

Mandown, no movement, shock and pull cord alarms are alarms triggered when the set

detects an abnormal situation.

Only emergency calls and event keys calls can be initiated by the user.

All these features must be activated and configured by the system administrator.

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 8/22

1.3 Feature configuration with alarm server

To access the configuration menus of the various features:

Access MENU.

Alarm Set.

Access to Alarm settings menu.

If configured. Enter device PIN code (The default is 0000).

Ok.

1.3.1 Alarm settings menu

This menu allows you to activate, deactivate and set parameters.

Mode:activate or deactivate the option.

Sett: set feature parameters.

Alarms Trigger:

The Wireless Handset is able to warn about a critical situation for isolated worker.

Emergency call: this menu allows to program the call number dialed in case of emergency

call. The emergency call is activated by using red button key (hold or twice) or OK key

(hold).

Mandown: this menu allows activation of the “Mandown“ alarm feature. This feature

allows triggering an alarm when the set detects a loss of verticality during a configurable

time delay.

No movement: this menu allows activation of the “No movement“ alarm feature. This

feature allows triggering an alarm when the set does not detect any movement during a

configurable time delay.

Shock: this menu allows activation of the “Shock“ alarm feature. This feature allows

triggering an alarm when the set detects an abnormal shock.

Pull cord: this menu allows the user to trigger an alarm by a single wide handset movement

that will disengage a part from the handset, the other part of the cord being attached to

the user clothes.

Delay time: this parameter is a time delay where the handset is in an alarm condition

before triggering the prealarm phase.

Prealarm time: this parameter defines the time delay of the prealarm. This prealarm phase

precedes the alarm triggering. A signal and specific display warns the user that an alarm is

going to be triggered. At this step, the user can stop the alarm process.

User delay: this parameter defines the time before the set can get in alarm condition after

the user stops an alarm process during the prealarm phase.

Inactive dialing time: this parameter defines the time before the set can get in alarm

condition after dialing a number is interrupted more than the inactive dialing time value.

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 9/22

Location Signal: this menu allows activation and configuration of the location audio signal

(LAS) feature of the phone. The LAS is triggered by the handset if the menu is activated on

the handset. LAS allows the handset to generate audio signal when an alarm was triggered

by handset user. It sends back LAS activation to the handset (if configured in alarm server).

The First Aid team is able then to locate handset rapidly as LAS creates an audio signal in

handset loudspeaker.

Alarm ack (on screenacknow. / Alarm with ack): this parameter allows the administrator

to require or not an on screen acknowledgement or an alarm acknowledgement.

Location & Events:

The Wireless Handset is able to send regular information or event triggered to an Alarm server.

Status/Live: this parameter allows you to activate or deactivate the live calls, status calls.

Alarm mode: this parameter allows you to select Enterprise or Office mode.

Key event: Key event calls are also initiated by users when pressing particular keys on the

numeric keypad.

Smart beacon: this parameter defines if an event is sent to the server when the user enters

in a Beacon area.

Notification server: these parameters allow you to enter access prefixes to manage access

to the interface used by the alarm server. First enter the main access prefix then enter a

second or backup prefix if necessary. These parameters relate to normal, urgent and very

urgent alarms as well as automatic Handsfree mode and server identification check. The

server configuration is made once and applies to all features.

Live delay: this parameter allows you to enter the time between two signal messages sent

by the handset.

Notification ring: this menu allows association of ring tones and volumes to alarm levels

sent by the alarm server (normal, urgent, very urgent).

Coverage warning: this menu allows activate an alarm (popup) when the phone goes out of

the coverage area.

Preferred location: this parameter allows defines the preferred mode for location (DECT or

Beacon).

Reset settings: this feature allows resetting of all alarm parameters.

New alarm password: this feature allows definition of a new alarm password to access the

alarm settings menu.

8262 DECT Handset - Alarms: Geolocation and notification

8AL90324ENAAed01 10/22

1.4 Configure emergency call

Emergency calls are initiated by the user by pressing and holding the “Emergency call“ key or the

OK key. An emergency call is used to signal an emergency situation to the server, such as body or

material injury.

Access MENU.

Access to Alarm settings menu (password).

Alarm trigger

Emergency call

Mode:select the activation option.

oCall to number: an audio call is started with the predefined

emergency number. If no number is defined, there is no event.

oAlarm to server: the event is send to the server.

Sett: set feature parameters.

oHans-free mode: automatic activate handsfree on Alarm.

oLocation signal: send audio signal to locate the handset.

oEm. Call on OK Key: long press on OK key to trigger panic call.

oLock Alarm key: keep the emergency key unlock while the keypad

is locked.

oNumber: define emergency number.

If necessary, and in order to complete this configuration, make sure that the following parameters

are also configured:

oAlarm mode (mandatory)

oNotification server (mandatory)

oUser delay

oAlarm ack

1.5 Configure the “mandown“ alarm (Mandown)

This feature allows triggering an alarm when the set detects a loss of verticality during a

configurable time delay.

Access MENU.

Access to Alarm settings menu (password).

Alarm trigger

Mandown

Mode:select the activation option.

oCall to number: an audio call is started with the predefined

emergency number. If no number is defined, there is no event.

oAlarm to server: the event is send to the server.

Sett: set feature parameters.

oAngle: define the maximum angle before the set detects an

abnormal position (30, 40 or 60 degrees).

oLocation signal: send audio signal to locate the handset.

oNumber: define emergency number.

If necessary, and in order to complete this configuration, make sure that the following parameters

are also configured:

oAlarm mode (mandatory)

oNotification server (mandatory)

oDelay time

oPrealarm time

oUser delay

oLocation Signal

oSmart beacon

Autres manuels pour 8262

Table des matières

Autres manuels Alcatel-Lucent Téléphone IP

Alcatel-Lucent

Alcatel-Lucent M8 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent IP Touch 4038 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent DeskPhone 8001 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent IP Touch 4008 Guide de configuration

Alcatel-Lucent

Alcatel-Lucent OmniTouch 8082 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniTouch 8002 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OpenTouch Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OpenTouch Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OXO Connect 8078s Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent DeskPhone 8001 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniTouch 8082 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ENTERPRISE 4018 Manuel d'instructions

Alcatel-Lucent

Alcatel-Lucent OmniPCX Office Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent Premium DeskPhone 8029s Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent IP Touch 4008 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 8068 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent IP Touch 4088 EE Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniTouch 8 Series Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ENTERPRISE 4018 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 4028 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ALE-30h Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniGenesys Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OpenTouch 8088 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent IPTOUCH 300 Manuel utilisateur

Manuels Téléphone IP populaires d'autres marques

Alcatel

Alcatel 4028 Manuel utilisateur

Polycom

Polycom Polycom VVX 600 Manuel utilisateur

Polycom

Polycom SoundPoint IP 450 Manuel utilisateur

Cisco

Cisco SPA-500 Series Manuel utilisateur

Polycom

Polycom SoundPoint IP 650 Manuel utilisateur

Proximus

Proximus Maestro 3016 IP Manuel utilisateur

Fanvil

Fanvil X4 Manuel utilisateur

Cisco

Cisco 7962 Manuel utilisateur

Snom

Snom 320 Manuel utilisateur

Yealink

Yealink Yealink SIP-T46G Manuel utilisateur

Avaya

Avaya 4625SW Manuel utilisateur

Yealink

Yealink SIP-T52S Manuel utilisateur

Nortel

Nortel 1140E Manuel utilisateur

Nexotek

Nexotek NT-P500 Manuel utilisateur

Avaya

Avaya Integral 5 R3.0 Manuel utilisateur

GE 28320EE2 - Dect 6.0 InfoLink 2 Manuel utilisateur

Avaya

Avaya 4600 Series Manuel de service

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manuel utilisateur
