Albatron PM915-478 Manuel utilisateur
PM915-478 Mainboard
User’s Manual
Rev：EG 1.1
Date：2009.1
1
CONTENTS
CHAPTER 1 INTRODUCTION............................ 2
1.1 Chipset Introduction ...................................... 2
1.2 Specification ............................................. 2
1.3 Mainboard Introduction .................................... 2
CHAPTER 2 PACKAGE CONTENTS........................ 3
CHAPTER 3 MAINBOARD LOCATIONS..................... 4
CHAPTER 4 INSTALLATION............................ 5
4.1 Jumper Setting and Slot ................................... 5
CHAPTER 5 BIOS SETUP.............................. 6
5.1 Main menu ................................................. 7
5.2 Standard CMOS Features .................................... 8
5.3 Advanced BIOS Features .................................... 9
5.4 Advanced Chipset Features ................................ 10
5.5 Integrated Peripherals ................................... 11
5.6 Power Management Setup ................................... 13
5.7 Set Sueprvisor Password &Set User Password ............... 14
5.8 Save Exit & Without Save Exit Setup ...................... 14
2
Chapter 1 Introduction
1.1 Chipset Introduction
Intel 915GL Chipset
The Intel 915GL chipset supports the latest PC technologies such as Socket
478 CPU, dual-channel DDR memory architecture and AGPe graphics card
interface. Intel Graphics Media Accelerator 900 provides a significant
increase in graphics performance.8 high-speed USB 2.0 ports.
Dual-channel DDR
This Intel 915GL chipset motherboard support TWO DDR DIMM interface that
can make you have more use room. Dual-channel can give you the fastest
frequency.
1.2 Specification
INTEL 915GL
Intel 915GL + ICH6
Supports Socket 478 CPU
Supports 400/533/800MHz HOST BUS Frequency
Intel Graphics Media Accelerator 900 VGA
Dual channel Mode DDR 266/333/400MHz
Supports One AGPe (Accelerated Graphics Port Extension) slot
Supports Two PCI Slot
Supports six channel sound input
Supports Eight USB2.0 ports
1.3 Mainboard Introduction
Key Features：
-Chipset：
Intel 915GL+ICH6
-CPU：
Supports Intel Socket 478 CPU
-Supports 400/533/800MHz HOST BUS Frequency
-Memory：
Supports DDR 266/333/400MHz Memory
3
-Built-in Powerful Integrated Graphics
Integrated display function technologies without extend VGA card
Integrated 2D/3D Graphics Controller
-Provides one channel connecting two IDE drives
Supports Ultra ATA66/100 synchronous DMA modes
-Provides four channel connecting four SATA drives
With speed up to 150MB/s
-I/O ：
One floppy port support format 360K/720K/1.2M/1.44M/2.88M disk driver
One serial port
One parallel port，supports EPP/ECP/SPP transfers
Eight USB2.0 ports
One PS/2 port
Two SATA ports
One Realtek RTL8111C PCI-E 10/100 Mbps LAN Network
-Onboard AC’97 2.3 specification compliant
Supports six channel sound input (example Realtek ALC653)
-Expansion slot：
One AGPe (Accelerated Graphics Port Extension) slot
Two 32-bit PCI slots 2.2 specification compliant
-Dimension
Micro-ATX form factor
Chapter 2 Package Contents
Your mainboard package contains the following items:
1One Intel 915GL serial mainboard
2One 40-pin Ultra DMA 66/100/133 IDE ribbon cable
3SATA data cable
4Driver installed CD
5One user’s manual
4

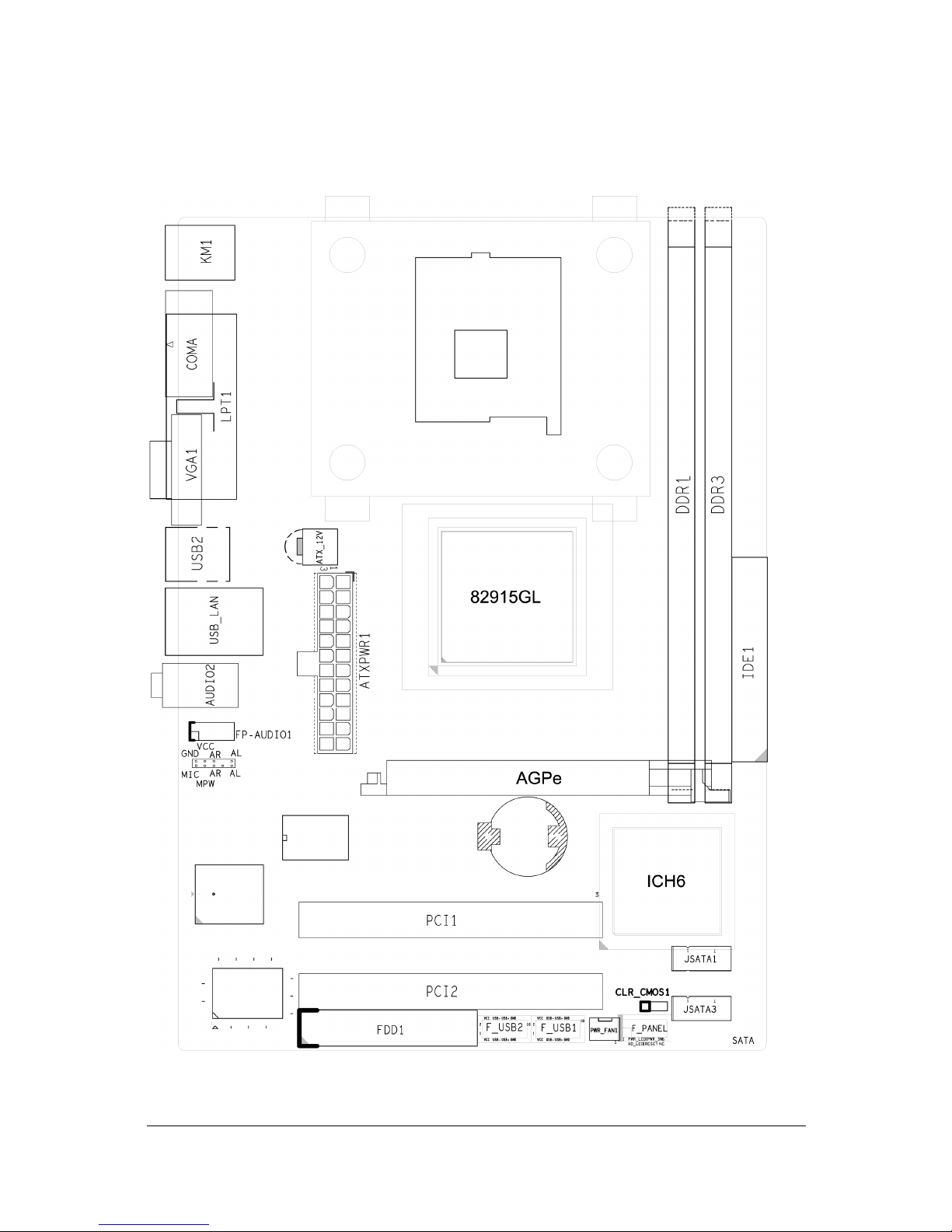

Chapter 3 Mainboard Locations
5
Chapter 4 Installation
4.1 Jumper Setting and Slot
Clear CMOS Jumper setting
1-2（Default） Normal
2-3 Clear CMOS
Audio：Front panel Jumper setting
PIN Function PIN Function
1 MIC+ 2 Ground
3 Vbias 4 AuD_Vcc(AVCC)
5 AuD_R_Out 6 R_Out Back
7 N.C. 8 Key
9 AuD_L_Out 10 L_Out Back
SATA：PIN Jumper setting
PIN SATA1 Function PIN SATA3 Function
1 Ground 1 Ground
2 RSATA_RXP1 2 RSATA_RXP3
3 RSATA_RXN1 3 RSATA_RXN3
4 Ground 4 Ground
5 RSATA_TXN1 5 RSATA_TXN3
6 RSATA_TXP1 6 RSATA_TXP3
7 Ground 7 Ground
Expansion slot
DIMM1/DIMM2 184 PIN DDR MEMORY SLOT
PCI1/PCI2 120 PIN PCI BUS expansion slots
AGPe AGPe slot
(Accelerated Graphics Port Extension)
USB: Expansion Connector
PIN Function PIN Function
1 VCC：Power 2 VCC：Power
3 D-：Data - Signal 4 D-：Data - Signal
5 D+：Data + Signal 6 D+：Data + Signal
7 GND：Ground 8 GND：Ground
9 KEY 10 NC
6
Connectors
PS/2（Bottom） PS/2 Keyboard (Purple)
PS/2（Top） PS/2 Mouse Header(Green)
R_USB1 USB1/2 Connector Port
F_USB2/LAN USB3/4/LAN Connector Port
F_USB3 USB5/6 Connector Port
F_USB4 USB7/8 Connector Port
LPT Printer Connector Port
COM1 Serial Port COM1 Connector Port
VGA On-board VGA connector
LINE OUT/LINE IN/MIC Audio Output/Audio Input/Microphone
SPDIF_I/ SPDIF_O Digital Input/Output Port
IDE Primary/Secondary IDE Port
SATA1/SATA3 SATA Port
FDD Floppy Disk Drive Connector Port
ATX/ATX_12V ATX/ATX_12V Power Supply Connector
Port
CPU_FAN/PWR_FAN CPU/System FAN Port
Function Port Panel
Power Supply LED Pin2：Power Supply Anode；
Pin4：Ground
HDD LED Pin1：Power Supply Anode；
Pin3：LED Signal
Power Supply Switch Pin6、8：Switch Signal
Reset Switch Pin5、7：Reset Switch
Chapter 5 BIOS Setup
The BIOS Setup Utility record settings and information of your
computer, such as date and time, the type of hardware installed, and
various configuration settings. Your computer applies those information
to initialize all the components when booting up and basic function of
coordination between system components.
If the Setup Utility configuration is incorrect, it may cause the system
to malfunction. It can even stop you computer booting properly. If it
happens, you can use the clear CMOS jumper to clear the CMOS memory which
7
has stored the configuration information; or you can hold down the Page
Up key while rebooting your computer. Holding down the Page Up key also
clears the setup information

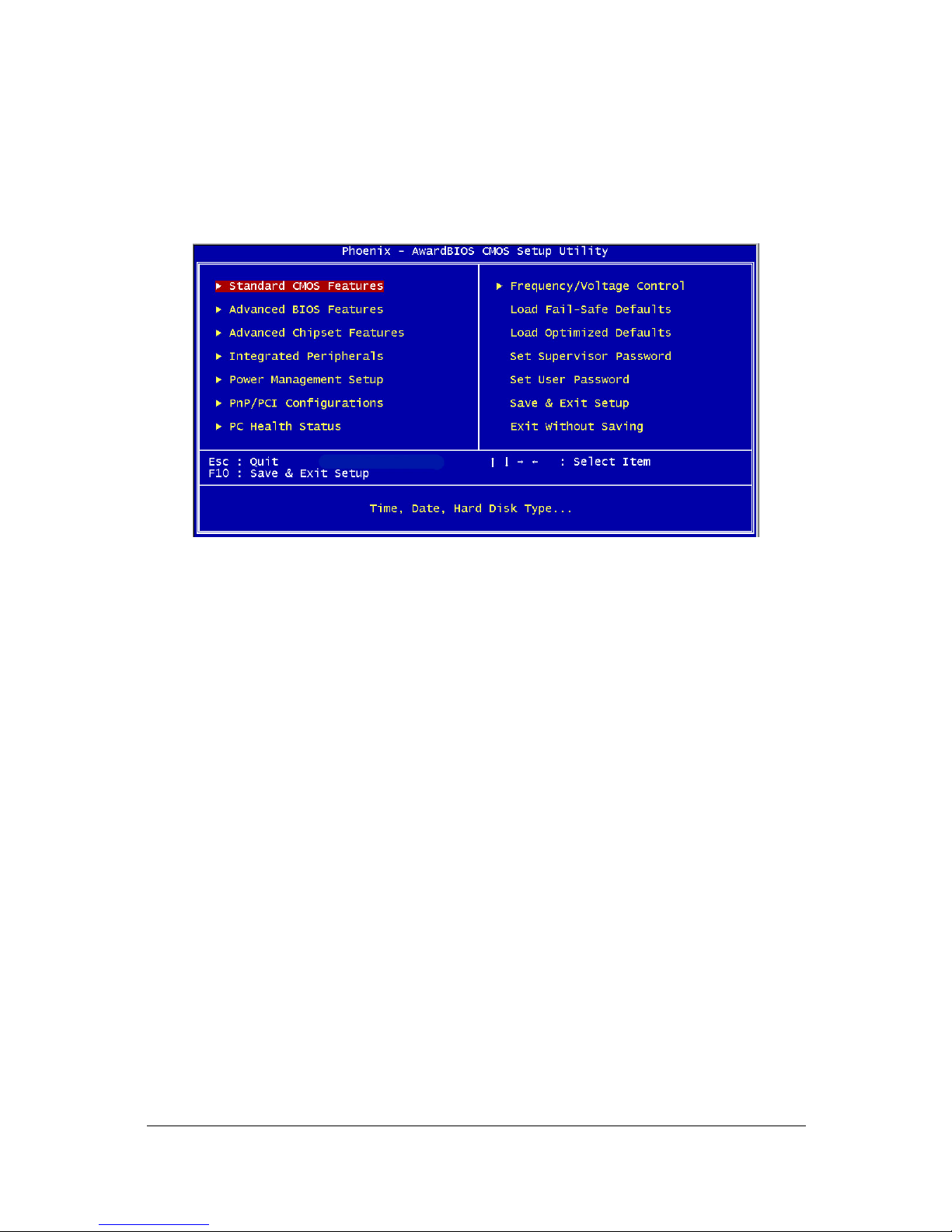

5.1 Main menu
You can use cursor arrow keys to highlight anyone of options on the
main menu page. Press Enter to select the highlighted option. Press
the Escape key to leave the setup utility. Press the F9 key to go back
to menu in BIOS. Some options on the main menu page lead to tables of
items with installed value that you can use cursor arrow keys to
highlight on item, and press Page Up and Page Down keys to cycle through
alternative values of that item. The other options on the main menu
page lead to dialog boxes that require your answer Yes or No by hitting
the Y or N keys. If you have already changed the setup utility, press
F10 to save those changes and exit the utility.
Standard CMOS Features
Setup date、time、floppy type
Advanced BIOS Features
Setup BIOS provides function，for example virus、boot-strap induct
Advanced Chipset Features
Setup mainboard chipset parameter，for example DRAM Timing
Integrated Peripherals
Setup include mainboard all peripherals drive
Power Management Setup
Setup CPU、Hard disk、Monitor drive power save mode
PnP/PCI Configurations
Setup PnP and PCI interface parameter
PC Health Status
Frequency/Voltage Control
8
Load Fail-Safe Defaults
Setup the default values in system
Load Optimized Defaults
Setup the best performance values in system
Set Supervisor Password
Setup supervisor password in system
Set User Password
Setup user password in system
Save & Exit Setup
Setup save and exit, press Y to save and exit
Exit Without Save Setup
Setup without save and exit, press N to without save and exit

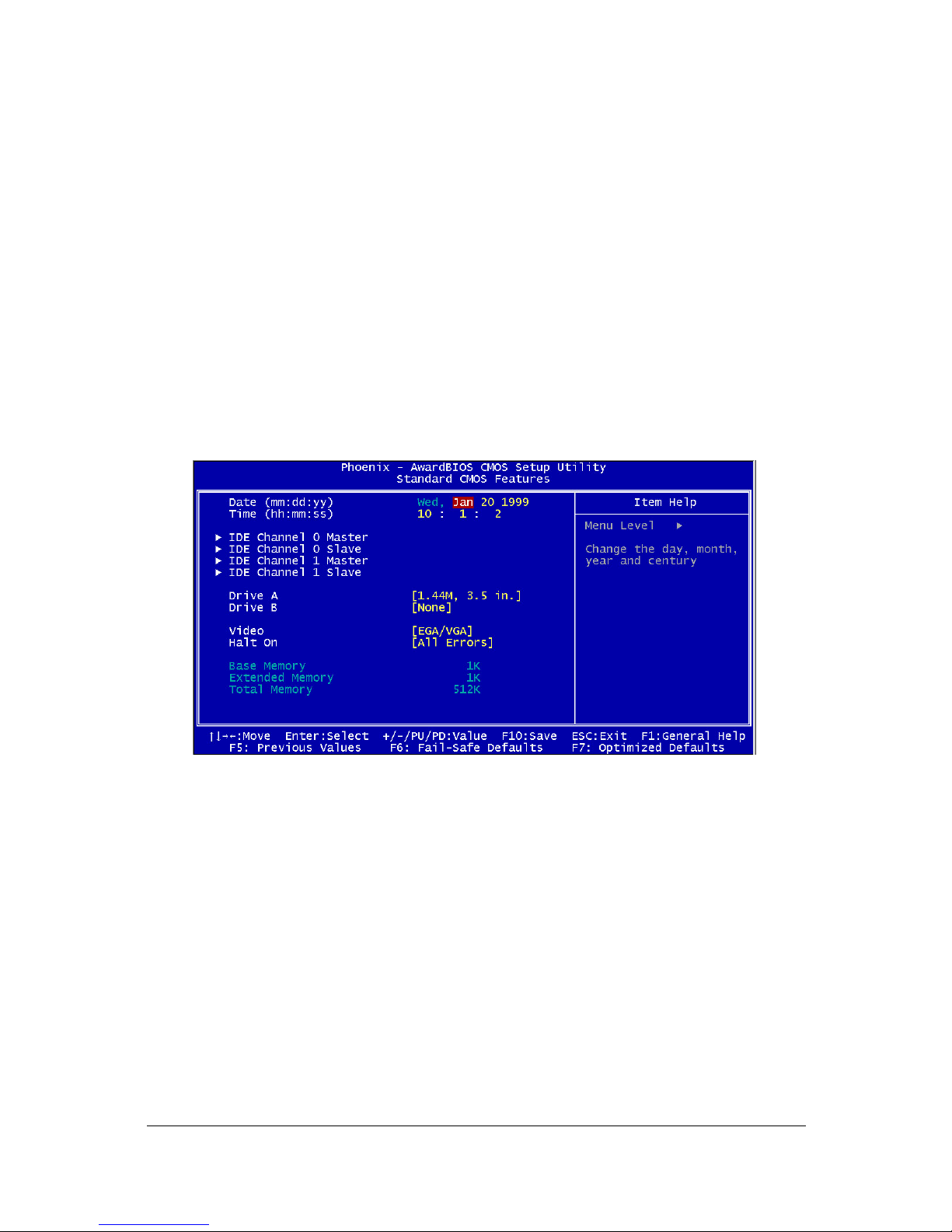

5.2 Standard CMOS Features
Date（mm：dd：yyyy）
These items set up system date
Time（hh：mm：ss）
These items set up system time
Primary/Secondary Master/Slave
These items configure devices connected to the Primary and Secondary
IDE channels. To configure an IDE hard disk drive, choose Auto. If
the Auto setting fails to find a hard disk drive, set it to User, and
then fill in the hard disk characteristics manually. If you have a
CD-ROM drive, select the setting CD-ROM. If you have an ATAPI device
with removable media, select Floptical.
Drive A/B
Video
Halt On
9
Base Memory
Expanded Memory
Total Memory

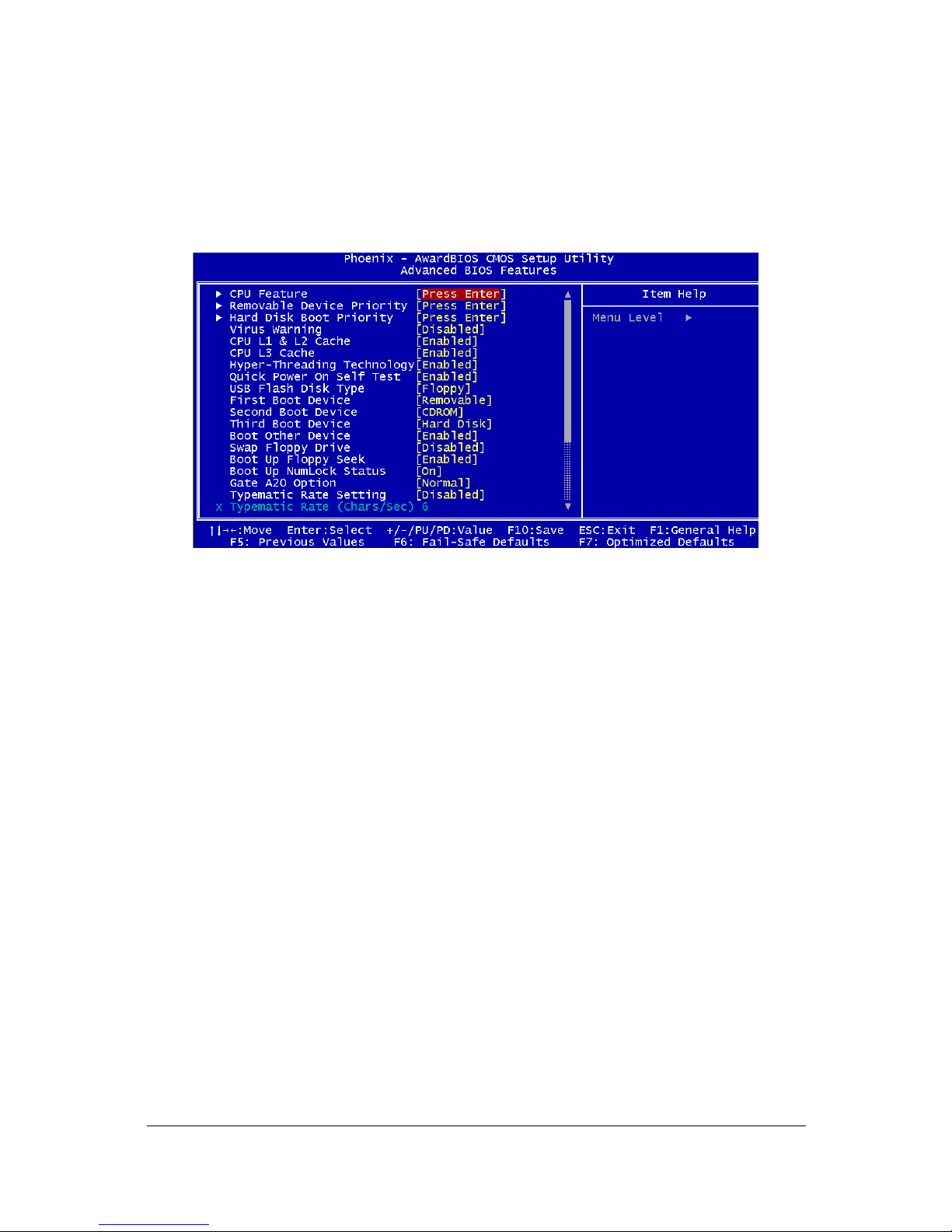

5.3 Advanced BIOS Features
CPU Feature Default：Press Enter
Delay Prior to Thermal Default: 16Min
Thermal Management Default: Thermal Monitor 1
Limit CPUID MaxVal Default: Disabled
C1E Function Default: Auto
Execute Disable Bit Default: Enabled
Removable Device Priority Default: Press Enter
Floppy Disks
Hard Disk Boot Priority Default: Press Enter
Virus Warning Default：Disabled
CPU L1&L2 Cache Default：Enabled
Leave these items enabled since all the processors that can be
installed on this board have internal L2 cache memory.
Hyper-Threading Technology Default: Enabled
Quick Power On Self Test Default：Enabled
USB Flash Disk Type Default: Floppy
First Boot Device Default：Removable
When system boot-strap first time detect device.
Second Boot Device Default：CDROM
When system boot-strap first time detect device.
Third Boot Device Default：Hard Disk
When system boot-strap first time detect device.
Boot Other Device Default：Enabled
