KM61S-AM2

nVIDIA®MCP61S

Supports Socket AM2

AMD®AthlonTM 64 FX/ AthlonTM 64 x2 Dual-Core/

AthlonTM x2 Dual-Core/

AthlonTM 64/ SempronTM Processor

User Manual

Dimensions (Micro-ATX Form-Factor):

z205 mm x 244 mm ( W x L )

Operating System:

zWindows® 2000/ XP

Attention- Important Information

Follow the procedures below…

Troubleshooting Tips

Refer to other sections in this manual…

Things You Should Know

0The images and pictures in this manual are for reference only and may vary from the

product you received depending on specific hardware models, third party components

and software versions.

0This mainboard contains very delicate IC chips. Always use a grounded wrist strap

when working with the system.

0Do not touch any IC chip, lead, connector or other components.

0Always unplug the AC power when you install or remove any device on the mainboard

or when confuguring pins and switches.

Packing List

KM61S-AM2 mainboard

IDE Cable

I/O Bracket

Serial ATA Cable

Mainboard Setup Driver & User Manual CD

Mainboard Quick Installation Guide

Symbols

Table of Contents

CHAPTER 1. GETTING STARTED .................................................... 1

INTRODUCTION....................................................................................................... 1

SPECIFICATION ....................................................................................................... 2

CONFIGURATION .................................................................................................... 5

Layout of KM61S-AM2 .................................................................................. 5

HARDWARE INSTALLATION ................................................................................... 6

CPU Processor Installation.............................................................................. 6

Memory Installation: DIMMA1/B1 ................................................................ 7

Back Panel Configuration................................................................................ 9

Connectors..................................................................................................... 11

Front Panel Headers: JPANEL1 .................................................................... 12

Headers & Jumpers........................................................................................ 13

Audio Configuration...................................................................................... 16

Slots ............................................................................................................... 17

Power Supply Attachments............................................................................ 18

CHAPTER 2. BIOS SETUP ........................................................... 19

INTRODUCTION..................................................................................................... 19

KEY FUNCTION..................................................................................................... 19

MAIN MENU ......................................................................................................... 20

CHAPTER 3: SOFTWARE SETUP ................................................... 22

SOFTWARE LIST.................................................................................................... 22

SOFTWARE INSTALLATION ................................................................................... 22

CHAPTER 4: TROUBLESHOOTING................................................. 25

APPENDIX I: 8/6/4/2 CHANNEL AUDIO EFFECT SETUP......................................... 28

APPENDIX II: RAID SETUP................................................................................... 29

Mainboard KM61S-AM2

Chapter 1. Getting Started

Introduction

Congratulations on choosing the KM61S-AM2 Mainboard. It is based on the nVIDIA®MCP61S

chipset. The mainboard supports the AMD AthlonTM 64 FX/ AthlonTM 64 X2 Dual-Core/ AthlonTM

X2 Dual-Core/ AthlonTM 64/ SempronTM Processor with FSB (Front Side Bus) frequencies of

1000 MHz (2000 MT/s).

The KM61S-AM2 provides two DIMM (Dual In-Line Memory Modules) sockets and which with

Dual Channel Technology supported. The sockets allow you to install 240-pin, non-ECC &

unbuffered DDR II 800 (PC2-6400)/ DDR II 667 (PC2-5300)/ DDR II 533 (PC2-4300)/ DDR II

400 (PC2-3200) SDRAM, and support a total memory capacity of 2 GB.

This mainboard provides one PCI-E x16 slot for use with a graphics card, and one PCI-E x1 slot

for an expansion card which the PCI-E x1 interface compatible. In addition, two PCI slots are

provided by the mainboard for use with expansion cards which the PCI interface compatible.

The KM61S-AM2 provides one floppy disk drive connector that can be used with 360KB/

720KB/ 1.2MB/ 1.44MB/ 2.88MB drive. It also has one IDE connector compatible with PIO

Mode 0/1/2/3/4 for IDE hard drives supporting Ultra ATA 33/66/100/133. In addition, the

onboard Serial ATA II comes with two SATA II connectors, which the interface can provide up to

3 Gbps transmit speed and also support RAID 0/ 1 mode <See Appendix II>.

The onboard High Definition Audio Codec (ALC861) supports high quality performance

8-channel audio play (Super 7.1 Channel Audio Effect) <See Appendix I>. The mainboard also

supports the Sony/Philips Digital Interfaces (SPDIF) output function (Optional).

The KM61S-AM2 also comes with an onboard 10/100 Mbps Ethernet LAN PHY chip. There is a

LAN port on the back panel of your case that you can directly plug into an internet cable.

In addition, there are maximal eight USB2.0/ 1.1 ports which can be set up on this mainboard.

Furthermore, one PRINTER header is flexible for extra device by optional cable.

All the information (including hardware installation and software installation) in this manual are

for reference only. The contents in this manual may be updated without notice. The company

will not assume any responsibility for any errors or mistakes within.

Mainboard KM61S-AM2

Specification

CPU:

zSupports Socket AM2

zSupports AMD AthlonTM 64 FX/ AthlonTM 64 x2 Dual-Core/ AthlonTM x2 Dual-Core/

AthlonTM 64/ SempronTM Processor

zSupports Hyper-TransportTM Link Technology

zSupports 1000 MHz（2000MT/s）FSB（Front Side Bus）Frequencies

Chipset:

zChipset – nVIDIA®MCP61S（nVIDIA®GeForce 6100 nForce 405）

zI/O Controller – iTE®IT8716F

zHigh Definition Aduio Codec – Realtek®ALC861

zLAN PHY – Realtek®RTL8201CL 10/100 LAN PHY

Memory:

zTwo DIMM sockets with Dual Channel Technology supported

zSupports a total memory capacity of 2 GB

zSupports to use the 240-pin, non-ECC & unbuffered DDR II 800 (PC2-6400)/ DDR II

667 (PC2-5300)/ DDR II 533 (PC2-4300)/ DDR II 400 (PC2-3200) SDRAM

Slots:

zTwo PCI-Express interface slots for graphics cards and expansion cards:

1. PCI-E x16 slot: Supports up to x16 mode with 4 GB/s one-way bandwidth

2. PCI-E x1 slot: Supports up to x16 mode with 250 MB/s one-way bandwidth

zTwo PCI slots with 133 MB/s one-way bandwidth per channel for expansion cards

FDD Connector:

zOne floppy disk drive connector supporting up to two FDD

zSupports 360KB/ 720KB/ 1.2MB/ 1.44MB/ 2.88MB

Onboard IDE Connector:

zOne IDE connectors that support up to two IDE devices

Mainboard KM61S-AM2

zSupports Ultra ATA 133/ 100/ 66/ 33

zSupports high capacity hard disk drives

Serial ATA II Connector:

zTwo SATA II connectors that support up to two SATA II HDD

zSupports SATA 2.0 specification which provides 3 Gbps transmit rate

zSupports RAID 0/ 1 mode

zOne SATA II connector can only support one SATA II HDD

I/O facility Connectors:

zSupports one PS/2 mouse port and one PS/2 keyboard port

zSupports one serial port（JCOM1）

zSupports one D-Sub port（JVGA1）

zSupports one JPRNT1 header and one JSPDIF_OUT1 header compatible with

external devices connected

Universal Serial Bus:

zFour onboard USB 2.0/ 1.1 ports

zTwo front USB headers come with this mainboard supporting four additional USB

ports to be set

zSupports a maximum of eight USB 2.0/ 1.1 ports for compliant devices

Onboard HD Audio CODEC (ALC861):

zHigh performance Codec with high S/N ratio (>90 db)

zSupports 8/6/4/2 channel playback capability

zBuilt-in Dolby Digital Live Technology

zSupports Sony/ Philips Digital Interfaces (S/PDIF) functionality (Optional)

Onboard LAN Chip:

zSupports 10/100 Mbps Ethernet LAN

zSupports nVIDIA®Active Armor TM, it provides advanced data packet inspection

zSupports nVIDIA® Firewall TM, it protects your system from intruders

Mainboard KM61S-AM2

BIOS:

zPhoenix-Award™ BIOS

zSupports APM 1.2

zSupports ACPI 2.0 power management

Green Function:

zSupports Phoenix-Award™ BIOS power management function

zSupports system-wake-from-power-saving-mode by keyboard or mouse touching

Shadow RAM:

zIntegrated memory controller provides shadow RAM functionality and supports ROM

BIOS

Flash Memory:

zSupports flash memory functionality

zSupports ESCD functionality

Hardware Monitor Function:

zMonitors CPU/ Chassis Fan Speed

zMonitors CPU and system temperatures

zMonitors system voltages

Watch Dog Timer:

zThis function is used for detecting the system hangs during the POST stage due to

conflicts resulting from changing the system BIOS settings. Once the problem is

detected, the system will reset the configurations and reboot the system within five

seconds.

Mainboard KM61S-AM2

Configuration

Layout of KM61S-AM2

Mainboard KM61S-AM2

Hardware Installation

This section will assist you in quickly installing your system hardware. Wear a wrist ground strap

before handling components. Electrostatic discharge may damage your system components.

CPU Processor Installation

This mainboard supports AMD AthlonTM 64 FX/ AthlonTM 64 x2 Dual-Core/ AthlonTM x2

Dual-Core/ AthlonTM 64/ SempronTM processor and uses a Socket AM2. Before building your

system, we suggest you visit the AMD website and review the processor installation procedures.

http://www.amd.com

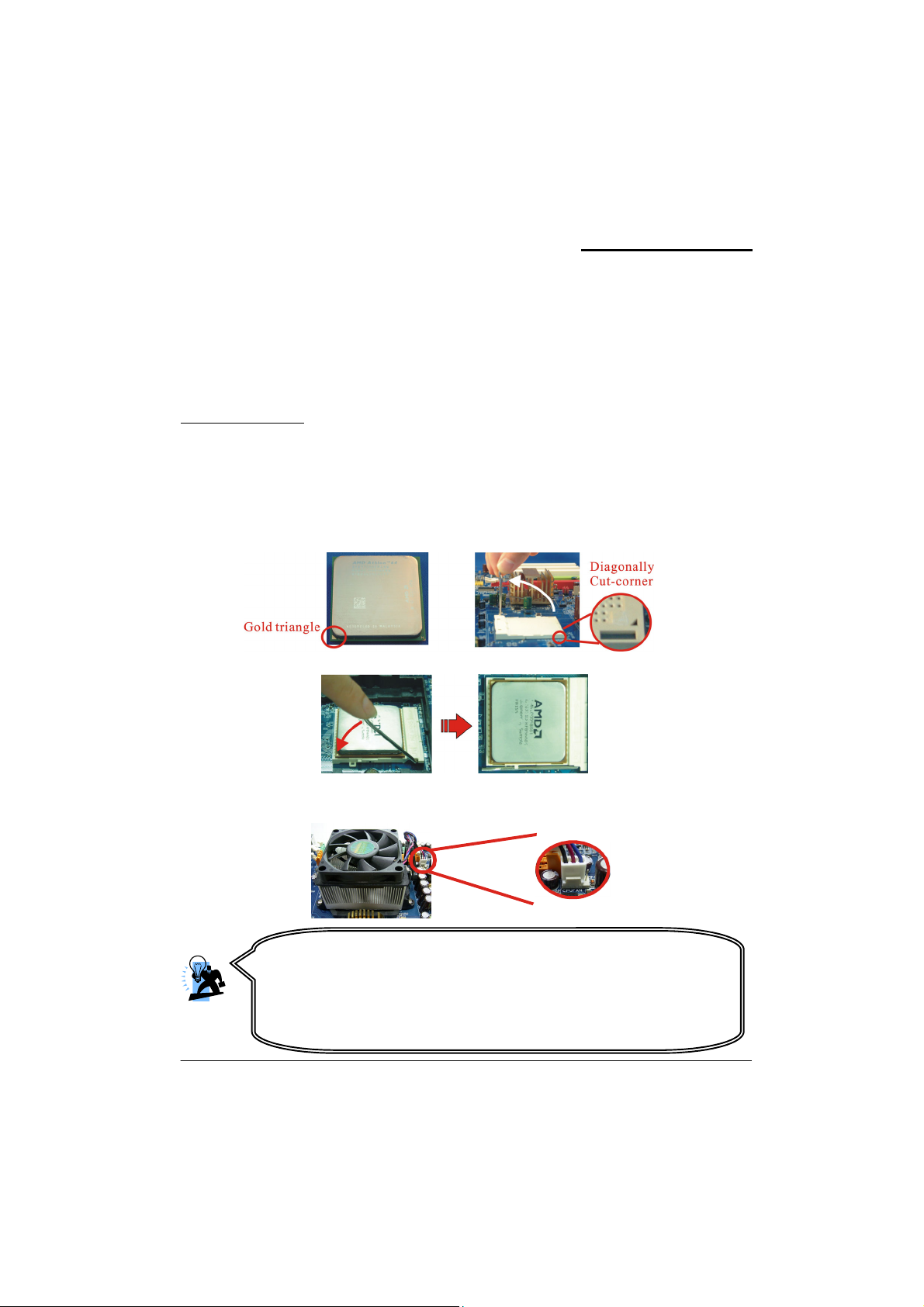

CPU Socket AM2 Configuration Steps:

1. Locate the CPU socket on your mainboard and nudge the locking lever away from the

socket. Then lift the lever to a 90-degree angle.

2. On the socket, locate the corner which has the “diagonally cut-corner” on the rectangular

shaped pattern of pinholes (see diagram below-left). Match that corner with the “gold

triangle” on the CPU (see diagram below-right) and lower the CPU onto the socket. The

bottom of the CPU should be flush with the face of the socket.

3. Lower the lever until it snaps back into position. This will lock down the CPU.

4. Smear thermal grease on top of the CPU. Lower the CPU fan onto the CPU and use the

clasps on the fan to attach it to the socket. Finally, extend the power cable from the fan and

insert it onto the “JCFAN1” adapter.

ttention

DO NOT touch the CPU pins in case they are damaged. Also, make sure

that you have completed all installation steps before powered on the

system. Finally, double-check that the cooling fan is properly installed and

the CPU fan power cord is securely attached, in case your CPU and other

sensitive components are damaged because of high temperatures.

Table des matières

Autres manuels Albatron Carte mère

Albatron

Albatron KX400-8XV Pro Manuel utilisateur

Albatron

Albatron KM400T-8X Series Manuel utilisateur

Albatron

Albatron KM7025 Manuel utilisateur

Albatron

Albatron K8NF4X-754 Manuel utilisateur

Albatron

Albatron PX865PEC PRO Manuel utilisateur

Albatron

Albatron PX915P Series Manuel utilisateur

Albatron

Albatron KX18D PRO II Manuel utilisateur

Albatron

Albatron PM 845G Series Manuel utilisateur

Albatron

Albatron PX915P4 Series Manuel utilisateur

Albatron

Albatron PXP43 Manuel utilisateur

Albatron

Albatron KM18G PRO Manuel utilisateur

Albatron

Albatron PX915P-2V Manuel utilisateur

Albatron

Albatron PX915P4C Series Manuel utilisateur

Albatron

Albatron PXP35 Manuel utilisateur

Albatron

Albatron PX865PEL-800 Manuel utilisateur

Albatron

Albatron PX925XE Series Manuel utilisateur

Albatron

Albatron PI960GLE Manuel utilisateur

Albatron

Albatron PX865PEC PRO(2.0) Manuel utilisateur

Albatron

Albatron K8Ultra-U Series Manuel utilisateur

Albatron

Albatron PM945GC Manuel utilisateur

Albatron

Albatron PX865PE PRO II Manuel utilisateur

Albatron

Albatron NForce 650i Ultra Manuel utilisateur

Albatron

Albatron KM51G-754 Manuel utilisateur

Albatron

Albatron PM845GV1 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
