AIS DTW22T100-A1-PCT Manuel utilisateur

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 1

User Guide

Widescreen PCT Multi Touch Monitor Display

DTW22T100-A1-PCT

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 2

The information contained in this document is subject to change without notice. This

Industrial Systems. All rights are reserved. No part of this document may be reproduced,

translated to another language or stored in a retrieval system, or transmitted by any means,

electronic, mechanical, photocopying, recording, or otherwise, without pri or written

permission. Windows is a registered trademark of Microsoft, Inc. Other brand or product

names are trademarks of their respective holders.

American Industrial Systems, Inc.

http://www.aispro.com

The test results show that this device meets the FCC rules. Those limits are set to protect

residential areas from the devices with harmful emission. This device will produce, use and

radiate radio frequency energy. In addition, failure to follow the user’s manual to install or use

this device might produce harmful interference with radio communication. Notwithstanding

the foregoing, it does not guarantee that this type of harmful interference does not occur in

some special installations. The interference caused by this device to the reception of radio or

television signals may be verified by turning it on and off. Any changes or modifications to this

TFT LCD would void the user’s authority to operate this device.

Important Recycle Instruction:

Lamp(s) inside this product contains mercury. This product may contain other

electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in

accordance with local, state, or federal Laws. For more information, contact the Electronic

Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check

WWW.LAMPRECYCLE.ORG

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 3

Table of Contents

Introduction .................................................................................................................................................. 5

About DTW22T100-A1-PCT.......................................................................................................................5

Touch Screen for DTW22T100-A1-PCT ...........................................................................................................6

Package Overview .....................................................................................................................................7

Installation .................................................................................................................................................... 8

Product Overview .....................................................................................................................................8

Front View............................................................................................................................................. 8

Bottom View .........................................................................................................................................8

Kensington Security Slot ...........................................................................................................................9

VESA Mount for Your Monitor................................................................................................................10

Connecting the Display ...........................................................................................................................11

Remove the Deskstand ...........................................................................................................................12

User Controls ..............................................................................................................................................13

Side Panel Controls .................................................................................................................................13

How to Use the OSD Menus ...................................................................................................................14

On-Screen Display Menus .......................................................................................................................15

Appendix .....................................................................................................................................................16

Troubleshooting ......................................................................................................................................16

Warning Signal ........................................................................................................................................17

Product Dimension .................................................................................................................................18

Compatibility Modes...............................................................................................................................19

Touch Screen Driver Installation.............................................................................................................20

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 4

Usage Notice

Warning!

To prevent the risk of fire or shock hazards, do not expose this product to rain or moisture.

Do not open or disassemble the product as this may cause electrical shock.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to

maximize the life of your unit.

Do:

•

Turn off the product before cleaning.

•

Touch screen surface may be cleaned using a soft clean cloth moistened with mild

window glass commercialcleaners or 50/50 mixture of water and isopropyl alcohol.

•

Use a soft cloth moistened with mild detergent to clean the display housing.

•

Disconnect the power plug from AC outlet if the product is not going to be used for an

extended period of time.

Don’t:

•

Do not touch the LCD Display screen surface with sharp or hard objects.

•

Do not use abrasive cleaners, waxes or solvents for your cleaning.

•

Do not operate the product under the following conditions:

Extremely hot, cold or humid environment.

Areas susceptible to excessive dust and dirt.

Near any appliance generating a strong magnetic field.

In direct sunlight.

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 5

Introduction

About DTW22T100-A1-PCT

DT = Desk Top

W = Widescreen ratio of 16:9

21.5 = Diagonal viewing area in inches

PCT = Projected Capacitive Touch

The monitor has a flat panel screen with an active matrix, thin-film transistor (TFT) liquid crystal display

(LCD).

Features include:

• Direct Analog signal input

• Active matrix TFT LCD technology

• 1920 x 1080 SXGA resolution

• 21.5" viewable displayarea

• 31.47 ~ 82.30 KHz horizontal scan

• 56 ~ 75 Hz high refresh rate

• 0.24825mm x 0.24825mm pixel pitch

• Auto adjustment function

• Multilingual OSD user control

• Kensington security slot

• 100 mm VESA mount

• Removable base for flexible mounting solutions.

• Projected Capacitive touch screen with USB controller.

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 6

Touch Screen for DTW22T100-A1-PCT

• Projected capacitive touch screen for finger input only

• Surface: Glare treatment

• Interface: USB controller

• Transmittance: 90±5%

• HID: Windows® 7

• Driver: VISTA, XP, 2000, CE, XPEmbedded, Linux, Apple® Mac OS

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 7

Package Overview

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 8

Installation

Product Overview

Front View

Bottom View

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 9

Kensington Security Slot

The monitor can be secured to your desk or any other fixed object with Kensington lock security

products. The Kensington lock is not included.

American Industrial Systems - DTW22T100-A1-PCT User Guide Page 10

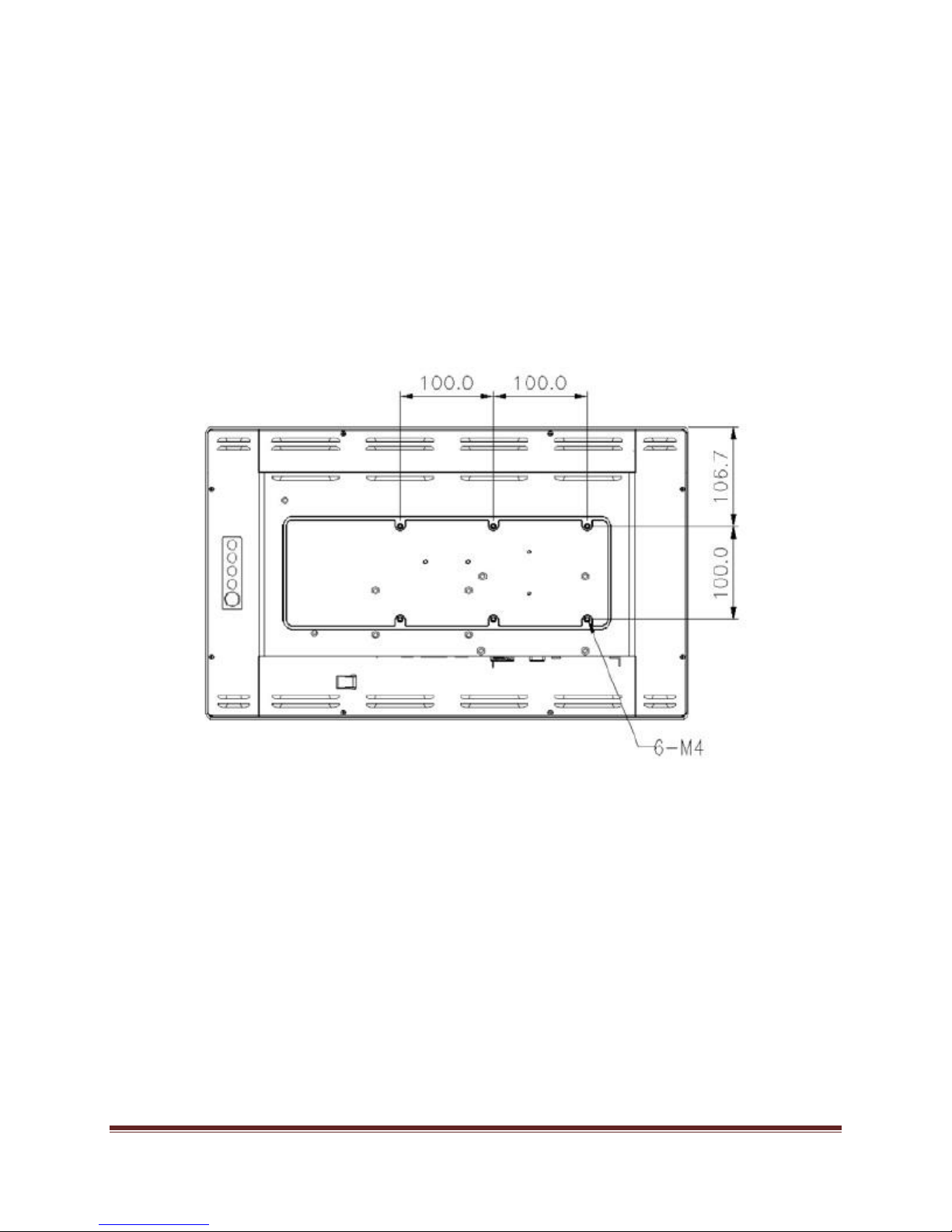

VESA Mount for Your Monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard

which defines a physical mounting interface for flat panel monitors, and corresponding with the

standards of flat panel monitor mounting devices, such as wall and table arms. The VESA

mounting interface is located on the back of your monitor.

To mount the monitor on an UL-listed certified swing arm or other mounting fixture, follow the

instructions included with the mounting fixture to be used.
