AGPtek A29 Manuel utilisateur

User Manual

A29(T) Music Player

CONTENTS

01/09

10/20

21/32

33/44

45/55

56/64

English

Deutsch

Italiano

Español

Français

日本語

Thank you for purchasing AGPTEK Music Player. Please read the

manual carefully before using the product. Specifications are

subject to change without prior notice.

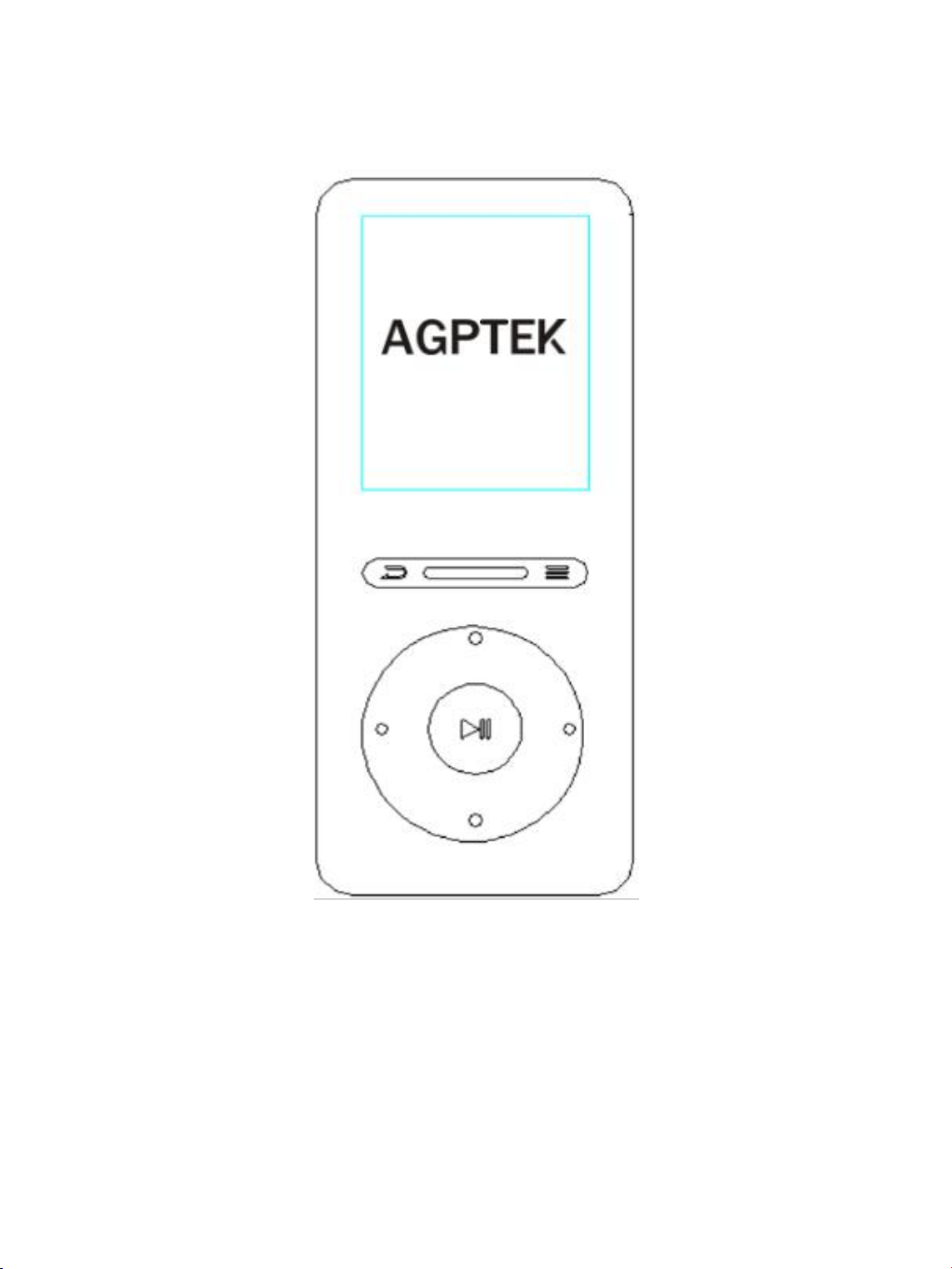

Buttons and Controls

Charge the Player

1. By connecting to a computer with the included USB cable

The USB cable can both be used for data transfer and charging

the player.

2. By connecting to a charger(Not included)

Please note: The specifications of the charger must meet the

following requirements or any accident or failure happened will

be regarded as man-made damage.

Input: AC110-240V 50/60Hz Max:100mA

Output: DC5.0-5.5V 500mA-800mA

1.Power slider

2.Play/Pause/Enter( )

3.Scroll up/

Volume +(▲)

4.Scroll down/

Volume -(▼)

5.Previous/ Rewind( )

6.Next/ Fast forward( )

7.Back button

8.Menu button/Screen

Lock/Unlock

9.USB port

10.Earphone jack

11.Micro SD card slot

12.Display

Quick Guide

Power On/Off

1. Power On: Slide the power switch up. If the switch is already at

up position, just press the play button for 3 seconds.

2. Power Off:

1) Slide the power switch down.

2) Press play button for 3 seconds when the power switch is

at up position.

Note:

1) Please slide the power switch down if you won’t use it for a

long time.

2) If you cannot turn on the player, please make sure the slider

switch is on the up position.

3) When the player is on the music playing interface, if you hold

button to turn off it, next time you switch on the player, it

will start from the last position it left off.

Data Transfer

You can transfer music from your computer to the player using

the drag-and-drop method or using music management software

such as Windows Media Player. You can simply plug it into your

computer and copy over media files as if it were a hard drive.

Main Interface

Each time you press the button ▲/▼/ / , it will bring you to

one of its 9 different functions, including Music, Radio,

Bluetooth(only for A29T), Folder, Setting, Record, Tools, Pictures,

EBook and Video(only for A29).

While it’s on the main interface, press button to enter.

Functional Operation

Music

Find "Music" on main menu, press button to access to its

function. Press button ▲/▼to choose from the songs, press

button to play.

- All songs — play by name sequence

- Nowplaying — take you back to the song or audio file that you

are playing now. (When there is music playing in the background)

- Resume — Choose "Resume" to start playing from where you left

off last time.(When there is music paused in the background)

- Update card data — Update music from local and card folder

- Local folder — Internal memory(only available when SD card

inserted)

- Card folder — External Micro SD memory card(only available

when SD card inserted)

Volume Adjustment

When it’s on music playing interface, press ▲/▼to increase/

decrease the volume.

Fast Rewind/ Forward

When it’s on music playing interface:

-Hold button / for fast backward/forward. Click to go to

previous/next song;

-Press button to play or pause.

Return

On any interfaces, press button to back to the previous menu;

hold to back to main interface.

Submenu

While it’s on music playing interface, press the button to

access to the submenu.

Please note: For A29T, the next four functions mentioned below

can be found in “Play mode”.

- "Repeat", choose to repeat 1, repeat all, and view playing or turn

off repeat function.The player would only play the first 10 seconds

of a track and then skip if you select option "View playing".

- "Shuffle", choose to turn on/off shuffle mode.

- "Play music from…", choose to play songs from all

songs/artist/album/genre.

- "Language learning"(only for the music you are playing),

1)Choose the option "A-B Repeat", press button to confirm

the starting time A(A is flashing).

2)Then press button again to set the ending time B(B is

flashing). Press button again and the audio from time A

to B will be repeated automatically. The icon for A-B indication

will appear on the screen.

3)Press button again to back to normal playback.

Replay Times, choose to replay passage A-B for 1-10 times.

Replay Interval, choose to set the playing intervals for 1-10

seconds.

Please note: For A29T, the next two functions mentioned below

can be found in “Sound Settings”.

- "Equalizer", choose from the 7 sound effects, or choose "off" to

turn off equalizer.

- "Speed", adjust speed from -8(Slowest) to +8(Fastest).

- "Bookmarks", choose to add, delete or go to bookmark.

- "Delete", choose to delete the song that is playing now.

- "Add to playlist"/"Remove from Playlist", choose to add to or

remove from the 3 playlists.

Please note: For A29T, “Sound Settings” function is not available

when connected to Bluetooth device.

FM Radio

Select "Radio" on main menu, press button to access to its

function. A related list will show including "Station list", "Manual

tune", "Auto tune" and "FM recording". Press ▲/▼to select.

Manual tune and Auto tune

You can adjust the radio by "Manual tune" or "Auto tune", Choose

"Manual tune", press button / to rewind or forward

search one by one, and hold button / to search

automatically, press the button to stop.

Choose "Auto tune" to search and save the radio stations

automatically.

Set the FM radio with the button

While it’s on radio playing screen, press button to go to its

submenu, including "Start FM radio recording", "Save", "Clear

preset", "Auto tune", "Tuner region" and "FM recording".

- Choose "Start FM radio recording" to save the radio you

want to record, find the saved recordings in the "FM recording".

Please note:

1. The saved recordings can be saved in WAV (in default)

/MP3/ACT(only for A29) format, choose to set the format in

"Recordings" >"Record Format"

2. You can choose to store your radio in local folder or card folder

under "FM recording" when the card is inserted.

Bluetooth (Only for A29T)

Select “Bluetooth” on main menu, Press button to access to

its function. All of the devices(Bluetooth Receiver) connected

before and being searched now will be listed here. Choose from

the devices(Check the Bluetooth status of the device you want to

connect first) and press button to connect. After successfully

connected, this player is ready to play music or radio by Bluetooth

earphones, Bluetooth speaker, etc. Press button you can go

back and choose to turn off the Bluetooth.

Please note:

1.A29T music player can only pair with Bluetooth Receiver like

Bluetooth earphone or Bluetooth speaker.

2.When listen to radio by Bluetooth, wired headphones is still

needed as a radio antenna.

3.Recording,video and picture function are not supported under

Bluetooth condition.

Recordings

Select "Record" on main interface, press button to access to

its function, then a related list will show as "Start Voice Recording",

"Recordings library", “Record Format”, "Storage"(only available

with card inserted) and "Record Settings".

-Select "Start Voice Recording" and press to start your

recording. Press and then choose "Yes" to save your recording;

-When it’s on recording interface, press the button to pause

or start;

-See your recording files in Recordings library. Press button

to play the recordings. Press / to go to the previous/next

recording.

- "Record Format", Select a format among MP3, WAV and ACT;

-“Storage”, choose to store your recordings in internal or

external memory. Confirm your selection with button .

Record Settings

"Set rec bitrate", Select from 512/768/1024/1536kbps for WAV

format; 32/64/128/192 kbps for MP3 format; 8 kbps for ACT

format(only for A29).

"Track AVR mode": Choose Normal/AVR mode;

Note: When it is in AVR mode and you choose to start recording,

the player will not record until sound is detected and stop

recording when no sound detected.

"Set recording scene", choose from different scenes(only for A29

in WAV/MP3 format).

Tools

Select "Tools" on main interface, press button to access to its

function. A related list will show "Video(only for A29T)","Calendar",

"Stopwatch" and "Alarm".

Select Stopwatch and press button to enter, press again

to start the timer, then press again to stop/resume. Press ▼

to start a new one. Press to go back.

Please note: the maximum Stopwatch list is 5.

Video

Find "Video" on main menu, press button to access to its

function. You will need to choose from local folder or card folder

if the card is inserted. Press the button to access to the

submenu

"Repeat", choose to repeat 1, repeat all or turn off repeat

function.

"Update card data", update the videos in the card.

Please note: This player can only support the AMV format in

160*128, you should convert video files by format conversion

software first.

EBook

Please note: Only "txt" format is supported for eBooks.

-Select "EBook " on main interface, press button to access to

its function.

-Press button ▲/▼to turn the page up/down.

-While on text playing interface, press button to play

automatically, press again to stop(Press and choose

“Playsetting” to set the automatic playing interval).

Please note: if your player cannot read your txt document through

E book, connect it to the computer, and then choose the file for

the item "save as", select the code as "UTF-8" and save, then copy

the txt file to E-Book folder.

Folder view

Select "Folder" on main menu, press button to access to its

function. All of the files in the player will be listed. If the Micro SD

card is inserted, you can choose to go to Local folder or Card

folder. Press ▲/▼to select and choose to play.

Pictures

-Press to enter and choose to play photos from local folder

or card folder;

-Press / to go to the previous/next picture.

Settings

Find "Setting" on main menu, press button to access to its

function. press ▲/▼to select. Press to back to the previous

menu; hold to back to main interface.

Power off: When there is no operation on the device, it will shut

off automatically when reaches the set time;

Sleep timer: The player will power off automatically when

reaches the set time(1-99min).

Display settings: Set the Brightness, Backlight timer and

Screensaver of your player;

Backlight timer: set the time at 10(seconds)/20(seconds)/ 30

(seconds)/Always on.

Date and time: Set the Date and time according to your need;

Press button / to select year/month/day/ hour/minute.

Press ▲/▼to set the year/month/day/hour/minute.

Trouble Shooting

a.How to re-choose the language?

Find this icon in the main interface, and press button to

access to its menu, scroll down to the last menu(the menu at the

button is "Factory settings" in English). Press button to enter

and choose the first(upper) option which means "Yes" , Press

button again to confirm and restore to factory settings, the

player will power on automatically and then you can choose

language again.

b.Can’t turn on the player; The screen of player goes blank/black;

the player is crashed or has a firmware bug

1)Slide the power switch to down position to turn off the player,

then try again.

2)Update the firmware. Please visit http://www.agptek.com/supp

ort/download.html/ or www.agptek.com/blog to download the

firmware and update.

c.Disk error

If the screen says "Disk error", please format the player. Find it in

"settings">"Format device".

Please shutdown the device before you insert the memory card.

d.Songs can’t be recognized by the player

Please check if the song is in a wrong format or has been

encrypted, or the song format is not supported by this player. Find

the supported audio format: MP3/ WAV/ APE/ WMA/ FLAC.

Autres manuels pour A29

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels AGPtek Lecteur MP3

AGPtek

AGPtek S19 Manuel utilisateur

AGPtek

AGPtek B03 Manuel utilisateur

AGPtek

AGPtek A20 Manuel utilisateur

AGPtek

AGPtek W2 Manuel utilisateur

AGPtek

AGPtek T01S Manuel utilisateur

AGPtek

AGPtek R1SB Manuel utilisateur

AGPtek

AGPtek G12 Manuel utilisateur

AGPtek

AGPtek B05 Manuel utilisateur

AGPtek

AGPtek C8 Manuel utilisateur

AGPtek

AGPtek A21 Manuel utilisateur

AGPtek

AGPtek B03 Manuel utilisateur

AGPtek

AGPtek U5PL Manuel utilisateur

AGPtek

AGPtek S07 Manuel utilisateur

AGPtek

AGPtek K1 Manuel utilisateur

AGPtek

AGPtek A01S Manuel utilisateur

AGPtek

AGPtek a06 Manuel utilisateur

AGPtek

AGPtek G05S Manuel utilisateur

AGPtek

AGPtek K2 Manuel utilisateur

AGPtek

AGPtek A02T Manuel utilisateur

AGPtek

AGPtek C2 Manuel utilisateur

AGPtek

AGPtek A26 Manuel utilisateur

AGPtek

AGPtek IMP Manuel utilisateur

AGPtek

AGPtek G6 Manuel utilisateur

AGPtek

AGPtek a02 Manuel utilisateur

Manuels Lecteur MP3 populaires d'autres marques

Blaupunkt

Blaupunkt Compact Drive MP3 Manuel utilisateur

Memorex

Memorex MMP9008 - 8GB USB 2.0 Manuel utilisateur

Meizu Electronic Technology

Meizu Electronic Technology E5 Manuel utilisateur

Naxa

Naxa NMV-173NX Manuel utilisateur

Philips

Philips PSA250 Manuel utilisateur

Zipy

Zipy go! Waving Manuel utilisateur

Sylvania

Sylvania SMPK4068 Manuel utilisateur

Sony

Sony NW-MS7 - Memory Stick Walkman Manuel utilisateur

Irradio

Irradio RF-42UC Manuel utilisateur

NABAIJI

NABAIJI SWIM MUSIC 100 Manuel utilisateur

Laser

Laser MP3-A9-4GB Manuel utilisateur

Samsung

Samsung YP-T7F Manuel utilisateur

Savant

Savant SMS-1001-00 Guide de référence rapide

Trevi

Trevi XP 71 BT Manuel utilisateur

MobiBlu

MobiBlu DAH-1500i Manuel utilisateur

Denver

Denver MPS-201 Manuel utilisateur

Steren

Steren MP3-002 Manuel utilisateur

Kenwood

Kenwood M1GD50 Manuel utilisateur
