Introducing the Agilent Technologies

4339B and 4349B High Resistance

Meters Used for Making Ultra-

High Resistance Measurements

For precision bench-top applications,

the 1-channel 4339B is the premier

solution for accurate high resistance

and low current tests. For high resist-

ance testing in manufacturing envi-

ronments, the 4349B offers simulta-

neous 4-channel high resistance

measurements for increased test

throughput.

Satisfy Your Needs for ...

High quality results

• High confidence testing with

contact check function

• Remove parasitics with error

correction

• Consistent data with 0.6% basic

accuracy

• Compensation for handler contact

chattering with trigger delay

Versatile measurements

• Select from four test parameters

• Use a variety of test fixtures

and accessories

• Perform a charge-measure-

discharge sequence with the test

sequence program function

• Save and recall up to ten

measurement setups

High test throughput: 4349B

• 9.5 ms measurements

• 4-channels for multiple DUTs

• 4-channel simultaneous testing

• Fast contact checking: 2 ms/

measurement

• GPIB and handler interfaces

• Ideal for high volume capacitor

testing

Agilent

4339B/4349B High Resistance Meters

Technical Overview

Open:

Compensates leakage current

and capacitance in test fixtures

and cables.

Contact check:

Verifies reliability of

capacitor test connections.

Save/Recall:

Stores and retrieves up to

10 measurement states.

Comparator:

Selects values for high,

in, and low testing.

Measurement parameter:

Selects the right parameter

for the measurement.

Display:

LCD with back-light. Displays

measurement values, instrument

states, and comparator results.

Test sequence program:

Controls a series of resistance

measurements.

(Charge-measure-discharge)

Agilent 4349B 4-channel high resistance meter

Key parameters and specifications

Agilent 4339B Agilent 4349B

Test channels 1 2ch, Option 4349B-001

4ch, Option 4349B-700

Test voltage(Vdc) 0.1 to 1000 Requires external power source1

Measurement parameters R, I, pv, ps R, I

Measurement range (Ω) 103to 1.6x1016 103to 1015

Basic accuracy 0.6% 2%

Display resolution 3 / 4 / 5 digits 3 / 4 / 5 digits

Measurement time 10 ms/30 ms/390 ms 9.5 ms/28 ms/98 ms/397 ms

1. External power source required for resistance measurements. Recommendation for external power source for

measurement for 1 GΩsample at 100 Vdc with accuracy = ±10%:

Ripple: ≤1 mVrms (50/60 Hz)

Wideband noise: ≤5 µVrms/Hz (50 Hz)

Switching noise: ≤50 mVrms (100 kHz)

High quality measurements

with flexible hardware

• Resolve data to 5 digits

(3, 4, or 5 digits selectable)

• Make precise measurements

with 0.6% basic accuracy

• Verify DUT performance at

the exact voltage rating

• Reliable and safety measurements

with Agilent 16339A component

test fixture

4339B solutions for high

voltage material testing

• Resistivity mathematics built-in:

surface and volume

• Agilent 16008B resistivity cell for

solid samples

• Easy measurements with test

sequence program function

(controls charge-measure-

discharge sequence)

• Customize your fixture cabling

with the Agilent 16117C test

leads

System features you need to

be successful

• Maximize accuracy with

error correction

• Test capacitor contact failure

with contact check function

• Automate testing with GPIB

interface

• Reduce ground-loops with

isolated handler interface

• Pass/Fail testing with comparator

function (high/in/low)

Capacitor evaluation with the 4349B

• Optimize capacitor Vdc

rating tests

• Increase throughput four

times with 4-channels

• Improve reliability with

contact check

• Get low noise results with

Agilent 16117E test lead

Specifications

Measurement Accuracy

Agilent 4339B test conditions*:

1. Warm up time: ≥30 minutes

2. Ambient temperature: 23 °C ± 5 °C

3. Test cable length: ≤1.5 meters

4. Open error correction performed

5. Long measurement time setting

6. Contact check: off

Accuracy parameters:

Rm: Measured resistance value in W

Im: Measured current value in

amperes

Vs: Source voltage in volts

Vo: 0.1 V@Vs ≤200 V, 0.5 V@Vs > 200 V

Accuracy example:

To determine the accuracy of a meas-

urement use Figure 1, “Conversion

diagram”.

For example: determine the accuracy

of a 5 MΩ(= 5 x 106 Ω) measurement

at 50 Vdc.

Rm = 5 x 106Ω

Vs = 50 V

The intersection of Rm running paral-

lel to the 106 Ωdiagonal line intersects

the vertical Vs line at the second row

from the bottom of the diagram. Mov-

ing horizontally across to Table 1, the

following equation is found:

100 Vo + (2.5 x 10-7 x Rm)

0.5 +

Entering the values for Rm, Vo, and

Vs yields an accuracy of ±0.725%.

Figure1. Conversion diagram Table 1. Agilent 4339B measurement accuracy (±% of reading)

Resistance RM (Ω)Current IM (A) Resistance measurement

Accuracy

Current measurement

Accuracy

Test voltage setting Vs (V)

Vo= 0.1 V @ Vs≤200 V

= 0.5 V @ Vs> 200

Agilent 4349B test conditions1:

1. Warm up time: ≥30 minutes

2. Ambient temperature: 23 °C ± 5 °C

3. Test cable length: ≤1.5 meters

4. Open error correction performed

5. 30 ms measurement time setting

Accuracy parameters:

Rm: Measured resistance value

in ohms

Im: Measured current value in

amperes

External power supply parameters:

Vs: Source voltage in volts

Vo: Source offset voltage in Volts

Av: Voltage accuracy

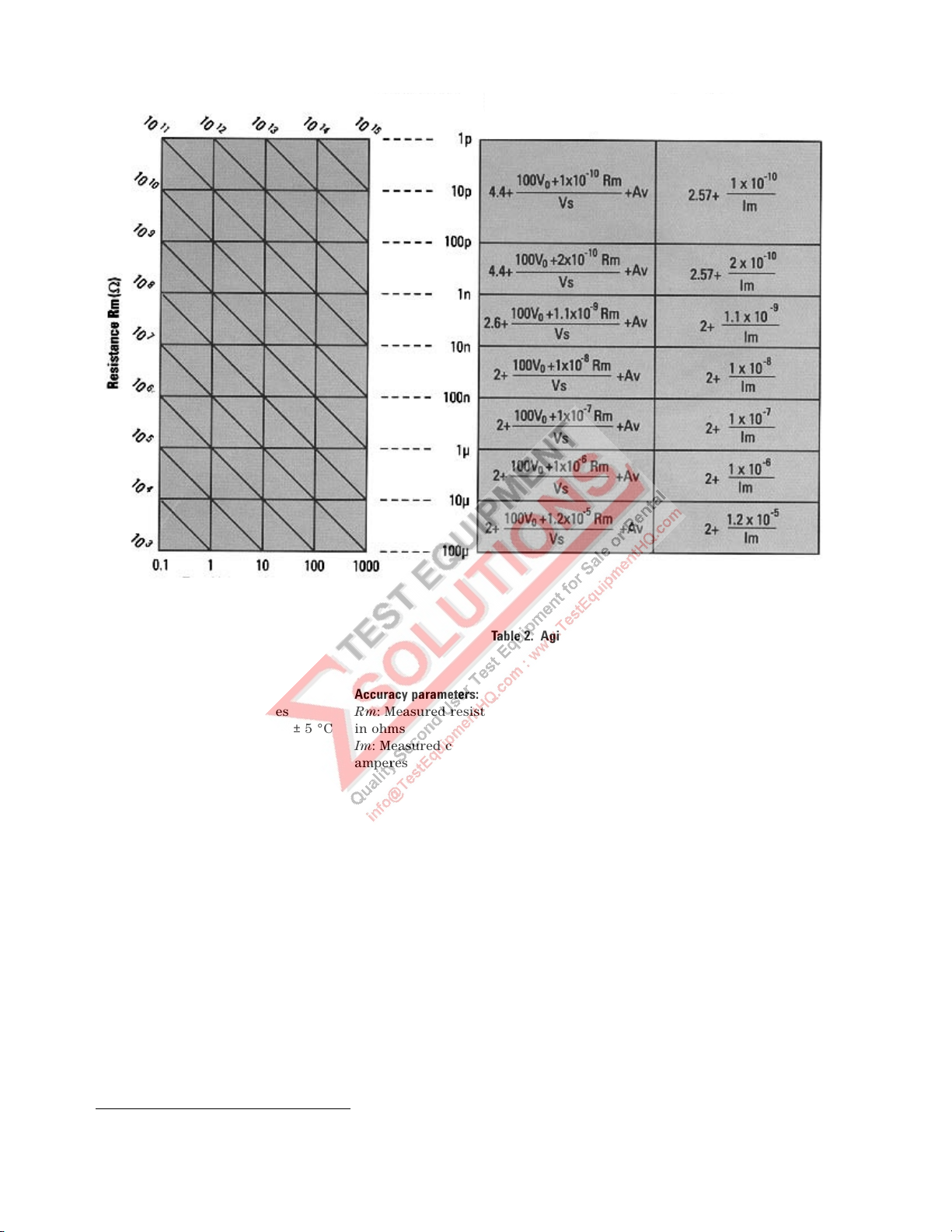

Figure 2. Conversion diagram Table 2. Agilent 4349B measurement accuracy (±% of reading)

Resistance RM (Ω)Current IM (A) Resistance measurement

accuracy

Current measurement

accuracy

Test voltage setting Vs (V)

1. Other test condition data available in the operation

manual.

Other Specifications

Measurement parameters/ranges

Parameter Range

Agilent 4339B

R (dc resistance) 103 Ωto 1.6 x

1016 Ω

I (dc current) 60 fA to 100 µA

ps (surface Refer to operation

resistivity) manual

pv (volume Refer to operation

resistivity) manual

Agilent 4349B

R (dc resistance) 103 Ωto 1015 Ω

I (dc current) 1 pA to 100 µA

Measurement conditions and functions

DC test voltage (4339B): 0 V to

1000 V, 0.1 V steps @ V ≤200V, 1.0 V

steps @ V > 200 V

DC test voltage (Agilent 4349B):

None supplied, use external power

supplies and voltage data entry

for resistance measurements.

Maximum of 5000 V input and 5

digit numerical entry.

Max current (Agilent 4339B):

10 mA @ ≤100 V, 5 mA @ ≤250 V, 2

mA @ ≤500 V, 1 mA @ ≤1 kV

Number of test channels:

4339B: 1 channel,

4349B: Option 4349B-700:4 ch

Option 4349B-001:2 ch

Ranging: Auto and hold

Trigger: Internal, manual, and

external

Delay time (trigger): 0 ms to

9999 ms in 1 ms steps

Test cable lengths: 2 meters

maximum

Measurement time (typical):

4339B: 10 ms / 30 ms / 390 ms

4349B: 9.5 ms / 28 ms / 98 ms /

397 ms

Other instrument functions

Error correction: Open (removes

errors due to parasitics).

Comparator: High, in, and low for

each of the test parameters.

Save/Recall: 10 instrument states

from non-volatile memory.

Contact check: Detects contact failure

for capacitive devices (2 ms).

GPIB: Agilent’s implementation of

IEEE 488 for control and data.

Handler interface: Negative logic

and isolated. Signals are

high/in/low, no contact, EOM, index,

alarm, keylock, ext. trigger.

Physical characteristics

Power: 90 – 132 Vac or 198 – 264 Vac.

47 Hz – 66 Hz. 45 VA (typical)

Operating

temperature/humidity:

0 – 45 °C/≤95% RH @ 40 °C.

Dimensions: 320(W) x 100(H) x

450(D) mm.

Weight: 6.5 kg (typical).

Test Fixtures/Accessories

Agilent 16339A component test fixture

For manual high voltage testing of

discrete components. For 4339B only.

Agilent 16117B low noise test leads

Wide jaw clip leads for 4339B. 1 meter

cable. Applicable measurement range:

≤1 x 1011 Ω (typical). For 4339B only.

Option 16117B-001 adds a pair of

pin-type probes. Option 16117B-002

adds a pair of socket adapters for

connecting to a custom made fixture.

Option 16117B-003 adds a pair of

alligator clips.

Agilent 16117C low noise test leads

Interlock, voltage source, and current

sensing cables. Terminations are

threaded triaxial, standard BNC, and

bare interlock pair. Female BNC and

triaxial connectors are included. For

4339B only.

Agilent 16118A tweezer test fixture

Tweezer test fixture for easy testing

for chip components. Maximum

applied voltage: 100 Vdc. Applicable

measurement range: ≤1 x 1011 Ω

(typical). For 4339B only.

Agilent 16008B resistivity cell

For resistivity measurements of dry

sheet samples. Upper electrode is

spring loaded to apply pressure.

Surface and volume measurements.

Installed with 50 mm diameter elec-

trode. Option 16008B-001 adds

26 mm/76 mm diameter electrodes.

Option 16008B-002 adds 26 mm

diameter electrode. For 4339B only.

Maximum applied voltage: 1000 Vdc.

Sheet thickness range: 10 µm to

100 mm.

Agilent 16117E low noise test lead

Male-triaxial to male-triaxial connec-

tors. One meter cable. One female-

triaxial connector included. For

4349B only.

Option 16117B-001

Option 16117B-003

Option 16117B-002

1. Test fixture is not furnished with the 4339B.

2. Manual is not furnished with the 4339B.

3. The alligator clips are not furnished as standard.

4. External power source required for resistance measurements.

5. 2-channels to 4-channels upgrade not available.

6. Manual is not furnished as standard.

7. Rack flange and handle kit are not compatible.

q Option 4339B-ABJ Add specified quantities of Japanese manual

q Option 4339B-0BW Add service documentation, assembly level

Certification option

q Option 4339B-1A7 ISO 17025 compliant calibration

Agilent 4339B test fixtures and accessories

Agilent 16008B Resistivity cell (50 mm diameter electrode)

q Option 16008B-001 Add 26 mm and 76 mm diameter electrodes

q Option 16008B-002 Add 26 mm diameter electrode

Agilent 16117B Low noise test leads

q Option 16117B-001 Add pin probes

q Option 16117B-002 Add soldering sockets

q Option 16117B-003 Add alligator clips3

Agilent 16117C Low noise test leads

Agilent 16118A Tweezer test fixture

Ordering Information

❍= Choose ONE and ONLY one

q = Choose any combination

Agilent 4339B High Resistance Meter1

Furnished accessories: shunt connector

Documentation options2

q Option 4339B-ABA Add specified quantities of English manual

Agilent 16339A Component test fixture

Agilent 4349B High Resistance Meter4

Test channel options5

❍Option 4349B-700 4-channels

❍Option 4349B-001 2-channels

Agilent 4349B high resistance meter6

Documentation options

q Option 4349B-ABA Add specified quantities of English manual

q Option 4349B-ABJ Add specified quantities of Japanese manual

q Option 4349B-0BW Add service documentation, assembly level

Cabinet options7

q Option 4349B-1CM Rack mount kit

q Option 4349B-1CN Front handle kit

Certification option

q Option 4349B-1A7 ISO 17025 compliant calibration

Agilent 4349B Test Fixtures and Accessories

Agilent 16117E Low noise test lead

www.agilent.com

For more information on Agilent

Technologies’ products, applications

or services, please contact your local

Agilent office. The complete list is

available at:

www.agilent.com/find/contactus

Americas

Canada (877) 894-4414

Latin America 305 269 7500

United States (800) 829-4444

Asia Pacific

Australia 1 800 629 485

China 800 810 0189

Hong Kong 800 938 693

India 1 800 112 929

Japan 0120 (421) 345

Korea 080 769 0800

Malaysia 1 800 888 848

Singapore 1 800 375 8100

Taiwan 0800 047 866

Thailand 1 800 226 008

www.agilent.com/find/agilentdirect

Quickly choose and use your test

equipment solutions with confidence.

Agilent Direct

www.agilent.com/find/emailupdates

Get the latest information on the products

and applications you select.

Web Resource

www.agilent.com/find/lcmeters

Europe & Middle East

Austria 0820 87 44 11

Belgium 32 (0)2 404 93 40

Denmark 45 70 13 15 15

Finland 358 (0)10 855 2100

France 0825 010 700*

*0.125 ¤/minute

Germany 01805 24 6333**

**0.14 ¤/minute

Ireland 1890 924 204

Israel 972-3-9288-504/544

Italy 39 02 92 60 8484

Netherlands 31 (0)20 547 2111

Spain 34 (91)631 3300

Sweden 0200-88 22 55

Switzerland 0800 80 53 53

United Kingdom 44 (0)118 9276201

Other European Countries:

www.agilent.com/find/contactus

Revised: March 27, 2008

Product specifications and descriptions

in this document subject to change

without notice.

2002, 2003, 2004, 2008

Printed in USA, April 15, 2008

5964-6182E

Agilent Email Updates

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Agilent Technologies Instrument de mesure

Agilent Technologies

Agilent Technologies 4338B Manuel utilisateur

Agilent Technologies

Agilent Technologies N9344C Manuel utilisateur

Agilent Technologies

Agilent Technologies E8364-60102 Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies 4500 Series Manuel utilisateur

Agilent Technologies

Agilent Technologies E8362C Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies 8751A Guide de démarrage rapide

Agilent Technologies

Agilent Technologies PSA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies Agilent 7890 Series Mode d’emploi

Agilent Technologies

Agilent Technologies 1664A Manuel utilisateur

Agilent Technologies

Agilent Technologies N5225-60114 Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies E5072A Manuel utilisateur

Agilent Technologies

Agilent Technologies U1401B Manuel utilisateur

Agilent Technologies

Agilent Technologies B1500A Guide d'installation

Agilent Technologies

Agilent Technologies U2722A Manuel utilisateur

Agilent Technologies

Agilent Technologies HP E5574A Manuel utilisateur

Agilent Technologies

Agilent Technologies Agilent 4396B Manuel utilisateur

Agilent Technologies

Agilent Technologies WireScope 350 Manuel utilisateur

Agilent Technologies

Agilent Technologies PSA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies Cary 60 Manuel utilisateur

Agilent Technologies

Agilent Technologies 16718A Guide de référence

Agilent Technologies

Agilent Technologies E5900B Manuel utilisateur

Agilent Technologies

Agilent Technologies N9020A Manuel utilisateur

Agilent Technologies

Agilent Technologies N5242A Manuel utilisateur

Agilent Technologies

Agilent Technologies 6811B Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
