Agilent Technologies 16700 SERIES LOGIC ANALYSIS SYSTEM 16700 Instructions d'utilisation et de sécurité
16700 Series
Logic Analysis System
Product Overview
Debugging today's digital systems
is tougher than ever. Increased
product requirements, complex
software, and innovative hardware
technologies make it difficult to
meet your time-to-market goals.
The Agilent Technologies
16700 Series logic analysis systems
provide the simplicity and power you
need to conquer complex systems
by combining state/timing analysis,
oscilloscopes, pattern generators,
post-processing tool sets, and
emulation in one integrated system.
2
Table of Contents
System Overview
Modular Design page 3
Features and Benefits page 4
Selecting the Right System page 6
Mainframes
Display page 7
Back Panel page 8
System Screens page 9
IntuiLink page 12
Probing Solutions
Criteria for Selection page 13
Technologies page 14
Data Acquisition and Stimulus
State/Timing Modules page 17
Oscilloscope Modules page 30
Pattern Generation Modules page 33
Emulation Modules page 37
Post-Processing and Analysis Tool Sets
Software Tool Sets page 39
Source Correlation page 41
Data Communications page 45
System Performance Analysis page 54
Serial Analysis page 61
Tool Development Kit page 67
Licensing Information page 73
Time Correlation with Agilent Infiniium Oscilloscopes
E5850A Logic Analyzer - Oscilloscope Time Correlation Fixture page 74
Technical Specifications and Characteristics
Mainframe page 75
Probing Solutions page 83
State/Timing Modules page 85
Oscilloscope Modules page 101
Pattern Generation Modules page 104
Trade-In, Trade-Up page 115
Ordering Information page 116
Third-Party Solutions page 123
Support, Warranty and Related Literature page 124
Sales Offices Information page 125
3
Modular Design Protects Your
Long-Term Investment
Modularity is the key to the Agilent
16700 Series logic analysis systems'
long term value. You purchase only
the capability you need no , then
expand as your needs evolve. All
modules are tightly integrated to
provide time-correlated, cross
domain measurements.
Module Choices User Benefits
State/Timing Agilent offers a wide variety of state/timing modules for a range
of applications, from high-speed glitch capture to multi-channel
bus analysis.
High-Speed Timing Precisely characterize setup/hold times over a wide channel
count. Capture data over many clock cycles while retaining the
highest multi-channel accuracy.
Oscilloscopes Identify signal integrity issues and characterize signals quickly
with automatic measurements of rise time, voltage, pulse width,
and frequency.
Pattern Generation Use stimulus to substitute for missing system components or to
provide a stimulus-response test environment.
Emulation An emulation module connects to the debug port (BDM or JTAG)
on your target. You have full access to processor execution
control features of the module through the built-in emulation
control interface or a third-party debugger.
External Ports
Target Control Port Use the target control port to force a reset of your target or
activate a target interrupt.
Port-in/Port-out A BNC connector allows you to trigger or arm external devices
or to receive signals that can be used to arm acquisition
modules within your logic analyzer.
System Overview
Modular Design

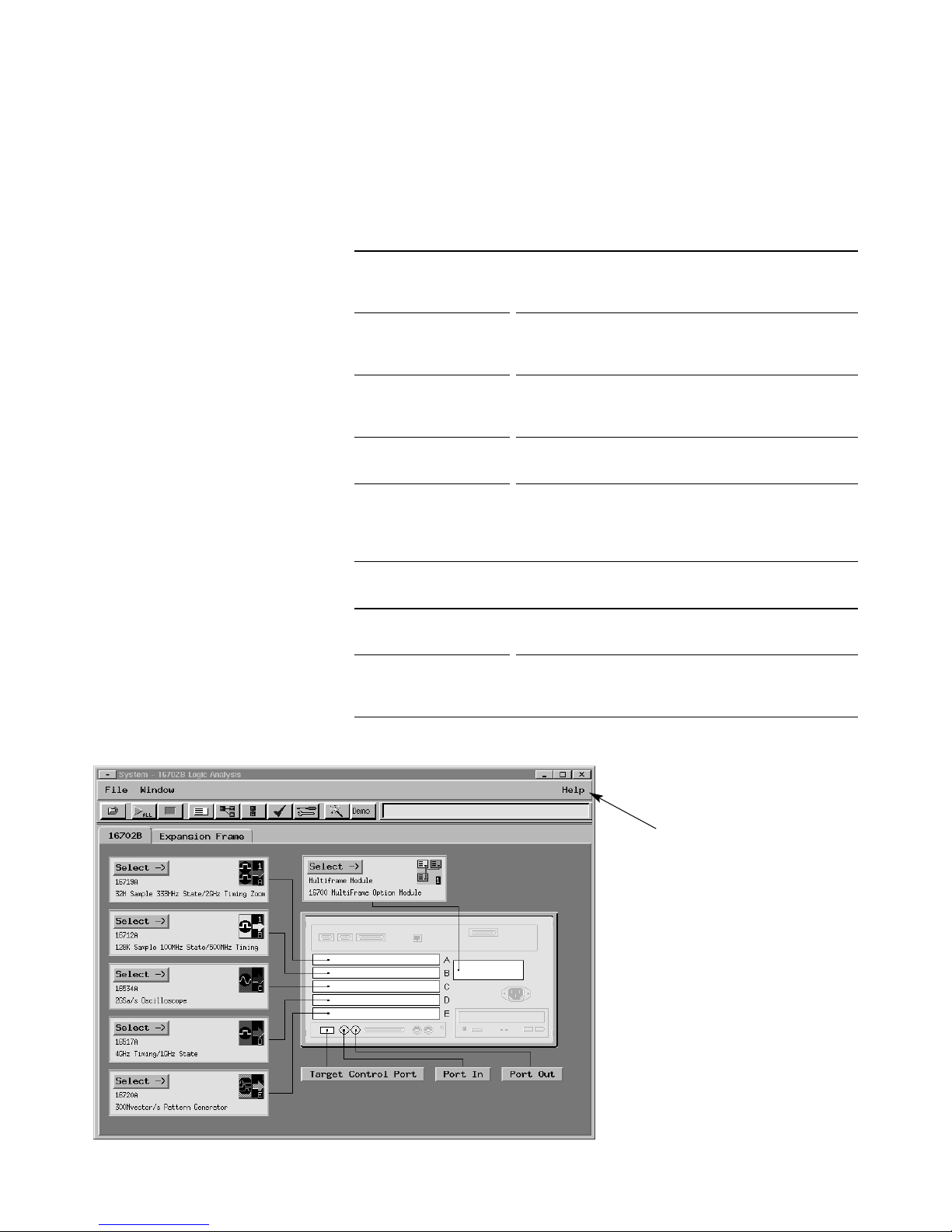

Figure 1.1. The system boot up screen shows you
what modules are configured into your logic
analysis system.
Help
enables you to
access the online
user’s guide and
measurement
examples.
4
System Overview
Features and Benefits
System Capability
NEW Touch Screen Interface The Agilent 16702B mainframe supports a large, 12.1 inch LCD touch screen and redesigned front panel
controls for an easy-to-operate, self-contained unit requiring minimal bench space and offering simple
portability.
NEW Multiframe Configuration By connecting up to eight mainframes and expanders you can simultaneously view time-correlated traces for
all buses in a large channel count, multibus system.
NEW Enhanced Mainframe Hardware Mainframe now includes a 40X CD-ROM drive, a 9 GB hard disk drive, 100BaseT-X LAN, and 128 MB of
internal system RAM (optional 256 MB total).
Scalable System
• State/timing analyzers • Select the optimum combination of performance, features, and price that you need for your specific
• High-speed timing application today, with the flexibility to add to your system as your measurement needs change.
• Oscilloscopes • View system activity from signals to source code.
• Pattern generators
• Emulation modules
Measurement Modules/Interfaces
The Agilent 16760A With up to 1.5 Gb/s state speed, the 16760A lets you debug today’s and tomorrow’s ultra-high-speed
State/Timing Module digital buses. NEW Eye scan gives a rapid comprehensive overview of signal integrity on hundreds of
channels simultaneously
The Agilent 16750A, 16751A, With up to 400 MHz state speed and up to 32 MBytes of trace depth these modules help you address today’s
and 16752A State/Timing Modules high-performance measurement requirements. (See page 19)
The Agilent 16720A With up to 16 MVectors depth and 300 MVectors/sec operation and up to 240 channels[1] of stimulus, the
Pattern Generator 16720A provides a new level of capability that makes complex device substitution a reality. Supports TTL,
CMOS, 3.3V, 1.8V, LVDS, 3-state, ECL, PECL, and LVPECL.
High-Speed Bus Measurements Agilent’s eye finder technology automatically adjusts the setup and hold on every channel, eliminating the
Made Simple with Eye Finder need for manual adjustment and ensuring accurate state measurements on high-speed buses.
Technology
Timing Zoom Technology Simultaneously acquire data at up to 2 GHz timing and 400 MHz state through the same connection. Timing
Zoom is available across all channels, all the time. (See page 23)
VisiTrigger Technology • Use graphical views and sentence-like structure to help you define a trace event.
• Select trigger functions as individual trigger conditions or as building blocks to easily customize a trigger
for your specific task.
Processor and Bus Support • Get control over your microprocessor’s internal and external data.
• Quickly and reliably connect to the device under test. (See page 36)
Direct Links to Industry Standard • Debuggers provide visibility into software execution for systems running software written in C and C++ as
Debuggers and High-Level well as active microprocessor execution control (run control).
Language Tools • Import symbol files created by your language tool. Symbols allow you to set up trigger conditions and review
waveform and state listings in easily recognized terms that relate directly to the names used for signals on
your target and the functions and variables in your code.
Direct Links to EDA Tools • Use captured logic analysis waveforms to generate simulation test vectors.
• Easily find problems by comparing captured waveforms with simulated waveforms.
[1] 240 channel system consists of five 16720A pattern generator modules with 48 channels per module. Full channel mode runs at 180 MVectors/s and 8 MVectors depth.
300 MVectors/s and 16 MVectors depth are offered in half channel mode.
5
System Overview
Features and Benefits
Data Transfer, Documentation, and Remote Programming
Direct Link to Microsoft®Excel via • Automatically move your data from the logic analyzer into Microsoft Excel with just a click of the mouse.
Agilent IntuiLink (See page 12)
• Use Microsoft Excel’s powerful functions to post-process captured trace data to get the insight you need.
Transfer Data for Offline Analysis - • Fast binary (compressed binary) from the FileOut tool provides highest performance transfer rate.
Data Export • ASCII format provides same format as listing display, including inverse-assembled data.
Transparent File System Access • Access, transfer, and archive files.
• Stay synchronized with your source code by mapping shared directories and file systems from your
Windows 95/98/NT-based PC directly onto the logic analyzer and vice versa.
• Move data files to and from the logic analyzer for archiving or use elsewhere.
Documentation Capability • Save graphics in standard TIFF, PCX, and EPS formats.
• Print screen shots and trace listings to a local or networked printer.
• Save your lab notes and trace data in the same file by entering relevant information in the Comments tab of
the display.
Remote Programming with • Perform pass/fail analysis, stimulus response tests, data acquisition for offline analysis, and system
Microsoft’s COM Using verification and characterization tests.
Microsoft Visual Basic or • Powerful-yet-efficient command set focuses on your programming tasks, resulting in a shorter learning
Visual C++ curve while maintaining necessary functionality.
System Software Features
Post-Processing Analysis Tools Rapidly consolidate large amounts of data into displays that provide insight into your system’s behavior.
(See page 38)
Setup Assistant Quickly configure the logic analysis system for your target microprocessor. (See page 9)
Tabbed Interface • Groups like tasks together so you can quickly find and complete the task you want to perform.
• Spend your time solving problems, not setting up a measurement.
Multi-Windowed View of • View your cross-domain measurements, time-corrected on the same screen. (See page 10)
Target System Activity • Debug faster because you can view system activity at a glance.
Global Markers Track a symptom in one domain (e.g., timing) to its cause in another domain (e.g., analog).
Resizable Windows and Data Views • Magnify your view or zoom in on a boxed area of interest.
• Resize waveforms and data or quickly change colors to highlight areas of interest.
Web-Enabled System • Directly access the instrument’s web page from your web browser. (See page 11)
• Remotely check the instrument’s measurement status without disturbing the acquisition.
• Remotely access, monitor and control your logic analysis system.
Network Security • Protect your networked assets and comply with your company’s security requirements with individual user
logins that provide system integrity.
NEW Time Correlation with • Make time-correlated measurements using an Agilent 16700 Series logic analyzer and an
Infiniium 54800 Series Oscilloscopes Agilent Infiniium 54800 Series oscilloscope.
• View Infiniium oscilloscope waveforms in the 16700 logic analyzer’s waveform display.
• Use the 16700 logic analyzer’s global markers to measure time between any domain in the 16700 and voltage
waveforms acquired by the Infiniium oscilloscope.
6
System Overview
Selecting the Right System
Select a mainframe (page 7)
Choose a system based on your needs:
• Self-contained unit or a unit with
external mouse, keyboard, and monitor
• Expander frame for large channel count
requirements
Selecting a system for your application
Determine your probing requirements (page 13)
• Are you analyzing a microprocessor?
• Do you need to probe a specific package type?
Select the measurement modules to meet your
application needs
• State/Timing Logic Analyzers (page 17)
• Oscilloscopes (page 29)
• Pattern Generation (page 32)
• Emulation (page 36)
Add post-processing tool sets for analysis and
insight (page 38)
• Source correlation
• Data communications
• System performance analysis
• Serial analysis
• Tool development kit
Support, services, and assistance (page 123)
• Training classes
• Consulting
• On-line support
• Warranty extension
7

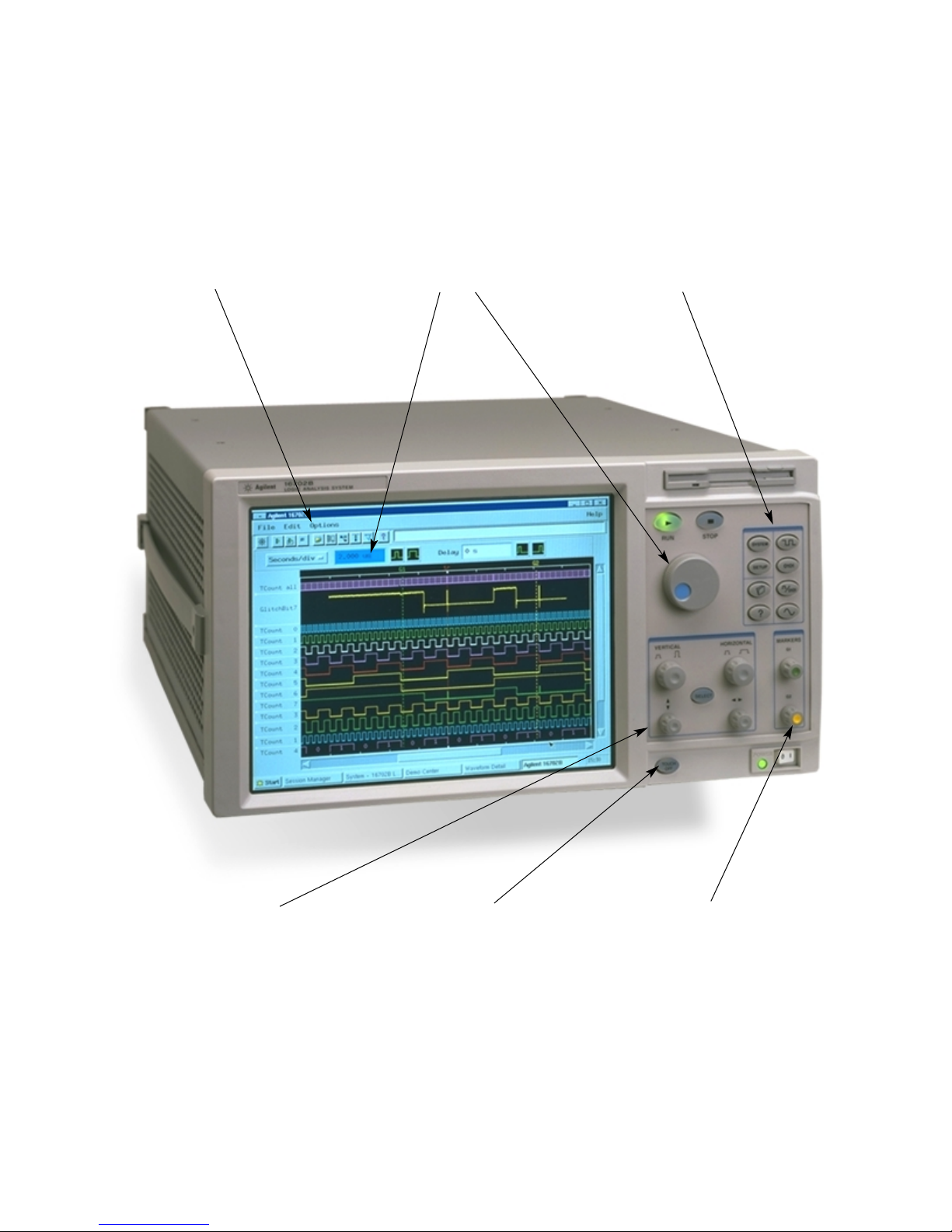

12.1" LCD display with touch screen on
the 16702B makes it easy to view a large
number of waveforms or states.
Dedicated hot keys give instant access to
the most frequently used menus, displays,
and on-line help.
"Touch Off" button disables the touch
screen and allows you to point out a
nomalies to a colleague without altering
the display settings.
Dedicated knobs for horizontal and vertical
scaling and scrolling. Adjust the display to
get just the information you need to solve
your problem.
Mainframes
Display
Select a modifiable variable by touching
it, then turn the knob to quickly step
through values for the variable.
Figure 2.1. The Agilent 16702B quickly tracks down problems in your design while saving precious bench space.
Dedicated knobs for global markers help
track down tough problems. A symptom
seen in one domain (e.g., timing) can be
tied to its cause in another domain
(e.g., analog).
8
Connection for optional monitor.
(Up to 1600x1200 video
resolution with option 003) 10/100BaseT LAN - autosensing
Parallel printer port SCSI-II connection for an
external 18 GByte data drive or
external removable hard drive
Expander frame connection provides an
additional five slots for measurement
modules.
Built-in 40x CD-ROM drive makes it easy
to install or update system software,
processor support, or tool sets.
Option slot for an emulation module or
for a multiframe module. Multiframe
option allows up to eight mainframes
and expanders to be combined so that
you can see all the buses in a complex
target system.
Mainframes
Back Panel
Figure 2.2. The mainframe and expander frame provide advanced capabilities for debugging complex target systems.
Five slots for
measurement
modules
9
Mainframes
System Screens
Figure 2.4. Setup Assistant gets you up and
running quickly.
System Admin
allows you to quick-
ly set up the instru-
ment on your net-
work, configure
print servers, set up
user accounts for
security or install
software updates.
Demo Center
provides simple
demos of the most
commonly used
features.
Setup Assistant
is a guided menu
system that helps
you configure the
logic analysis sys-
tem for your target
microprocessor or
bus. Online infor-
mation guides you
through the setup.
(See figure 2.4)
Figure 2.3. Icons in the power-up screen give you
quick access to common tasks.
10
Mainframes
System Screens
See the Big Picture of Your
Prototype System's Behavior
A large external display (option 001)
ith multiple, resizable indo s
allo s you to see at a glance more of
your target system's operation. A
built-in, flat-panel display in the
16702B fits in environments ith
limited space. Color lets you highlight
critical information so you can find
it quickly.
Use one system to examine target
operation from different perspec-
tives. Multiple time-correlated vie s
of data let you confirm both signal
integrity and soft are execution
flo . These vie s are invaluable in
solving cross-domain problems.
Figure 2.5. You can quickly isolate the root cause of system problems by examining target operation across a wide
analysis domain, from signals to source code.
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Agilent Technologies Instrument de mesure
Agilent Technologies
Agilent Technologies PN 8510-16 Guide de démarrage rapide
Agilent Technologies
Agilent Technologies PNA Series Manuel utilisateur
Agilent Technologies
Agilent Technologies 1170 Series Manuel utilisateur
Agilent Technologies
Agilent Technologies Cary 50 Manuel utilisateur
Agilent Technologies
Agilent Technologies 4339B Manuel utilisateur
Agilent Technologies
Agilent Technologies U1731B Manuel utilisateur
Agilent Technologies
Agilent Technologies Cary 60 Manuel utilisateur
Agilent Technologies
Agilent Technologies NFA Series Manuel utilisateur
Agilent Technologies
Agilent Technologies E5406A-Pro Series Manuel utilisateur
Agilent Technologies
Agilent Technologies E5071C Manuel utilisateur
Agilent Technologies
Agilent Technologies Agilent 4396B Manuel utilisateur
Agilent Technologies
Agilent Technologies 8719D Manuel utilisateur
Agilent Technologies
Agilent Technologies 4352B Manuel utilisateur
Agilent Technologies
Agilent Technologies N9340B Manuel
Agilent Technologies
Agilent Technologies 490 Micro GC Manuel utilisateur
Agilent Technologies
Agilent Technologies OmniBER 720 Manuel utilisateur
Agilent Technologies
Agilent Technologies PSA Series Mode d'emploi
Agilent Technologies
Agilent Technologies NFA Series Manuel d'utilisation et d'entretien
Agilent Technologies
Agilent Technologies U1211A Manuel utilisateur
Agilent Technologies
Agilent Technologies E5100A Manuel du propriétaire
Manuels Instrument de mesure populaires d'autres marques
Endress+Hauser
Endress+Hauser Proline Promag 50 Caractéristiques techniques
Siemens
Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces
KLINGER
KLINGER CMF V Series Manuel utilisateur
EXFO
EXFO FTB-2 Manuel d'exploitation et d'entretien
Keysight
Keysight M8290A Manuel utilisateur
ADTEK
ADTEK MW-5 Manuel utilisateur
