Installation & User Manual

For

703 F o u r B u t t o n

D E C T I n t e r c o m

Wireless Intercom System

Models AB, ABK, HB, HBK,

Version 1.1

(2 Relay Version)

P a g e | 2

Contents

Overview of system

…………….Pg 3

Site Survey

…………….Pg 3

Mounting the Transmitter

…………….Pg 3

Power supply

…………….Pg 3

Mounting Architectural Panels

…………….Pg 4

Mounting Hooded Panels

…………….Pg 4

Mounting Flush Panels

…………….Pg 4

Wiring

…………….Pg 5

Code Lock Keypad Connections

…………….Pg 6

Wiring Tips

…………….Pg 6

Keypad Overview

…………….Pg 6

Basic Keypad Programming

…………….Pg 7

Full Keypad programming

…………….Pg 7

Using the Keypad

…………….Pg 9

The Handset

…………….Pg 9

Recoding / Adding a Handset

…………….Pg 10

Testing

.………….Pg 10

Using the Intercom Handset

.………….Pg 10

Maintenance of the Intercom

.………….Pg 11

Troubleshooting

.………….Pg 11

P a g e | 3

Overview of System

Please read this entire manual before attempting to install this system.

This system should only be installed by a professional automatic gate installer or access control

specialist installer.

It is recommended that the system be range tested on site BEFORE being fully installed.

Site Survey

Before installing this system, you need to be sure that the range of the system will be sufficient.

The transmitter and speech unit can be powered up, call button pressed, and then check that the

handset will ring from all areas in which it will be used.

Tip: For longer range installations, locate the handset close to the front of the property, near a

window if possible. Concrete walls can reduce the open air range of 350 metres by 30-50% per

wall.

Mounting the Transmitter

Power Supply

TIP: Most technical calls received are due to installers using CAT5 or alarm cable to power

the unit. Neither are rated to carry enough power (1.2 amp peak). Please use following

cable…

Up to 2 metres (6 feet) –Use minimum 0.75mm2(18 gauge)

Up to 4 metres (12 feet) –Use minimum 1mm2(16 gauge)

Up to 8 metres (24 feet) –Use minimum 1.5mm2(14 gauge)

Using insufficient power cable thickness will cause excessive stress on electronic components,

and therefore void the manufacturer’s warranty.

Entrance

Pillar

Speech

Unit

150m

Typical

Side View

Entrance

Pillar

Speech

Unit

Side View

The transmitter should be mounted as high as possible on the gate

pillar or wall to maximise range. Mounting close to the ground will

reduce range and is also more likely to be further restricted by long

wet grass, overhanging shrubs and vehicles.

P a g e | 4

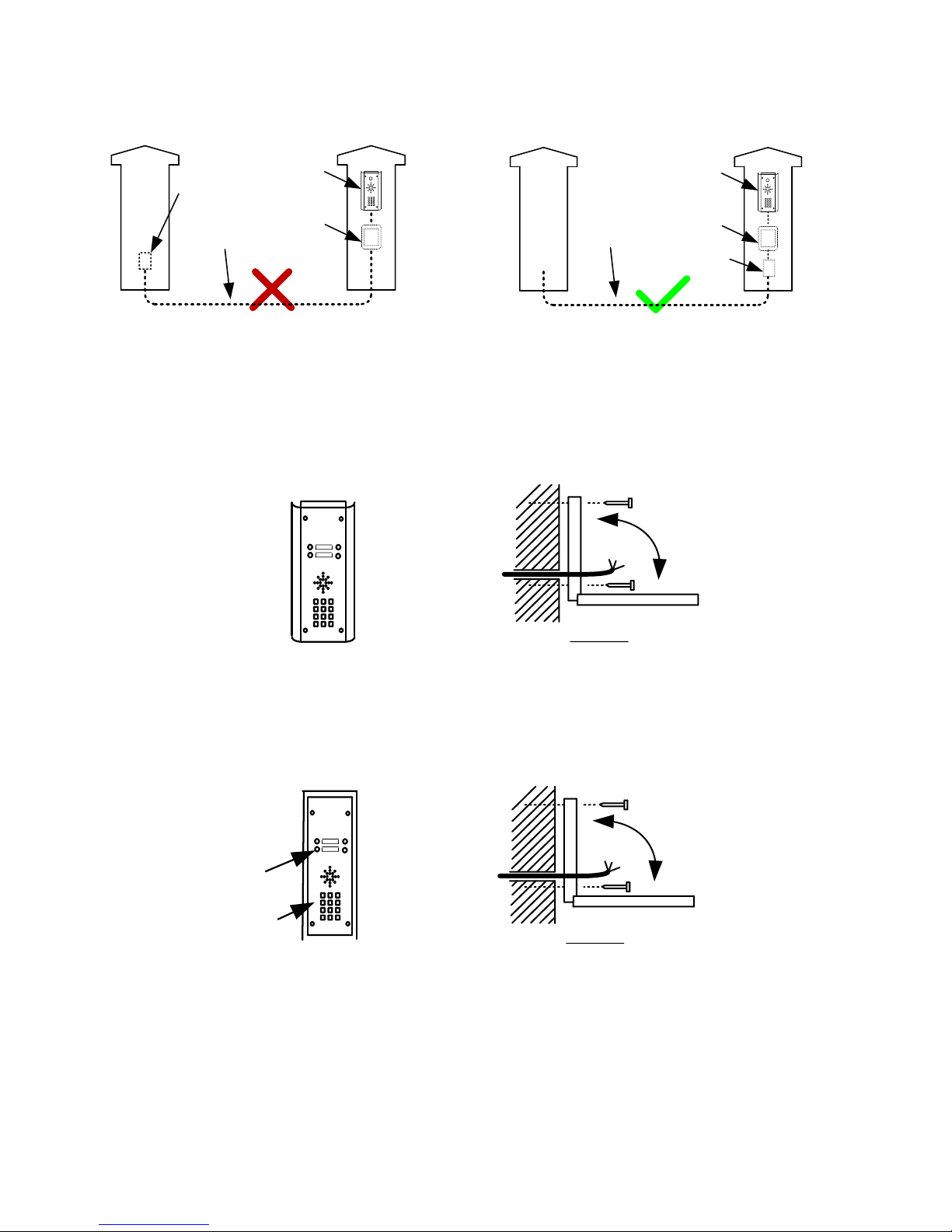

To avoid such problems it is recommended (and is good practice) to locate the power supply as

close to the transmitter as possible. This avoids power cable noise and interference and enhances

the lifetime of the product.

It is recommended (and good practice) to locate the power adaptor as close to the transmitter as

possible.

Mounting Architectural Panels

Hinge front door

Side View

Mounting Hooded Panels

Hinge front door

Side View

Excessively long

cable!!

12v power supply

Call point

Transmitter

Mains power 12v power supply

Call point

Transmitter

Call Buttons

Optional keypad

module

Loosen top 2 screws only

P a g e | 5

703 call

button 1

wired to

button 3 in

the call point

703 call

button 4

wired to

button 9 in

the call point

Wiring

Code Lock Keypad connections (Keypad versions only)

Wiring Call Buttons for 703 multi button versions

Please note the position of the buttons on the above panel options. For example, if you have a 2 button panel, you will be

wiring call buttons 3 and 8. For a 4 button panel, the corresponding button locations are 2, 3, 8 and 9.

Never drill holes in the top of

the enclosure. Cable entry

should be through the

bottom.

Screened CAT 5

4 meters max

603 Range

Intercom

Transmitter

(keep short for better audio)

N/O

N/C

Code

button

Solid shield

TIP: Microphone

has polarity. Take

care!

Note: Screened cable, solid core like CAT5

best. Keep short as possible. 4 metres max!

WARNING:

ESD Sensitive

components

Transmitter module Speech Panel

+12v

Power IN

Relay 2

12v

N/O

N/C

Relay 1 (Do NOT use

CAT5 or alarm

cable)

- +

12v DC

c- +

12v DC

123

VOLUME

BUTTON CONNECTIONS

If you have a 2 button panel, you will be wiring call buttons 3 and 8.

For a 4 button panel, the corresponding button locations are 2, 3, 8 and 9.

P a g e | 6

Keypad overview

N/C

COM

N/O

N/C

Data I/O

N/O

egress

OUT1 OUT2

OUT3 N/C

COM

N/O K or A

Sense

Tamper

N/C

DU out

(-)GND

O/P1 inhib

INT Lock

OUT2

Relay

Select N/ON/C

12v DC

From Power

Supply

Advanced connections

INT Lock –Used to operate a door in conjunction with another keypad. 24v dc max voltage,

100mA sink.

O/P1 inhib –When closed, this disables all codes for relay group 1.

Sense –N/C connected to (-)GND, to be connected to N/C door contact. Can be used to generate

door open or tamper alarm.

DU out –switches to (-) ground after the Duress Code is entered. Used to trigger alarm zone, or

buzzer to notify guard. 100mA sink, 24VDC.

K or A –Not used.

DATA I/O PORT (Data Communication Bus) The Data I/O port is prepared for setting up a data

bus for the connection of the auxiliary reader-keypads and the split-decoder in system expansion

Wiring Tips

TIP: If your system has a keypad, it will need a relay connected to the lock or gate system as well

as the transmitter relay.

Connecting DC magnetic

lock

Transmitter

relay

Optional

keypad

output

Lock

Separate

PSU

Connecting AC/DC strike

lock

Transmitter

Relay

Optional

keypad

output

Lock

Separate

PSU

Connecting automatic gates

Start

Com

Gate controller

Transmitter

Relay

Optional

keypad

output

Commonly used connections

Outputs –This keypad has 3 outputs. All can be

programmed for momentary and latching operation.

For gate systems and AC strike locks, connect a

keypad relay (normally open) in parallel with the

transmitter module relay. For magnetic locks, connect

in series with normally closed contact.

Egress –This is for an optional exit button input,

connected across this terminal and GND (-).

P a g e | 7

This keypad has 3 outputs. The diagram below shows the LED indicators which indicate

programming and relay status information.

RED when incorrect codes entered and outputs are locked out.

1 2 3

4 5 6

7 8 9

* 0 #

SLOW FLASHING - in normal standby mode.

ON in programming mode.

ON when relay 3 activated.

GREEN when output 1 activated.

RED when output 2 activated.

CLEAR when output 3 activated

FAST FLASHING –Wrong code entered / error.

TIP: After power up, as a security precaution, the keypad cannot be programmed for 60 seconds.

Once this time elapses, you may begin.

TIP: Flashing amber LED is normal standby mode!

Basic Keypad Programming

0 0 0 0 * *

Quick start guide

1) Enter programming mode (amber LED should be ON)

1 0 2 0 0 ? ?? ? #0

2) Enter a new user code...

* *

3) Exit programming mode

4) Enter the new user code to check the relay clicks.

Full Keypad programming

Enter programming mode..

0 0 0 0 * *

Exit programming mode..

* *

Tip: The engineer code

must be the same length as

user codes. So if using a 6

digit engineers code, then

user codes must also be 6

digits long etc.

The unit is now in programming mode. Amber LED on the

keypad should remain permanently on. 0000 is the default

programming passcode.

The unit should exit programming mode and the amber LED

should start flashing again.

P a g e | 8

Enter a new ENGINEERS code…

Go into programming mode firstly then enter the following sequence…

Location

0 1 ?? ? ?

4-8 digit code Validate

Enter or delete new user codes

There are 3 groups of user codes. Group 10 for relay 1, group 20 for relay 2, and group 30 for

relay 3. The programming sequence is shown below…

Memory locations

000-999 for relay 1

001-100 for relay 2

001-100 for relay 3

1 0 2 0 0

10= relay 1 codes

(1000 available)

20= relay 2 codes

(100 available)

30= relay 3 codes

(100 available)

? ?? ? #0

2= add code

5= delete code Pin code 4-8 digits Validate

Example: Add user 31 to have access code 5555 operating relay 2….

2 0 2 0 3 5 55 5 #1

Group 2 Add code Location 31 Pin code 5555 Validate

Programming relay output times and modes…

? ? 01 -

0 = start / stop toggle mode (latching)

1-99999 = seconds momentary operation

99999

or #

51=relay1

52=relay2

53=relay3

Validate

Delete a user code even if you don’t know the code…

? ? 5 ? ?? #

10=relay1

20=relay2

30=relay3 Delete code ID location to be deleted Validate

Delete an entire group of codes

? ? 0 9 99 #

10=relay1 group

20=relay2 group

30=relay3 group Super delete code Validate

Programming super user codes…

A super user code can activate any of the 3 relays

Location

0 2 ?? ? ?

4-8 digit code Validate

Replace ???? with your new ENGINEERS

code.

P a g e | 9

Restoring defaults

When in programming mode, you can enter the following sequence…

9 9 99 #

When the master code is forgotten….

1) Wire a push button (or replicate with wire link) across the Egress terminal and (-)GND.

2) Switch off power for 1 minute.

3) Switch ON power.

4) during the first 60 seconds, press the EG button once to enable the function.

5) Enter the following code..

8 0 08 * *

The keypad should now be in programming mode, ready to accept new data.

Using the keypad

Using the standard codes…

Once you have exited out of programming mode, simply enter the user code.

Using super user codes

?? ? ? # 1 Activate output 1

?? ? ? # 2 Activate output 2

?? ? ? # 3 Activate output 3

The Handset

The handset should be charged for 8 hours before use. It is recommended to give it at least 1

hour charge before range testing.

12.21

Charging

base

Power

LED

ON/OFF Vibration

ON/OFF

Voicemail

Symbol

Battery

Level

Reception

indicator

Code

Button

Change Ring Volume

Press and to increase

and decrease ring volume

and press OK to save.

Change Ring Tone

Press and the handset will

ring with its currently selected

tone.

Press and to cycle

through available ring tones

and press OK to select and

save.

Ring Another Handset

Press and the unit will

display HS1-5 depending on

how many handsets are coded.

Press and to select and

then OK to call that handset.

Voicemail

When a call is not answered

within 40 seconds, the visitor

can leave a message. Once

complete, the handset will

display the symbol. The unit

can store up to 16 messages.

P a g e | 10

To listen to voicemail, press OK to play. If there are more than 1 message, press and to

select the message required and press OK to play. = Delete (Relay 1). Long press = delete all.

Testing

Answer the call on any handset by pressing

, and check for good 2 way speech. Adjust

volume while on a call with up and down arrow buttons on the handset and press the same button

again to end the call. The gate/door release button can be pressed at any time, either while on or

off a call. The relay on the transmitter should then pulse on for 4 seconds.

Using the intercom Handset

12.21

Answer /

end call

Relay 1

Internal call

another handset

Up and down arrows

increase / decrease ring

and speech volume

Change

ring tone

Select or enter

Relay 2

Adjusting Relay time

Press Relay 2 button for 3 seconds, scroll through menu until you see ‘ti’. Press OK to select ‘ti’

and adjust your relay times. Press OK to select your relay time. Press the right arrow end the

process. Both relays will have the same relay time.

Adjusting time on Handset

Press OK for more than 2 seconds, and then use up and down arrow keys to set hour. Press OK

again to cycle to minutes and adjust. Press OK once more to end the process.

Calling…..

12.21

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AES Système d'interphone

AES

AES MultiCom 500 Manuel utilisateur

AES

AES 603 DECT Manuel utilisateur

AES

AES Prime 6E Manuel utilisateur

AES

AES WiFi Predator Manuel utilisateur

AES

AES CellCOM Plus AB Mode d’emploi

AES

AES 601V Manuel utilisateur

AES

AES GSM-3AB Manuel utilisateur

AES

AES Cellcom Prime 5AB Manuel utilisateur

AES

AES WiFi Predator Manuel utilisateur

AES

AES GSM-5AS/3GE Mode d’emploi

AES

AES MultiCOM Classic 4G Manuel utilisateur

AES

AES 605A Manuel utilisateur

AES

AES SnapCOM Prime 4G Manuel utilisateur

AES

AES CellCOM Lite 4G Manuel utilisateur

AES

AES MultiCom 100 Manuel utilisateur

AES

AES 603 SPARTAN Manuel utilisateur

AES

AES 603AB Manuel utilisateur

AES

AES 702/AB Manuel utilisateur

AES

AES GSM-800/AB Manuel utilisateur

AES

AES MultiCOM Lite 4G Manuel utilisateur

AES

AES Prime 6 Series Manuel utilisateur

AES

AES StylusAB Mode d’emploi

AES

AES GSM-3AB Manuel utilisateur

AES

AES 602AB Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
