AES WiFi Predator Manuel utilisateur

1 | P a g e

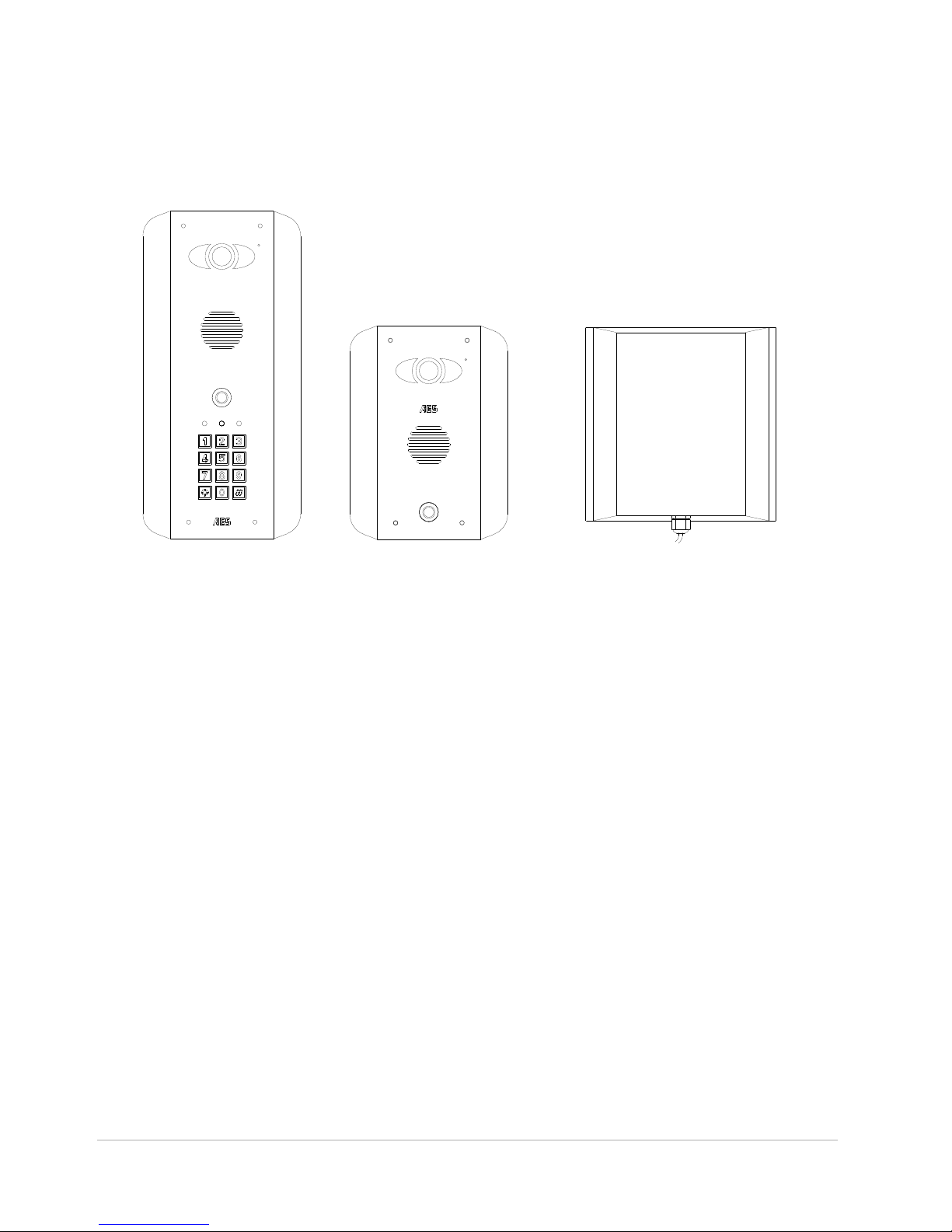

Installation Instructions

For

WiFi-Predator

2 | P a g e

Index

Section

Pages

Android Configuration

3-6

iphone Configuration

7-11

Range and range testing

12-13

Installation

Power Supply

Wiring

Relay Output

Keypad Overview

Basic Keypad Programming

Full Keypad Programming

Using the Keypad

Adding Additional Smart Phones & Devices

19-20

Using the Intercom on Android

Using the Intercom on iphone

Other options

Fault Finding

Revision changes

3 | P a g e

Open top screws only

Existing internet router

User phone

Android Configuration

Step 1

Using one of the homeowners’ Android

phones, search for “Predator WiFi” app

on the Google Play store. Look for the

icon shown. Then download and install to

the users phone.

Step 2

Locate the intercom on a bench or table beside the home router, along

with the user phone. Connect the antenna & power supply provided to the

intercom, red to +24v dc and black to 0v dc, and power on.

Step 3

Wait a full 60 seconds for the intercom to

fully boot up.

Step 4

Press and hold the call button for more

than 3 seconds. A loud tone will be

heard. The intercom will now be in

configuration mode for 5 minutes.

4 | P a g e

Step 5

Step 6

Enter settings on the phone, select

WiFi and scan for networks. The

phone should detect the intercom.

The network name will be BELL-

XXXXX)

Enter the following password…

123456789.

Step 7

Step 8

Now open the WiFi-Predator App on

the phone and select as shown to add

intercom.

On the next screen, select search as

shown.

5 | P a g e

Step 9

Step 10

The phone should then find the

device. Select it as shown.

On the next screen the intercom should

be showing online status. Select the

settings button.

Step 11

Step 12

Enter WiFi settings as shown.

Select option to manage wifi networks

and the intercom will now scan networks

in the area.

6 | P a g e

Step 13

Step 14

Select the network which the home

owner is normally using.

Enter the home owner’s WiFi password

and press DONE. The intercom should

now re-boot and the phone should then

re-connect to the normal wifi network.

2 mins…

Step 15

Step 16

Wait 2 minutes for the intercom to

come back online, and then open the

app. The intercom should be showing

status online.

You may now press the call button and

check that the intercom calls the phone

sucessfully.

You are now ready to range test the intercom in the location which it will be

used!

7 | P a g e

Open top screws only

Existing internet router

User phone

I-phone Configuration

Step 1

Using one of the homeowners’

iphones, search for “Predator-WiFi”

app on the Apple Store. Look for the

icon shown. Then download and

install to the users phone.

Step 2

Locate the intercom on a bench or table beside the home router, along

with the user phone. Connect the antenna & power supply provided to the

intercom, red to +24v dc and black to 0v dc, and power on.

Step 3

Wait a full 60 seconds for the

intercom to fully boot up.

Step 4

Press and hold the call button for

more than 3 seconds. The intercom

will sound a long tone, and now be in

configuration mode for 5 minutes.

8 | P a g e

Step 5

Step 6

Enter settings on the phone, select

WiFi and scan for networks. The

phone should detect the intercom.

The network name will be BELL-

XXXXX)

Enter the following password…

123456789. Now the iphone is directly

connected to the intercom.

Step 7

Step 8

Now open the WiFi-Predator App on

the phone and select as shown to add

intercom.

Press search. The phone should now

detect the intercom.

9 | P a g e

Step 9

Step 10

The intercom should now have been

detected. Select as shown.

Now the app should show the bell ID,

default username & password details.

Press DONE as shown.

Step 11

Step 12

Enter Settings as shown.

Select option to manage wifi networks

and the intercom will now scan

networks in the area.

10 | P a g e

Step 13

Step 14

Select the network which the home

owner is normally using. Note the

scan button at top if the iphone does

not automatically scan for networks.

Enter the home owner’s WiFi

password and press JOIN. The

intercom should now re-boot.

2 mins…

Step 15

Step 16

Wait 2 minutes for the intercom to

come back online, and then open the

app. The intercom should be showing

status online.

You may now press the call button

and check that the intercom calls the

phone sucessfully. Note: It may take

several minutes for the operation to

fully stabalise.

Note: Because of restrictions by Apple, your iphone will receive a notification message

first. If your screen is locked, you must swipe the notification banner, then unlock the

screen before the intercom app can begin calling the phone in full as shown…
