AES WiFi Predator Manuel utilisateur

1 | P a g e

Installation Instructions

For

WiFi-Predator

PUSH Version

Manual version 3.4

2 | P a g e

Index

Section

Pages

Android Configuration

4-7

iPhone Configuration

8-13

Adding Additional Smart Phones & Devices

Range and range testing

15-17

Connecting via LAN cable

Installation

Power Supply

Wiring

Relay Output

Using on Android

Other options

Using on iphone

Other Options

Keypad Overview

Basic Keypad Programming

Full Keypad Programming

Using the Keypad

Troubleshooting

Revision Changes

3 | P a g e

Site Survey BEFORE you install..

YES!

I have at least a little wifi signal at the

gate with my phone.

(If not a repeater, bridge, powerline link or

Ethernet cable will be required).

Note: 802.11n type wifi networks have double

the range of 802.11b/g types!

YES!

Internet UPLOAD speed (not

download) is at least 1 Megabit per

second.

(If not then remote use is not recommended).

YES!

The WiFi network is WPA or WPA 2

type security.

(WEP is older, less secure protocol and will not

operate with this product).

IMPORTANT:

BENCH TEST & COMMISSION BESIDE ROUTER BEFORE

INSTALLATION

4 | P a g e

Open top screws only

Existing internet router

User phone

Android Configuration

IMPORTANT: The following process is only to be carried out with one device as

the master device. Do NOT repeat with additional devices. To add more phones or

tablets, see section on adding additional devices.

Step 1

Using one of the

homeowners’ Android

phones, search for

“Predator WiFi PUSH”, and

find the icon shown on the

Google Play store. Then

download and install the

PUSH version to the users

phone.

Step 2

Locate the intercom on a bench or table beside the home router, along with the user

phone. Connect the antenna & power supply provided to the intercom, red to +24v dc

and black to 0v dc, and power on.

Step 3

Wait a full 60 seconds for

the intercom to fully boot up.

Step 4

Press and hold the call

button for more than 3

seconds. A loud tone will be

heard. The intercom will now

be in configuration mode for

5 minutes.

5 | P a g e

Step 5

Enter settings on the

ANDROID phone, select

WiFi and scan for networks.

The phone should detect the

intercom.

The network name will be

BELL-XXXXX).

Select this network.

Step 6

Enter the following

DEFAULT password…

123456789. Now the phone

is connected directly to the

intercom which is now

broacasting its own wifi

network.

Step 7

Now open the WiFi-Predator

PRO App on the phone and

select as shown to add

intercom.

Step 8

Press SEARCH.

6 | P a g e

Step 9

The app should find the

intercom serial number.

Press as shown to select it.

Step 10

The app screen will now

show the intercom serial

number or BELL ID,

Username: admin

Password:LEAVE BLANK

Press DONE to confirm.

Step 10b

The phone and intercom should now be

DIRECTLY connected and display ONLINE

status. Press as shown and check that

there is video and audio.

IMPORTANT

If video and audio is working, then the product is working perfectly. Should you

have problems after this step, then it is likely either networking, setup or a range

issue. Consult technical support in such an event.

Step 11

The normal user screen should now appear

as shown. The status of the intercom should

now show ONLINE.

Press the SETTINGS button as shown.

7 | P a g e

Step 12

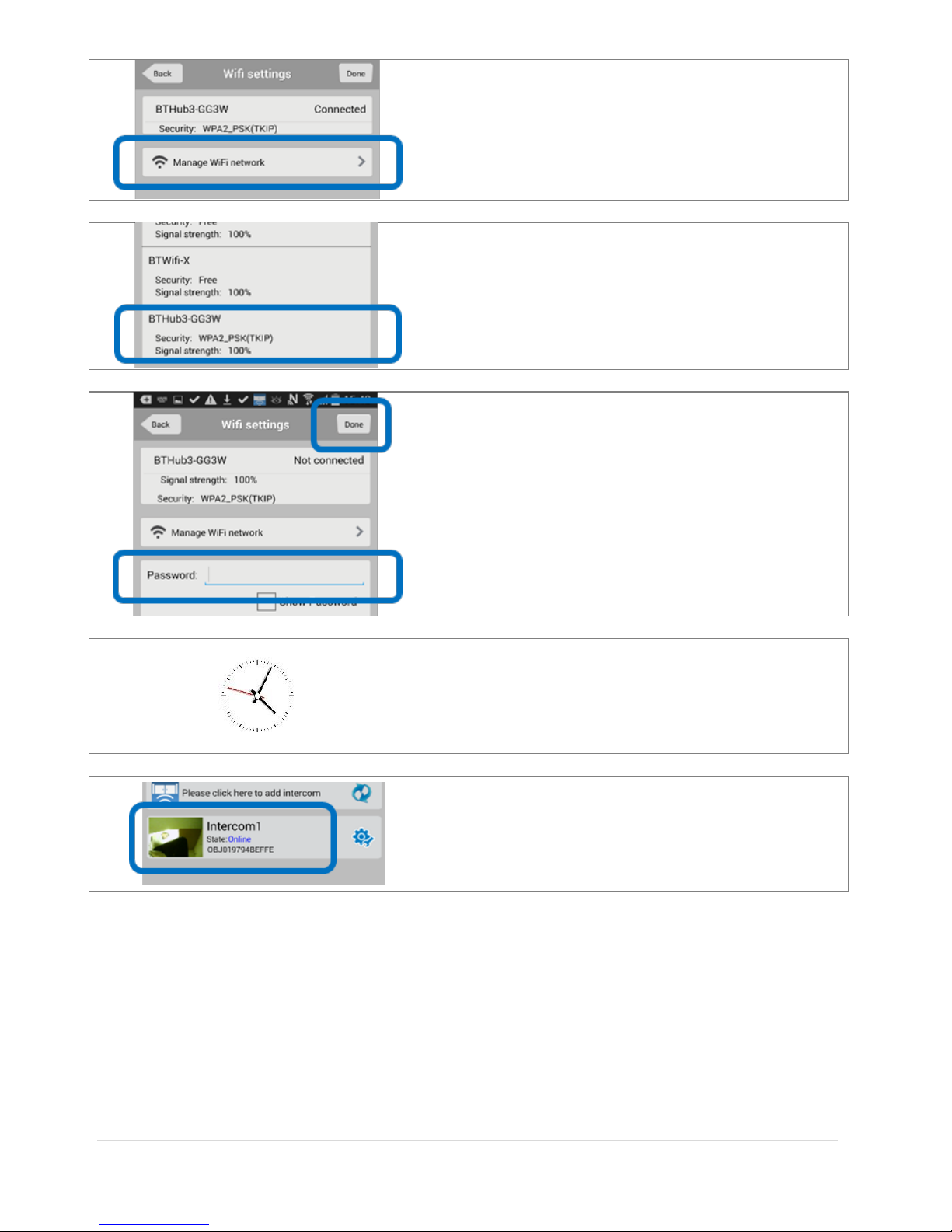

Select MANAGE WIFI NETWORK. The

intercom will now scan the area for available

networks.

Step 13

Select the wifi network which you would like

the intercom to connect to.

Step 14

Enter the wifi password and press DONE.

TIP: This unit will not work with older WEP

networks, only WPA and WPA2.

TIP: Ensure the password is correct. The app will

not know if the password is typed correctly or not.

Case sensitivity applies.

Step 15

Wait 1 minute. The intercom will now

disconnect from your phone, and attempt to

connect to the wifi network with the details

provided.

Step 16

If the connection is sucessful, the app

should re-connect and show status ONLINE.

You may now touch the banner as shown

and view video.

You are now ready to install the intercom in the location which it will be used!

Adding Additional Phones

Please jump to page 14 to see how to add additional smart phones or devices.

8 | P a g e

Open top screws only

Existing internet router

User phone

I-phone Configuration

IMPORTANT: The following process is only to be carried out with one device as the

master device. Do NOT repeat with additional devices. To add more phones or tablets,

see section on adding additional devices.

Step 1

Using one of the homeowners’

iphones, search for “Predator-WiFi

PRO” app on the Apple Store. Look

for the PRO icon shown. Then

download and install to the users

phone.

Step 2

Locate the intercom on a bench or table beside the home router, along with the user

phone. Connect the antenna & power supply provided to the intercom, red to +24v dc

and black to 0v dc, and power on.

Step 3

Wait a full 60 seconds for the

intercom to fully boot up.

Step 4

Press and hold the call button for

more than 3 seconds. The intercom

will sound a long tone, and now be in

configuration mode for 5 minutes.

9 | P a g e

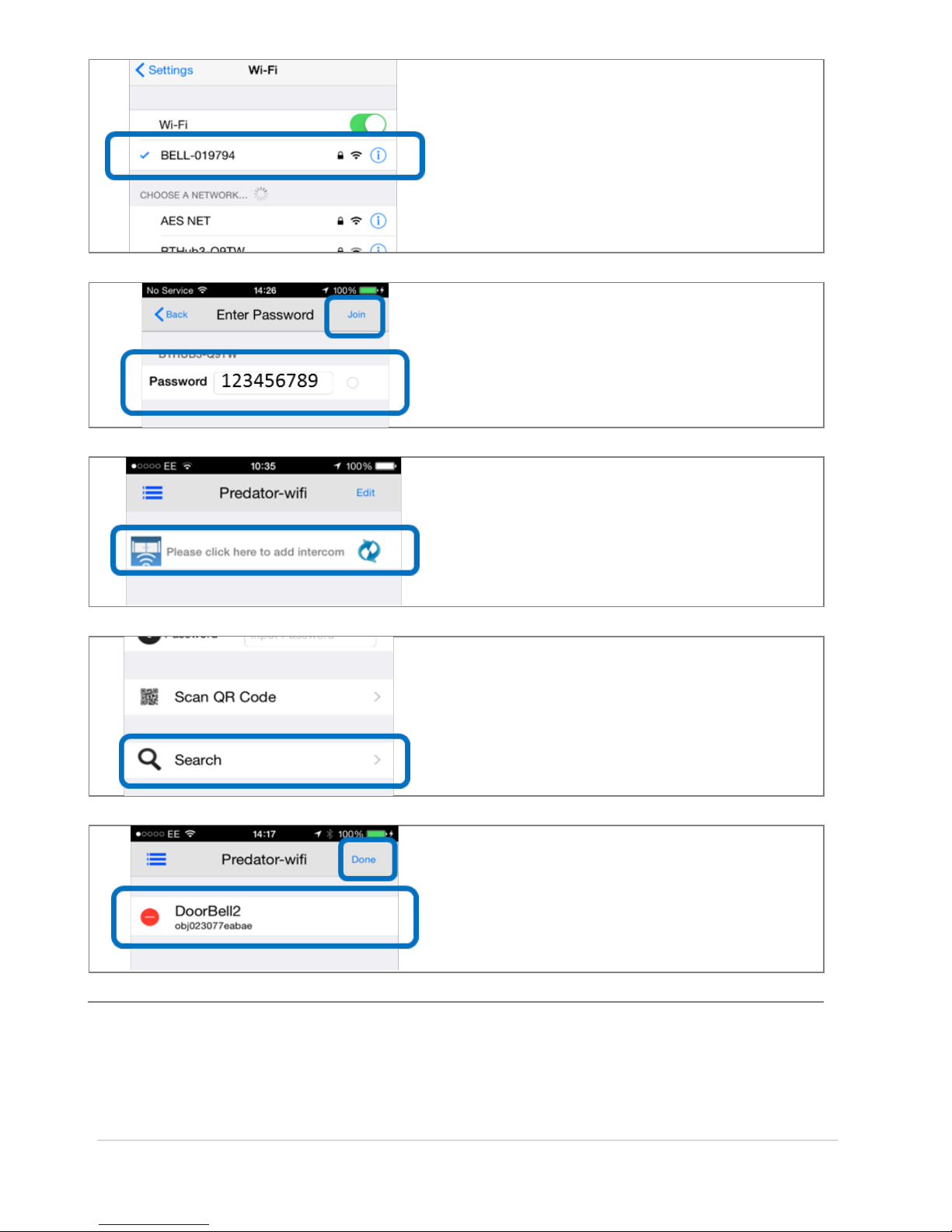

Step 5

Enter settings on the apple device,

select WiFi and scan for networks.

The phone should detect the intercom.

The network name will be BELL-

XXXXX).

Select this network.

Step 6

Enter the following DEFAULT

password… 123456789.

Now the phone is connected directly to

the intercom which is now broacasting

its own wifi network.

Step 7

Now open the WiFi-Predator PRO App

on the phone and select as shown to

add intercom.

Step 8

Press SEARCH.

Step 9

The app should find the intercom serial

number. Press the banner and then

press DONE.

10 | P a g e

Step 10

The app screen will now show the

intercom serial number or BELL ID,

Username: admin

Password: LEAVE BLANK

Press DONE to confirm.

Step 10b

The phone and intercom should now be

DIRECTLY connected and display

ONLINE status. Press as shown and

check that there is video and audio.

IMPORTANT

If video and audio is working, then the product is working perfectly. Should

you have problems after this step, then it is likely either networking, setup or a

range issue. Consult technical support in such an event.

Step 11

The normal user screen should now

appear as shown. The status of the

intercom should now show ONLINE.

Press the SETTINGS button as shown.

Step 12

Select WIFI SETTINGS. The intercom

will now scan the area for available

networks.
