PERFEKT GLIDE 30-1
30” Built-in Telescopic Range Hood
Specifications are subject to change without notice
V1.5
PERFEKT GLIDE 30-1
30” Built-in Telescopic Range Hood
•D: 11” x W: 2913/16”
•D: 280mm x W: 758mm

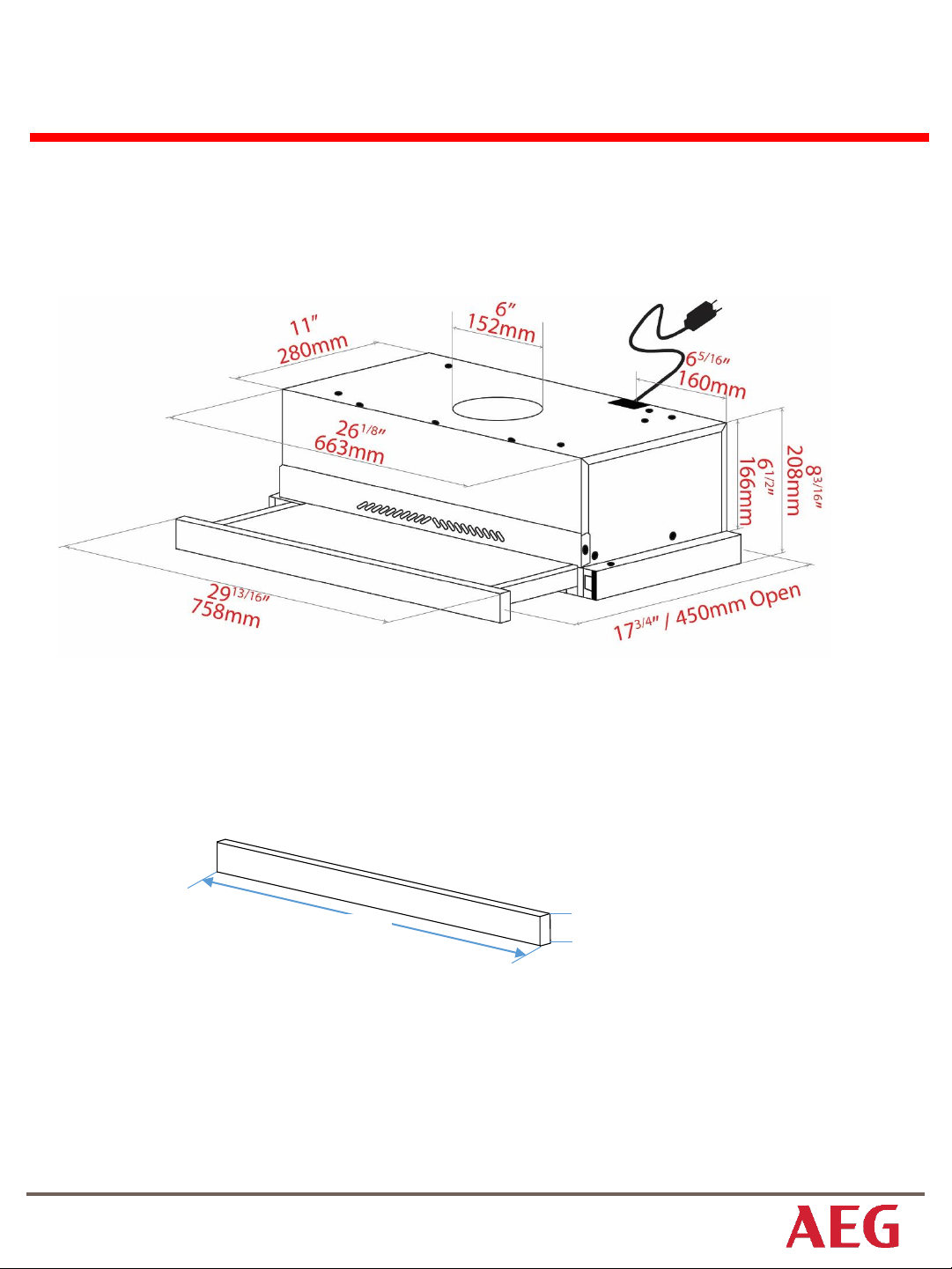

RANGE HOOD DIMENSIONS
•6” Duct Adapter Included
DUCT SIZE
RANGE HOOD FEATURES
•30” (76cm) stainless steel built-in glide-out range hood
•LED lighting (3,200 lumens)
•2 speed adjustment
•2 x dishwasher safe honey comb filters
•Electronic switch controls
•Quiet (7 sones/56dB) 300 CFM motor
•Top vent for exterior ventilation
•115 Volt, 60Hz, 15AMP
•AEG Range Hoods are supplied with a Canadian
cord and plug
•Electrical cord located 65/16” (160mm) from the
top right corner of the unit at the rear
ELECTRICAL REQUIREMENTS
Specifications are subject to change without notice
V1.5
Specifications
PERFEKT GLIDE 30-1
D: 11” x W: 2913/16”
D: 280mm x W: 758mm
RANGE HOOD DIMENSIONS
FRONT PANEL - DUCTED
2913/16”
758mm
15/8”
42mm
Specifications are subject to change without notice
V1.5
Specifications
PERFEKT GLIDE 30-1

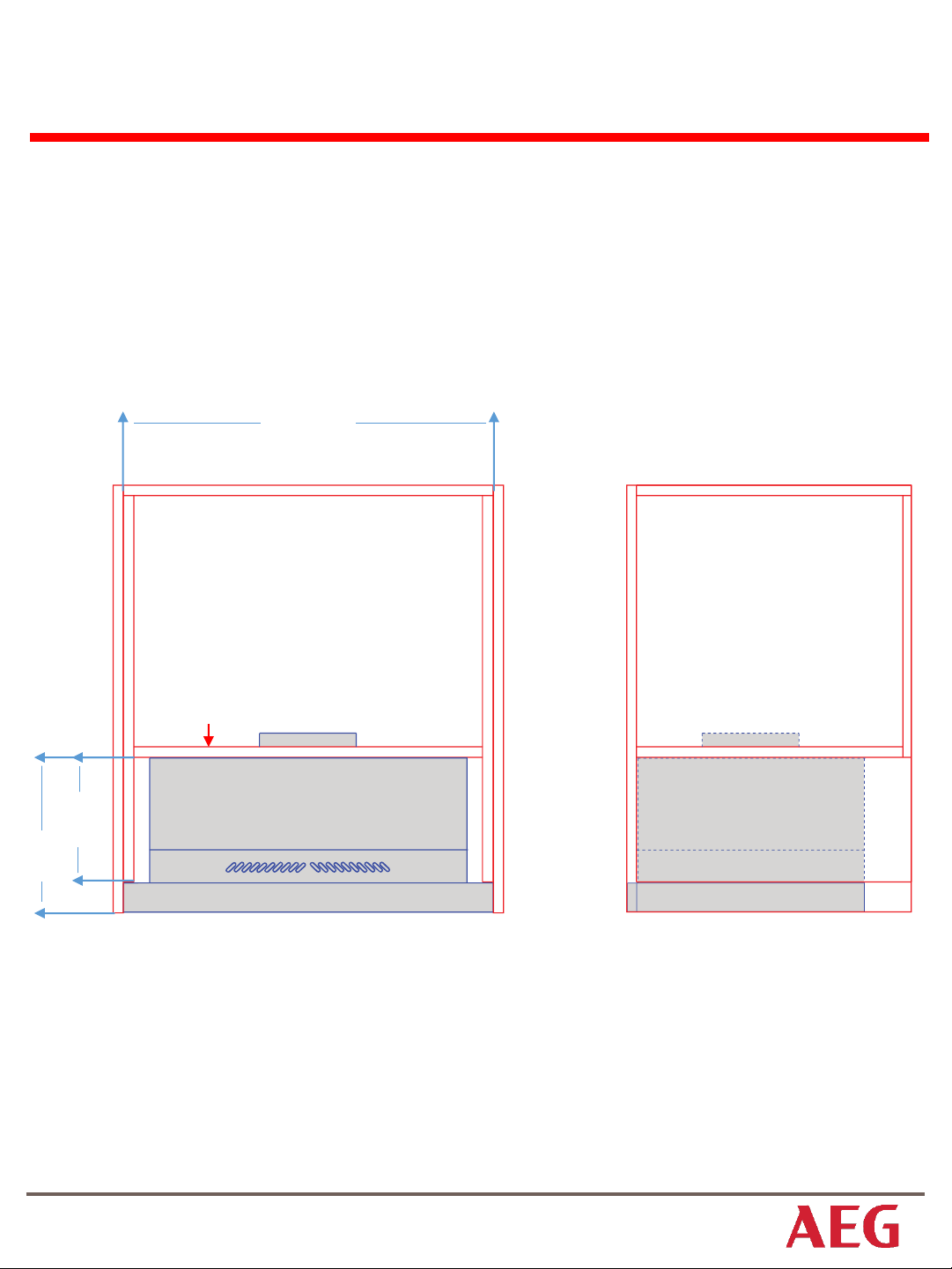

CABINET BOX DESIGN
FRONT VIEW SIDE VIEW
69/16”
166mm
30”
762mm
Shelf Supports
Range hood
81/4”
210mm
External Gable
External Gable
Specifications are subject to change without notice
V1.5
Specifications

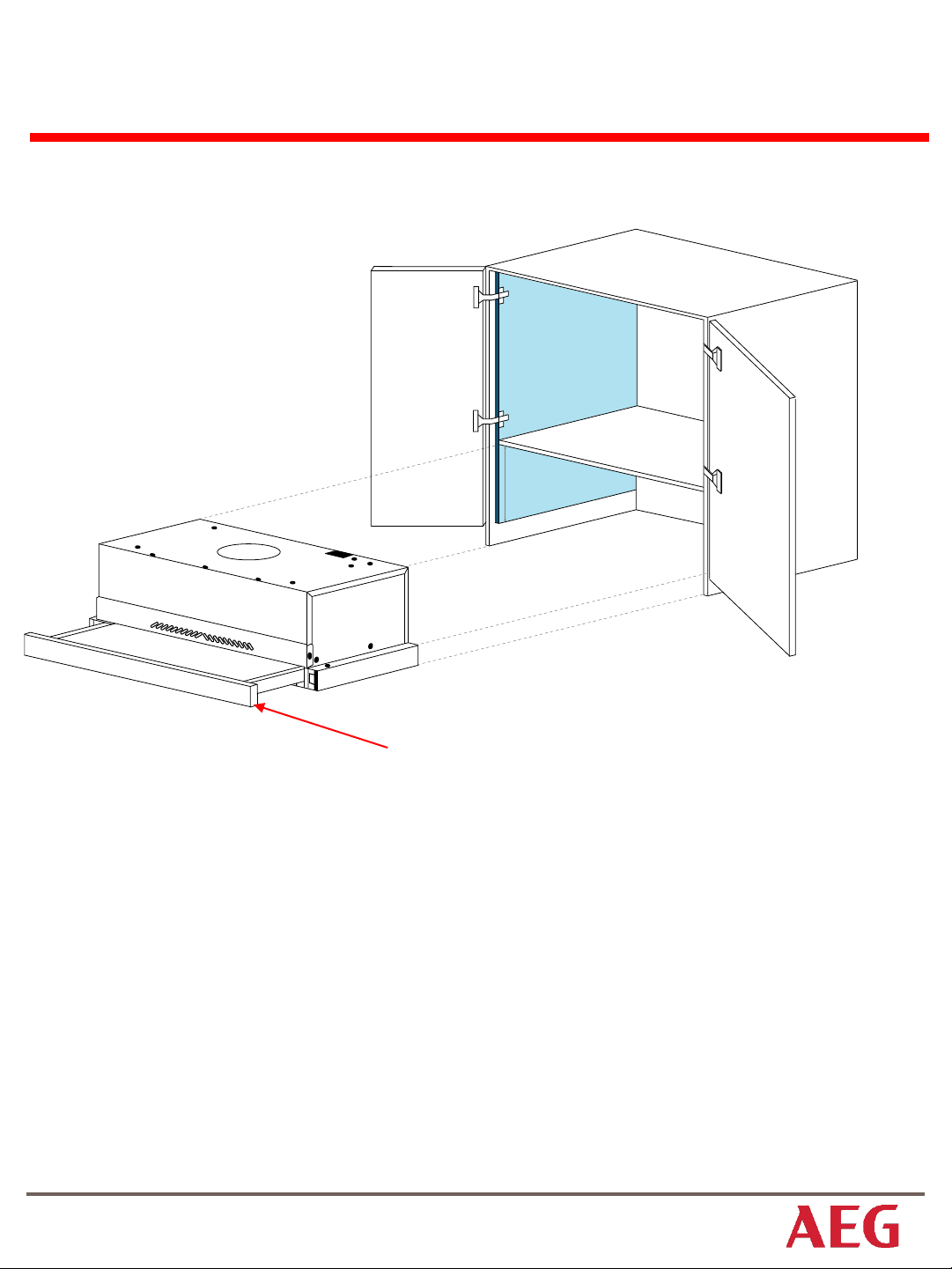

PERFEKT GLIDE 30-1
•1. Pull the glide forward
•2. Remove the 4 screws holding the glide to the panel
•3. Install the matching front panel using the 4 screws
*Custom panel provided by customer*
NOTE: Removing the front stainless steel trim
69/16”
166mm

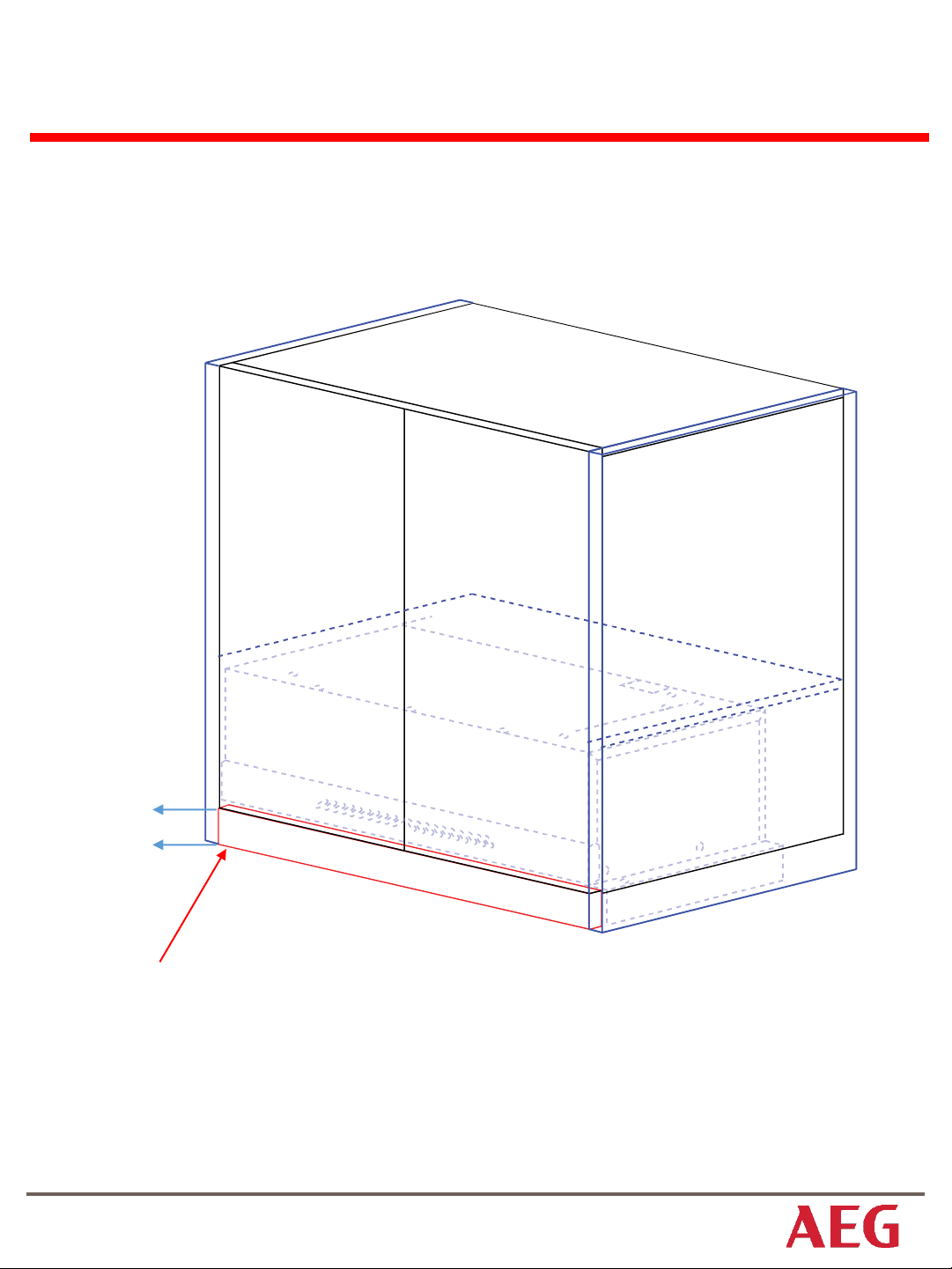

FRONT PANEL INSTALLATION
Specifications are subject to change without notice
V1.5
Specifications
PERFEKT GLIDE 30-1
15/8”
42mm
•Ensure that the cabinet door panel is
lengthened to accommodate the
smaller sized Range Hood Front
Panel
NOTE: Cabinet Door Panel Height
Specifications are subject to change without notice
V1.5
Specifications
•Drill (1/8”) at the points located
•Secure the damper to the motor
housing using the screws supplied
with the range hood

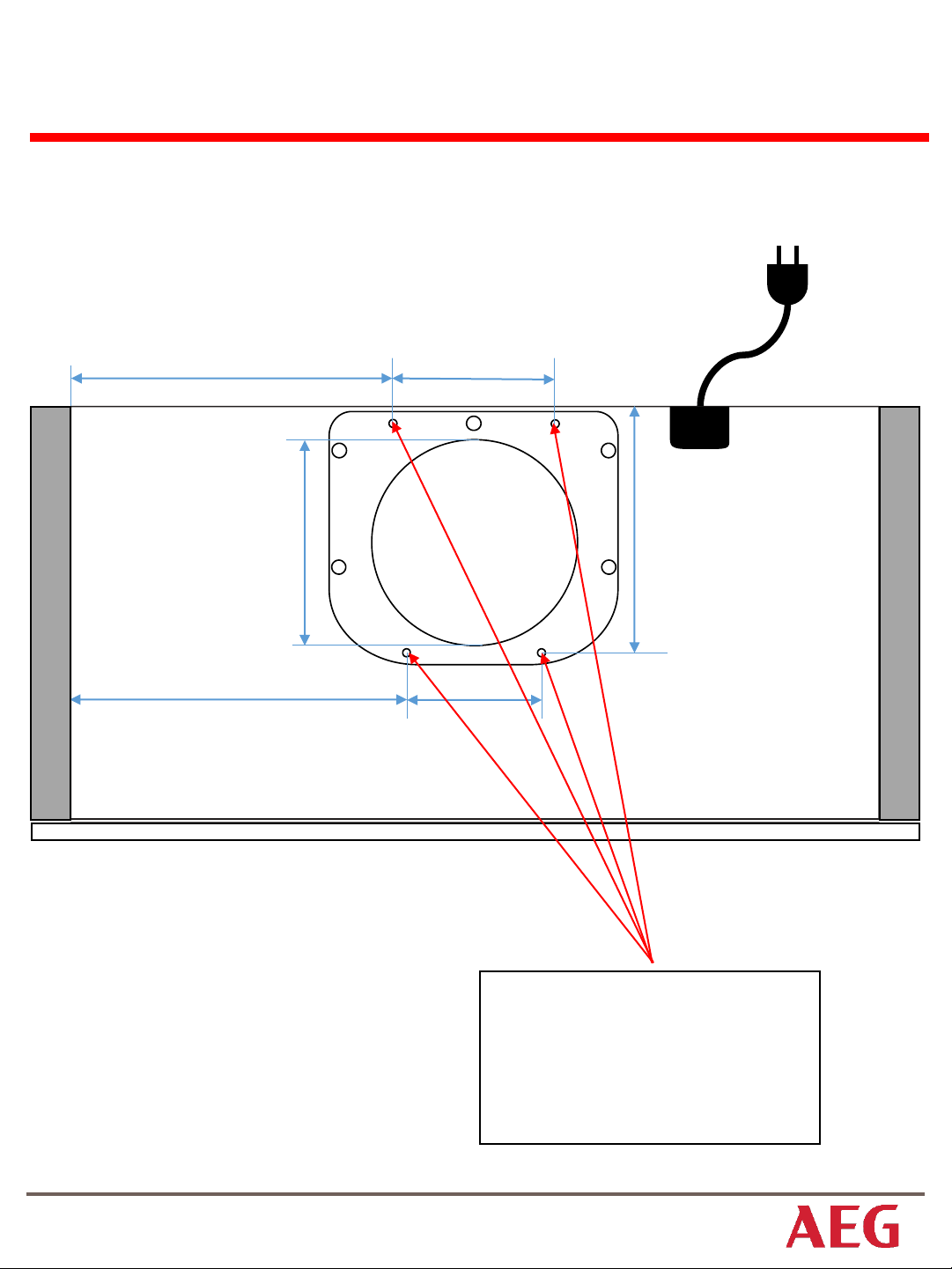

SECURING THE DAMPER
281.5mm
111/16”
100mm
315/16”
120mm
43/4”
271.5mm
1011/16”
168.5mm
65/8”
DAMPER INSTALLATION
139.7mm
51/2”
PERFEKT GLIDE 30-1
Specifications are subject to change without notice
V1.5
Specifications
•W: 220mm x D:175mm
W: 811/16” x 67/8”
•Shelf depth MUST BE a minimum of 11” deep

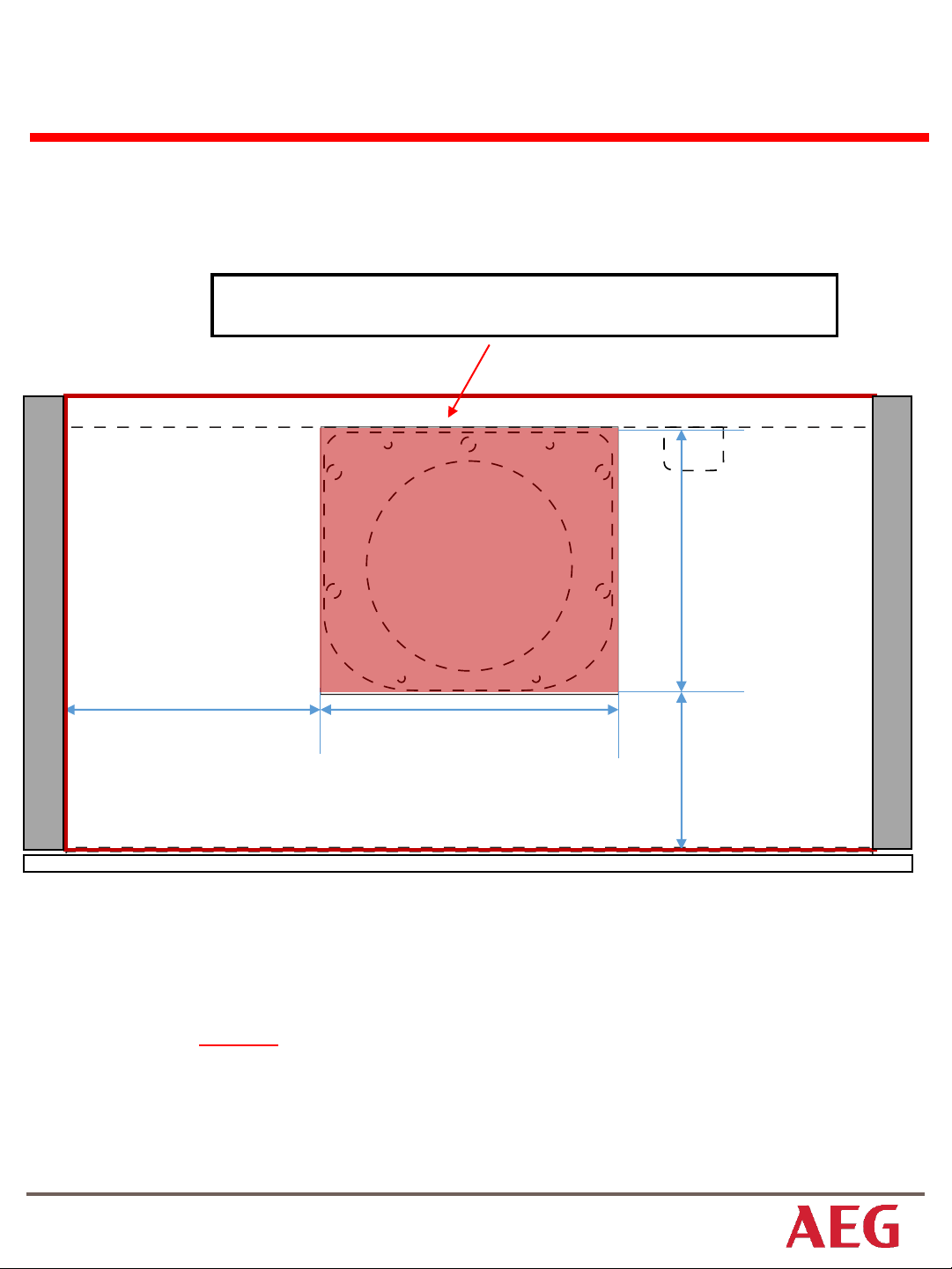

DAMPER CUT-OUT
220mm
811/16”
175mm
67/8”
221.5mm
83/4”100mm
315/16”
•Shelf with less than 1” of shelf extension MUST HAVE a support
brace in place

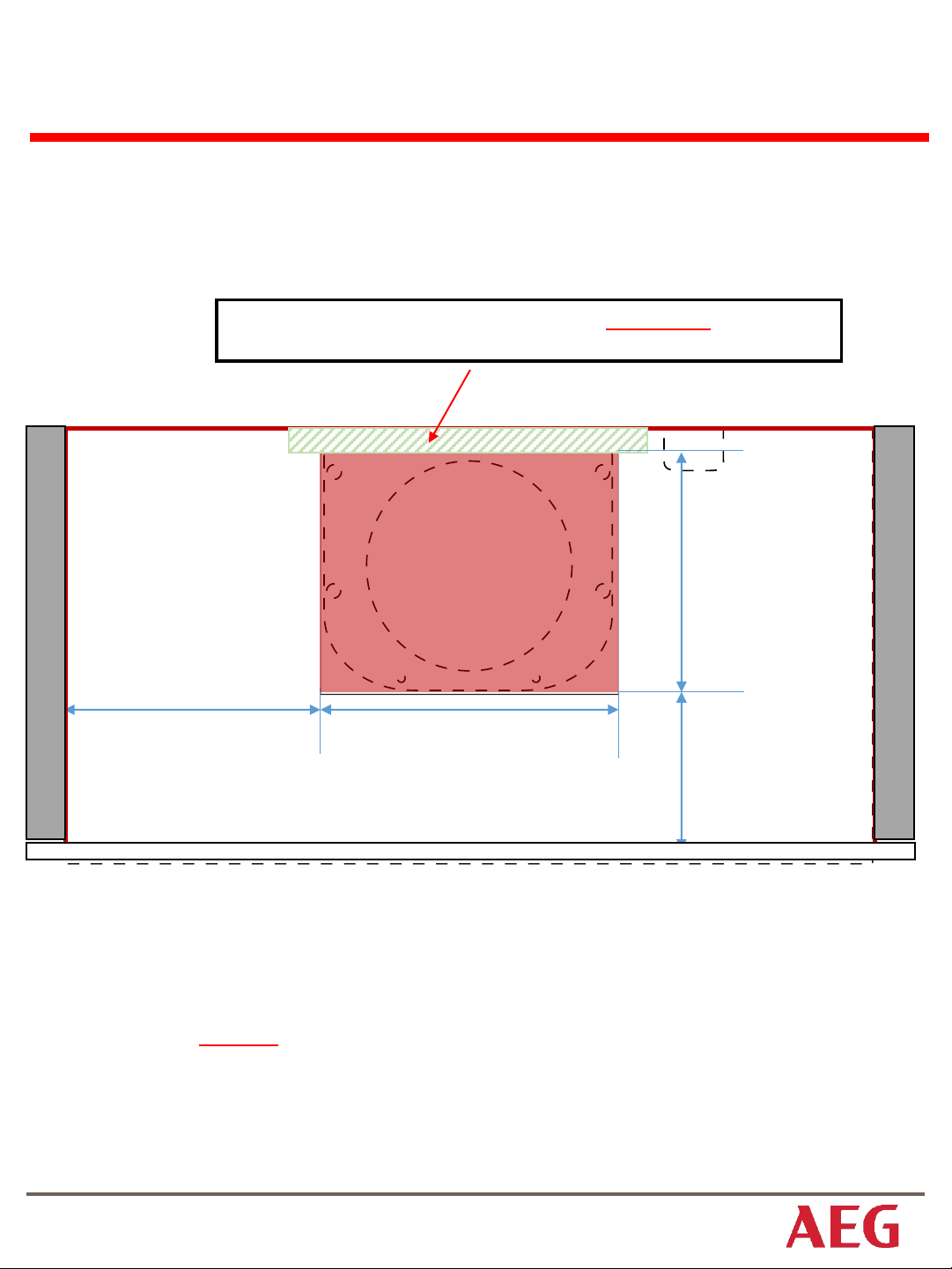

DAMPER INSTALLATION (SHELF CUT-OUT)
PERFEKT GLIDE 30-1
Specifications are subject to change without notice
V1.5
Specifications
•W: 220mm x D:175mm
W: 811/16” x 67/8”
•Shelf depth MUST BE a minimum of 11” deep
DAMPER CUT-OUT
220mm
811/16”
175mm
67/8”
100mm
315/16”
•Shelf with 1” or more extension does not require a support brace.
DAMPER INSTALLATION (SHELF CUT-OUT)
221.5mm
83/4”
PERFEKT GLIDE 30-1
Specifications are subject to change without notice
V1.5

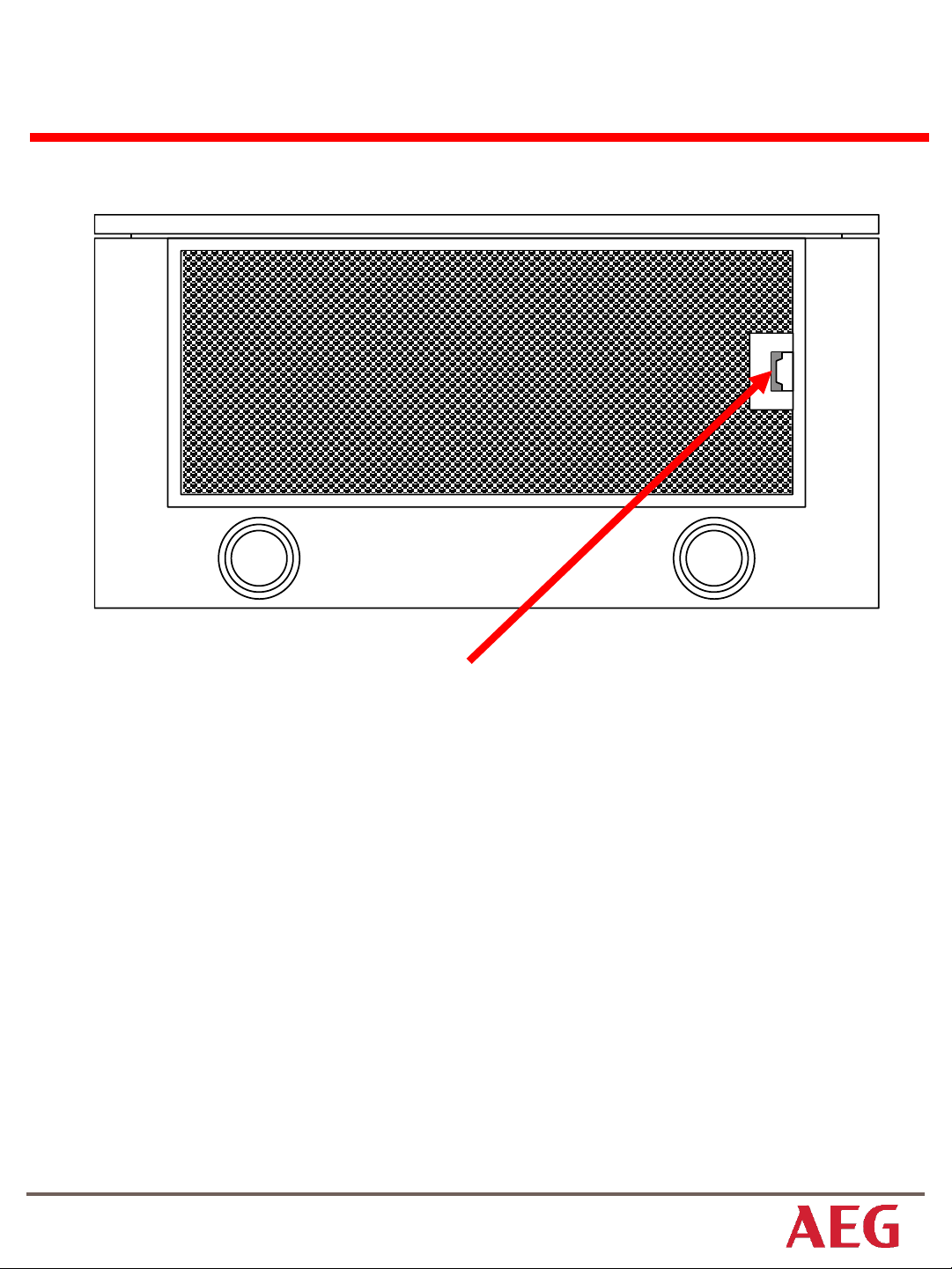

•To remove the filter press on the tab
to release the filter
•While depressed, pull the filter
towards you to remove it from the
filter housing.
REMOVE THE FILTER
ALTERNATE INSTALLATION
PERFEKT GLIDE 30-1 (REC)
