Contents
Introduction 4
Extraction mode 4
Recirculation mode 5
Electrical connections 6
Technical details 7
Installation 8
Safety warnings for kitchen unit installer 8
Wall unit mounting 10
Wall mounting 11
Hood operation 12
Safety warnings for user 13
Maintenance and care 14
Opening the grid 14
Grease filter 14
Carbon filter 15
Changing the light bulb 16
Cleaning 16
Accessories 17
Something not working 17
Service & Spare parts 18
4
2
Introduction
Extraction mode
●The hood is supplied as an extractor unit and can also be used with a
filtering function by fitting activated carbon filters (available as an
accessory).
●The unit features two outlet holes, one of which Ais located on the
top of the unit while the other Bis located on the rear.
●To connect up the hose, you should first fit the bayonet-mounting
flange C(Ø120 mm) on the outlet required (if using the top outlet,
fix the flange in place using the screw supplied as shown in Fig. 1).
Close off the unused hole using the bayonet fitting caps D.
●Important! To use the back hole B, remove switch Ffrom the
top hole. Fig 2.
A
D
B
CD
B
A
C
1
5
●Move the lever Lto position A Fig. 3.
●When connecting up the hood using a telescopic wall pipe,
you should use an uninflammable outlet hose ABS 120 (120
mm Ø) available as an accessory.
Recirculation mode
●The air is filtered and recirculated through the front grid.
●Move the lever Lto position F Fig. 3.
You will need an original KFF activated carbon filter for filtering
function. (Available as an accessory).
Summer/Winter Hood Conversion
●To avoid excessive heat loss during the winter months, we
recommend that the hood be converted from extraction mode
to recirculation mode.
●In order to convert the hood, a charcoal filter (available as an
accessory) is required. Follow the instructions for operating the
hood to recirculate air.
●When the temperature outdoors becomes more mild (spring),
the filter can be removed and the hood converted once again for
to extraction. Please consult the assembly instructions for
operating the hood in extraction mode.
3
LL
6
Electrical connection
220-240 V - using fixed power supply line with plug.
(The unit should only be connected up by an authorized electrician).
Your appliance must be connected to fixed wiring via the use of a double
pole swiched fused spur outlet with or without pilot lamp.
We strongly recommend the appliance is connected by a qualified
electrician who is a member of the NICEIC who will comply with the IEE
and any local regulations.
NOTE: the terminology DOUBLE POLE means that both the live
and neutral supplies are swiched and disconnected at the same time.
The terminations labelled SUPPLY are for the connection for the internal
house wiring and the terminations labelled LOAD are for the appliance.
IMPORTANT
The wires of the mains lead supplied with this appliance are
coloured in accordance with the following code:
Blue-Neutral
Brown-Live
As the colours of the flexible cord of this appliance may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follows: The whire which is coloured brown
must be connected to the terminal which is marked with the letter
L or coloured red.
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured
black.
7
Technical details
Dimensions
Height x Width x Depth (in cm) 13 x 59,9 x 51
Weight
Net: 6,9 kg
Gross: 7,8 kg
Maximum absorbed power: 205 W
Motor absorption 1 x 125 W
Lighting: 2 x 40 W
Length of the cable: 110 cm
Fan powers (speed), speed in compliance with DIN 44971
Extraction mode
Speed 1 115 m3/h
Speed 2 145 m3/h
Speed 3 180 m3/h
Intensive speed 210 m3/h
Recirculation mode
Speed 1 110 m3/h
Speed 2 117 m3/h
Speed 3 125 m3/h
Intensive speed 145 m3/h
Flange:120 mm Ø
8
Installation
Safety warnings for kitchen unit installer
●When used as an extractor unit, the hood must be fitted with a
120mm diameter hose.
●If the fumes must be forced out through the wall, you must
obtain a MKZ sizable wall exhaust pipe (with external exhaust and
air intake), E-Nr.- 610 899 004 (Ø 120 mm) which is one of our
optional parts.
●When installing the hood, make sure you respect the fol-
lowing minimum distance from the top edge of the cooking
hob/ring surfaces:
electric cookers 650 mm
gas cookers 700 mm
●The hood cannot be connected to flues of other appliances that
run on energy sources other than electricity.
●The air outlet must not be connected to chimney flues or com-
bustion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.
●It is advisable to apply for authorization from the relevant
controlling authority when connecting the outlet to an unused
chimney flue or combustion gas duct.
The air outlet installation must comply with the regulations laid
down by the relevant authorities.
●When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.
●National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in
the same room.
9
●The national decree on fuel-burning systems specifies a maximum
depression of 0.04 bar in such rooms.
●Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
If you have any doubts, contact the relevant controlling authority
or building inspectors office.
●Since the rule for rooms with fuel burning appliances is outlet
hole of the same size as the ventilation hole, a hole of 500-600
cm2, which is to say a larger hole, could reduce the performance
of the extractor hood.
●If the hood is used in its filtering function, it will operate simply
and safely in the above conditions without the need for any of the
aforementioned measures.
●When the hood is used in its extractor function, the following
rules must be followed to obtain optimal operation:
short and straight outlet hose
keep bends in outlet hose to a minimum
never install the hoses with an acute angle, they must
always follow a gentle curve only
keep the hose as large as possible (120 mm Ø min.).
●Failure to observe these basic rules will drastically reduce the
performance and increase the noise levels of the extractor hood.
10
Wall unit mounting

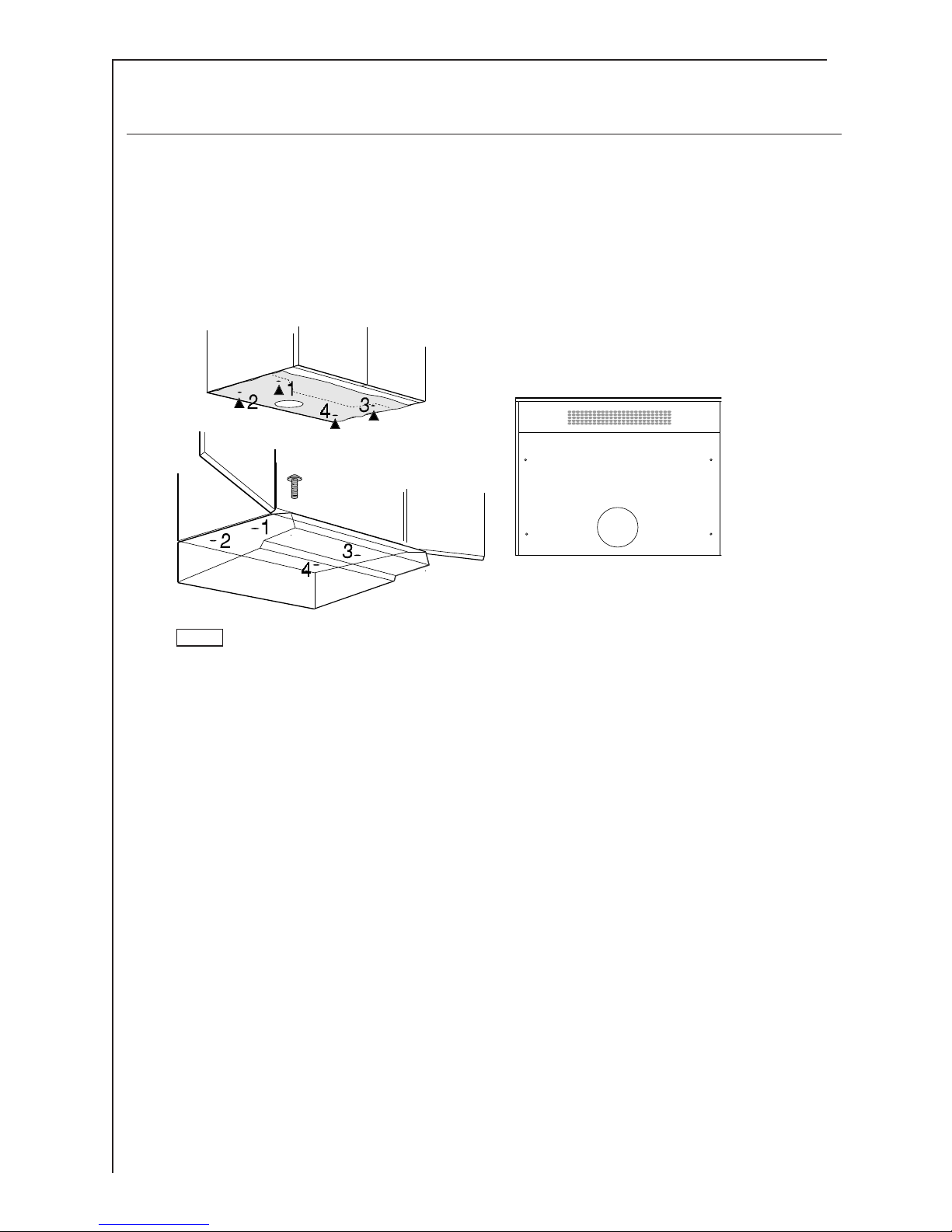

●Make the holes on the bottom of the cupboard, using
the drilling template .
●From inside the cupboard, insert the 4 supplied screws
and tighten them in the appropriate holes on the
appliance. Fig. 4.
4
