Advantech MIC-1816R Manuel d'installation et d'exploitation

MIC-1816R Startup Manual 1

Before installation, please ensure that the following items

have been included in your shipment:

1. 1 x MIC-1816R system

2. 1 x Adapter 100 ~ 240 V 36 W 12 V without PFC

DC plug 90°

3. 1 x MIC-1816R startup manual

4. 1 x User note for MIC-1816R

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Caution:

BATTERIES ARE AT RISK OF EXPLODING IF

INCORRECTLY REPLACED. REPLACE ONLY WITH

THE SAME OR EQUIVALENT TYPE RECOMMEND-

ED BY THE MANUFACTURER. DISCARD USED

BATTERIES ACCORDING TO THE MANUFAC-

TURER’S INSTRUCTIONS.

Attention:

DANGER D’EXPLOSION SI LA BATTERIE EST

INEXACTEMENT REMPLACÉE. REMPLACEZ

SEULEMENT AVEC LA MÊME CHOSE OU LE TYPE

ÉQUIVALENT RECOMMANDÉ PAR LE FABRICANT,

JETTENT LES BATTERIES UTILISÉES INSTRUC-

TIONS DE S SELON FABRICANT DES’.

MIC-1816R

16-Bit, 1 MS/s DAQ Platform with NXP ARM®

Cortex®-A9 i.MX6 1 GHz Processor

Startup Manual

System

• NXP ARM®Cortex®-A9 i.MX6 high-performance processor

Memory

• 4 GB DDR3 memory and eMMC onboard

Graphics

• HDMI 1920 x 1080 @ 60 Hz

Serial Ports

• 2 x RS-232 from COM1/COM2

• 2xCANfromCAN1/CAN2

Ethernet

• Interface: 10/100/1000 Mbps

• Controller: NXP i.MX6-integrated RGMII

Storage

• Internal SSD: 1 x 2.5” SSD bay

Front I/O

• USB: 1 x USB 2.0 and 1 x USB 2.0 OTG

Power Requirement

• Power Type: DC power jack

• Input Voltage: 12 VDC

Miscellaneous

• Power Switch

Orange: System standby

Green: System boot

Mount Kit (Optional)

• Table Mount: 1960077844N001; 130 x 175 mm

• DIN Rail Mount: 1960018849T001

Environment

• Operating Temperature:

-10 ~ 60 °C/14 ~ 140 °F with

0.7m/S air ﬂow and 1 x industrial SSD

• Relative Humidity: 95% @ 40 °C (non-condensing)

Physical Characteristics

• Dimensions (W x H x D): 165 x 130 x 66 mm (6.49 x

5.11 x 2.59 in)

• Weight: 1.05 kg (2.32 lb)

Specications Packing List

For more information about this or other Advantech

products, please visit our website at

http://www.advantech.com

http://www.advantech.com/Products

For technical support and customer service, please

visit our support website at

http://support.advantech.com.tw/support/default.

aspx

This manual is for the MIC-1816R Series.

Part No. 2041181600

Printed in Taiwan

Edition 1

April 2019

2 MIC-1816R Startup Manual

AI – Current Mode (channel shared with voltage mode)

Channels 8 single ended

Resolution 16 bit

Built-In

Memory 4K samples

Sampling Rate

(shared with

current mode)

Single Channel 5 MS/s

Multi Channel 1 MS/s

Unipolar/Bipolar

Mixed 250 KS/s

Input Range 4~20 mA (according to a 0 ~ 10 V voltage range)

Drift

Zero 35 ppm/°C

Span 25 ppm/°C

Input Signal

Bandwidth

(-3dB)

15 Hz

Max. Input

Current 21 mA

Input

Impedance 500 Ω/220 uF

Clock Source Software or external

Trigger Mode Start trigger, delay start trigger

Stop trigger, delay stop trigger

Accuracy DC

INLE: ± 2 LSB

DNLE: ± 1 LSB

Offset Error: ± 1 LSB (under manual adjustment)

Gain Error: 0.02% FSR

IEPE Signal Conditioner

Channels 4 single ended

IEPE Current 4 mA ±5%

Gain 1/10/100 (for AC signal)

Couple AC

Input Voltage 4 ~ 24 V (normal operation)

Amplier

Output Voltage 4 ~ 24 V (normal operation)

Accuracy ±2%

Compliance 24 V

Upper Cut-Off

Frequency

x 1, x 10 gain (-5%): 100K Hz

x 100 gain (-15%): 50K Hz

Lower Cut-Off

Frequency 1.77 Hz (-5%, load: 1M Ω, for all gain settings)

Discharge

Time Constant >0.3 seconds

DC Offset <±30 mV

Sensor

Status

Indicator

IEPE Sensor Normal Short

LED Green Red

Software

(DI port 0)

Bit 0, 2, 4, 6 =

”High”

Bit 1, 3, 5, 7 =

”High”

The MIC-1816R system features a built-in data acquisition

module.

Analog Input

AI – Voltage Mode (channel shared with current mode)

Channels 8 single ended/4 differential

Resolution 16 bit

Built-In

Memory 4K samples

Sampling Rate

(shared with

current mode)

Single Channel 5 MS/s

Multi Channel 1 MS/s

Unipolar/Bipolar

Mixed 250 KS/s

Input Range

and Gain List

Gain 0.5 1 2 4 8

Unipolar NA 0 ~ 10 0 ~ 5 0 ~

2.5

0 ~

1.25

Bipolar ±10 ±5 ±2.5 ±1.25 ±0.625

Drift

Gain 0.5 1 2 4 8

Zero 25 ppm/°C

Span 15 ppm/°C

Input Signal

Bandwidth

(-3dB)

Gain 0.5 1 2 4 8

BW (MHz) 4.4 4.4 4.4 3.3 1.7

Max. Input

Voltage ± 15 V

Input

Impedance 1G Ω/2 pF

Clock Source Software or external

Trigger Mode Start trigger, delay start trigger

Stop trigger, delay stop trigger

Accuracy

INLE: ± 2 LSB

DNLE: ± 1 LSB

Offset Error: ± 1 LSB (under manual adjustment)

Gain 0.5 1 2 4 8

Gain Error

(%FSR) 0.0075 0.0075 0.0075 0.008 0.008

Channel

Type Single ended/differential

SNR: 81 dB

ENOB: 13 bit

External

Analog Trigger

RRange: -10 ~ 10 V

Resolution: 16 bit (0.3 mV/step)

Bipolar Range Unipolar Range ±1 LSB for Full-Scale Step

±10 V NA 1.04 us

±5 V 0 ~ 10 V 1.04 us

±2.5 V 0 ~ 5 V 1.04 us

±1.25 V 0 ~ 2.5 V 4 us

±0.625 V 0 ~ 1.25 V 5 us

DAQ Specications

MIC-1816R Startup Manual 3

DAQ Specications (Cont.)

Analog Output

AO – Voltage Mode (channel shared with current mode)

Channels 2

Resolution 16 bit

Memory Size 4K samples

Update Rate 3 MS/s

Output Range 0 ~ 5 V, 0 ~ 10 V, -5 ~ 5 V , -10 ~ 10 V

Accuracy

Relative ±1 LSB

Differential

Non-Linearity ±1 LSB (monotonic)

Slew Rate 20 V/us

Gain Error Adjustable to zero (with manual calibration)

Drift 30 ppm/°C

Driving Capability

5 mA

Update Mode Static update, waveform

Output Impedance

Max. 0.1 Ω

Capacitive Load Max. 500 pF

AO – Current mode (channel share with voltage mode)

Channels 2

Resolution 16 bit

Memory Size 4K samples

Update Rate 20 KS/s

Output Type Source/sink

Output Range 4 ~ 20 mA (according to a 0 ~ 10 V voltage

range)

Gain Error Source: 0.15% FSR

Sink: 0.05% FSR

Drift 40 ppm/°C

Update Mode Static update, waveform

External Loading

Source: 600 Ω

Sink: depends on external voltage

(RL = 50 (VDC - 11) )

Excitation

Voltage

Source: N/A

Sink: Max. 50 VDC

Isolated Digital I/O

Isolated Digital Input

Channels 8

Input Voltage Logic 0: 2 V max.

Logic 1: 5 ~ 50 V

Isolation Protection 2,500 VDC

Overvoltage

Protection 70 VDC

ESD Protection 2,000 VDC

Opto-Isolator

Response 100 µs

Isolated Digital Output

Channels 8

Output Type Sink (NPN)

Isolation Protection 2,500 VDC

Output Voltage 5 ~ 40 VDC

Sink Current 500 mA max./channel

Opto-Isolator

Response 100 µs

Counter

Counter Chip N/A

Channels 2 channels (independent)

Resolution 32 bit

Compatibility TTL level

Base Clock Internal clock at 20 MHz or external clock (10

MHz max.)

Output Frequency Max. 10 MHz

Opto-Isolator

Response 1 us

Clock Input

Low 0.8 V max.

High 2.0 V min.

Gate Input

Low 0.8 V max.

High 2.0 V min.

Counter Output

Low 0.8 V max. @+15 mA

High 2.0 V min. @-15 mA

Error in

Advanced

Functions

Frequency

Measurement

0.1% when the input signal

frequency is ≥ 40 KHz

Pulse Width

Measurement

0.1% when the input signal

frequency is ≤ 40 KHz

Pulse Output Within 2% when the output

frequency is > 1 MHz

PWM Output Within 2% when the output

frequency is > 1 MHz

4 MIC-1816R Startup Manual

LED Indicator Description

Power 12V

DC

power

HDD Normaloperation

Normal(green) IEPEnormaloperation

Short(red) IEPEsensorshort(<1V)

Gain Setting (IEPE Only)

Gain AI0 AI1 AI2 AI3

1↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓

10 ↓ ↑ ↓ ↑ ↓ ↑ ↓ ↑

100 ↑ ↓ ↑ ↓ ↑ ↓ ↑ ↓

NA ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑

Analog Input Setting

AI4 AI5 AI6 AI7 AI8 AI9

Voltage ↑ ↑ ↑ ↑ ↑ ↑

Current ↓ ↓ ↓ ↓ ↓ ↓

SSD Installation

1. Unscrew the 4 screws and remove the top cover.

2. Secure the 4 screws afﬁxing the SSD to the top cover.

3. Assemble SATA and power cable. Secure in place

using 4 screws.

Table Mount Installation

MIC-1816R can be ﬁtted with a table mount for easy

operation.

1. Unscrew the 4 screws afﬁxing the rear cover in place.

2. Align the screw holes of the table mount to the screw

holes of the MIC-1816R rear cover. Secure the table

mount to the device using 4 screws.

DIN Rail Mount Installation

MIC-1816R can be ﬁtted with a DIN rail mount for ﬂexible

installation.

1. Align the screw holes of the DIN rail mount to the screw

holes of the MIC-1816R rear cover. Secure the rail

mount to the device using 3 screws.

This device complies with the requirements in Part 15 of

the FCC Rules. Operation is subject to the following two

conditions:

1. The device must not cause harmful interference.

2. The device must accept any interference received,

including interference that may cause undesired

operation.

LED Indicator and Switch Settings

Installation

Procedures

Installation

Procedures (Cont.)

Declaration of Conformity

MIC-1816R Startup Manual 5

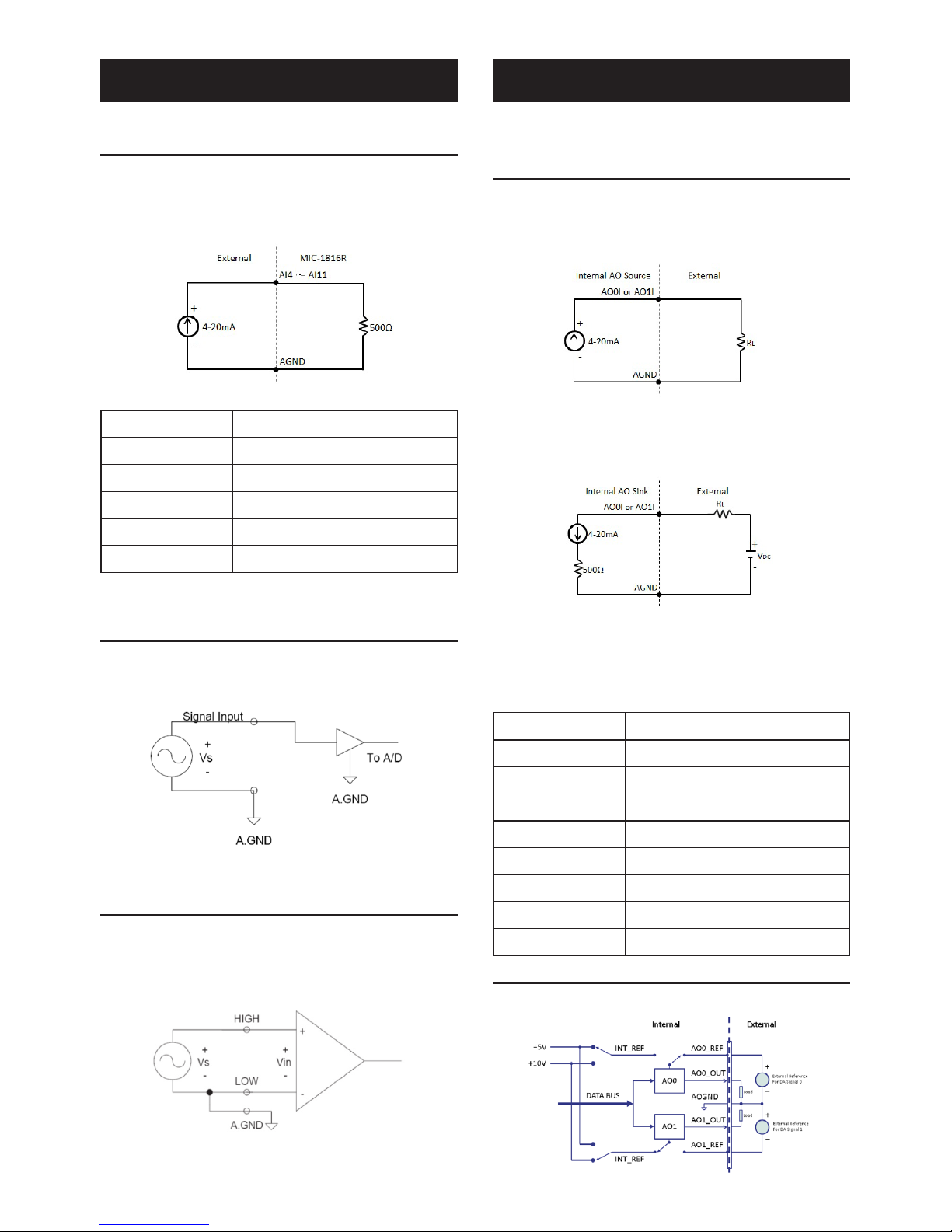

Analog Input (AI4 ~ AI11)

Current Connection

SettheAIswitchto“current”modeandtheinputrangeas

0~10Vusingsoftware.

Note:Whenthereadvalueiswithin0~10V,thedatainthe

tablebelowcanbeusedtomapthecurrentvalue.

CurrentInput AI4~AI11

4mA 2V

5mA 2.5V

: :

19mA 9.5V

20mA 10V

Analog Input (AI4 ~ AI11)

Single-Ended Channel Connections

Withthesingle-endedinputconguration,onlyonesignal

wireisusedforeachchannelandthemeasuredvoltage

(Vm)isthevoltageinreferencetothecommonground.

Analog Input (AI4 ~ AI11)

Differential Channel Connections

Thedifferentialinputchannelsoperatewithtwosignal

wiresforeachchannel,andthevoltagedifferencebetween

bothsignalwiresismeasured.WithMIC-1816R,whenall

channelsareconguredtodifferentialinput,upto4analog

channelsareavailable.

MIC-1816Rprovidesbothcurrentoutputandvoltageoutput.

Thecurrentandvoltagemodesareshownbelow.

Analog Output - Current Connection

Thecurrentmoderequiresanoutputrangeof0~10V,

conguredviasoftware.Refertothetablebelowforthe

currentvalue.

Current- Source Wiring



ThemaximumresistanceRLis600Ω

Current- Sink Wiring

ExpressionbetweenRLandVDC

RL=50(VDC-11)Ω

IfVDC=12V,RL=50Ω(max.)

IfVDC=24V,RL=650Ω(max.)

AO0andAO1 CurrentOutput(actual)

0V N/A

: :

1.5V N/A

2V 4mA

2.5V 5mA

: :

9.5V 19mA

10V 20mA

Analog Output - Voltage Connection

Thegurebelowshowshowtocongurethevoltageoutput.

Input Connections

Output Connections

6 MIC-1816R Startup Manual

ToconguretheAItypeorGainsettings,apapercliporSIMejecttoolisrequired.

Analog Input Setting

System Dimensions

System I/O

Table des matières

Autres manuels Advantech Contrôleurs

Advantech

Advantech PCA-6781 Manuel d'installation et d'exploitation

Advantech

Advantech MVP-3245 Series Manuel utilisateur

Advantech

Advantech ADAM-5550KW Series Manuel utilisateur

Advantech

Advantech PCI-1241 Manuel utilisateur

Advantech

Advantech UNO-2182 Manuel utilisateur

Advantech

Advantech UNO-127 Manuel utilisateur

Advantech

Advantech WISE-4210-S231 Manuel d'installation et d'exploitation

Advantech

Advantech MIC-3327DC01-A43E Manuel d'installation et d'exploitation

Advantech

Advantech UNO-2160 Manuel utilisateur

Advantech

Advantech AMAX-5580 Manuel utilisateur

Advantech

Advantech PCM-26D2CA Manuel d'installation et d'exploitation

Advantech

Advantech WISE-2210 Manuel d'installation et d'exploitation

Advantech

Advantech GX2-400 Manuel utilisateur

Advantech

Advantech INTRAC 204 Manuel utilisateur

Advantech

Advantech WISE-5580 Manuel utilisateur

Advantech

Advantech Celeron M Universal Network Controller with PC/104 Extension... Manuel utilisateur

Advantech

Advantech PCL-839+ Manuel utilisateur

Advantech

Advantech ADAM-5510/P31 Manuel utilisateur

Advantech

Advantech AIIS-1882 Manuel utilisateur

Advantech

Advantech UNO-2050 Manuel utilisateur

Advantech

Advantech ADAM 5510EKW/TP Manuel d'installation et d'exploitation

Advantech

Advantech UNO-2053E Manuel utilisateur

Advantech

Advantech ADAM-5510 Series Manuel d'installation et d'exploitation

Advantech

Advantech LNC-5800D Manuel du propriétaire

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
