Advantech LNC-5800D Manuel du propriétaire

Advantech LNC Technology Co., Ltd. I

Advantech-LNC

LNC-5800D

VERSION: V1.1

20161028

Fieldbus Controller

Product introduction

2 Advantech LNC Technology Co., Ltd.

Advantech-LNC

Table of Contents

1Product introduction................................................................................................ 3

1.1 Specifications summary................................................................................................................3

1.2 Controller Overview ......................................................................................................................4

1.3 Overall system diagram..............................................................................................................10

1.4 Description of controller connectors ...........................................................................................11

1.4.1 Input power ...................................................................................................................11

1.4.2 Communication network.................................................................................................12

1.4.2.1 5800D1 MECHATROLINK-II：......................................................................................12

1.4.2.2 5800D2 RTEX：............................................................................................................13

1.4.2.3 5800D3 EhterCAT..........................................................................................................14

1.4.3Axis control connector....................................................................................................15

1.4.4 I/O connector..................................................................................................................19

1.4.5 Analog output.................................................................................................................20

1.4.6 COM definition ...............................................................................................................21

2Expansion IO........................................................................................................... 23

2.1 SIOA1700 ...................................................................................................................................23

2.2 SIOA1760R.................................................................................................................................28

3I/O Mapping............................................................................................................. 33

Product introduction

Advantech LNC Technology Co., Ltd. 3

Advantech-LNC

1Product introduction

1.1 Specifications summary

Hardware Specifications:

Item

Specifications description

5800D1

5800D2

5800D3

Display

8" Color TFT LCD

Front panel interface

USB (TYPE A) 1ch

10/100Mbps Ethernet 1ch

Operating panel

MDI

Standard OP or Option OP(e.g. OP3360A2)

10 Function keys

PC Interface

COM1: RS232

COM2: RS422/485

VGA

PS2

USB (TYPE A)

10/100Mbps Ethernet

Pulse/encoder axes

2ch

MPG(1encoder + DI：8 points )1 set

Communication

network

MⅡ

RTEX

EtherCAT

Expansion I/O

SIO 1ch

CIO 1ch

Analog output

16bit (±10V)2 ch

LOCAL INPUT

3 points

Power requirements

AC power 110V~240V/1.3A

DC power E24V/4A

Environmental Conditions

Item

Conditions

Storage temperature

-20~80°C( free from freezing )

Storage humidity

Not greater than 90%RH (free from condensation)

Ambient temperature

-5~50°C(free from freezing)

Ambient humidity

Not greater than 90%RH (free from condensation)

Product introduction

4 Advantech LNC Technology Co., Ltd.

Advantech-LNC

1.2 Controller Overview

Lathe version front side

Milling version front side

8” TFT

Color LCD

MDI key

Manual pulse

generator

Emergency stop

Function keys

Front panel

USB

Product introduction

Advantech LNC Technology Co., Ltd. 5

Advantech-LNC

Lathe version rear side

16bit DA * 2

LOCAL IN

AC power

Axial

control

SIO

MPG

Communication

network

DC power

CIO

Product introduction

6 Advantech LNC Technology Co., Ltd.

Advantech-LNC

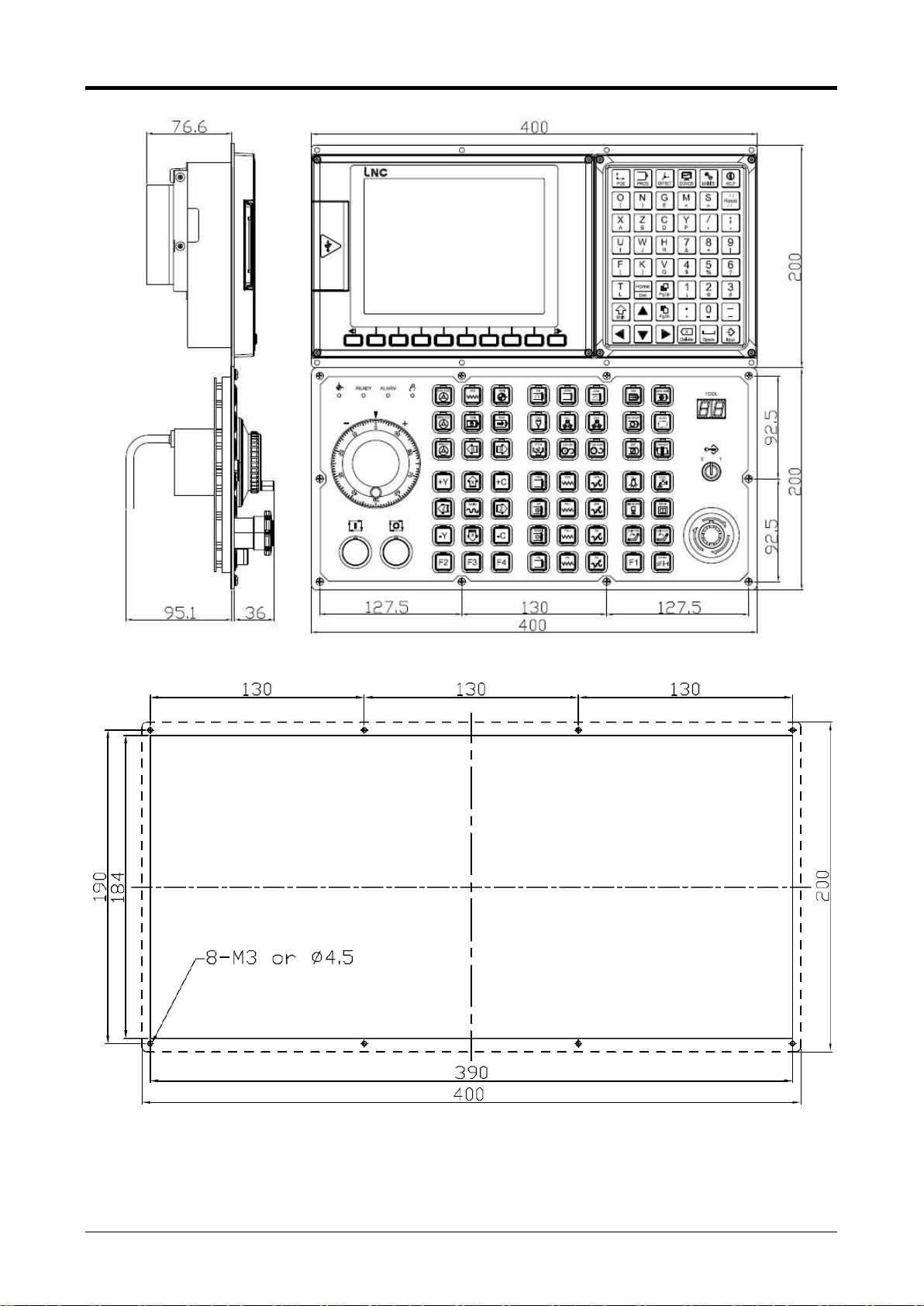

Dimensions and Panel cut dimension drawings

Product introduction

Advantech LNC Technology Co., Ltd. 7

Advantech-LNC

Standard OP Type

Product introduction

8 Advantech LNC Technology Co., Ltd.

Advantech-LNC

Option OP Type

Option OP Type(Controller Unit)

Product introduction

Advantech LNC Technology Co., Ltd. 9

Advantech-LNC

Option OP Type( OP3360A2 Unit)

Product introduction

10 Advantech LNC Technology Co., Ltd.

Advantech-LNC

1.3 Overall system diagram
