Advanced Bionics Slim HP Manuel utilisateur
Slim HP, Slim HP Mic, Slim HP AquaMic™,
Slim HP Color Caps
CI-5320, CI-5322, CI-5321, CI-7131, CI-7132
instructions for use
English, Français, Español
1
SYMBOLS TABLE
Labeling symbols and their meanings
Date of Manufacture
Manufacturer
Model number
LOT number
Unique Device Identifier
Type of Protection: BF
Suitable temperature range for transport
and storage
See Instructions for Use
Fragile
Do not get wet
Suitable relative humidity range for transport
and storage
XXXX-XX-XX
2
Caution (refer to “Cautions & Warnings”
section for further information)
Dispose of in accordance with applicable
national and local regulations
MR Unsafe
IPxx Ingress Protection Rating
Limitations and Contraindications
There are no known limitations or contraindications for
theSlim HPs.
Precautions, Cautions, and Warnings
• This device should be used only by the individual for
whom it is prescribed.
• Do not remove or replace the Slim HP cable from the
sound processor or waterproof wearing solution while
underwater. If the cable becomes accidently detached
during water use, remove the headpiece and sound
processor from the water and dry both devices prior to
re-connecting the cable to the sound processor.
• CHOKING HAZARD: Contains small parts that pose
a hazard of inhalation, choking, or ingestion. If any
parts are swallowed or inhaled, consult a physician or
hospital immediately.
• Do not leave children unattended with or allow children
to play with the Slim HPs or Slim HP Magnets.
3
• Do not allow children to place the Slim HPs or Slim HP
Magnets in the mouth.
• The large Slim HP Color Cap is for use by recipients
older than 3 years of age, as this color cap and
the Slim HP magnet may become displaced upon
dropping.
• Due to increased risk of strangulation, do not use
cables longer than 81cm (32”) with young children.
• Remove your sound processor and consult your coch-
lear implant professional if uncomfortable sounds are
heard or in case of discomfort, pain or skin irritation.
• Be sure to choose a cable length that does not require
looping or bundling of the cable due to excess length.
• The headpiece must only be used by the intended
person and not by others.
• Do not use a headpiece, magnet, or any associated
part, that is broken, damaged, or cracked.
• The color cap must be attached when the headpiece
is in use.
• Store spare magnets safely and away from cards that
may have a magnetic strip (e.g. credit cards) and from
other spare magnets or headpieces.
• High levels of static electricity may damage electronic
components of your sound processor or implant. Care
should be taken to avoid exposure of the system to
static electricity.
• Use the lowest strength magnet required to ensure
sucient magnetic attraction of the headpiece.
4
• Contact your cochlear implant professional to adjust
the magnet strength if the magnetic attraction of the
headpiece is insucient.
• If the headpiece magnet is too strong, pressure sores
may develop at the headpiece site. If this happens, or
if you experience any discomfort, irritation, pressure,
or redness in this area, contact your cochlear implant
professional.
• Although electromagnetic emissions of the Slim HPs
have been confirmed within safe limits, some other
devices could be sensitive to such emissions. If you
notice other devices do not behave as expected when
your Slim HPs are nearby, separate the devices.
• The magnetic field created by the headpiece magnet
may alter the programming of magnetic shunts. Users
of magnetic shunts should consider o-the-shelf
retention methods.
• In the event that you experience any issues with your
product, please contact your cochlear implant profes-
sional or the manufacturer. Do not attempt to service
or modify the Slim HPs. Doing so may compromise
system performance and will void the manufactur-
er’s warranty. Products should be serviced only at
Advanced Bionics and damaged products should be
returned to Advanced Bionics.
Undesireable Side Effects
Undesirable side eects of your Slim HPs may include skin
irritation and discomfort from pressure on the ear or head,
device overheating, or overly loud sounds.
5
Product Description
The Slim HP is a headpiece with an integrated cable
designed for use with a sound processor worn on the
ear. The Slim HP is available with cable lengths of
3.5inches/9cm, 4.25 inches/11cm, and 5.5 inches/14cm.
Slim HP with Color Cap
Sound Processor
Connector
Integrated
Cable

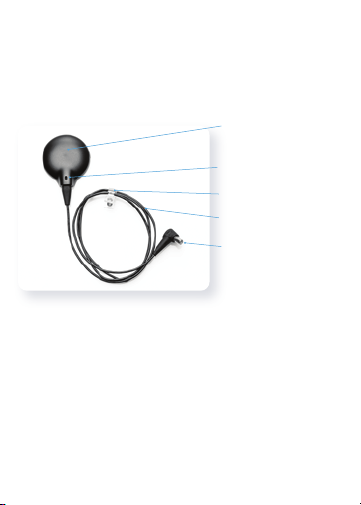

The Slim HP Mic is a headpiece with an integrated
12inch/30cm cable and a microphone designed for use with
a sound processor worn o the ear (for example, in a clip).
Sound Processor
Connector
Integrated Cable
Microphone
Slim HP Mic with
Color Cap
6
The Slim HP AquaMic™ headpiece is a waterproof head-
piece with an integrated cable and a microphone designed
for use with waterproof solutions (e.g., Neptune, AquaCase,
or M Waterproof Battery). The Slim HP AquaMic is available
with cable lengths of 12 inches/30cm, 18 inches/46cm,
24inches/61cm, and 42 inches/107cm.
Sound Processor
Connector
Integrated Cable
Microphone
Slim HP AquaMic
with Color Cap
Cable Clip
The Slim HPs are compatible with the following accessory
products: Slim HP Magnets, Slim HP Color Caps, and the
Slim HP Color Cap Removal Tool.
The Slim HPs contain a magnet well designed to accom-
modate the appropriate Slim HP magnet with appropriate
strength to ensure retention between the cochlear implant
and the headpiece. The Standard Magnets are for use
by recipients of CII, HiRes 90k, HiRes 90k Advantage,
and HiRes Ultra implants. The 3D Magnets are for use by
recipients of HiRes Ultra 3D implants.
7
The Slim HP Color Cap snaps in place on top of the
headpiece securely covering the magnet well and the
microphone. There are two sizes of Slim HP Color Caps:
Standard and Large. The Standard Color Cap is for use
with the smallest Slim HP Magnets: Standard Magnet sizes
1 through 5 and 3D Magnet sizes 1 through 4. The Large
Color Cap is for use with the largest Slim HP Magnets:
Standard Magnet sizes 6 and 7 and 3D Magnet sizes 5,
6, and 7.
Intended Use
The Slim HPs are intended to transfer sound signals and
power between your Advanced Bionics’ cochlear implant
and sound processor. A microphone embedded in the
Slim HP Mic and Slim HP AquaMic, if enabled, allows the
headpiece to also function as a sound input source.
The intended users of the Slim HPs are users of the
Neptune, Naída™ CI Q, Naída™ CI M, or Sky CI™ M
sound processors. The intended use environments of the
Slim HPs are healthcare and daily living environments.
Compatibility
The Slim HPs are compatible with Neptune, Naída CI Q,
Naída CI M, or Sky CI M sound processors from
Advanced Bionics.
Operating Instructions
Assembly Instructions
To operate your headpiece with your cochlear implant
system you will need to install a Slim HP Magnet and
attach a Slim HP Color Cap, as follows:
8
1. Insert the Slim HP Magnet into the magnet well of the
headpiece.
a. For recipients using the Standard Magnet, no specific
magnet orientation is required.
b.For recipients using the 3D Magnet, the magnet
should be inserted so that the arrow on the magnet
points up when the headpiece is on the head.
2. Attach a color cap (See “Color Caps” section).
3. Attach the headpiece and cable to your sound
processor (See “Cables” section).
4. Then place the bottom side of the headpiece over the
internal magnet of your cochlear implant.
NOTE: For recipients of HiRes Ultra 3D implants, if the
headpiece repels or pushes away when brought over
the internal device, rotate the headpiece back and forth
as you move the headpiece closer towards the implant.
Once attraction is felt, adjust the headpiece to the
original orientation and place on head.
NOTE: For recipients of HiRes Ultra 3D implants, when
in a magnetic field or when the headpiece is removed,
you may feel the internal components of the magnet
vibrate and/or rotate. This movement is expected as
the magnets are designed to rotate in the presence
of strong magnetic fields.This movement may be
noticeable and is not expected to be uncomfortable.
