Advanced Bionics Naida CI Q70 Manuel utilisateur

029-M304-85 Rev A

Manufactured by:

Advanced Bionics LLC

California, U.S.A.

+1 661 362 1400

AdvancedBionics.com

Advanced Bionics AG

Laubisrütistrasse 28

8712 Stäfa, Switzerland

+41 58 928 78 00

Naída CI Q70

CI-5245

instructions for use

English, French, Spanish, German, Dutch, Portuguese



2013

Labeling symbols and their meanings:

European Community Mark of

Conformity. Authorized to afﬁx the CE Mark in

20xx

Model

number Date of

manufacture

Serial Number Manufacturer

Type of

Protection: B Store at temperatures

between -20˚C (-4˚F)

and +55˚C (131˚F)

Fragile Do not get wet

Lot Number See Instructions

for Use

Suitable for atmospheric range between

70kPa and106kPa, which is equivalent to

3000m above sea level to 380m below

sea level.

Suitable for exposure to relative humidity

between 0-95%

Dispose of in accordance with applicable

national and local regulations

The Naída CI carries a rating of IP57. This rating

indicates that the Naída CI is protected against

the following conditions:

•Protection against dust

•Failure due to one time immersion for 30

minutes to a depth up to 1m and after drying

overnight in a dry and store unit

REF

2000-00

IP57

LOT

Warnings and Cautions

Warnings

• CHOKING HAZARD: contains small parts that pose a

hazard of inhalation or choking.

• Do not use a ComPilot if recipient has a pacemaker, as

there is potential for interference. Contact a healthcare

professional for more information.

• Do not use or store the AB myPilot in shirt pockets if

the recipient has a pacemaker, as there is potential for

interference. Contact a healthcare professional for more

information.

• Ensure appropriate supervision when child is wearing

the Naida CI sound processor and accessories.

• Keep batteries and accessories out of children’s reach

as they may pose a choking hazard.

• If any parts are swallowed consult a physician or

hospital immediately.

• Do not allow children to play with or leave them

unattended with batteries.

• Do not place batteries in your mouth.

• Do not chew or swallow batteries. If this occurs, seek

immediate medical attention.

• Do not allow children to play with or operate the Zephyr

by Dry & Store® or desiccant unattended.

• Using your sound processor and accessories

contradictory to their intended use (e.g. mouthing,

chewing) may cause bodily harm

• Do not recharge disposable batteries.

• Do not allow leaking battery ﬂuid to come into

contact with skin, mouth, or eyes.

Zephr by Dry & Store® is a registered trademark of Ear Technology Corporation

• Do not expose batteries to heat (e.g., do not store in

direct sunlight or in a hot car).

• Do not dispose of batteries in ﬁre.

• Do not allow children to charge batteries unattended.

• Do not use any other power supply with the sound

processor, AB myPilot remote control or ComPilot

unless it is supplied by Advanced Bionics or Phonak.

If needed call Advanced Bionics for a power supply

replacement.

• Do not use the AB myPilot or the ComPilot when they

are plugged in to power sources such as wall

outlets or other power sources that are USB

compatible such as laptops.

• The ComPilot comes with a neck loop antenna; do not

touch the neck loop connectors at the same time.

• Power supplies and battery chargers should be

operated in an open area to ensure adequate airﬂow.

While no injury cases have resulted, components may

become hot during normal use or a fault condition. If

the device’s temperature results in discomfort or pain

when touched, disconnect the power source and

contact your local Advanced Bionics representative.

Cautions

• Remove external equipment to stop stimulation if

uncomfortable sounds are heard.

• It is important to have the correct magnet strength so

the recipient does not experience discomfort or

retention issues. If an insufﬁcient number of magnets

is used in the headpiece, it may fall off more than

is acceptable. If too many magnets are used in the

headpiece, you may experience irritation or discomfort.

Consult a clinician if there are any concerns regarding

magnet strength. If deemed appropriate, an

audiologist may insert additional magnets or remove

magnets from the headpiece. Do not place additional

magnets in the headpiece unless under the direction of

a cochlear implant professional. If the recipient

experiences any redness, irritation, or discomfort,

discontinue use of the headpiece immediately and

contact a cochlear implant center. See the headpiece

“Instructions for Use” for additional information

regarding adjustment of headpiece magnet strength.

• If the sound processor or accessories become unusually

hot, or warm, discontinue use immediately and contact

Advanced Bionics or a clinician.

• Store additional headpieces away from items with

magnetic strips (e.g. credit cards, hotel room key cards),

as this may de-magnetize cards.

• Portable and mobile RF communications equipment,

including radios and cellular phones, may affect sound

quality of the Naida CI sound processor and

accessories; however, there is no safety hazard

associated with such equipment.

• The Naida CI sound processor and accessories should

be used in accordance with the electromagnetic

compatibility (EMC) information provided in the

‘Guidance and Manufacturer’s Declaration’ section of

this Instructions for Use.

• Only use the charger provided for charging AB

PowerCel™ batteries. DO NOT use it to charge other

batteries. Do not try to charge Naida CI PowerCels

using a charger other than the one provided by

Advanced Bionics.

• Remove batteries from your sound processor when they

are drained to prevent damage from possible leaking.

• Do not expose any part of the Naida CI sound

processor or accessories to extreme heat, such as an

oven, microwave or hair dryer.

• Do not use your AB myPilot or ComPilot accessories

when instructed not to use wireless electronic devices,

such as on airplanes.

• The AB myPilot should not come within 1 cm (1/2”) of

the Naida CI processor while stimulating the implant.

Doing so could cause the implant and sound processor

to lose lock. If this happens, power down the processor

and re-power on (done by disengaging the battery and

reattaching).

• The digitally-coded, inductive transmission

technology used in this device is extremely reliable

and experiences virtually no interference from other

devices. It should be noted, however, that when

operating the device near a computer terminal or

other strong electromagnetic ﬁelds, it may be necessary

to be at least 60 cm (24”) away to ensure proper

operation. If the Naida CI does not respond to the

implant device because of an unusual ﬁeld disturbance,

move away from the disturbing ﬁeld.

• If the AB myPilot stops being able to transmit

commands to the sound processor, it may be

necessary to re-pair the AB myPilot with your sound

processor. Consult the previous section of this user

manual for instructions on re-pairing the AB myPilot.

• If volume commands from your AB myPilot to your

sound processor seem erratic, re-pair the AB myPilot

and the Naida CI.

• Ultrazoom will dampen sounds that are not in front of

the recipient.

• Do not use Ultrazoom in an off-the-ear wearing

conﬁguration.

The Naida CI is a behind-the-ear (BTE) sound processor

that converts sound picked up by the microphone into

electrical signals that are used by the cochlear implant

to enable hearing.

Using the Naída CI Q70 Sound Processor

Powering the Naída CI

The processor is turned ‘on’ when a charged battery

is attached to the processor. In order to power ‘off’ the

processor, the battery cartridge must be removed. When

the battery is engaged, the orange LED located in the

middle of the rocker switch will ﬂash to indicate battery

charge.

The Naída CI will always power on in Program 1 with

the volume and sensitivity at the default settings.

To power down the Naída CI, simply remove the battery

cartridge.

Note: The T-Mic 2 Cover should be replaced at regular

intervals to maintain sound quality.

Removing the Battery

Hold the Naída CI in one hand.

In the other hand hold the battery cartridge.

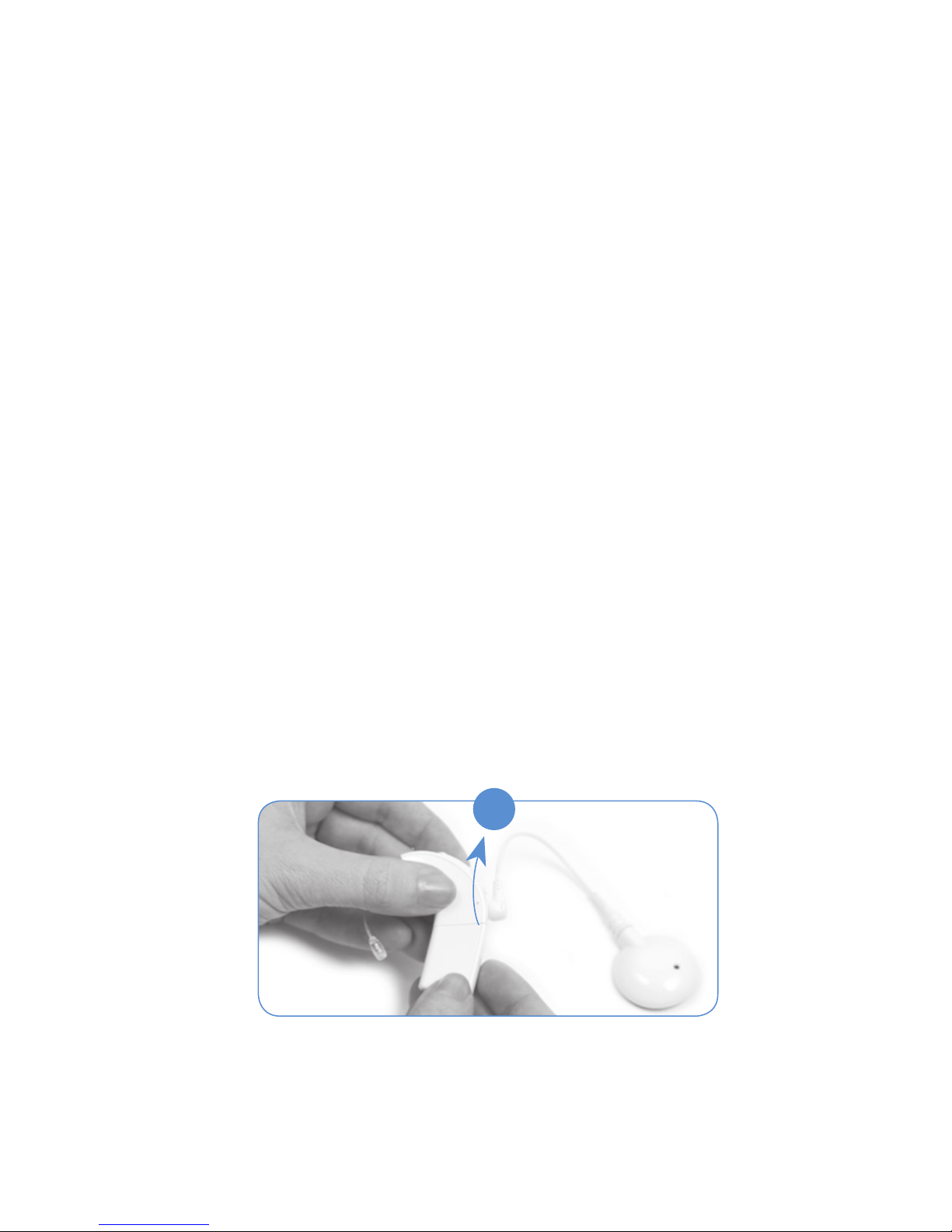

Rotate RF cable upward in order to avoid

bumping it upon battery removal.

Firmly slide the battery cartridge away

from the earhook or T-Mic 2.

Continue sliding the battery cartridge until

it separates from the processor.

Replacing the Battery

Hold the Naída CI in one hand. Rotate RF cable

upward in order to avoid bumping it upon battery

placement

Align the battery cartridge connector with the

processor housing side of the connector.

Slide the battery onto the processor until it

clicks into place.

NOTE: Do not force the battery cartridge onto the

processor. The battery cartridges are designed to be

inserted in only one direction; applying force

may damage the equipment.
