DESCRIPTION

The CenturyLink 2P/4GE WIFI is an Optical Network Unit (C424G ONU) that converts signals being transmitted on optical fiber into

electrical signals at a customer location. The illustration below displays the front and rear of the C424G ONU.

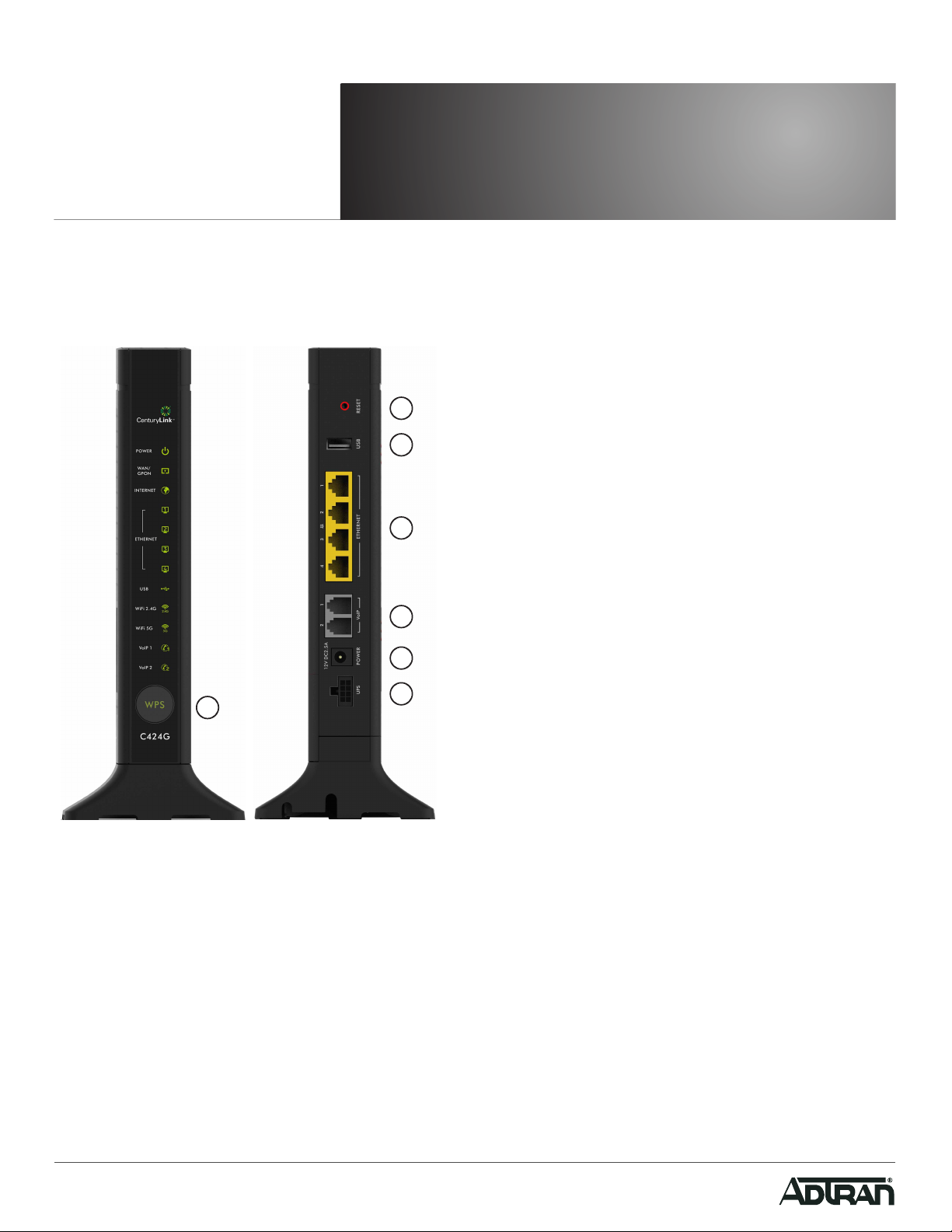

Figure 1. C424G ONU Front and Rear

FEATURES

The C424G ONU supports the following features:

■Reset Button

■USB

■Four Ethernet Ports

■Two VoIP (POTS) Ports

■2.4 GHz and 5.0 GHz WiFi

■12 VDC Power Adapter

■USB Port

Front Rear

Item 1 - Reset

Item 2 - USB

Item 3 - Ethernet Connections

Item 4 - VoIP (POTS) Connections

Item 5 - Power

Item 6 - UPS

Item 7 - WPS

FTTP

C424G ONU

2P/4GE WIFI

June 2017

61287781F1C-13A

P/N: 1287781F1C

2 61287781F1C-13A

Resetting the ONU

All settings will return to Factory Defaults; registration provisioning will be lost.

A reset button is available if the C424G ONU needs to be rebooted. The Reset button is located just above the USB port on the rear of

the C424G ONU. To reset the C424G ONU, press the RESET button for 10 seconds or longer.

Voice Processing

POTS uses in-band signaling tones and currents to determine call status (for example, call request). Because POTS allows for the

transfer of audio signals below 3.3 kHz, POTS systems are also used for modems that allow data transmission (referred to as dial up

connections).

Ethernet Interface

The C424G ONU supports data service through four 10/100/1000Base-T Ethernet interfaces via RJ-45 connectors.

Power

Power is provided by a 12 VDC Power Adapter that is included with the C424G ONU. The Power Adapter operates from a main power

source input of 100 to 240 VAC, 50/60 Hz, with a nominal output of 12 VDC. A connection for an optional un-interruptible power supply

(UPS) is also provided.

UPS

The C424G ONU provides an optional connection for an UPS. A UPS is a battery backup system designed to continue providing power

when the primary power source is lost. Power is supplied to the C424G ONU by a local power source with battery backup that utilizes the

AC power at the customer premises to keep the battery charged.

WiFi

The WiFi function allows you to connect wireless devices without entering a “pre-shared password key” in the device. WiFi supports the

following protocols:

■802.11 b/g/n support on 2.4GHz radio with 2x2 MIMO antenna design

■802.11 a/n/ac support on 5GHz radio with 4x4 MU-MIMO antenna design

gNOTE

The “pre-shared password key” is the default password and is located on the label of the C424G ONU.

WPS

The Wi-Fi Protected Setup (WPS) enables you to connect to wireless devices without entering a password in the device you are

connecting to. WiFi is enabled by simultaneously pressing the WPS button on the C424G ONU and the WPS button on the device you are

connecting to for approximately 5-seconds.

USB

There is a USB data connection on the rear of the C424G ONU that can be used for connection and communications with other

computers and electronic devices. The USB port is USB 2.0 compliant with 500mA service for peripheral devices.

INSTALLATION

After unpacking the C424G ONU, inspect it for damage. If damage is noted, file a claim with the carrier and then contact ADTRAN. For

more information, refer to the warranty.

Installation consists of positioning the C424G ONU on a desktop, or on a wall and connecting POTS (PHONE), Ethernet, Fiber, and

power.

Installation Guidelines

The C424G ONU can be mounted on the base (included) or on a wall.

The following are guidelines for this installation.

■Read all warnings and cautions before installing or servicing the C424G ONU.

■Do not locate the C424G ONU in direct sunlight or next to any thermal obstructions.

61287781F1C-13A 3

Installation Overview

To install the C424G ONU, you will need to complete the following steps:

■“Step 1: Mounting Option”

■“Step 2: Connect VoIP (POTS)”

■“Step 3: Connect Ethernet”

■“Step 4: Connect Power”

■“Step 5: Connect Uninterrupted Power Source (UPS)”

Required tools

Standard technician tools and those listed below are required for installing the C424G ONU:

■Phillips-head screwdriver

■Two, RJ-11 connectors

■Four, RJ-45 connectors

■Wire strippers

■RJ-11 and RJ-45 crimpers

■PON power meter with wavelength filtering

■Fiberscope or videoscope

For fiber optic connections, the following is required:

■ODC Fiber cleaning tool

Step 1: Mounting Option

Installation consists of positioning the C424G ONU on either a desktop, or mounting it on a wall.

Desk Top Installation

With a desk mount, ensure the C424G ONU is not located in direct sunlight and is not located next to any thermal obstructions.

To attach the C424G ONU to the base, complete the following steps:

1. Snap the base on to the bottom of the C424G ONU.

2. Thread the fiber cable through the opening in the base. If there is excess fiber, carefully wrap it around the Fiber Tray.

Remove the plug from the SC/APC Connector and insert the fiber cable. Retain this plug and insert it in the fiber connection when the

fiber cable is not connected. This will protect the optical portion of the connection.

Wall Mount Installation

To wall mount the C424G ONU, complete the following steps:

1. Decide on a location for the C424G ONU. Mount below eye-level so the LEDs are visible.

2. Attach a 1/4 inch mounting board (typically plywood) to the wall. If the wall is drywall construction, ensure the mounting board is

supported by the wall studs.

3. Install two #8 Pan Head screws (1 inch or greater in length) using the key holes on the bottom of the C424G ONU as location

markers. Leave approximately 1/4 inch protruding from the mounting surface.

4. Slide the C424G ONU over the Pan Head screws and exert a small amount of downward pressure to ensure that the top of the slots

are resting on the shafts of the Pan Head screws.

Step 2: Connect VoIP (POTS)

Refer to Figure 1 and insert the RJ-11 connector in to one of the two VoIP ports.

4 61287781F1C-13A

Step 3: Connect Ethernet

The C424G ONU supports four, 1 Gigabit (10/100/1000Base-T) connections (1 to 4).

If Ethernet cables are not available, use the following procedure and table to create the Ethernet cables:

1. Trim the insulation for the subscriber Ethernet cable.

2. Using a CAT 6 cable, connect the wires per the following table using an RJ-45 Crimper.

3. Refer to Figure 1 and insert the CAT 6 rated cable in the appropriate Ethernet port.

Step 4: Connect Power

Refer to Figure 1 and plug the 12 VDC Power Adapter (supplied with the unit) into the 12V DC2.5A connection on the rear of the chassis.

Connect the AC plug to a standard 120 VAC outlet.

Step 5: Connect Uninterrupted Power Source (UPS)

The step is optional. The C424G ONU can typically use an un-interruptible power supply (UPS) if desired. Power is supplied to the

C424G ONU by a local power source with battery backup that utilizes the AC power at the customer premises. The UPS powers the

C424G ONU supplying continuous 12 VDC. Refer to the installation material that is provided with the UPS.

To connect UPS, refer to Figure 1 and connect a UPS cable from the source to the UPS port on the rear of the unit.

gNOTE

ADTRAN offers a UPS Cable assembly (P/N 1287402G1) for this connector.

The UPS Power/Alarm Connections Table below defines each pin on the connector.

UPS Power/Alarm Table

The following table below provides a pinout of the UPS connection.

If an UPS is being used and its internal battery is disconnected or fails, the C424G ONU is not protected from power outages, and will

send a “Battery Missing” alarm to the OLT.

Ethernet RJ-45 Pin-out

Pin Name Description Color Code

1 TRD0+ Transmit/Receive Positive White/Orange

2 TRD0- Transmit/Receive Negative Orange

3 TRD1+ Transmit/Receive Positive White/Green

4 TRD2+ Transmit/Receive Positive Blue

5 TRD2- Transmit/Receive Negative White/Blue

6 TRD1- Transmit/Receive Negative Green

7 TRD3+ Transmit/Receive Positive White/Brown

8 TRD3- Transmit/Receive Negative Brown

Pin-Out Description Alarm

1 Power Input (+12 VDC) -

2 UPS Status - On Battery 1

3 UPS Status - Battery Missing 2

4 Signal Return -

5 Power 12 V Return -

6 UPS Status - Replace Battery 3

7 UPS Status - Low Battery 4

8 No Connection -

61287781F1C-13A 5

LED STATUS

The LEDs are located beneath the plastic housing on the front of the C424G ONU, and are only visible after power has been applied. The

following table provides the LED status during normal operations.

Label Function Status Indication

POWER BOOT-UP 



Off

Green

Green Flashing

Yellow

Red

Power is OFF.

Boot-up complete.

Boot-Up in process.

Software Image boot-up Test in

process. Will remain Yellow if test

fails.

Hardware boot-up test in process.

Will remain Red if test fails.

RESET Yellow Hold Reset Button for Ten Sec-

onds. LED turns Yellow during

reset.

UPGRADE LOCAL -Yellow Flashing Local Upgrade in process.

UPGRADE REMOTE -

Yellow Flashing

Green Flashing

During Remote Upgrade, unit

alternates between Flashing

Yellow and Green.

WAN/GPON PHYSICAL LINE LINK



Green

Red

Link Connected.

Link Lost.

INTERNET

PPP

AUTO-DETECTION 



Green

Red

During Auto-Detection, unit will

alternate between Green and Red

until unit is detected.

REGISTRATION ID

Internet PPP and/or IPOE LED during Registration ID will function as follows:

CONNECTION

FAILURE

Red Red indicates Auto-Detection

failed. LED will remain Red for 5-

seconds, then Auto-Detection will

resume.

AUTHENTICATED

W/PPP CREDENTIALS



Yellow

Flashing

Authentication using PPP at con-

[email protected] complete.

Authentication from LAN to WAN

and WAN to LAN in process.

INTERNET

PPP AND

IPOE

WALLED GARDEN 

Yellow

Yellowing

Flashing

Authentication using PPP user-

name in PPPoE or PPPoA mode

at [email protected] com-

plete.

Authentication from LAN to WAN

and WAN to LAN in process.

NOTE:

The Walled garden state will initi-

ate under the following circum-

stances:

■The modem is authenticated

with the

[email protected]

PPP username in PPPoE or

PPPoA mode.

■The CPE captive portal is

enabled via ACS in all

protocols.

6 61287781F1C-13A

INTERNET

PPP

AUTHENTICATED

WITH UNIQUE

CREDENTIALS



Green

Green Flashing

Authentication complete.

Authentication from LAN to WAN

and WAN to LAN in process.

INTERNET

PPP

PPP FAILING

AUTHENTICATION

Red Authentication failing due to bad

credentials, or a valid WAN IP

address is not obtained.

INTERNET

IPOE

IP ADDRESS

RECEIVED AND

CONNECTION

VERIFIED



Green

Green Flashing

Authentication complete.

Authentication from LAN to WAN

and WAN to LAN in process.

INTERNET

IPOE

IPOE CONNECTION

FAILURE

Red The Internet LED will turn Red

under the following conditions:

■A valid WAN IP Address not

obtained.

■The DHCP NAK packet is

received incorrectly.

INTERNET

LED TRANS-

PARENT

BRIDGING

TRANSPARENT

BRIDGING

Off Internet LED is in an Off state

during Transparent Bridging.

STATIC PUB-

LIC IP

CONNECTION

VERIFIED



Green

Green Flashing

Static IP verified and connected.

LAN to WAN and WAN to LAN

connectivity in process.

ETHERNET

1-4





Off

Green

Green Flashing

Fast

Unit is not connected.

Link is up.

Data is being sent or received.

USB 



Off

Green

Green Flashing

Fast

Power Off or no device connected.

Device connected.

Data is being sent or received.

WIFI 2.4GHZ WIFI ENABLED/

DISABLED





Off

Green

Green Flashing

Fast

Power is Off, or Wireless 2.4GHz

is Disabled.

Wireless 2.4GHz is Enabled.

Data is being sent or received on

2.4GHz.

TIME OF DAY

SCHEDULING

Yellow If radio is disabled via wireless

access scheduler, the wireless

LED will be solid Yellow.

WIFI 5GHZ WIFI ENABLED/

DISABLED





Off

Green

Green Flashing

Fast

Power is Off, or Wireless 5GHz is

Disabled.

Wireless 5GHz is Enabled.

Data is being sent or received on

5GHz.

TIME OF DAY

SCHEDULING

Yellow If radio is disabled via wireless

access scheduler, the wireless

LED will be solid Yellow.

Label Function Status Indication

61287781F1C-13A 7

SPECIFICATIONS

■Electrical

♦Voltage: 12 Volts typical

♦Minimum Voltage: 11.4 Volts

♦Maximum Voltage: 12.6 Volts

♦Power Consumption: Typical 21.0 watts

■Physical

♦9.88 inches high (25.1 centimeters)

♦7.28 inches deep (18.5 centimeters)

♦1.4 inches wide (3.8 centimeters)

♦Weight: 1.17 pounds (0.53 kilograms)

■Environmental

♦Operational Temperature: 32°F to +104°F (0°C to +40°C)

♦Storage Temperature: –4°F to 140°F (–20°C to +60°C)

♦Relative Humidity: 90%, noncondensing

■Optical

♦TX min power: +0.5 dBm

♦TX max power: +5.0 dBm

♦RSSI max sensitivity: –27.0 dBm

♦R.0X overload: –8.0 dBm

♦TX wavelength: 1310 nm typical

♦RX wavelength: 1490 nm typical

MAINTENANCE

The C424G ONU does not require routine hardware maintenance for normal operation. ADTRAN does not recommend that repairs be

attempted in the field. Repair services may be obtained by returning the defective unit to ADTRAN. Refer to the warranty for further infor-

mation. Field support for software is provided through upgrade facilities.

VOIP 1 - 2 VOIP/SIP

REGISTRATION





-2



Off

Green

Green Flashing

Yellow

Yellow/Green

Flashing

Red

VoIP Disabled in the Gateway.

VoIP Traffic Registered and

Active.

VoIP Traffic is being transmitted.

VoIP Setup process failure.

Attempting to Register to Network.

VoIP Registration to Network

Failed.

WPS WPS CONNECTION

STATUS ENABLED/

DISABLED





Off

Green

WPS Disabled.

WPS Enabled.

CONNECTION IN

PROGRESS

-Yellow Flashing Connection in process.

AUTHENTICATION

STARTED

-2Yellow/Green

Flashing

Authentication in process.

SESSION OVERLAP

DETECTED

4Red Flashing Session Overlap Detected. Blink-

ing will continue until Overlap is

cleared.

WPS SUCCESSFUL 

Green

Green Flashing

WIPS Enabled.

WPS Session Initiated.

Label Function Status Indication

Warranty: ADTRAN will replace or repair this product within the warranty period if it does not

meet its published specifications or fails while in service. Warranty information can be

found online at www.adtran.com/warranty.

Trademarks: Brand names and product names included in this document are trademarks,

registered trademarks, or trade names of their respective holders.

ADTRAN CUSTOMER CARE:

From within the U.S. 1.888.423.8726

From outside the U.S. +1 256.963.8716

PRICING AND AVAILABILITY 1.800.827.0807

*61287781F1C-13A*

Documentation for ADTRAN Network Solutions products is available for

viewing and download directly from the ADTRAN Support Community

website.

Go to: https://supportforums.adtran.com/welcome

Registration is required.

ADTRAN offers training courses on our products, including customized

training and courses taught at our facilities or at customer sites.

For inquiries, go to: http://adtran.com/training

The following online documents and resources provide additional information for this product:

SFP/XFP/SFP+ Compatibility Matrix (online tool, go to: http://www.adtran.com/pluggableoptics)

CAUTION!

SUBJECT TO ELECTROSTATIC DAMAGE

OR DECREASE IN RELIABILITY

HANDLING PRECAUTIONS REQUIRED

Table des matières

Autres manuels ADTRAN Matériel réseau

ADTRAN

ADTRAN Total Access DSLAM 16-Port ADSL2+ Access Module... Manuel utilisateur

ADTRAN

ADTRAN TSU 100 Manuel utilisateur

ADTRAN

ADTRAN Total Access 300 Series Manuel du produit

ADTRAN

ADTRAN XFP NG-PON2 ONU Manuel utilisateur

ADTRAN

ADTRAN NetVanta 838 Manuel utilisateur

ADTRAN

ADTRAN 414 RG Manuel utilisateur

ADTRAN

ADTRAN 1442980G1C Manuel utilisateur

ADTRAN

ADTRAN TOTAL ACCESS 600R Manuel utilisateur

ADTRAN

ADTRAN 424 ONT Manuel utilisateur

ADTRAN

ADTRAN DS3 NIU3 Manuel utilisateur

ADTRAN

ADTRAN SHDSL NxNTU Mode d’emploi

ADTRAN

ADTRAN NetVanta NetVanta ADSL NIM Manuel utilisateur

ADTRAN

ADTRAN Total Access 300 Series Manuel utilisateur

ADTRAN

ADTRAN Octal IDSL DSLAM Octal IDSL Manuel utilisateur

ADTRAN

ADTRAN SFP Series Manuel utilisateur

ADTRAN

ADTRAN NetVanta 7000 Series Manuel utilisateur

ADTRAN

ADTRAN Dual T1/PRI Manuel utilisateur

ADTRAN

ADTRAN Express 3100 Manuel utilisateur

ADTRAN

ADTRAN Bluesocket 1700900F1 Manuel utilisateur

ADTRAN

ADTRAN Express 6500 Series Mode d’emploi

ADTRAN

ADTRAN Total Reach TRDDB Mode d’emploi

ADTRAN

ADTRAN D4 FT1 DP Manuel utilisateur

ADTRAN

ADTRAN TRACER 5045 Manuel utilisateur

ADTRAN

ADTRAN Cable T1 ESF CSU ACE Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
