NuPRO-850

Full-Size ePCI-X System

Host Board

Intel® Pentium® 4 processor

User’s Manual

Manual Rev. 1.00: June 18, 2004

Part Number: 50-13045-100

The information in this document is subject to change without prior notice in

order to improve reliability, design, and function and does not represent a

commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,

incidental, or consequential damages arising out of the use or inability to use

the product or documentation, even if advised of the possibility of such

damages.

This document contains proprietary information protected by copyright. All

rights are reserved. No part of this manual may be reproduced by any

mechanical, electronic, or other means in any form without prior written

permission of the manufacturer.

Trademarks

NuDAQ®, NuIPC®, NuDAM®, NuPRO®are registered trademarks of ADLINK

Technology Inc. Other product names mentioned herein are used for

identification purposes only and may be trademarks and/or registered

trademarks of their respective companies.

Getting Service from ADLINK

Customer Satisfaction is top priority for ADLINK Technology Inc. If you need

any help or service, please contact us.

ADLINK TECHNOLOGY INC.

Web Site http://www.adlinktech.com

Sales & Service [email protected]

TEL +886-2-82265877 FAX +886-2-82265717

Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan

Please email or FAX your detailed information for prompt, satisfactory, and

consistent service.

Detailed Company Information

Company/Organization

Contact Person

E-mail Address

Address

Country

TEL FAX

Web Site

Questions

Product Model

Environment

OS:

Computer Brand:

M/B: CPU:

Chipset: BIOS:

Video Card:

NIC:

Other:

Detail Description

Suggestions for ADLINK

List of Tables and Figures •i

Table of Contents

Chapter 1 Introduction..................................................................1

1.1 Unpacking Checklist........................................................................ 2

1.2 Features.......................................................................................... 3

1.3 Functional Blocks and Main Board.................................................. 4

1.4 Specifications.................................................................................. 8

Chapter 2 Jumpers and Connectors.........................................11

2.1 NuPRO-850 Board Outline and Illustration................................... 12

2.2 NuPRO-850 Connector Pin Assignments...................................... 14

Chapter 3 Getting Started...........................................................25

3.1 CPU Installation ........................................................................... 25

3.2 Memory Installation....................................................................... 26

3.3 Connecting IDE Devices to the NuPRO-850................................. 27

3.4 BIOS Configuration Overview ....................................................... 28

3.5 Operating System Installation ....................................................... 29

Chapter 4 Device Driver Installation..........................................31

4.1 Intel® 875P/6300ESB Chipset...................................................... 31

4.2 Driver Installation .......................................................................... 32

Chapter 5 Watchdog Timer.........................................................35

5.1 Watchdog Timer............................................................................ 35

Chapter 6 ePCI-X Bus Details.....................................................41

6.1 NuPRO-850 ePCI-X Bus............................................................... 41

6.2 Global Signals............................................................................... 41

6.3 PCI-X Bus Signals......................................................................... 42

Warranty Policy ...........................................................................43

ii •How to Use This Guide

How to Use This Guide

This manual is designed to help users configure the NuPRO-850 Full-Size

ePCI-X System Host Board with Dual Xeon CPU. It is divided into five

chapters.

Chapter 1 Introduction

Gives an overview of the product features, applications, and

specifications.

Chapter 2 Connectors and Jumpers

Outlines all the connectors and its pin definitions.

Chapter 3 Getting Started

Summarization of what is required to setup an operational

system using the NuPRO-850. Hardware installation and BIOS

overview is discussed.

Chapter 4 Driver Installation

Detailed instructions on how to install the software drivers

successfully.

Chapter 5 Utilities

Explains the operation of the WDT, PXE booting, and Hardware

Doctor.

Introduction •1

Introduction

The NuPRO-850 is a full-size ePCI-X System Host Board (SHB) based on the

Intel® Pentium® 4 processor and 875P Memory Controller Hub / 6300ESB I/O

Controller Hub chipset. It features AGP4X/8X VGA, Serial ATA I/F, Gigabit

Ethernet, and USB v2.0 I/F. It supports two PCI/PCI-X busses via the Intel

6300ESB chipset (one PCI-X 64-bit/66MHz bus and one PCI 32-bit/33MHz

bus). The NuPRO-850 is designed to run under Windows 2000/XP and Linux

operating systems as well as in embedded real time applications.

The NuPRO-850 is a System Host Board with premium computing

performance powered by an Intel® Pentium® 4 processor. The CPU module

supports a front side bus (FSB) of 533/800MHz and a maximum CPU clock

speed of 3.4GHz featuring 64-bit/66MHz PCI/PCI-X bus with up to 4GB high

performance DDR host SDRAM support.

It provides input/output via RS-232, four USB 2.0 ports, Dual IDE Channels

with ATA 100/66/33, Onboard Gigabit Ethernet, and video interfaces for LVDS

Digital LCD Display and dual CRT displays. The NuPRO-850 is designed to

meet the needs of applications which require the highest computing

performance and highest reliability and is designed to run Windows 2000/XP

and Linux operating systems, as well as embedded real-time applications. It is

the ideal solution for telecommunications, internet, and industrial networking

applications.

This chapter is designed to give the user with an overview of the NuPRO-850

SHB. This chapter covers the following topics:

•Unpacking and Checklist

•Features

•Specifications

2•Introduction

1.1 Unpacking Checklist

Check the shipping carton for any damage. If the shipping carton and contents

are damaged, notify the dealer for a replacement. Retain the shipping carton

and packing materials for inspection by the dealer. Obtain authorization before

returning any product to ADLINK.

Check the following items are included in the package, if there are any items

missing, contact your dealer.

•The NuPRO-850 module (May be equipped with different speed or

capacity CPU, RAM, and HDD).

•This User’s Manual

•ADLINK CD

•Com Cable

•Dual Ports USB Cable with bracket

•1 set of Cooler kits

•2 x ATA-100 Cables

•2 x Serial ATA Cables

Note: The package of the NuPRO-850 OEM version non-standard

configuration may vary in function or contents according to

different configuration requests

CAUTION: This board must be protected from static discharge and

physical shock. Never remove any of the socketed parts except

at a static-free workstation. Use the anti-static bag shipped with

the product to handle the board. Wear a wrist strap grounded

through one of the system's ESD Ground jacks while servicing

system components.

Introduction •3

1.2 Features

•PICMG 1.2 Rev 1.0 Embedded PCI-X Specification compliant.

•PCI Local Bus Specification, Rev 2.2 compliant.

•Single Intel® Pentium® 4 processor with 1MB L2 cache,

533/800MHz FSB, Hyper-Threading Technology.

•Four 184-pin DIMM sockets, support single/dual channel DDR

DIMM. Up to four DIMMs of DDR 266/333/400 with ECC unbuffered.

Supports a maximum of 4GB of system memory.

•Intel® 82547GI Gigabit Ethernet Controller. Supports 1000Base-TX,

100Base-TX and 10Base-T (IEEE802.3, 802.3u, and 802.3ab).

•ATI Mobility M9/M10 with AGP4X/8X compliant, 64MB memory.

LVDS signal output connector supports LVDS Digital LCD Display

and dual CRT displays.

•AC'97 link Interface, AC’97 2.2 compliant with optional with ADLINK

DB-AC97 board.

•Supports all generic features include VGA, COM port, USB 2.0,

keyboard, mouse, and hardware monitoring.

•Built-in monitoring CPU temperatures, FAN speed, system

temperature, CPU voltage, and DC voltages.

•Supports Intel®Pre-boot Execution Environment (PXE).

•2 x IDE channels, 2 x SATA ports.

4•Introduction

1.3 Functional Blocks and Main Board

The following topics provide an overview of the NuPRO-850 main features as

shown in the functional block diagram below and also the main board.

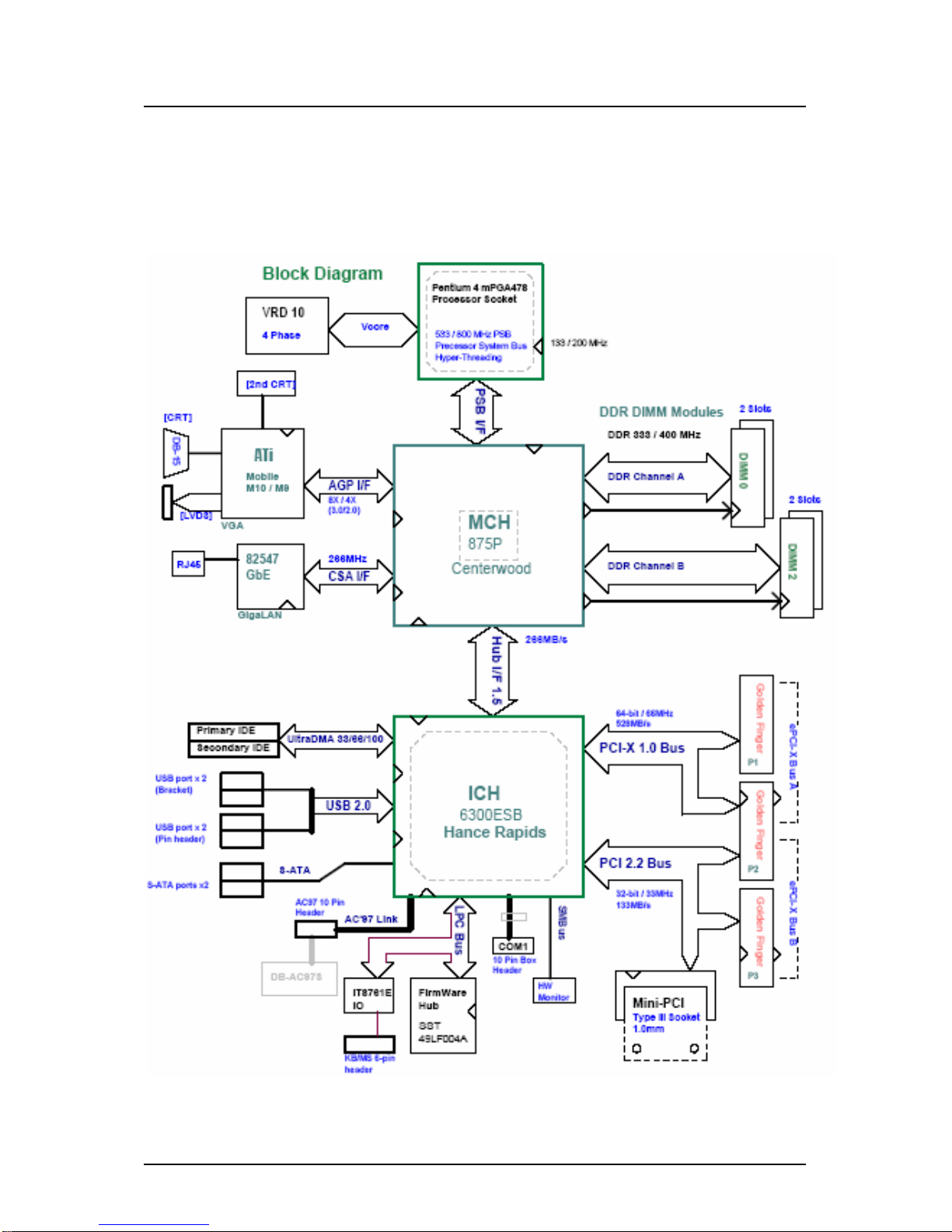

Functional Block Diagram

Figure 1: Functional Block Diagram
