ADLINK Technical Document

Abstract

How to Use Pulse Measurement

OS

Windows

Keyword

GPTC

Related Products

USB-1210, USB-1901, USB-1902, USB-1903

Date

2021-12-28

No.

●Issue Details:

This document outlines how to use pulse width measurement, one of the several GPTC functions

available to users.

●More information:

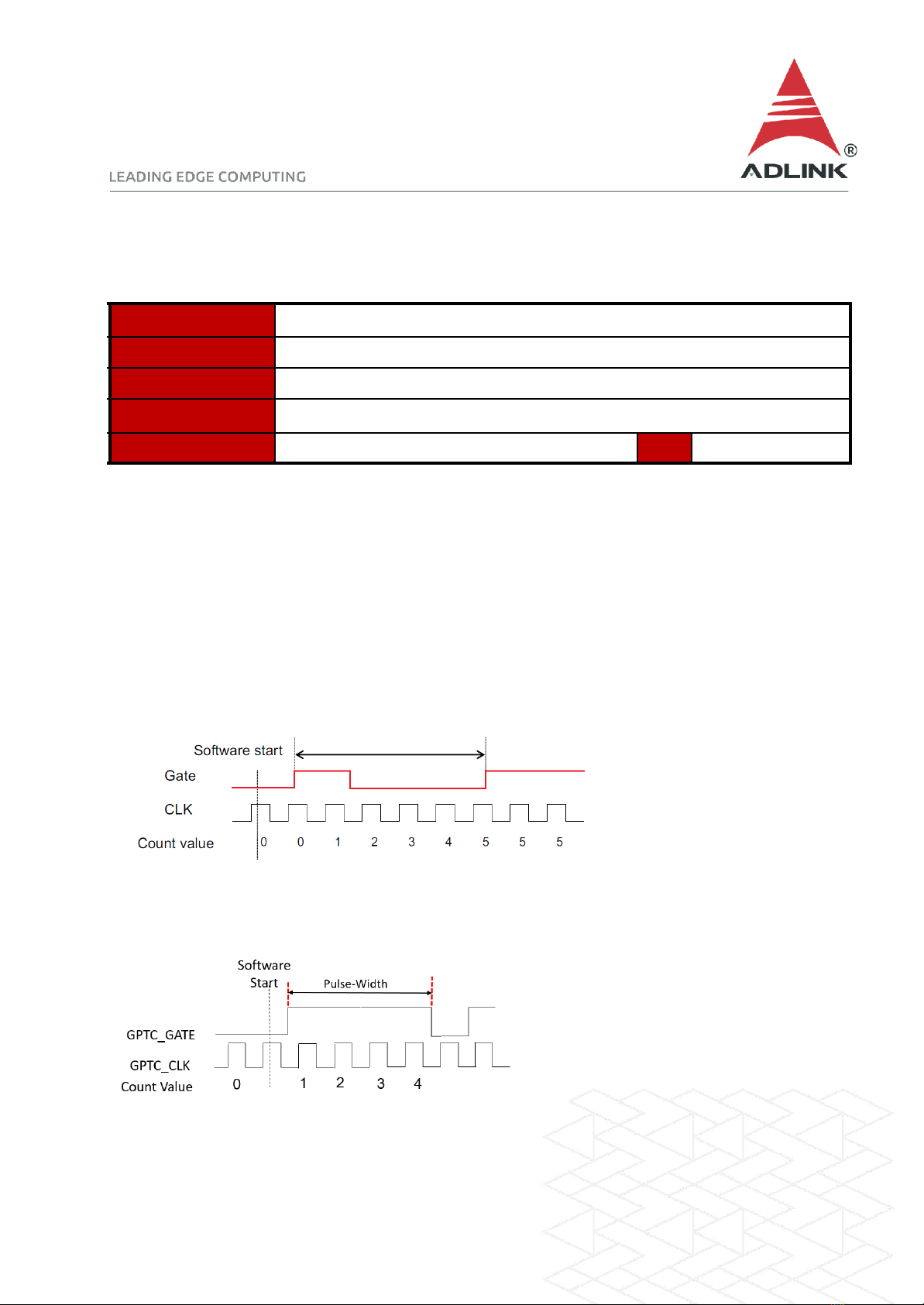

Single period measurement calculates the period of the signal from GPTC_GATE in terms of

GPTC_CLK signal. The counter calculates the number of active edges on GPTC_CLK between two

active edges of GPTC_GATE.

Single pulse width measurement calculates the pulse width of the signal from GPTC_GATE in terms

of GPTC_CLK. The counter calculates the number of active edges on GPTC_CLK.

●Solution:

Step 1: Identify pins

Refer to the user manual and check the pin definitions to find the GPTC_CLK and GPTC_GATE pin

numbers. For the USB-1210, the GPTC_CLK is pin 19 and the GPTC_GATE is pin 17.

For the USB-1900 series, the GPTC_CLK is pin 31, the GPTC_GATE is pin 33.

*For other DAQ pin definitions, please consult the user manual.

Step 2: Connect pins

Connect the source signal for measurement to GPTC_GATE (pin 17).

Step 3: Install U-Test

Download and install the U-Test utility from the ADLINK website.

Step 4: Launch sample program

1. Launch U-test

2. Click Digital Input/Output in the left pane

3. Select the GPTC tab in the right pane

4. Under ModeOperation, select Single Period Measure or Single Pulse-Width

Step 5: Set gate and clock

Set GPTC_GATE to External and GPTC_CLK to Internal.

Step 6: Run

Press the run button (highlighted below) and the DAQ card will start to measure the period. The

source signal is 100Hz, the period is 1/100 = 0.01
